Product Name: 0.56" 2x8-Digit Cascade LED Digital Tube 7 Segment for Arduino UNO MEGA2560 NANO
Module No.: TB353
Package inlcuded:
2 pcs 8 Digit 0.56 Inch Common anode Digital Tube LED Board (Does not include Arduino UNO);

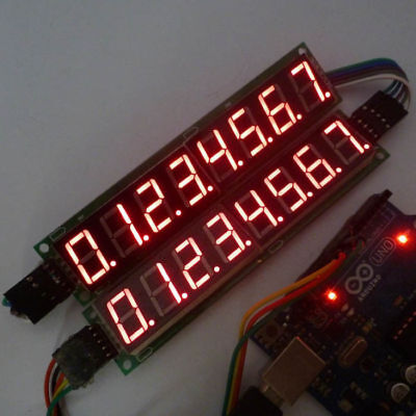

Arduino uno/mega2560 Code fragment:
After purchase, please contact me for complete code!
//*******************************************//
.......
void setup() {
.......
pinMode(latchPin, OUTPUT);
pinMode(clockPin, OUTPUT);
pinMode(dataPin, OUTPUT);
}
void loop() {
int i;
for(i=0;i<28;i++)
{
DisplayAllCharacter(i);
}
while(1)
{
//display 0~E
for(i=0;i<16;i++)
{
TubeDisplayOneBit(i,0,i);
}
}
}
.......
//*******************************************//
Description:

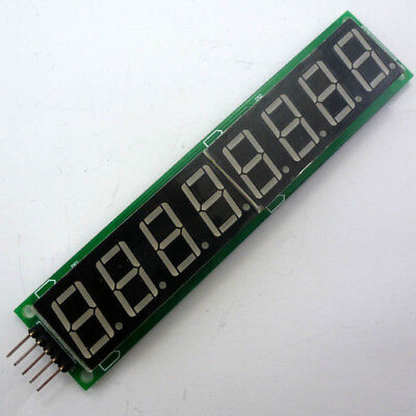

8 Digit 7 segment 0.56 Inch Digital Tube,provide Arduino MEGA2560/UNO Code;

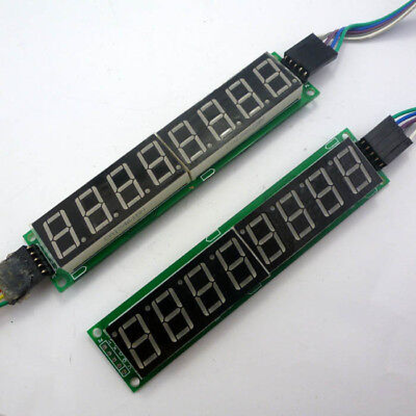

Two 8bit Digital Tube cascade,Composed of 16bit Digital Tube(Not recommended three or more cascaded).
Common anode LED;
Display Color : RED;
Supply voltage : DC 3.3-5V

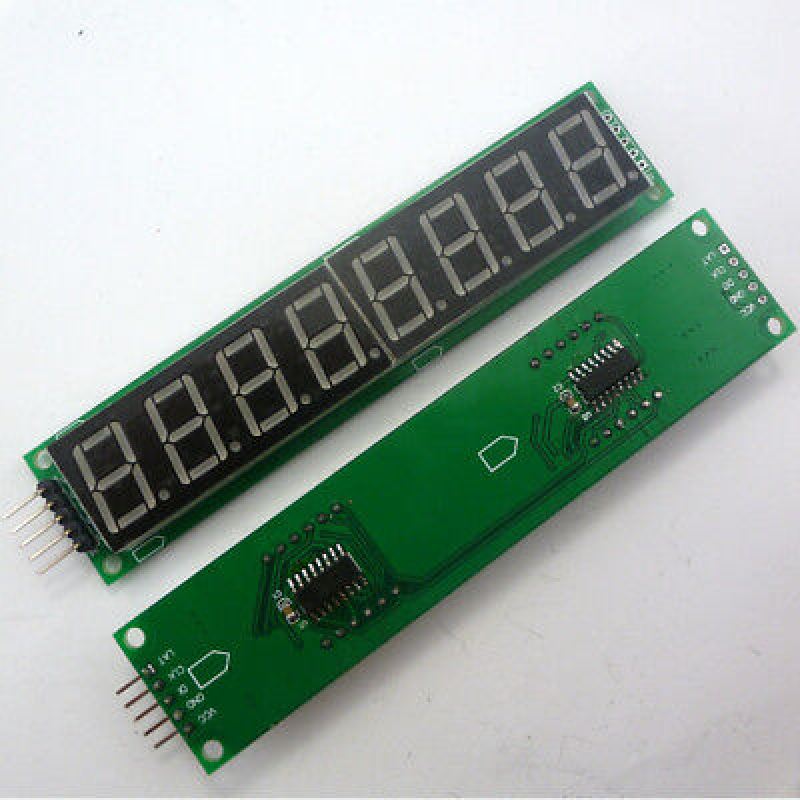

Driver IC : 2 pcs 74HC595
Support display characters : 0,1,2,3,4,5,6,7,8,9,A,b,C,c,d,E,F,H,h,L,n,N,o,P,r,t,U,-
PCB Size :114mm*25mm

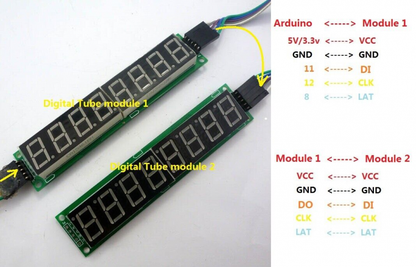

Module Signal Input Interface Definition:
VCC: positive power supply, 3.3V ~ 5V power input;
GND: Ground;
DI: serial data input signal;
CLK: Serial clock input signal;
LAT: latch signal.
Module Signal Output Interface Definition:
VCC: positive power supply output;
GND: Ground;
DO: serial data output signal;
CLK: Serial clock output signal;
LAT: latch signal output.
