TB409 1 Channel DC 12V High level Relay Module for Touch Sensor Delay Switch

TB409 1 Channel DC 12V High level Relay Module for Touch Sensor Delay Switch

TB409

1000 in stock

$1.99
$1.99 $1.99
Sale Sold out

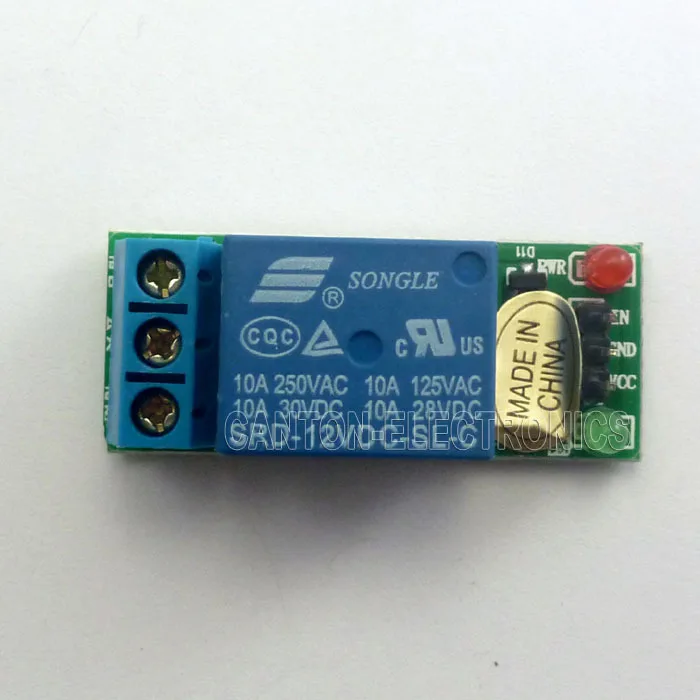

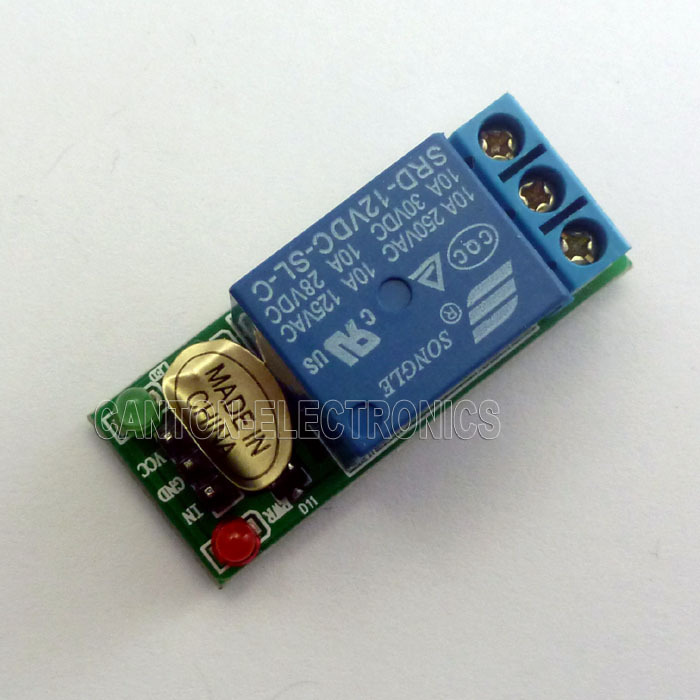

Product Name:1 Channel DC 12V Time Relay Module For Touch Sensor Delay Switch Board


Packing list:





1 pcs


1 Channel DC 12V Relay Module


















Description:













High level trigger




Size : 40MM X 17MM X 18MM




Weight : 15g




Maximum load : 120W

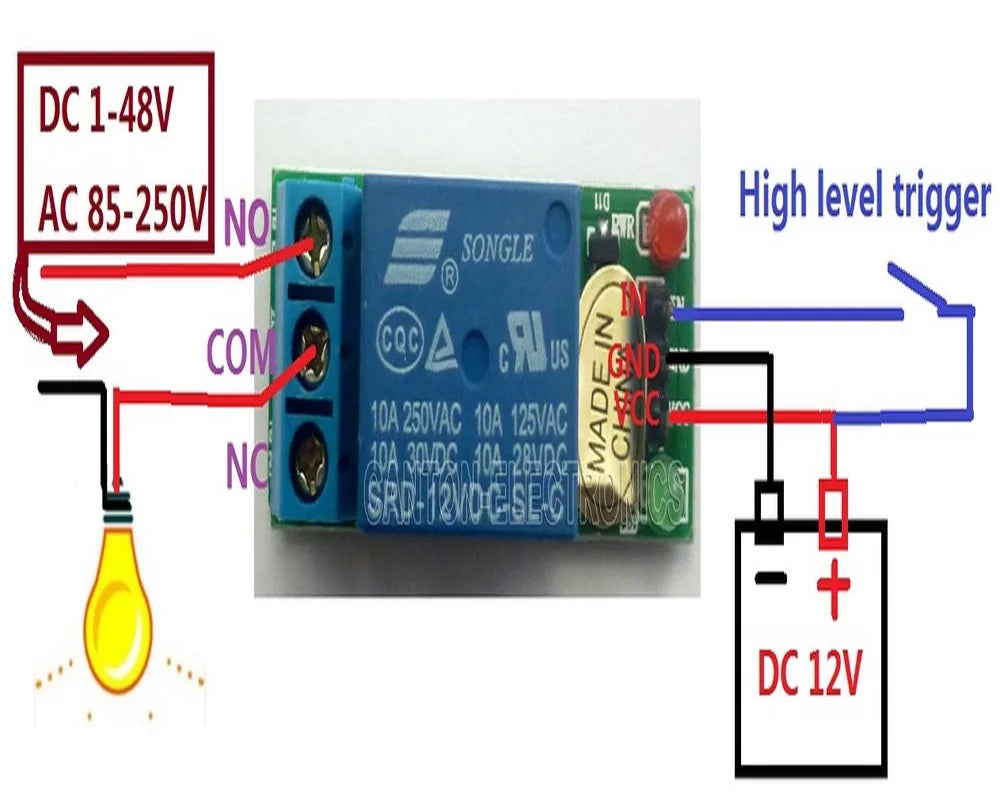

VCC : 12V Power supply positive




GND : Power supply negative




IN :


Trigger input(


High level trigger)

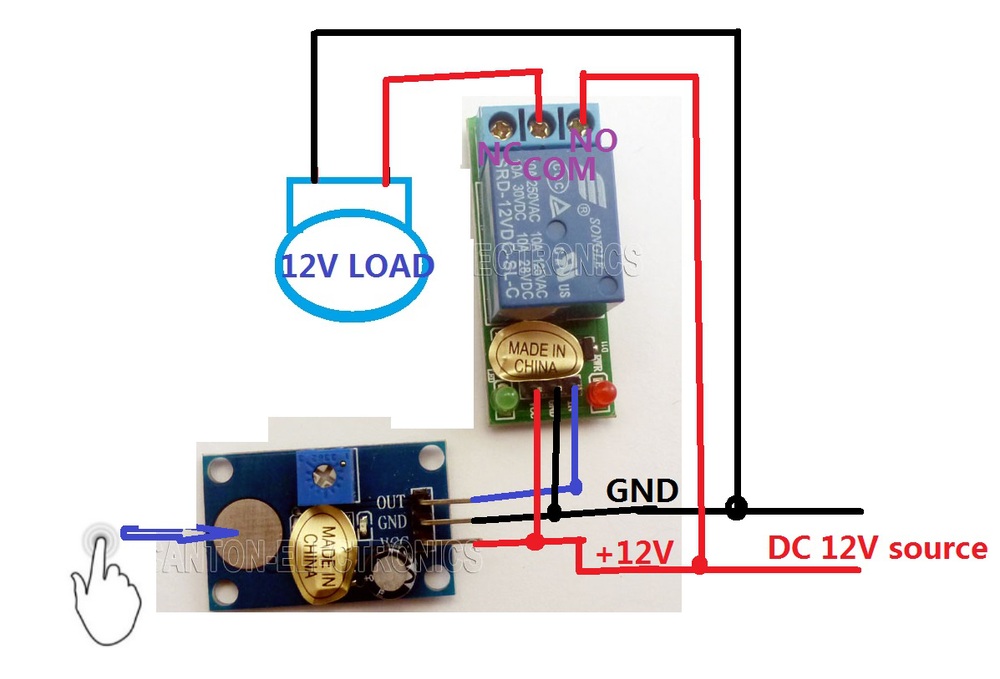

Connected with the


Touch Module 0-130s Delay Timer


:
