Product Name : 30A AC 110V 120 220V UPS Module 50 60HZ Automatic Switching Backup Power Supply Board Power Failure Automatic Transfer Switch
Packing list:
1PCS ACUPS22/ACUPA30 220V 10A/30A UPS Module
Description:

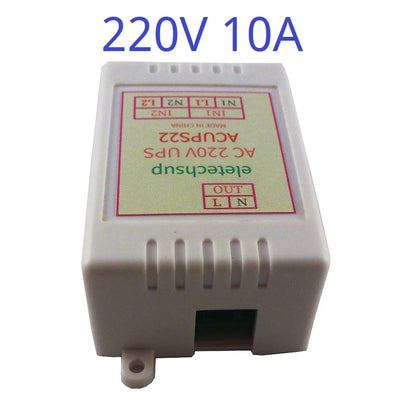

ACUPS22 220V 10A UPS :
Input voltage : AC 180-265V /50-60HZ
Output voltage : Equal to the input voltage
Maximum load current : 10A
Power off switching time: 200-300MS
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°

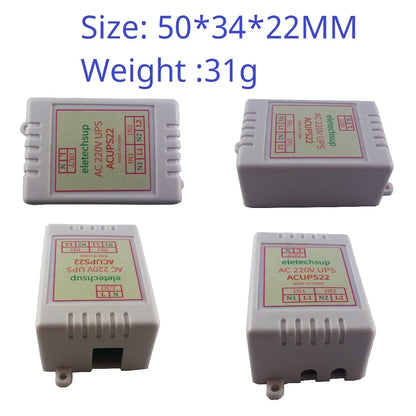

Size: 50*34*22MM
Weight :31g

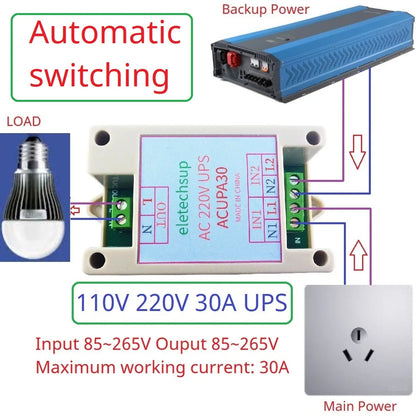

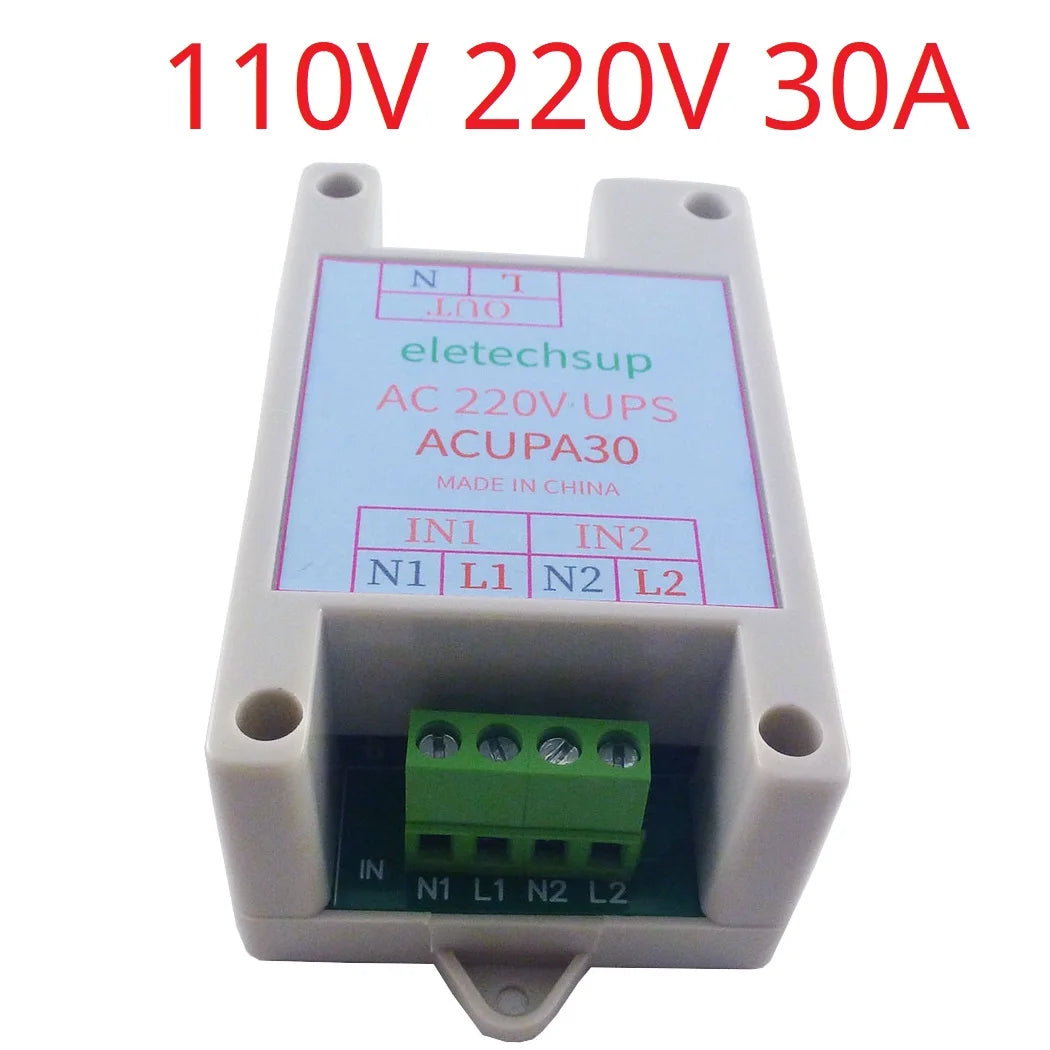

ACUPA30 110V 220V 30A UPS :
Input voltage : AC 85-265V /50-60HZ
Output voltage : Equal to the input voltage
Maximum load current : 30A
Power off switching time: 200-300MS
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Size: 80*50*31MM
Weight :84g

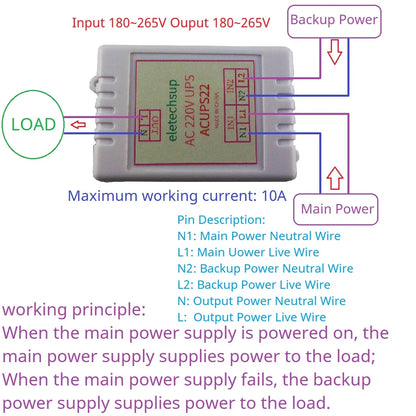

Pin Description:
N1: Main Power Neutral Wire
L1: Main Uower Live Wire
N2: Backup Power Neutral Wire
L2: Backup Power Live Wire
N: Output Power Neutral Wire
L: Output Power Live Wire

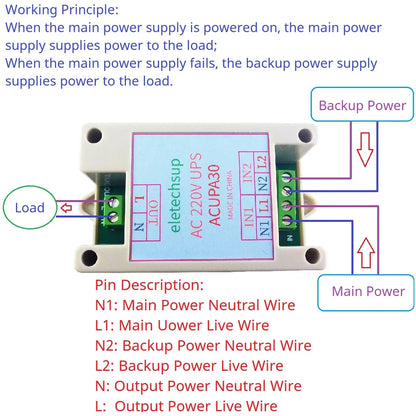

Working Principle:
When the main power supply is powered on, the main power supply supplies power to the load;
When the main power supply fails, the backup power supply supplies power to the load.
Applications:
WIFI router network equipment uninterrupted power supply
Uninterrupted power supply for industrial equipment such as PLC/HMI/industrial control host
Solar battery Diy
RV Backup Power Supply Diy
Computer router room backup power supply equipment
Rural orchard backup power equipment
