DNR1A07 10M Step 0.1R Adjustable Potentiometer Programmable Resistance Module DIN Rail Shell for PLC MCU FPGA CPLD STM32
DNR1A07 10M Step 0.1R Adjustable Potentiometer Programmable Resistance Module DIN Rail Shell for PLC MCU FPGA CPLD STM32
SKU:DNR1A07_R
1000 in stock
Regular price
$9.99
Regular price
$8.41
Sale price
$9.99
Unit price
per
Couldn't load pickup availability
Product model: 10M Step 0.1R Adjustable Potentiometer Programmable Resistance Module DIN Rail Shell for PLC MCU FPGA CPLD STM32
Packing List:
1PCS 1M programmable potentiometer

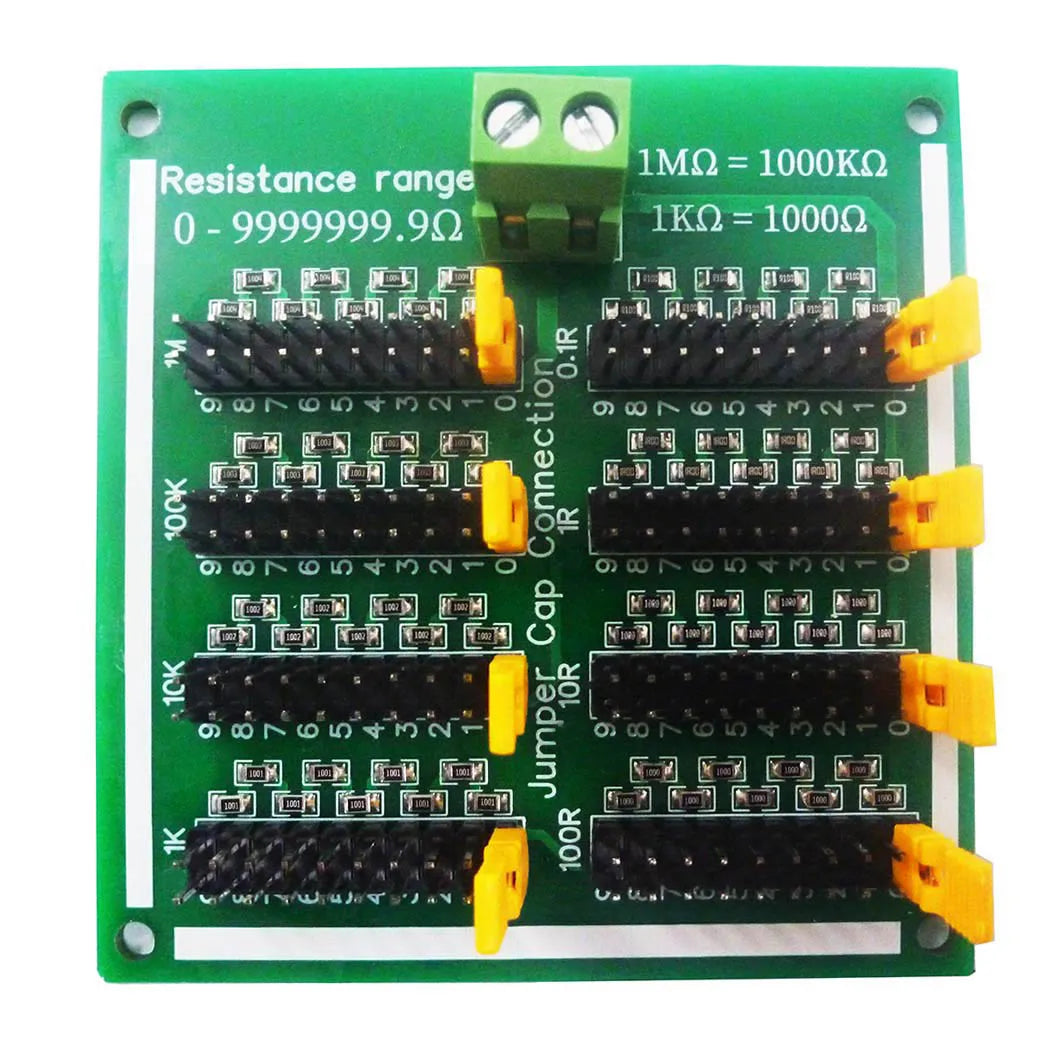

This is a low-cost and good alternative to ''resistor replacement box'', which can flexibly and quickly set the resistance range you need. This module has an adjustable resistance range of 0~9999999.9Ω, eight decimal programmable resistance modules, step 0.1R, resistance accuracy 1%, the resistance value of the resistor can be adjusted with a jumper cap. It can be used in education, experiment, testing, electronic engineering design and other fields.
Design principle: Design based on the ''resistance series'' theorem.
Product parameters:
Stepping : 0.1R
8 decimal modules
Resistance accuracy: 1%
Resistance tolerance: ±1%
Maximum working voltage: 220V
Adjustable resistance range: 0~9999999.9 Ω
Tolerance: 1/8 watt tolerance ±1% SMD resistor.
Resistance adjustment: You can use the jumper cap to adjust the resistance value you need
Terminals: screw terminals are used to connect wires quickly and easily
Weight with shell: 84.9g
Weight without shell: 27.5g

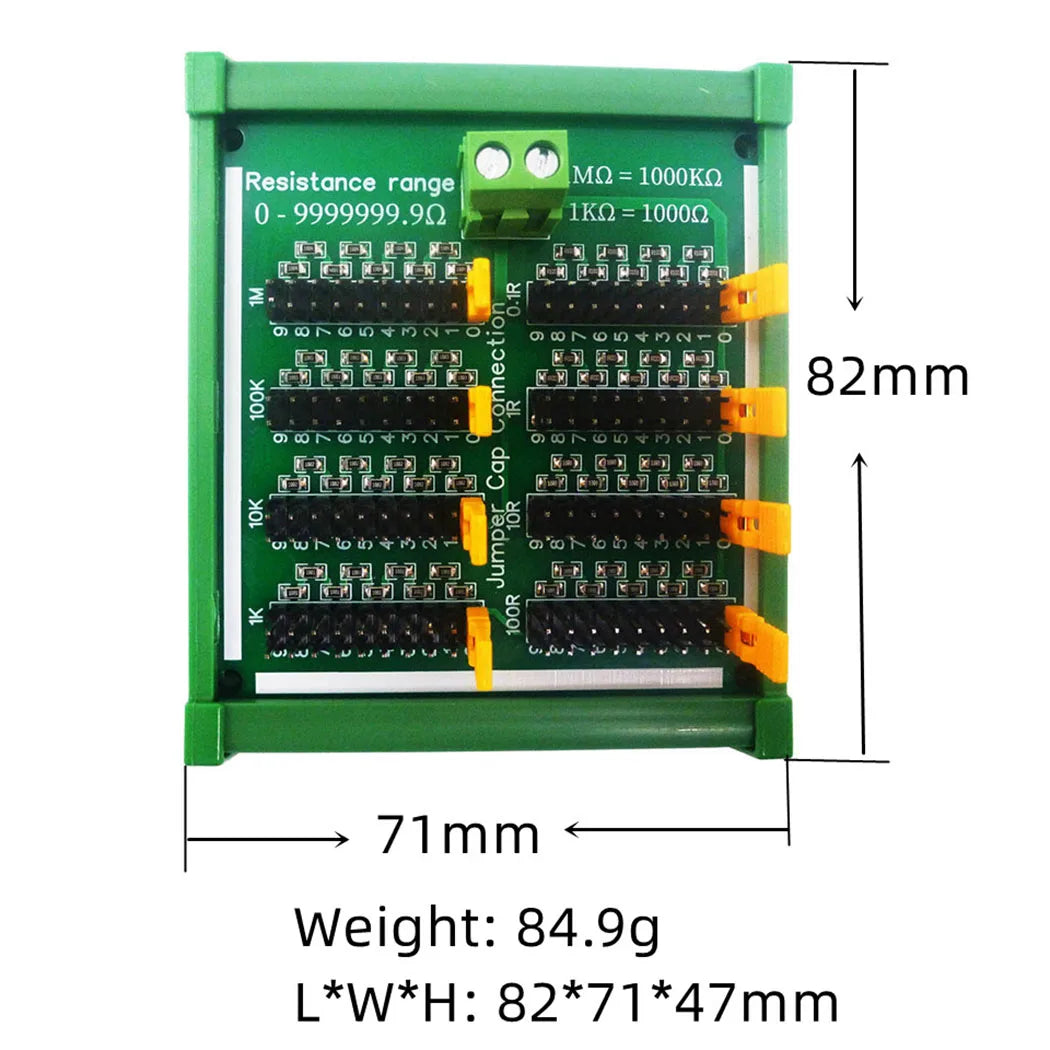

With shell size: 82*71*47mm

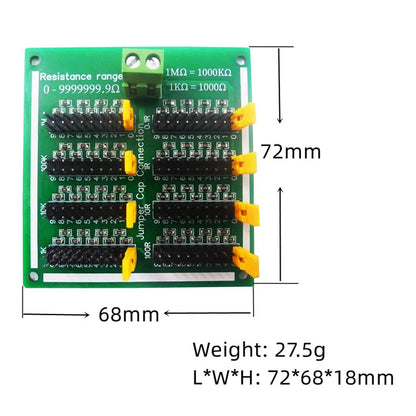

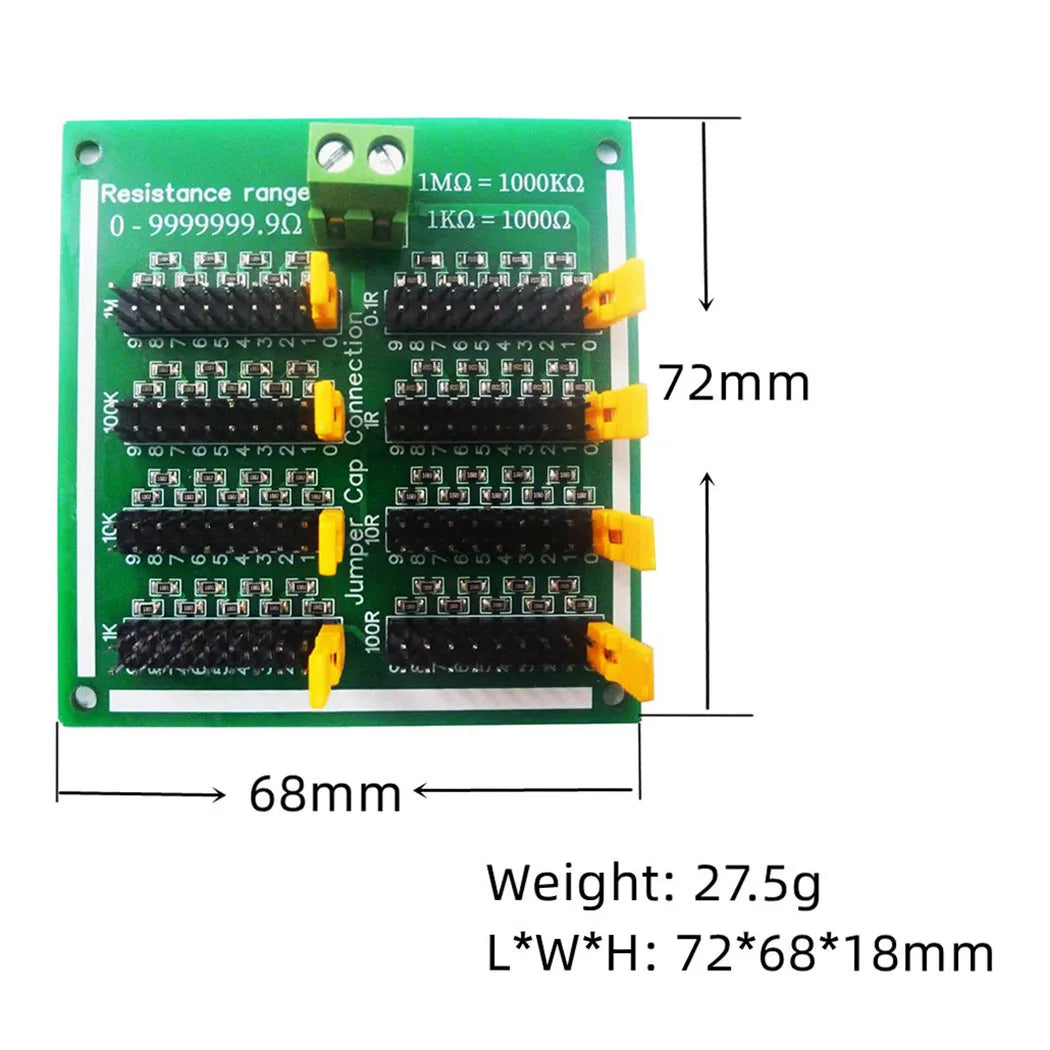

Size without shell: 72*68*18mm
