10pcs/lot 3-12V 6 Bits Blue LED Module Display indicator Board for Marquees Water lights Breadboard for DUE MEGA2560 MCU

Product Name:10pcs/lot 3-12V 6 Bits Blue LED Module Display indicator Board for Marquees Water lights Breadboard PCB UNO MEGA2560 MCU diy kit


Packing list(Does not include UNO Board):
10 pcs 6 bit Blue3V-12V Common Cathode LED's Board

2.54MM PIN 6 Digital LED Board ,Can be inserted directly into Arduiuo UNO MEGA2560 DUE Board ( Does not require any wiring ),Ideal for linking up to your Arduiuo UNO Pro Mini Nano Mega2560 DUE etc,or others MCU (AVR STM32 ARM7 ARM9 ARM10 ARM11 PIC C8051 C51 STC MSP430 FPGA/CPLD etc.)



1. 6 Digital Blue Common Cathode LEDs(Active high level).

2 .7 PIN OUT 2.54mm

3 .1K ohm Limiting resistor

4 .Power Supply Voltage: 3-12V;

5 .Size: 17.78MM x 11.43MM.

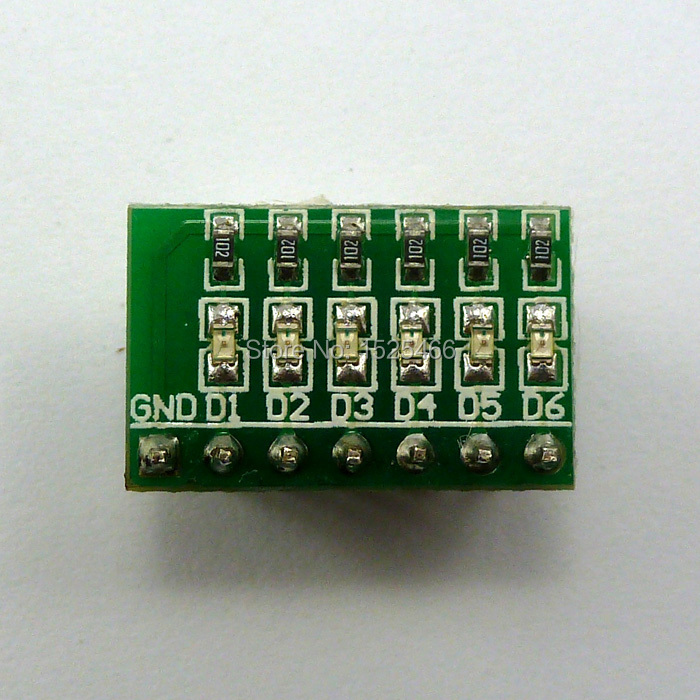

PCB:

Circuit schematics :

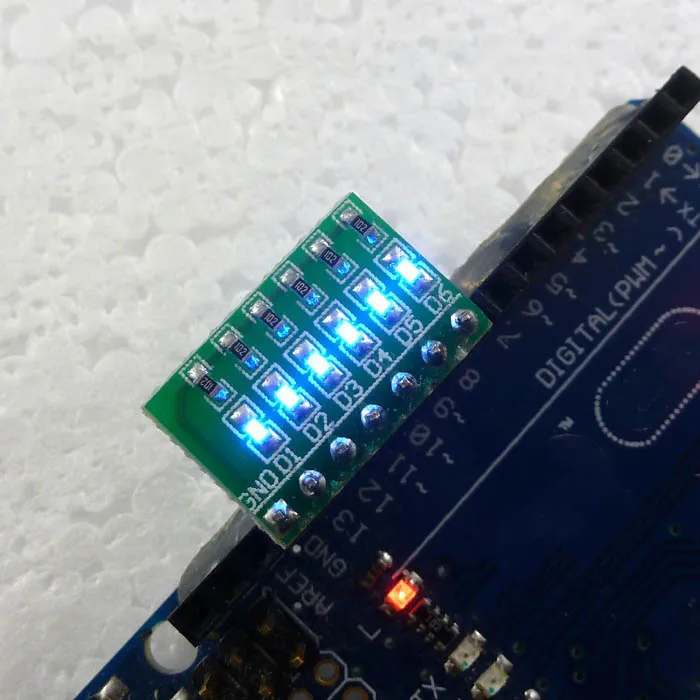

Connection with Arduiuo(Only 6 bit LED's Board ,Does not include ARDUIUO UNO R3):

Arduiuo uno/mega2560 Code 1pcs

//******************************************************//

/*

Arduiuo_6led

This example code is in the public domain.

*/

// give it a name:

int D1 = 13;

int D2 = 12;

int D3 = 11;

int D4 = 10;

int D5 = 9;

int D6 = 8;

// the setup routine runs once when you press reset:

void setup() {

// initialize the digital pin as an output.

pinMode(D1, OUTPUT);

pinMode(D2, OUTPUT);

pinMode(D3, OUTPUT);

pinMode(D4, OUTPUT);

pinMode(D5, OUTPUT);

pinMode(D6, OUTPUT);

}

// the loop routine runs over and over again forever:

void loop() {



digitalWrite(D1, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a 200 Millisecond

digitalWrite(D1, LOW); // turn the LED off by making the voltage LOW



digitalWrite(D2, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D2, LOW); // turn the LED off by making the voltage LOW



digitalWrite(D3, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D3, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D4, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D4, LOW); // turn the LED off by making the voltage LOW



digitalWrite(D5, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D5, LOW); // turn the LED off by making the voltage LOW



digitalWrite(D6, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D6, LOW); // turn the LED off by making the voltage LOW



}

//******************************************************//

Arduiuo uno/mega2560 Code( Insert two LED board)

//******************************************************//

/*

Arduiuo_6led

This example code is in the public domain.

*/

// LED Board 1

int D1 = 13;

int D2 = 12;

int D3 = 11;

int D4 = 10;

int D5 = 9;

int D6 = 8;

// LED Board 2

int D11 = 1;

int D12 = 2;

int D13 = 3;

int D14 = 4;

int D15 = 5;

int D16 = 6;

int GND = 7;//Common Cathode

// the setup routine runs once when you press reset:

void setup() {

// initialize the digital pin as an output.

pinMode(D1, OUTPUT);

pinMode(D2, OUTPUT);

pinMode(D3, OUTPUT);

pinMode(D4, OUTPUT);

pinMode(D5, OUTPUT);

pinMode(D6, OUTPUT);

pinMode(D11, OUTPUT);

pinMode(D12, OUTPUT);

pinMode(D13, OUTPUT);

pinMode(D14, OUTPUT);

pinMode(D15, OUTPUT);

pinMode(D16, OUTPUT);

pinMode(GND, OUTPUT);

digitalWrite(GND, LOW);

}

// the loop routine runs over and over again forever:

void loop() {

digitalWrite(D1, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a 200 Millisecond

digitalWrite(D1, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D2, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D2, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D3, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D3, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D4, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D4, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D5, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D5, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D6, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D6, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D16, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D16, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D15, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D15, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D14, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D14, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D13, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D13, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D12, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a Millisecond

digitalWrite(D12, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D11, HIGH); // turn the LED on (HIGH is the voltage level)

delay(200); // wait for a 200 Millisecond

digitalWrite(D11, LOW); // turn the LED off by making the voltage LOW

}

//******************************************************//
