ND4012DA 10W Dual Channel DC-DC Step-Down Buck Converter Board DC 7-30V to 3.3V 5V 12V

SKU:ND4012DA_H

11 in stock

$6.48

~~$6.48~~ $6.48

Sale Sold out

Quantity

Product Name : 10W Dual Channel DC-DC Step-Down Buck Converter Board DC 7-30V to 3.3V 5V 12V

Packing list:

1 PCS 10W 2 Channel Dual output DC DC Buck Converter

Description:

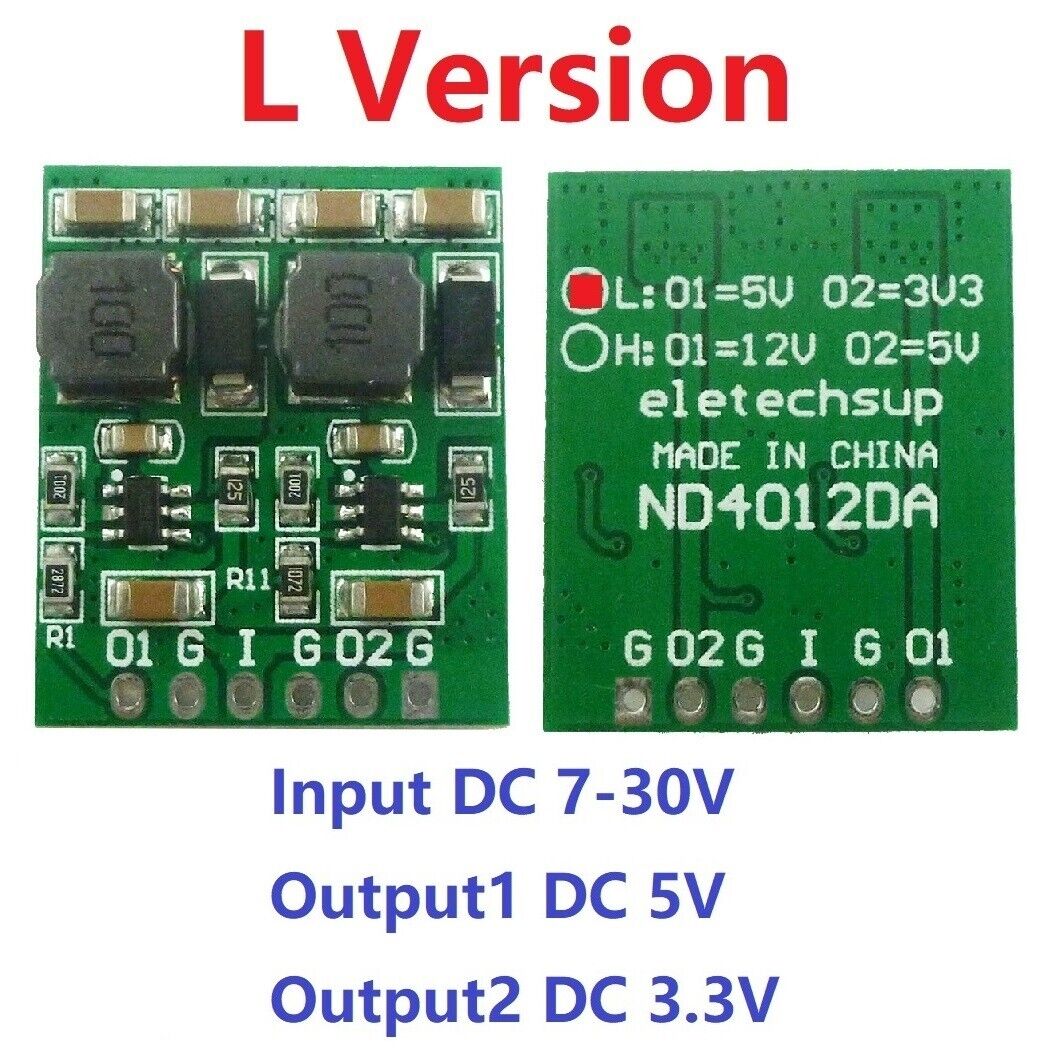

L Version:Input DC 7-30V,Output1 DC 5V/Output2 DC 3.3V

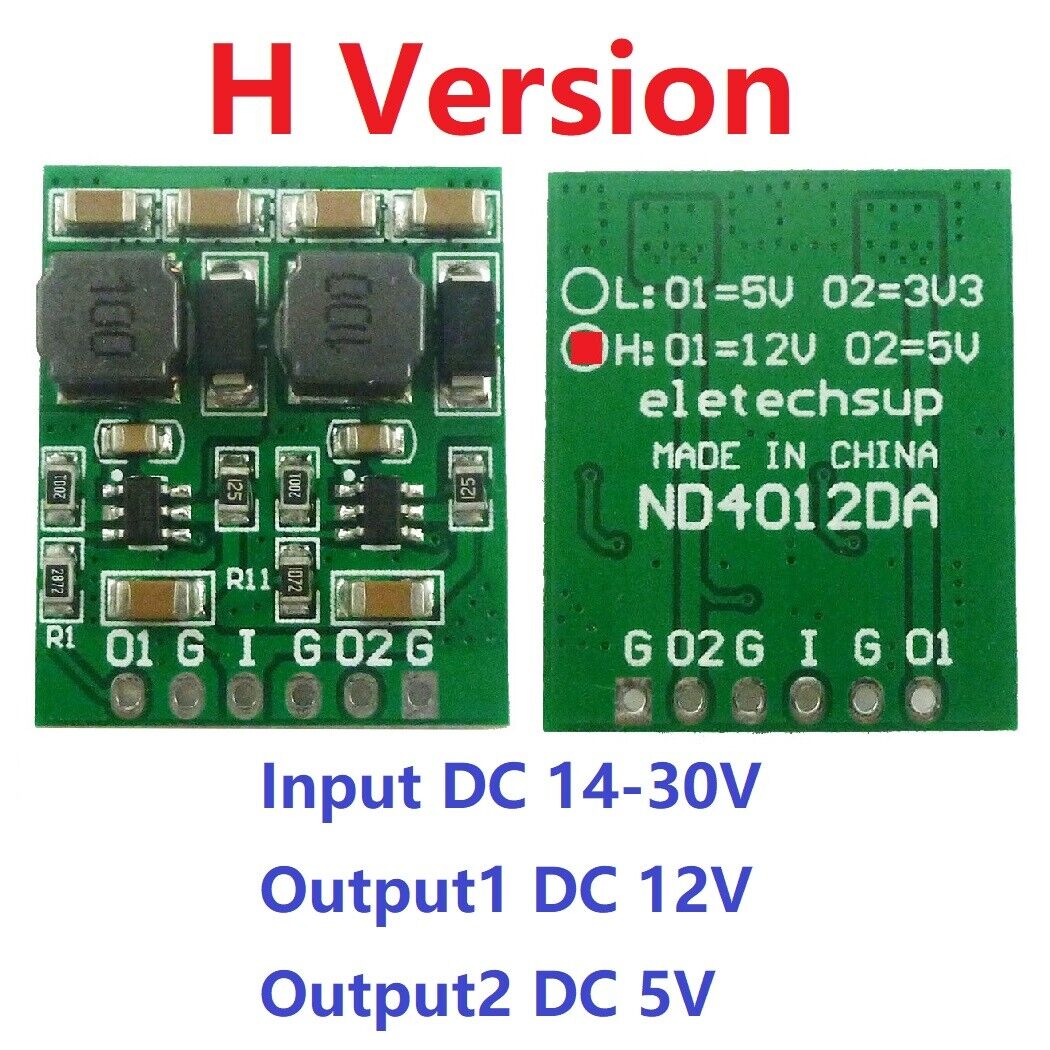

H Version:Input DC 14-30V,Output1 DC 12V/Output2 DC 5V

L Version Maximum Output Current : 5V/1A;3.3V/1A

H Version Maximum Output Current : 12V/0.5A;5V/1A

DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% .

Quiescent current: about 1MA

Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.

2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly

Size : 25mm x 21mm x 5.8mm(Small)

Weight : about 3g(Light)

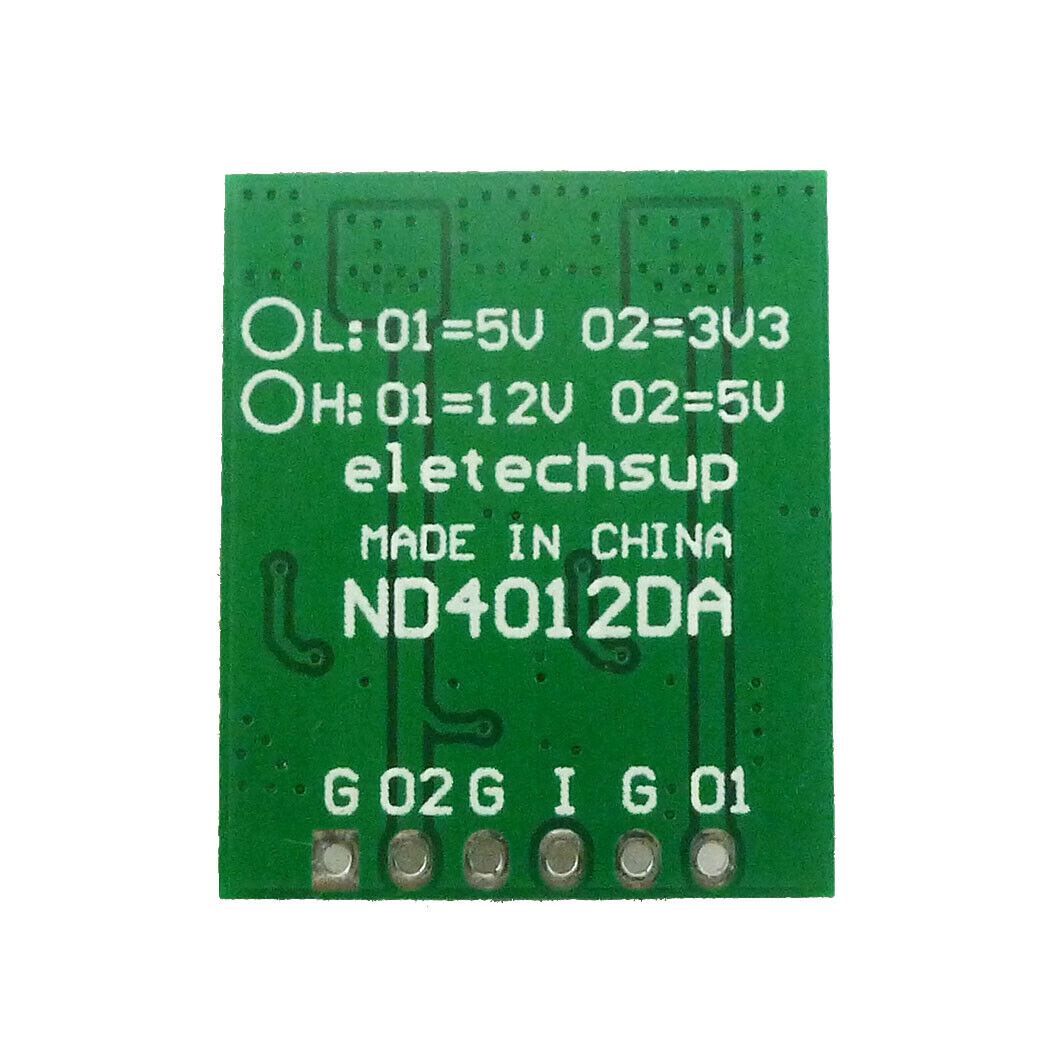

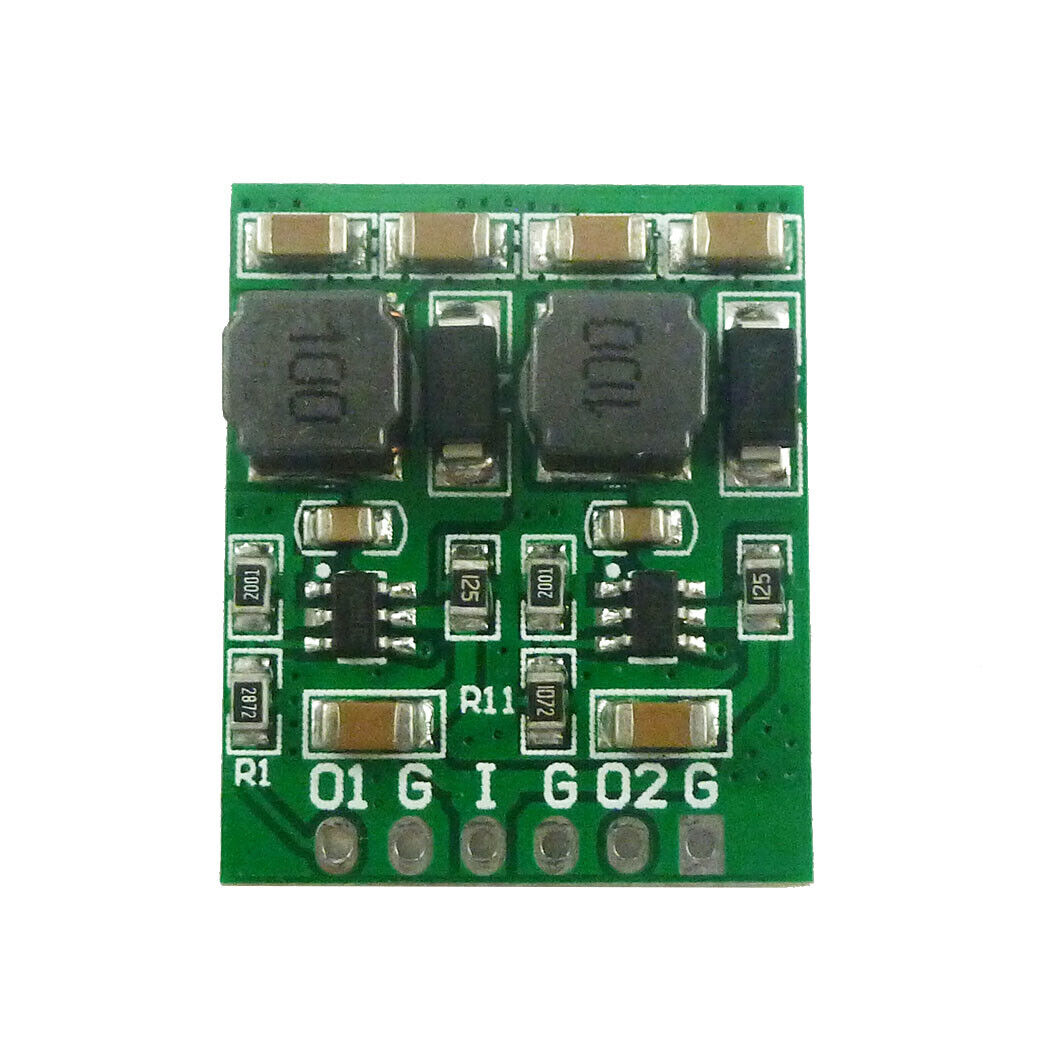

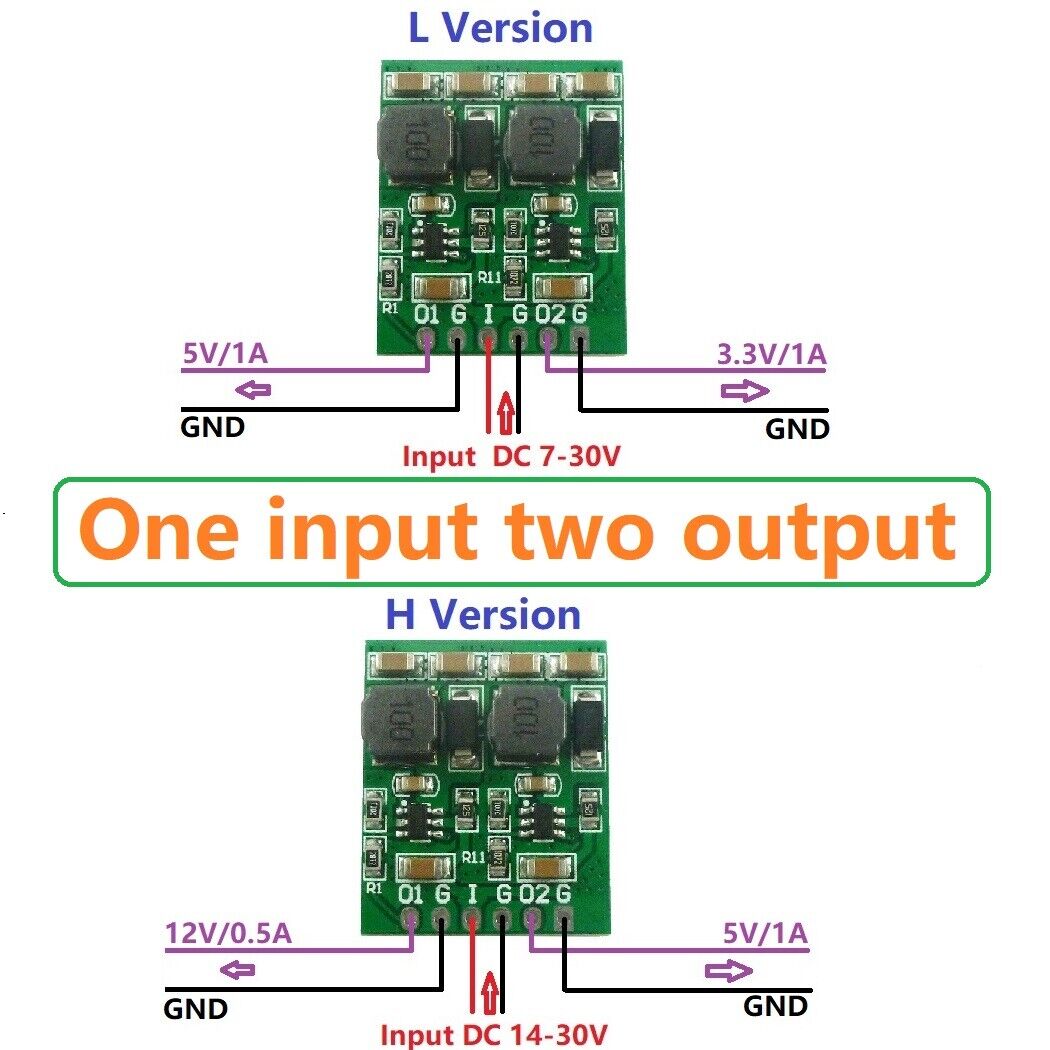

Pin description:

O1 : Output 1 positive +
G : Output 1 negative -
I : Input positive +
G : Input negative -
O2 : Output 2 positive +
G : Output 2 negative -

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

3.3V 5V 12V MCU ARM CPU FPGA/CPLD

12V 5V 3.3V lithium battery-powered systems

Small Motor Toy

WIFI esp8266 HC-12 Bluetooth Module

CCTV camera

Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee

Smart home / home automation

Distributed Power Systems

Battery Charger

Pre-Regulator for Linear Regulators

FM radio
