12 Button RF Remote Control 12 pcs Receiver 1 Button 1 Receiver 1 to Multi RX

12 Button RF Remote Control 12 pcs Receiver 1 Button 1 Receiver 1 to Multi RX

$110.98 USD
$110.98 USD $110.98 USD
Sale Sold out

12 Button RF Remote Control 12 pcs Receiver 1 Button 1 Receiver 1 to Multi RX


 Qty :

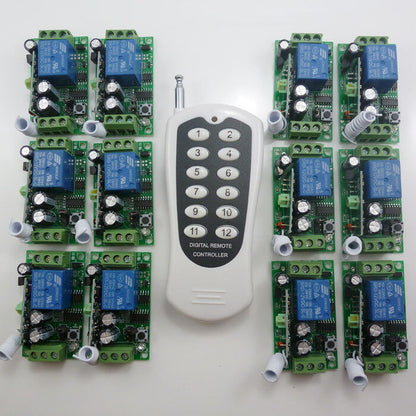

1 pcs 12 Button Fixed code remote ;
12 PCS 1 Chancel Receiver .

Every button controls 1 pcs Receiver independently :

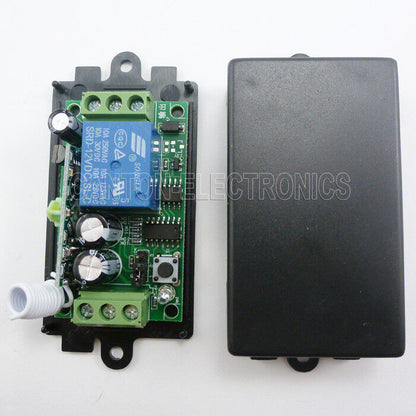

Wireless Receiver :



Technical indicators:

1.operating voltage: DC 12V ;

2.working frequency:433.92MHz;
3:Maximum load: 1000 watts;
4:PCB Size:41×20×15mm;
5: Momentary Mode ,Latch Mode  , Toggle Mode can be adjustable by slodering back side.
6. Pls connect the receiver modules properly before power supply ;

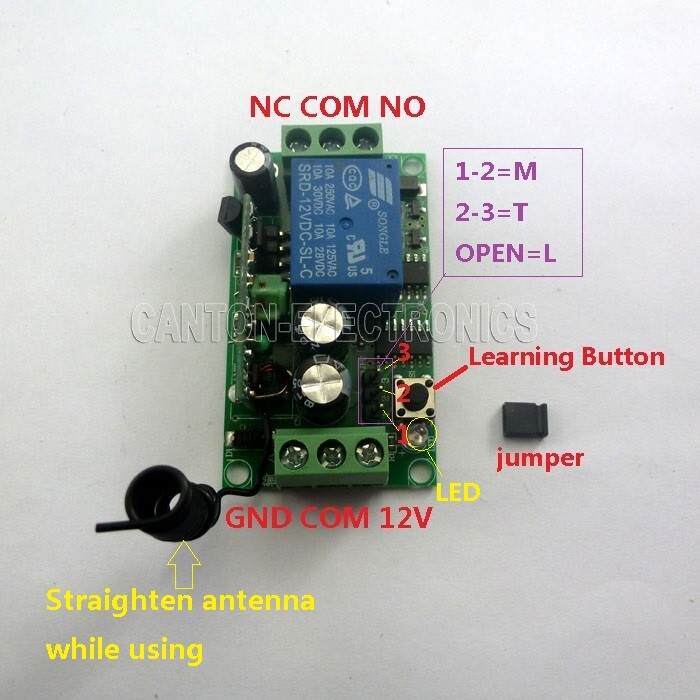

8: Momentary Mode ,Latch Mode  , Toggle Mode can be adjustable by jumper .
9. Pls connect the receiver modules properly before power supply ;
10: 1 chanels;
11: Learning function (can works with EV1527 and PT2262 remote , can store 16 pcs different code remote );



Advantage :
1:  Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 Learning remotes to re-learn;



Output:

A.singnal Inter-locking (Latch)----connect 2  and 3 ;

B.singnal Self-locking (Toggle) ---- connect 1 and 2 ;

C.singnal Non-locking (Momentary ) ---- All disconnect  ;

·         Toggle : Press->On; Press again->Off ;

·         Latched : Press->On; Press other button->Off ;

·         Momentary : Press and hold->On; Release->Off ;

Relay mode :

Normally close (NC ) ;
Normally open (NO ) ;
  • Normally-open (NO) contacts connect the circuit when the relay is activated; the circuit is disconnected when the relay is inactive. It is also called a Form A contact or "make" contact. NO contacts may also be distinguished as "early-make" or NOEM, which means that the contacts close before the button or switch is fully engaged.
  • Normally-closed (NC) contacts disconnect the circuit when the relay is activated; the circuit is connected when the relay is inactive. It is also called a Form B contact or "break" contact. NC contacts may also be distinguished as "late-break" or NCLB, which means that the contacts stay closed until the button or switch is fully disengaged.

Learning method and steps

1.       Keep pressing learnig key on receiver board , release the button when LED is off , enter the learning state ;

2.       Press any key on remote control within 5 seconds , LED flash 3 times and then turn on , then it have success in learning .

Clear the deposit information

Keep Pressing Learning Key , LED turns off , Wait 10 Seconds , LED turn on , that deposited information has been successfully cleared ;

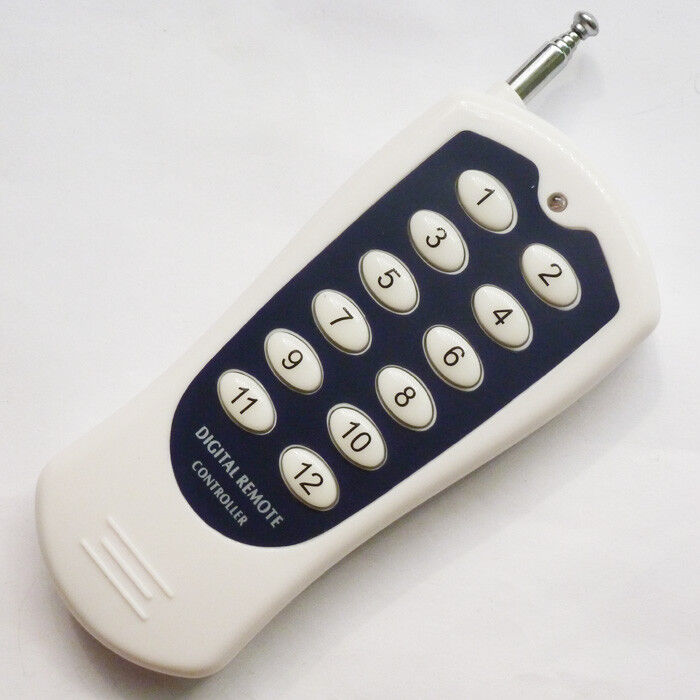

Transmitter Remote :


Qty :  1 pcs 12 Button Fixed code remote ;

Features / Specifications :

1. 12 buttons;
2. High stability, SMT chip, frequency stabilization SAW, 5 ultra-high-frequency transistor;
3: Large power;



Technical Data :
Transmitter Module No.: AK009;
Power supply : 12V 23A battery  replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 10mA;
Transmit Power : 10mW;
Oscillation mode: SAW resonator;
Modulation mode:ASK/OOK;
Operating frequency:433.92MHZ ;
Encoding format: PT2264 fixed code (compatiable for PT2262 SC2262 PT2260 );
RC  Resistance : 4.7M;
SAW Frequency stability :±75KHZ
Remote distance : 100-500 meter ;

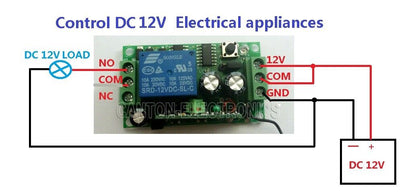

Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V

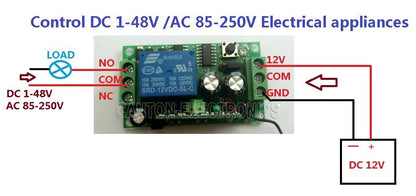

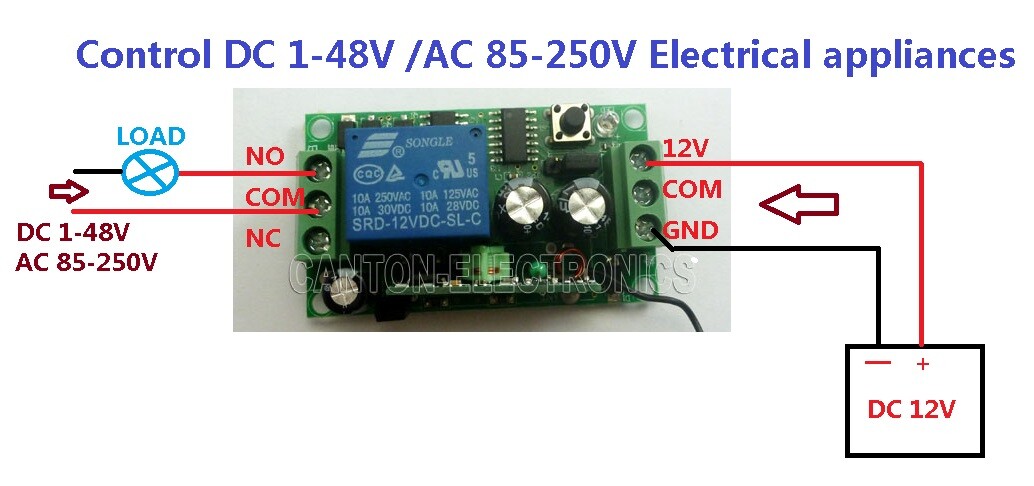

Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
