12CH 433M RF Wireless Transceiver Codech kit MCU AVR Relay PLC Smart

Name: 12CH 433M RF Wireless Transceiver Codech kit MCU AVR Relay PLC Smart
Brand: Eletechsup Original Factory Official Store
SKU: RF11A04*3+AK008*1
Price: 38.98 USD
Availability: InStock

$38.98 USD

~~$38.98 USD~~ $38.98 USD

Sale Sold out

Quantity

12CH 433M RF Wireless Transceiver Codech kit for Arduino MCU AVR Relay PLC Smart

Packing list :

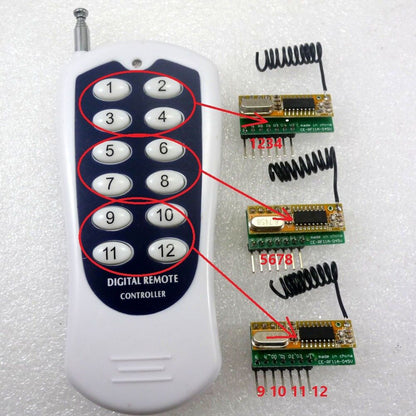

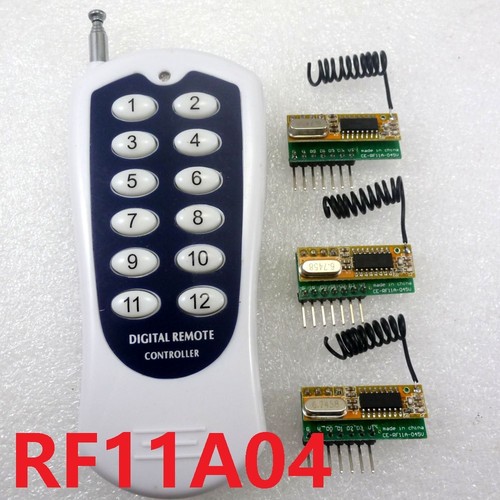

1 pcs 12 button remote (433MHz ) ;

3 pcs decode Receiver (433MHz ) ;

Packing list :

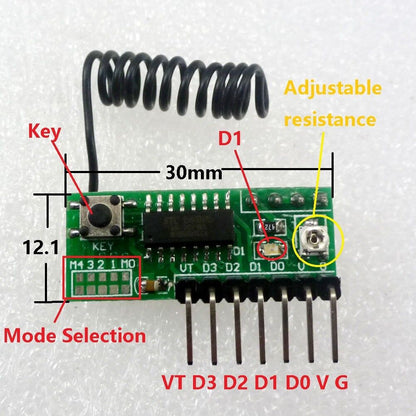

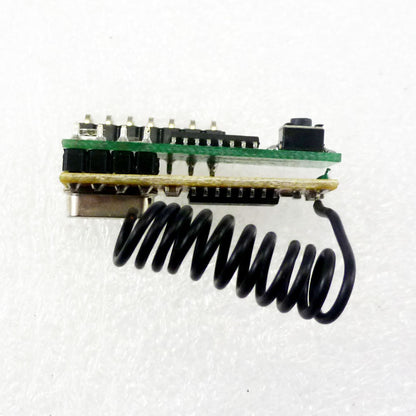

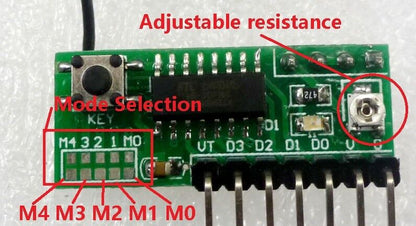

3 pcs RF11A04 433M 1527/2262 Superheterodyne Receiver decoder delay module;

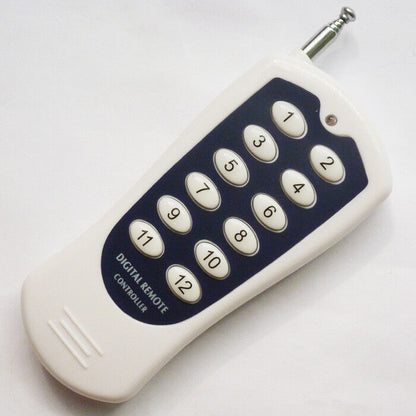

1 PCS 433M 12 Channel PT2264 ASK OOK RF Wireless Transmitter KeyFob(USE 12V 23A battery,Batteries not included)

Receiver parameters:

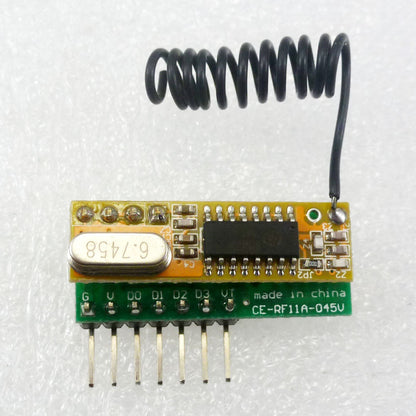

Model No.: RF11A04 OR CE-RF11A-045V

Operating voltage: DC 3V/3.3V/5V

Operating current: less 11mA (DC 5V)

Working priceple: super heterodyne

modulation Mode: OOK / ASK

Operating Frequency : 433.92MHZ

Receiving sensitivity: -108dBm

Output level: 3-5V TTL level, low standby, the maximum current 20MA (to add a current-limiting resistor)

Decode: learning code, adapted EV1527 / PT2262 and a compatible remote control, you can store up to eight remote control

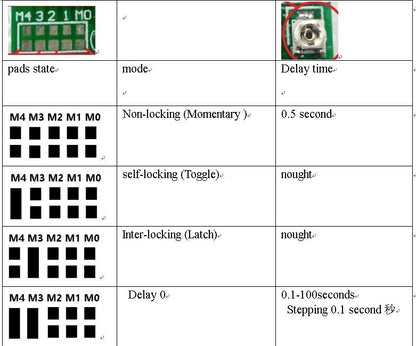

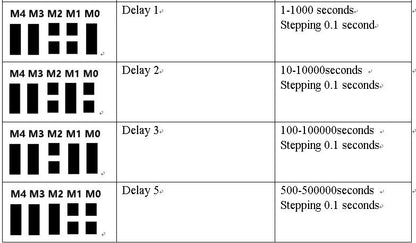

Working modes: Non-locking (Momentary ), self-locking (Toggle), Inter-locking; 0.1-500000 seconds adjustable delay time

Size: 30x12.1x12.5mm

Weight: 4 grams or less

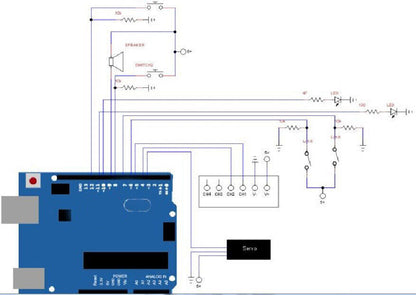

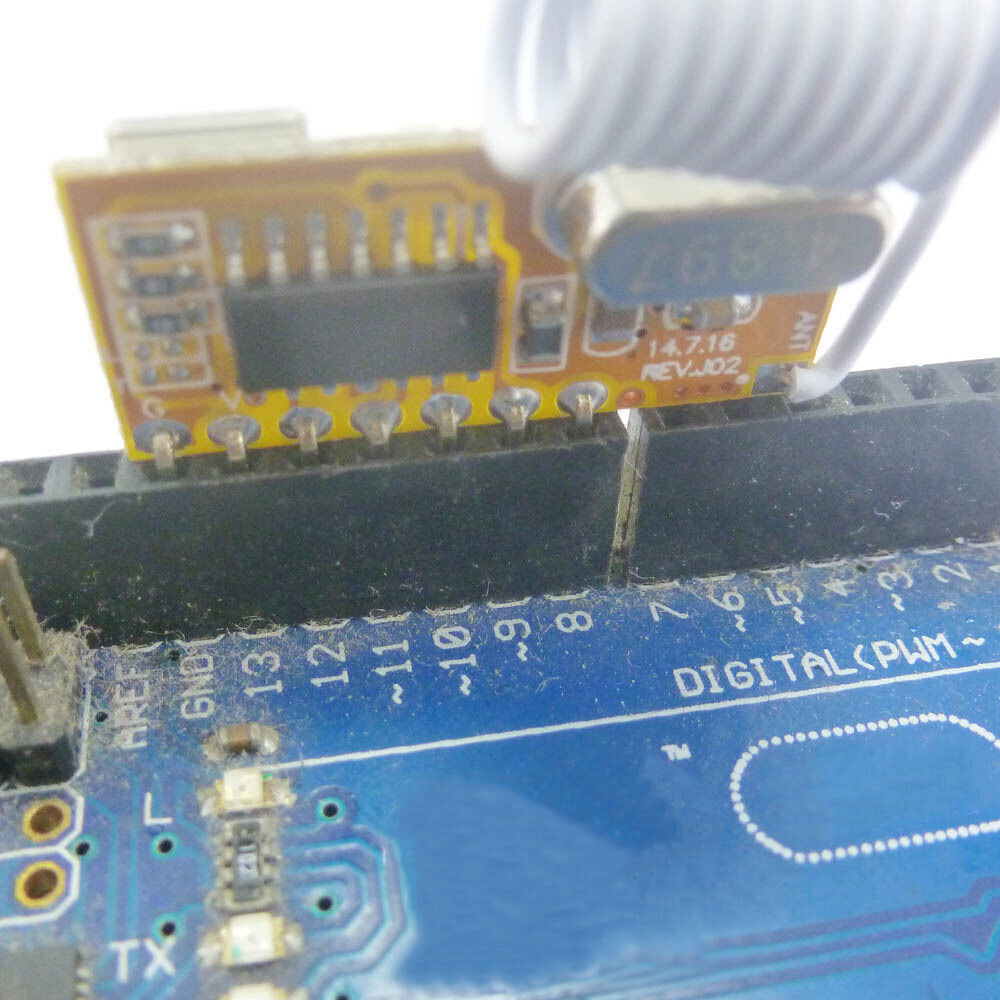

As this product(click here), you can directly insert Arduiuo UNO MEGA2560 DUE

Normally, we would adapter remote control and receiver.

If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below

Learning method and steps:

In normal operation mode, LED (D1) will be lit, when receiving a valid remote control (EV1527 / PT2262) key value, LED will flash.

Clean code: hold the button to press.LED offs, keep pressing about 8 seconds until LED lights. At that time, clean code completion (Note: After the implementation of clean code, previous remote controls do not exist.

Adaptation (learning):

Step 1 (into the learning mode):trigger the key button, LED offs;

Step 2 (adapter channel 1): press the first button of remote control and then, LED offs after flashes for four times. This time means that it had learned the value of the first button

Step 3 (Adaptation Channel 2): Press the second remote control, LED offs after flashes 4 times, This time means that it had learned the value of the second button

Step 4 (adapter Channel 3): Then press the remote's third button, LED offs after flashes 4 times, This time means that it had learned the value of the third button

Step 5 (Adaptation Channel 4): Then press the remote control's fourth button, LED lights after flashes 4 times, This time means that it had learned the value of the fourth button.

NOTE: The process must be completed within 15 seconds

Use more details, please click here!

433M 12 Channel PT2264 ASK OOK RF Wireless Transmitter KeyFob:

Technical Data :

Power supply : DC 12V 23A battery .(This remote doesnot have a battery , Please buy in your local market );

Operating current: <=20mA;

Oscillation mode: SAW resonator;

Modulation mode:ASK/OOK;

Operating frequency : 433.92MHZ ;

Encoding IC : PT2264 OR compatiable IC;

Output power : 120MW;

RC Resistance : 4.7M ;
