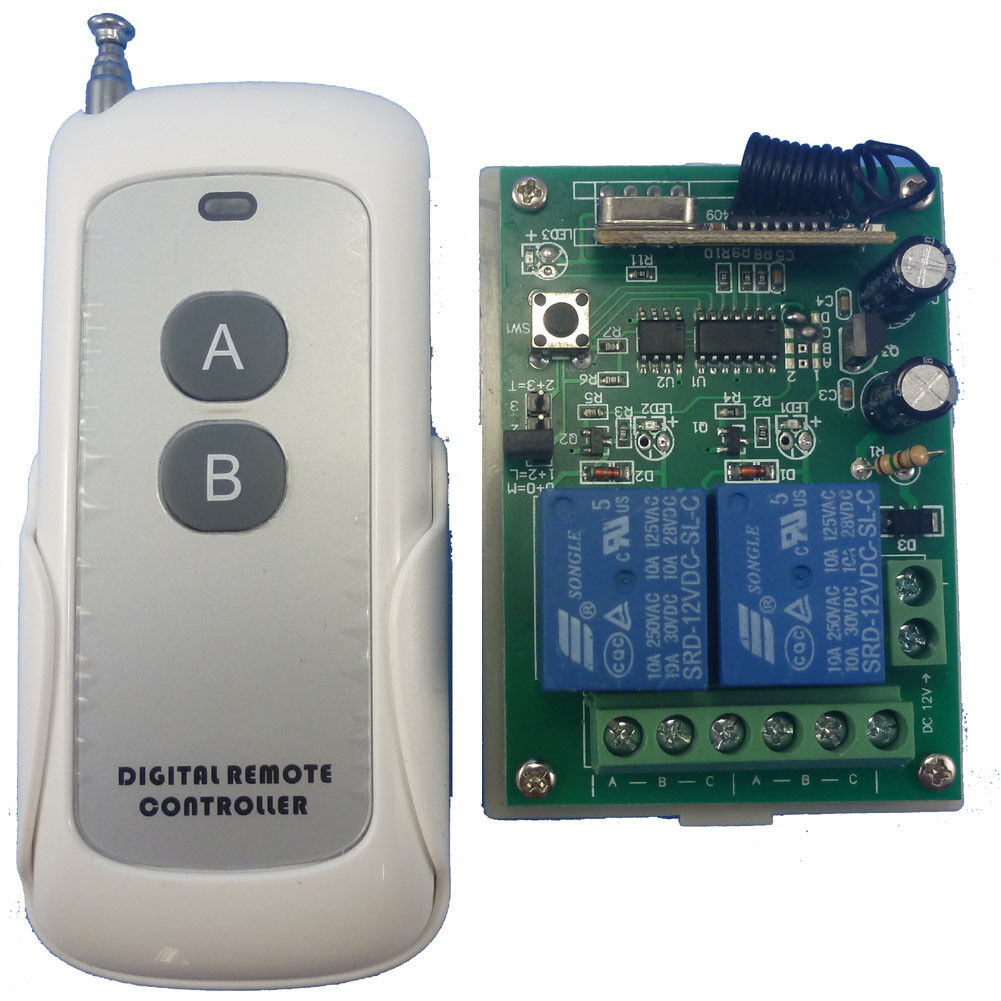

AK019 12V 2 Channels Wireless RF Remote Control Switch Relay Alarm FOB Key Remote

AK019 12V 2 Channels Wireless RF Remote Control Switch Relay Alarm FOB Key Remote

AK019*1+TB423*1

1000 in stock

$26.98
$26.98 $26.98
Sale Sold out
12V 2 Channels Wireless RF Remote Control Switch Relay Alarm FOB Key Remote



QTY: 1 pcs remotes and 1 pcs Receiver Controller . (This remote doesnot have a battery inside )



Receiver :





Technical indicators:

1.operating voltage: DC 12V ;

2.static operating current:≤8mA, Single chanel working current  ≤ 40 mA ,2 Chanels Work current (self-locking/Toggle )≤ 80mA;

3.Working temperature :-10°C- +60°C;

4.Receive sensitivity:≥-105dBm;

5.the working frequency:433.92MHz;
6.output current:≤10A;

7.size:74.5*54.5*27mm ;

8: Momentary Mode ,Latch Mode  , Toggle Mode can be adjustable by jumper .
9. Pls connect the receiver modules properly before power supply ;
10: 4 chanels;
11: Learning function (can works with EV1527 and PT2262 remote , can store 16 pcs different code remote );
12: Max load : 1000W;


Advantage :

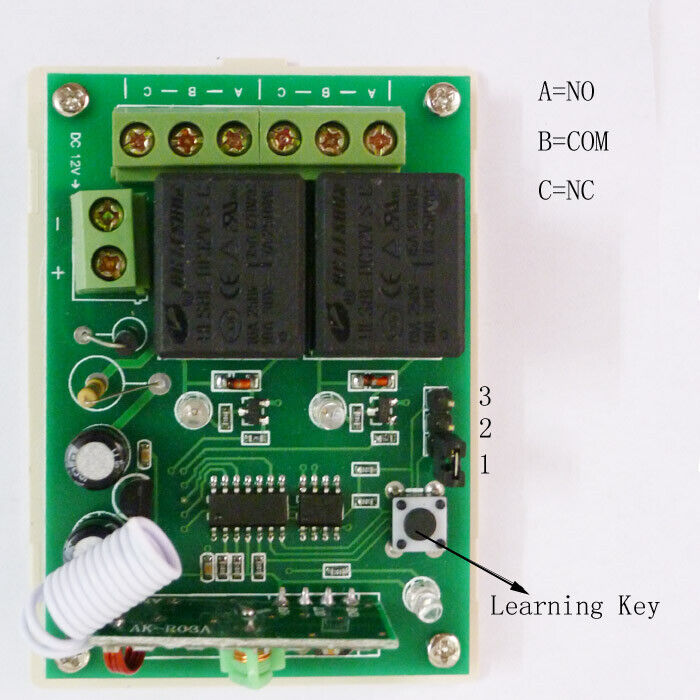

1:  Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 Learning remotes to re-learn;






Output




A.singnal Inter-locking (Latch)----connect 2 and 3 ;

B.singnal Self-locking (Toggle) ---- connect 1 and 2 ;

C.singnal Non-locking (Momentary ) ---- disconnect the jumper ;



·         Toggle : Press->On; Press again->Off ;

·         Latched : Press->On; Press other button->Off ;

·            Momentary : Press and hold->On; Release->Off ;





Relay mode :

BC= Normally close (NC ) ;
AB= Normally open (NO ) ;
  • Normally-open (NO) contacts connect the circuit when the relay is activated; the circuit is disconnected when the relay is inactive. It is also called a Form A contact or "make" contact. NO contacts may also be distinguished as "early-make" or NOEM, which means that the contacts close before the button or switch is fully engaged.
  • Normally-closed (NC) contacts disconnect the circuit when the relay is activated; the circuit is connected when the relay is inactive. It is also called a Form B contact or "break" contact. NC contacts may also be distinguished as "late-break" or NCLB, which means that the contacts stay closed until the button or switch is fully disengaged.

Learning method and steps

1.       Press any key on remote control within 5 seconds , LED flash 3 times and then turn on , then it have success in learning .



Clear the deposit information

Keep Pressing Learning Key , LED turns off , Wait 10 Seconds , LED turn on , that deposited information has been successfully cleared ;

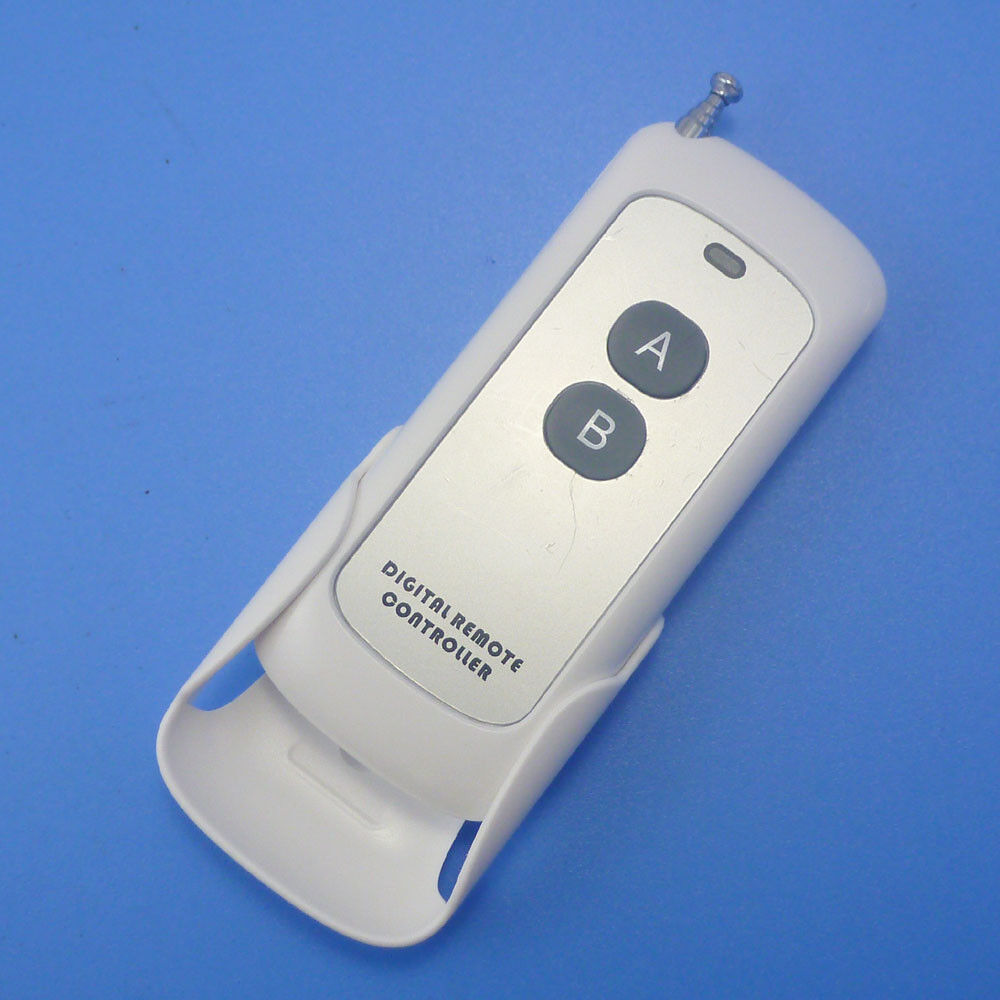

Transmitter :


Features / Specifications :

1. 2 buttons;
2. High stability, SMT chip, frequency stabilization SAW, ultra-high-frequency transistor;
3: Large power;



Technical Data :
Transmitter Module No.: TB423;
Power supply : 12V 23A battery (not included ) , please buy battery from here : https://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l1313.TR3.TRC2.A0.H0.X12V+23A+battery.TRS0&_nkw=12V+23A+battery&_sacat=0 .

Operating current: 28-33mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK/OOK;
Operating frequency:433.92MHZ ;
Encoding format: EV1527 encode IC ;
Transmit power : 200mW ;

Similar connection :
Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V

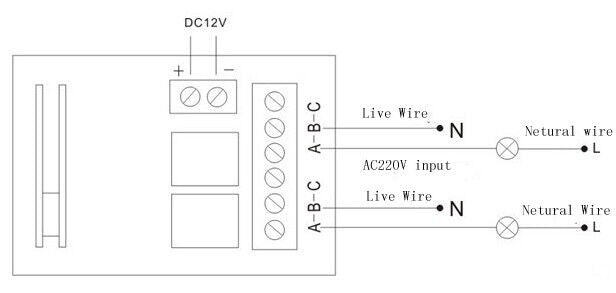

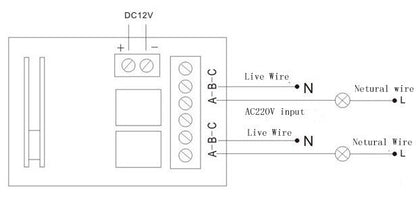

Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
