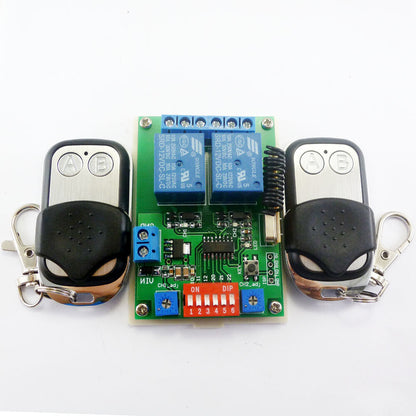

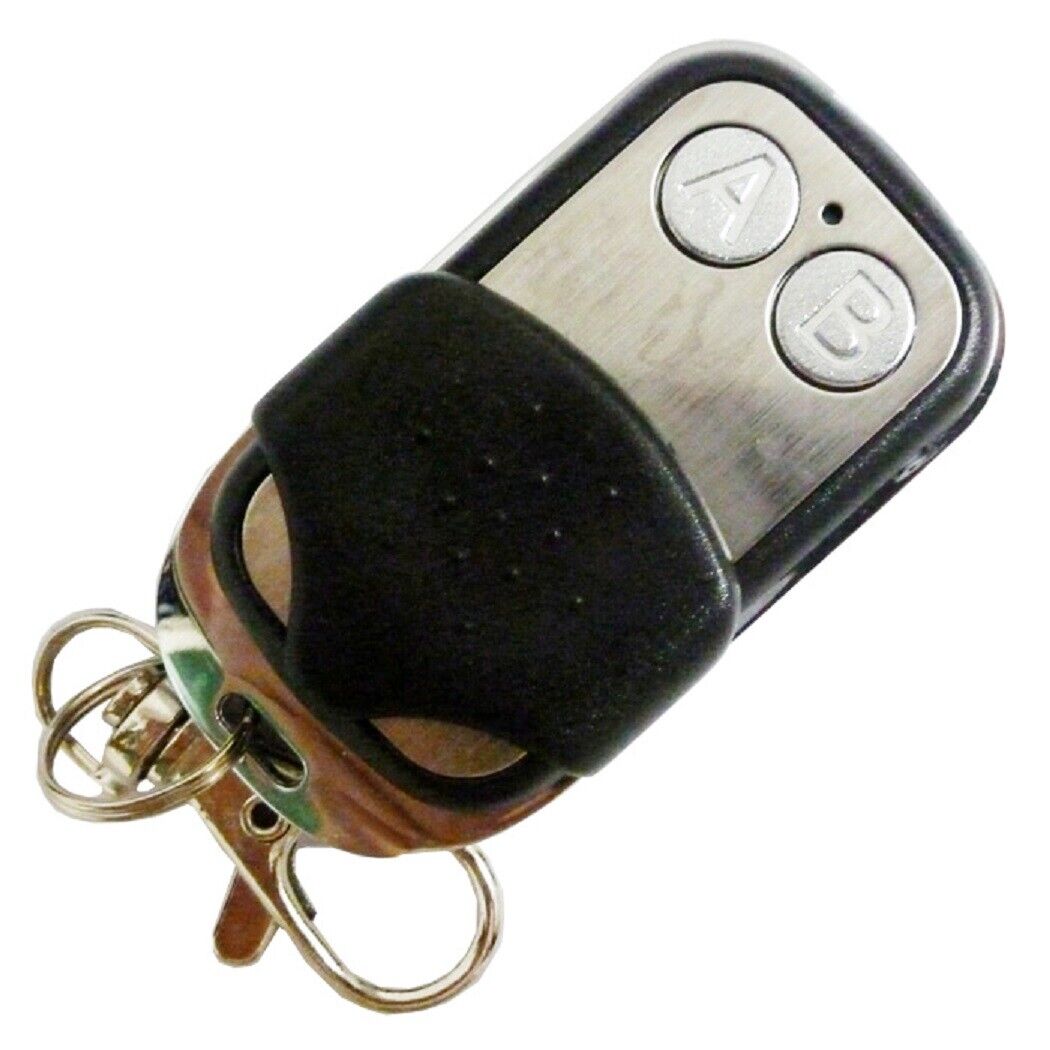

12V 2Ch RF Wireless Delay Timer Relay & 2Button EV1527 Encoder Keyfob 315MHZ
12V 2Ch RF Wireless Delay Timer Relay & 2Button EV1527 Encoder Keyfob 315MHZ
Couldn't load pickup availability
Brand:Eletechsup
Product Name:12V 2Ch RF Wireless Delay Timer Relay & 2 Switchwes EV1527 Encoder Keyfob 315MHZ

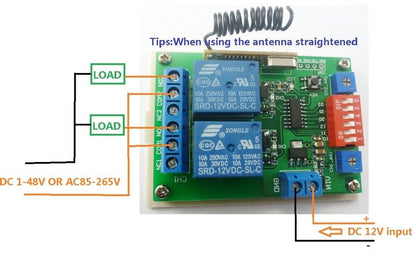

Wiring Diagram 2:

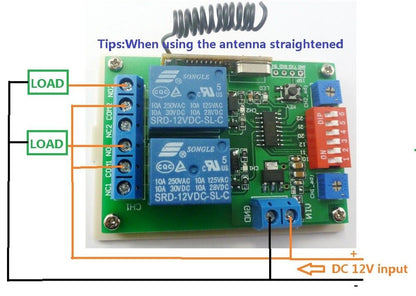

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment

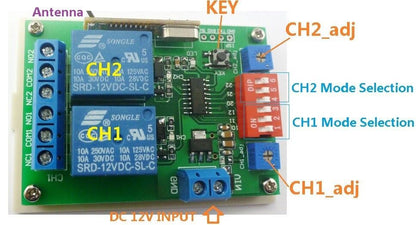

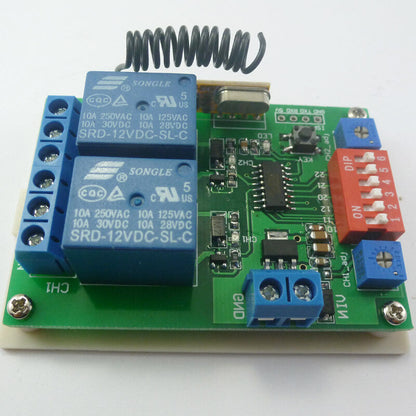

Product Name : 315M DC 12V 2Ch RF Wireless Delay Timer Self-locking Momentary Interlock Multifunction Relay Switch
Packing list:
Technical indicators:
Operating voltage : DC 9-13V (recommended DC 12V);
Operating Current : All relays close,about 14MA; one relay open,about 43MA;two relay open,about 71MA
Operating frequency : 315M

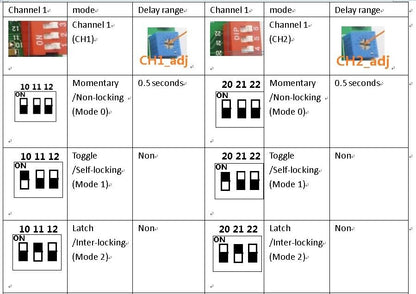

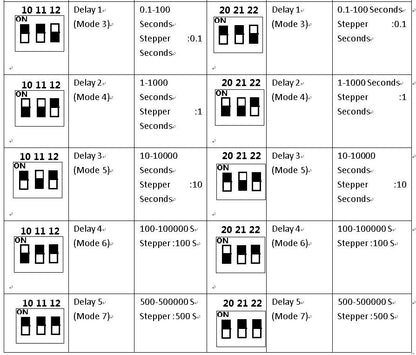

Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay

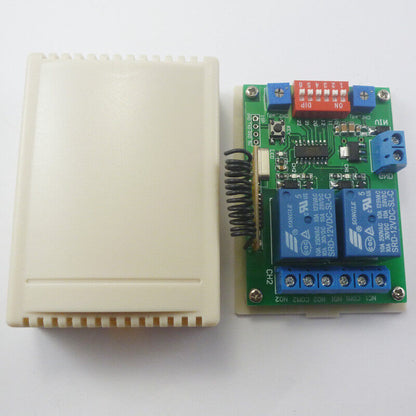

Size(Including housing) : 75*54*28mm
Learning function (can works with EV1527 and PT2262 remote, can store 16 pcs different code remote );
Max load : 500W;
Learning method and steps:
Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes
Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)
Step 1 (into the learning mode): Press the button (about 1 second), LED off;
Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value
Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values
