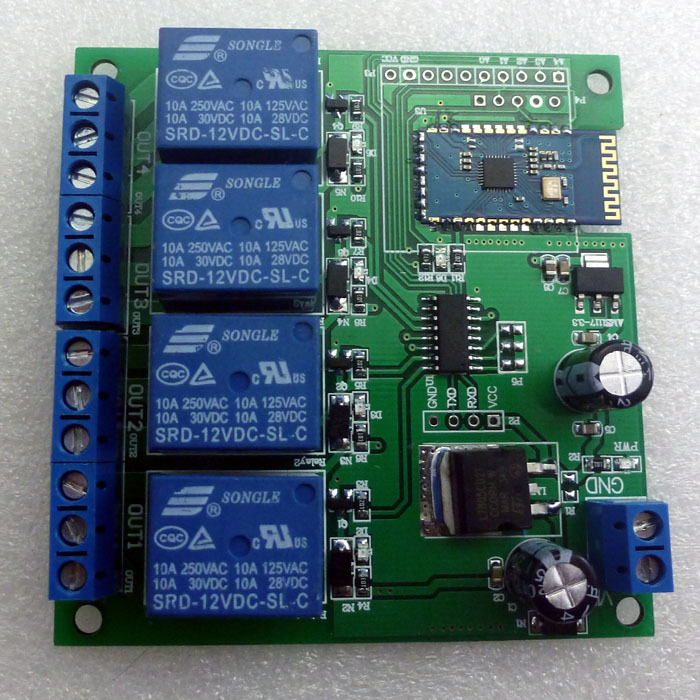

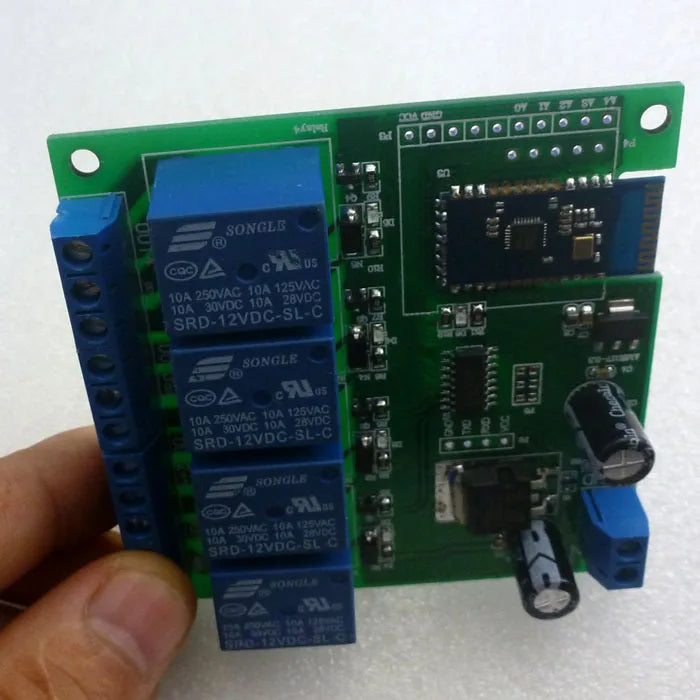

CE028 12V 4 Channel Bluetooth-compatible Relay Android Mobile Remote control Switch for Motor LED Light Lock NET
CE028 12V 4 Channel Bluetooth-compatible Relay Android Mobile Remote control Switch for Motor LED Light Lock NET
Couldn't load pickup availability
Description:
1: DC 12V power supply (voltage range 9-13V, 5V version can be customized )
2: Standby current (all relays closed) 35MA, 1 relay open 60MA, 2 relays open 91MA, 3 relays open 125MA, 4 relays open 155MA
3: send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control)
4 ''Momentary'' ''Self-locking'' ''Interlock'' ''open'' ''close'' 5 Commands
For more information, please contact me
Bluetooth relay manual:
Glossary:
NO : Relay normally open contact
COM : Relay common contact
NC : Relay normally closed contact
Momentary : Mobile terminal input ''A0'' (B0 / C0 / D0 is the same), the relay is ''open'',and after delay of 1 second the relay is ''Close''.
Self-locking : Mobile terminal input ''A1'', the relay is ''Open'', input ''A1'', the relay is ''Close'', and so on

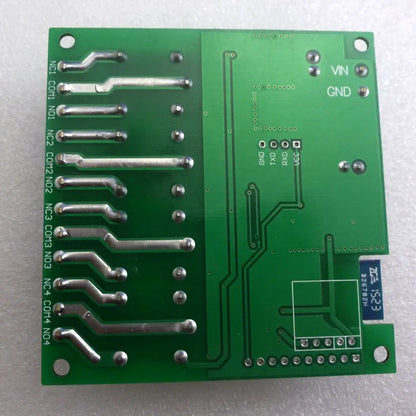

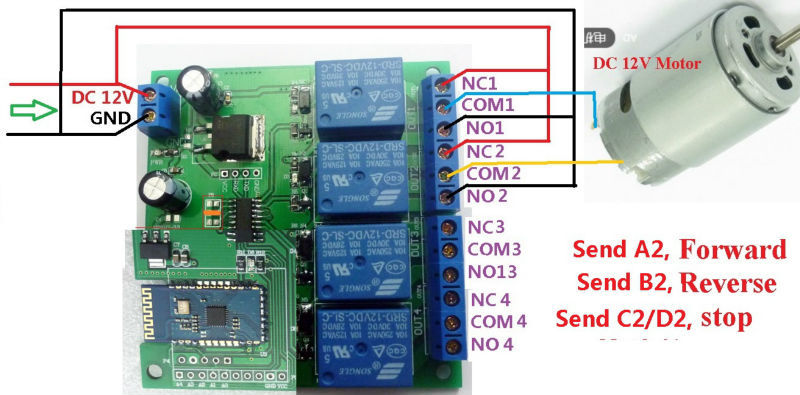

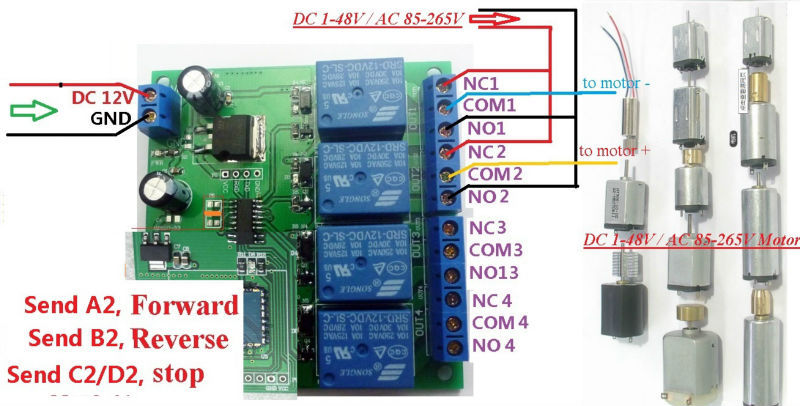

Interlock : Mobile terminal input ''A2'', relay 1 is ''Open'', the other relay is ''Close''; input ''B2'', relay 2 is ''Open'', the other relay is ''Close'', and so on.
Open : NO connection COM, NC disconnect COM
Close : NO disconnect COM, NC connection COM
CommandS (Format: character, case-insensitive)
CommandS |
Features |
Description |
A0 |
CH1 ''Momentary'' |
Mobile terminal input ''A0'', the relay is ''open'',and after delay of 1 second the relay is ''Close''. |
A1 |
CH1 '' Self-locking '' |
Mobile terminal input ''A1'', the relay is ''Open'', input ''A1'', the relay is ''Close'', and so on |
A2 |
CH1 '' Interlock '' |
Mobile terminal input ''A2'', relay 1 is ''Open'', the other relay is ''Close''; Input ''B2/C2/D2'' relay 1 is ''Close'' |
A3 |
CH1 '' Open '' |
NO1 connection COM1, NC1 disconnect COM1 |
A4 |
CH1 '' Close '' |
NO1 disconnect COM1, NC1 connection COM1 |
B0 |
CH2 ''Momentary'' |
Mobile terminal input ''B0'', the relay is ''open'',and after delay of 1 second the relay is ''Close''. |
B1 |
CH2 '' Self-locking '' |
Mobile terminal input ''B1'', the relay is ''Open'', input ''B1'', the relay is ''Close'', and so on |
B2 |
CH2 '' Interlock '' |
Mobile terminal input ''B2'', relay 2 is ''Open'', the other relay is ''Close''; Input ''A2/C2/D2'' relay 2 is ''Close'' |
B3 |
CH2 '' Open '' |
NO2 connection COM2, NC2 disconnect COM2 |
B4 |
CH2 '' Close '' |
NO2 disconnect COM2, NC2 connection COM2 |
C0 |
CH3 ''Momentary'' |
Mobile terminal input ''C0'', the relay is ''open'',and after delay of 1 second the relay is ''Close''. |
C1 |
CH3 '' Self-locking '' |
Mobile terminal input ''C1'', the relay is ''Open'', input ''C1'', the relay is ''Close'', and so on |
C2 |
CH3 '' Interlock '' |
Mobile terminal input ''C2'', relay 3 is ''Open'', the other relay is ''Close''; Input ''A2/B2/D2'' relay 3 is ''Close'' |
C3 |
CH3 '' Open '' |
NO3 connection COM3, NC3 disconnect COM3 |
C4 |
CH3 '' Close '' |
NO3 disconnect COM3, NC3 connection COM3 |
D0 |
CH4 ''Momentary'' |
Mobile terminal input ''D0'', the relay is ''open'',and after delay of 1 second the relay is ''Close''. |
D1 |
CH4 '' Self-locking '' |
Mobile terminal input ''D1'', the relay is ''Open'', input ''D1'', the relay is ''Close'', and so on |
D2 |
CH4 '' Interlock '' |
Mobile terminal input ''D2'', relay 4 is ''Open'', the other relay is ''Close''; Input ''A2/B2/C2'' relay 4 is ''Close'' |
D3 |
CH4 '' Open '' |
NO4 connection COM4, NC4 disconnect COM4 |
D4 |
CH4 '' Close '' |
NO4 disconnect COM4, NC4 connection COM4 |

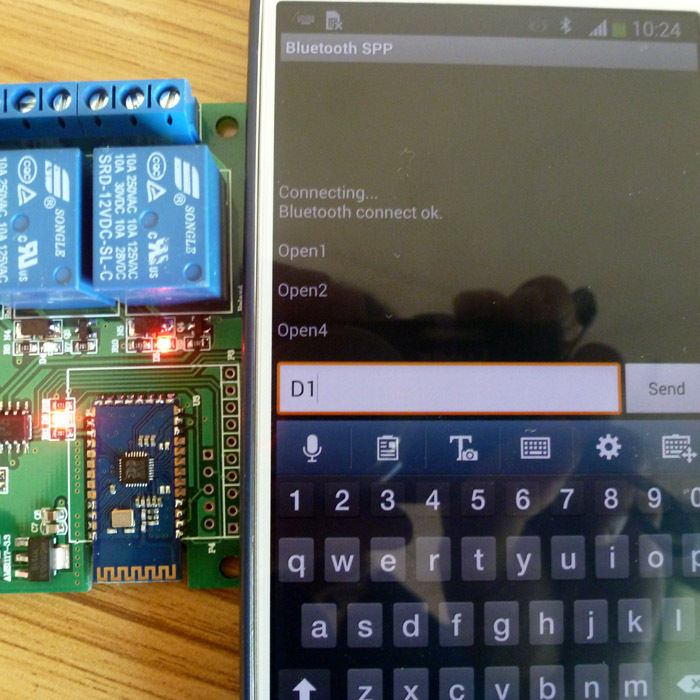

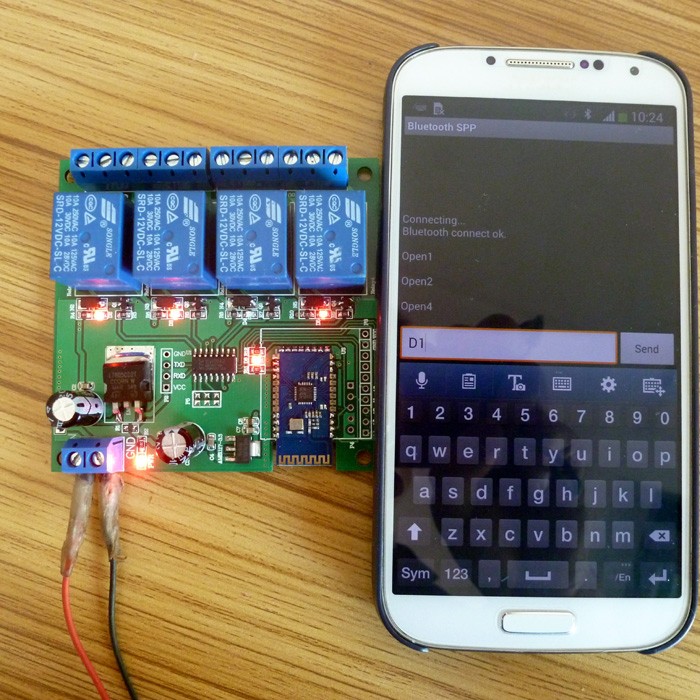

Bluetooth APP operations:
Access Password : 1234
Bluetooth Baud rate: 9600BPS
