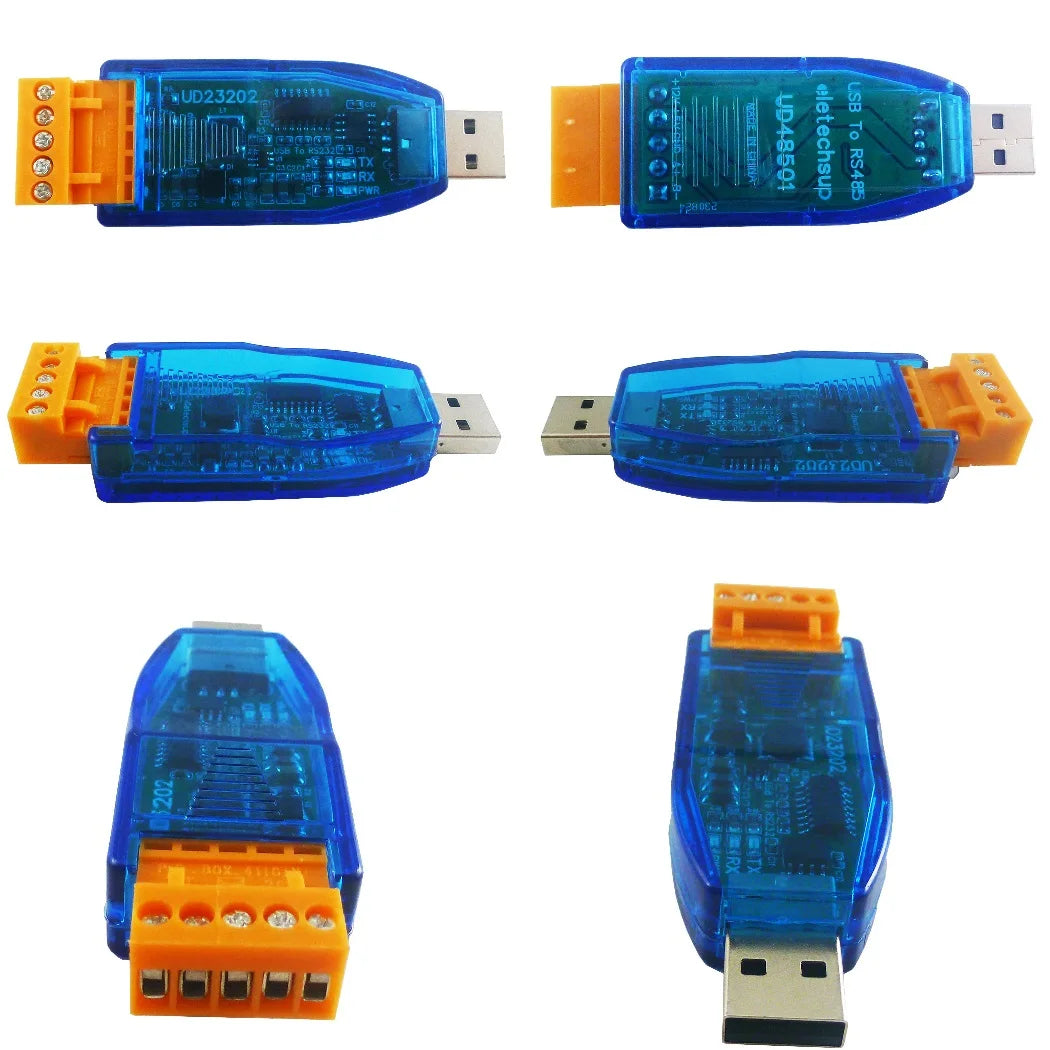

UDTTL03 UD23202 UD48501 12V 5V VCC Output USB to RS485 RS232 TTL Converter UART PC COM Serial Port Module for PLC IO HMI MCU PTZ Smart Home Debugging
UDTTL03 UD23202 UD48501 12V 5V VCC Output USB to RS485 RS232 TTL Converter UART PC COM Serial Port Module for PLC IO HMI MCU PTZ Smart Home Debugging
Couldn't load pickup availability
Packing list:
1 PCS 5V/12V Output USB to RS485/RS232/TTL Converter

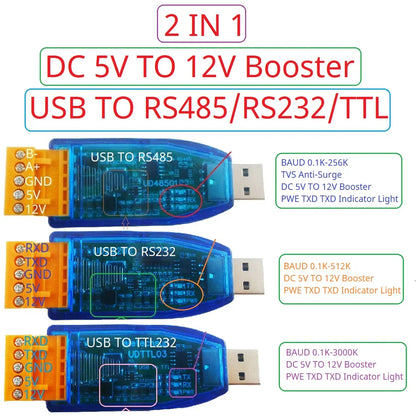

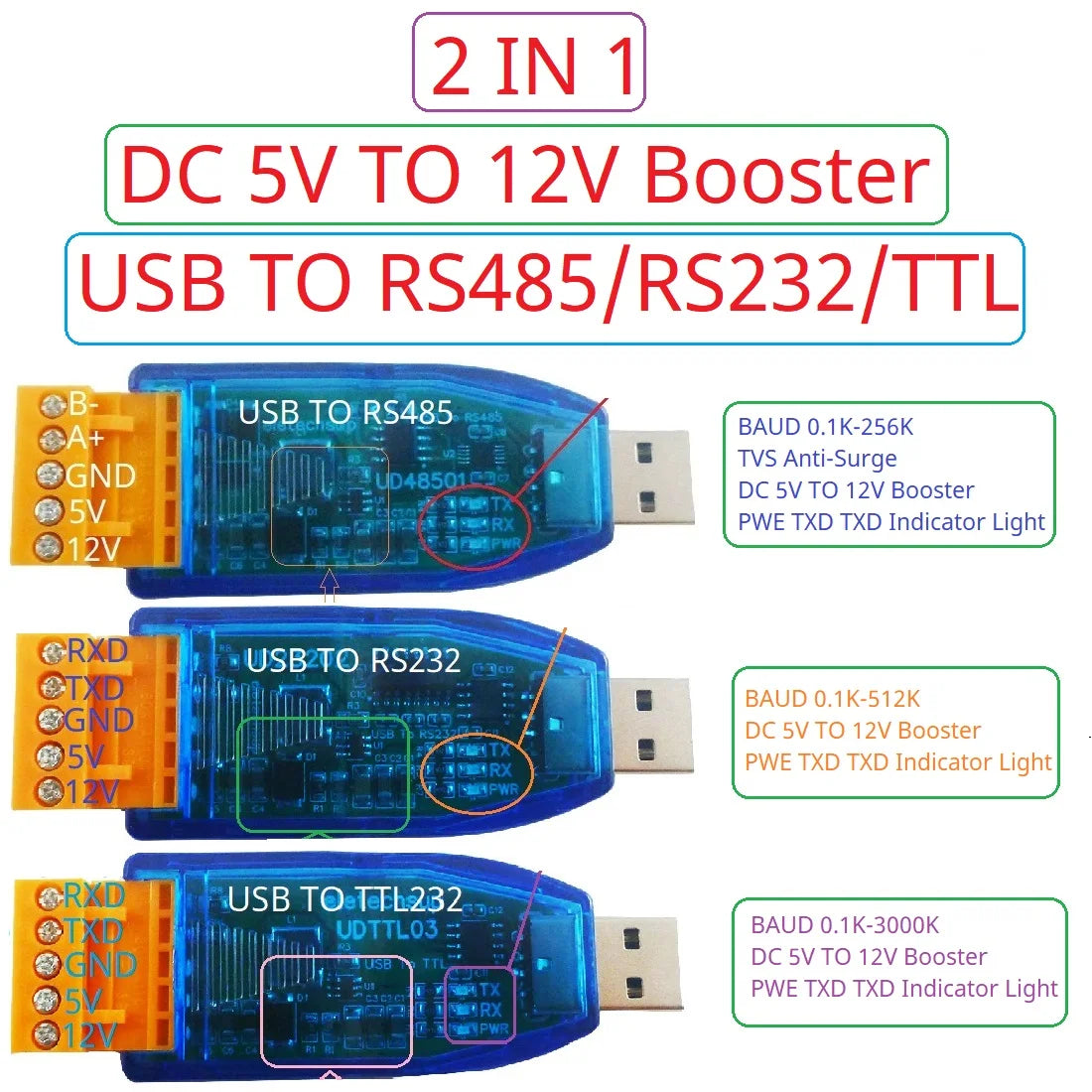

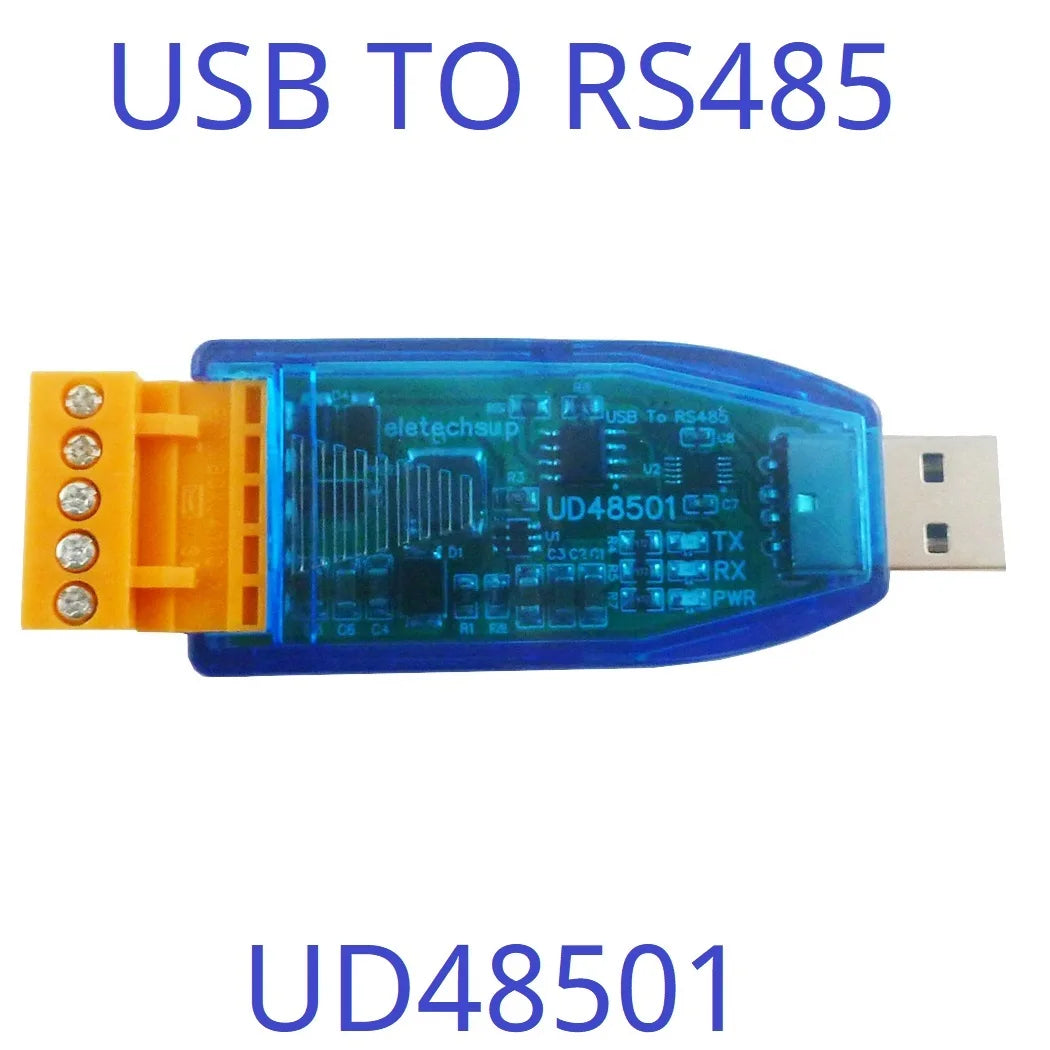

USB TO RS485(UD48501) Function:
USB driver chip: CH340E
RS485 bus chip: MAX485 or compatible chip
BAUD 0.1K-256K
TVS Anti-Surge

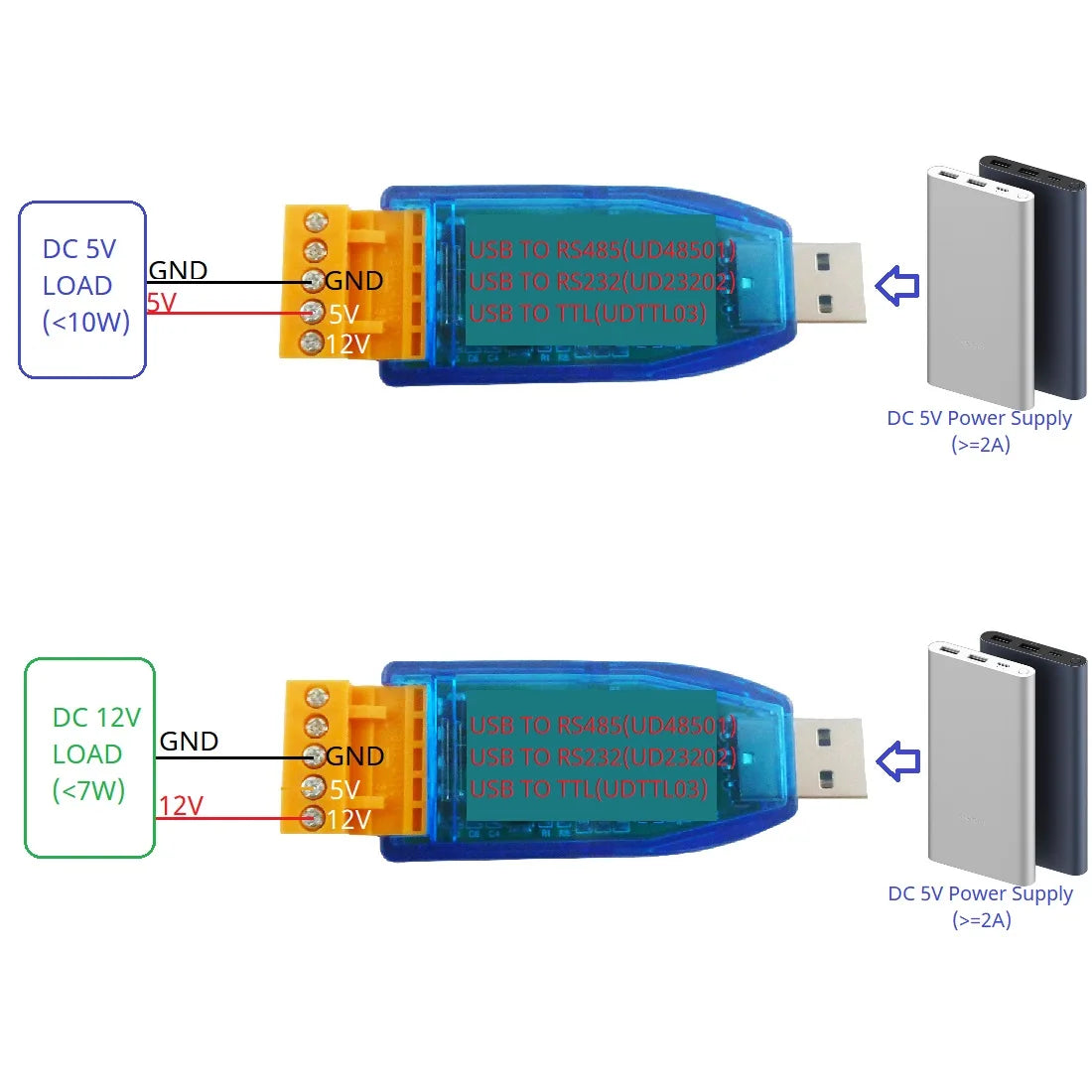

DC 5V TO 12V 7W Booster

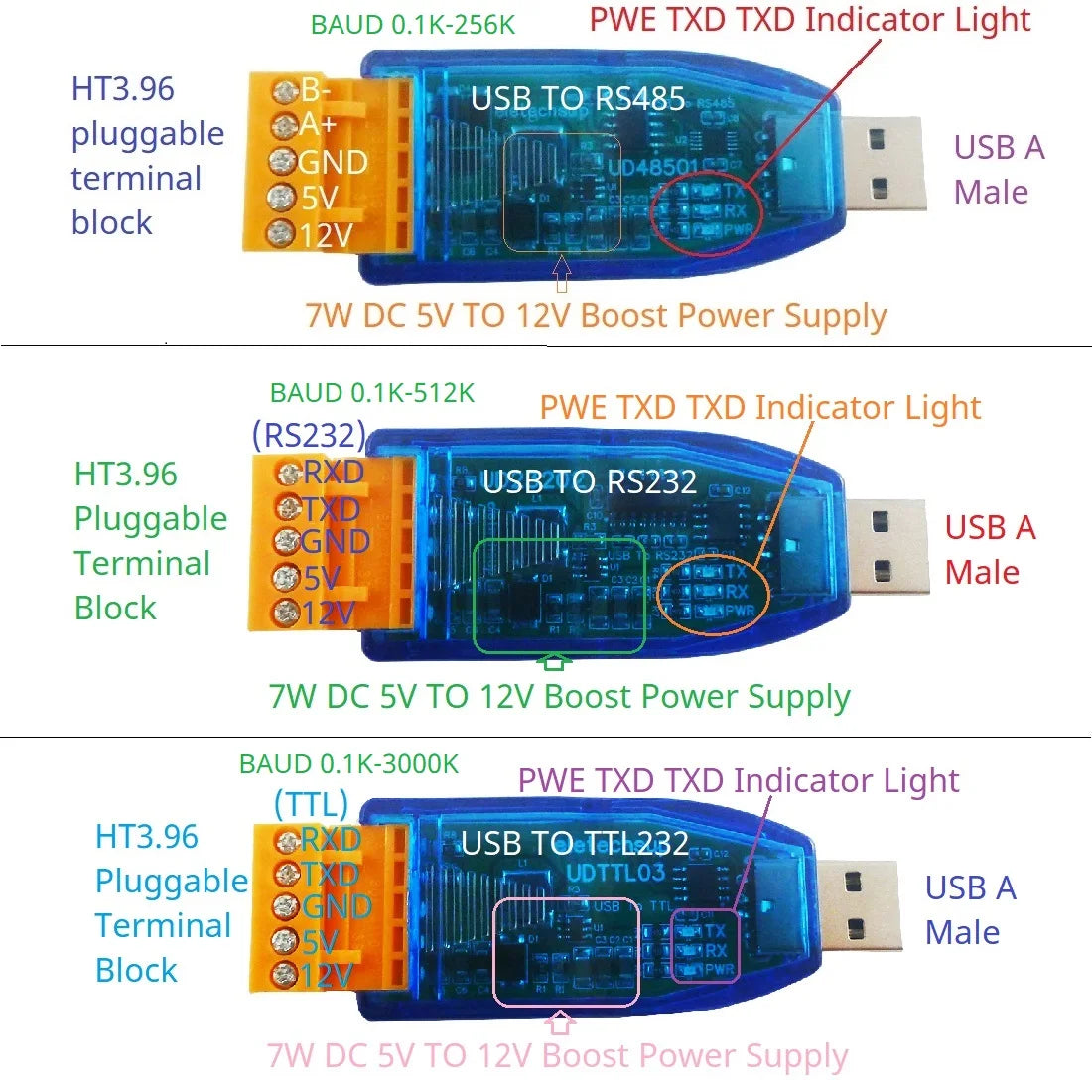

PIN:12V 5V GND A+ B-(RS485)
PWE TXD TXD Indicator Light
Size : 80 x 26 x 15mm
Weight : 19.5g

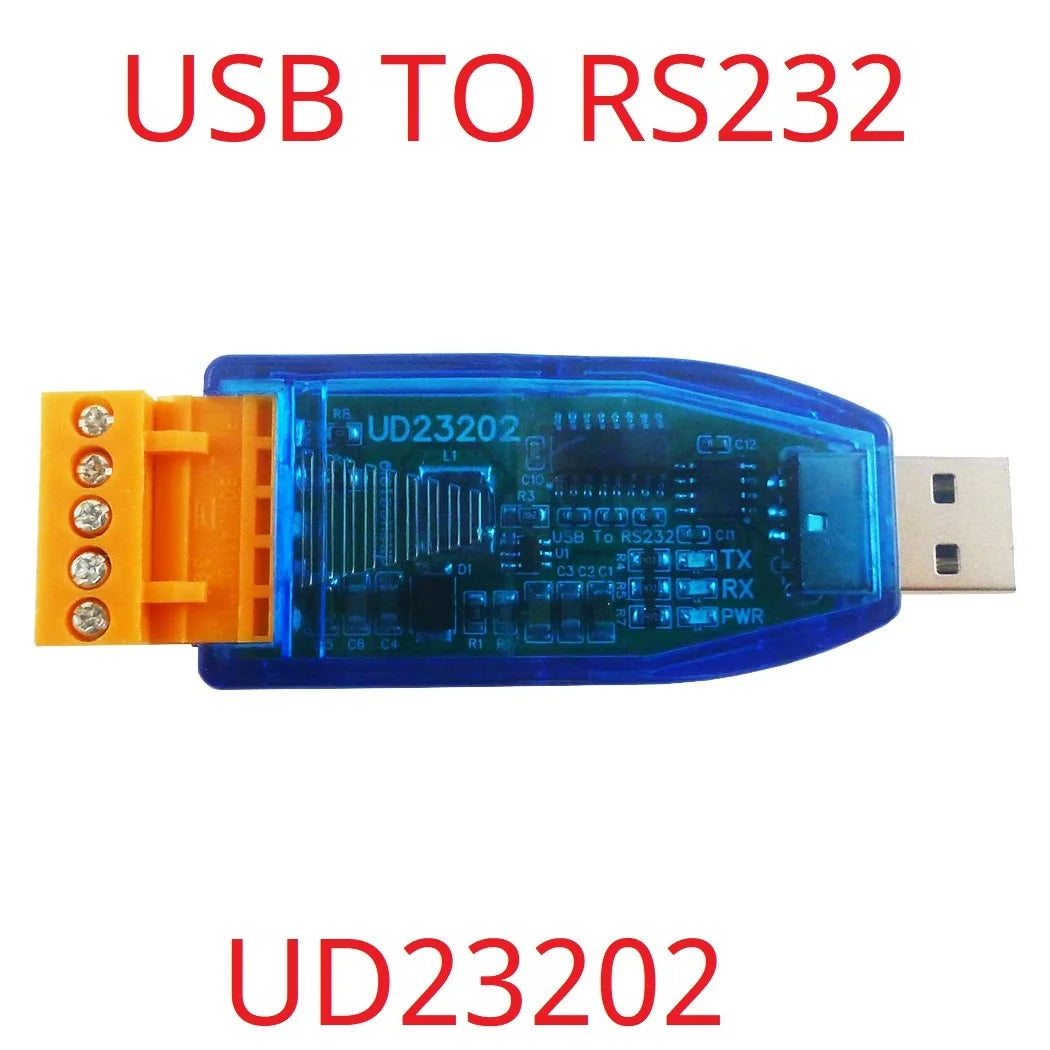

USB TO RS232(UD23202)Function:
USB driver chip: CH340N
RS232 bus chip: MAX232 or compatible chip
BAUD 0.1K-512K
DC 5V TO 12V 7W Booster
PIN:12V 5V GND RXD TXD(RS232)
PWE TXD TXD Indicator Light
Size : 80 x 26 x 15mm
Weight : 19.4g

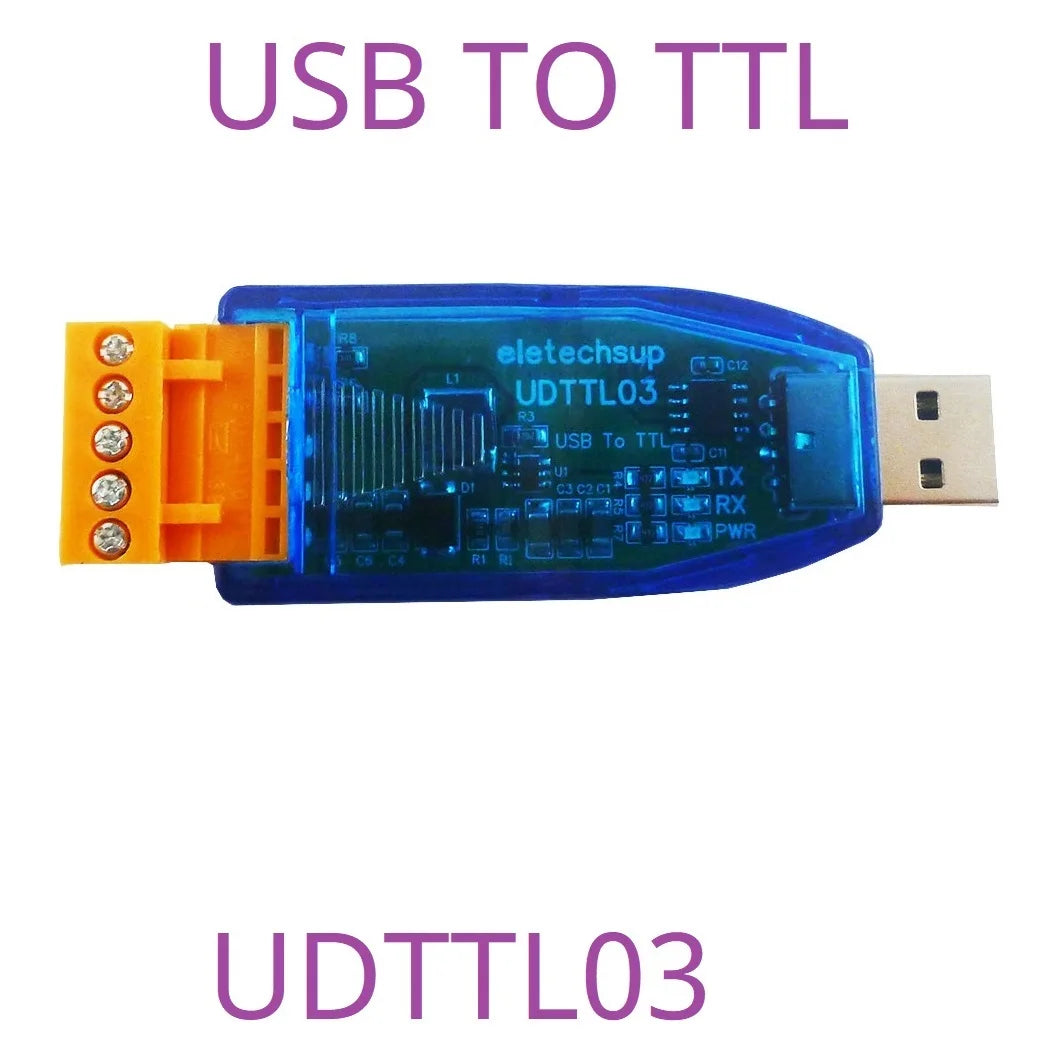

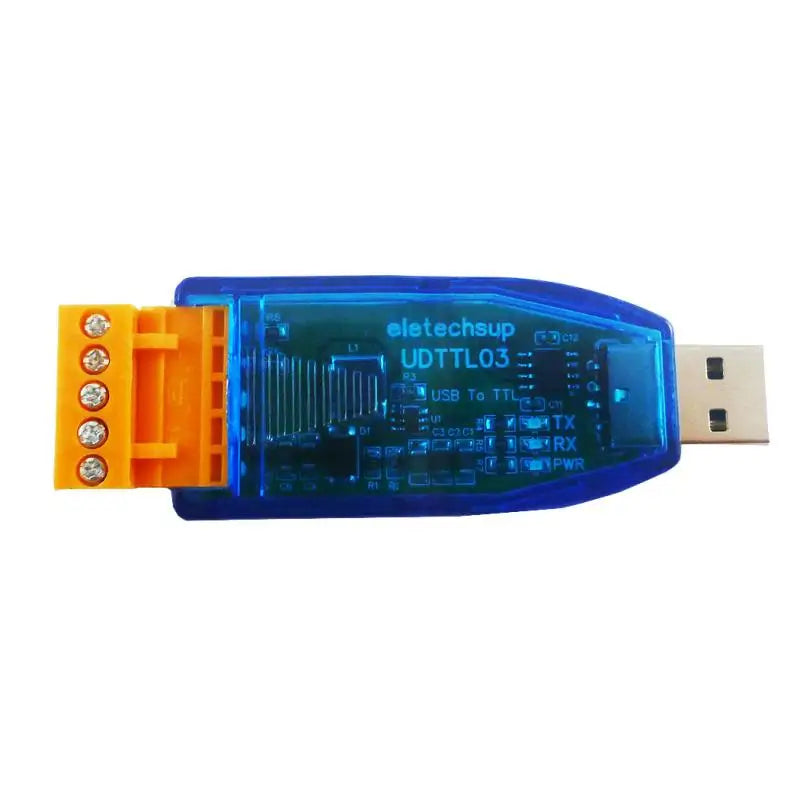

USB TO TTL(UDTTL03)Function:
USB driver chip: CH340N
BAUD 0.1K-3000K
DC 5V TO 12V 7W Booster
PIN:12V 5V GND RXD TXD(TTL)
PWE TXD TXD Indicator Light
Size : 80 x 26 x 15mm
Weight : 18.8g
Description:
This is Industrial grade USB TO RS485/RS232/TTL232 Converter,With 12V 7W power output
The USB driver IC is CH340E/N, stable performance, fully compatible with USB1.1,USB2.0,USB3.0
Supports the following OSes:
supports Windows 11/10/8.1/8/7/VISTA/XP/2000/98
supports Windows XP/Vista/7/8/8.1/10/11/ SERVER 2003/2008/2012/2016/2019/2022 -32/64bit
Linux OS
MAC OS
Application :
RS485/RS232/TTL232 Bus device

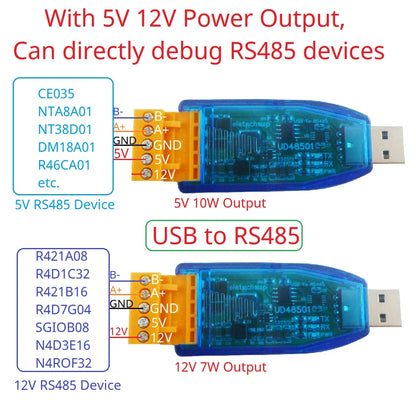

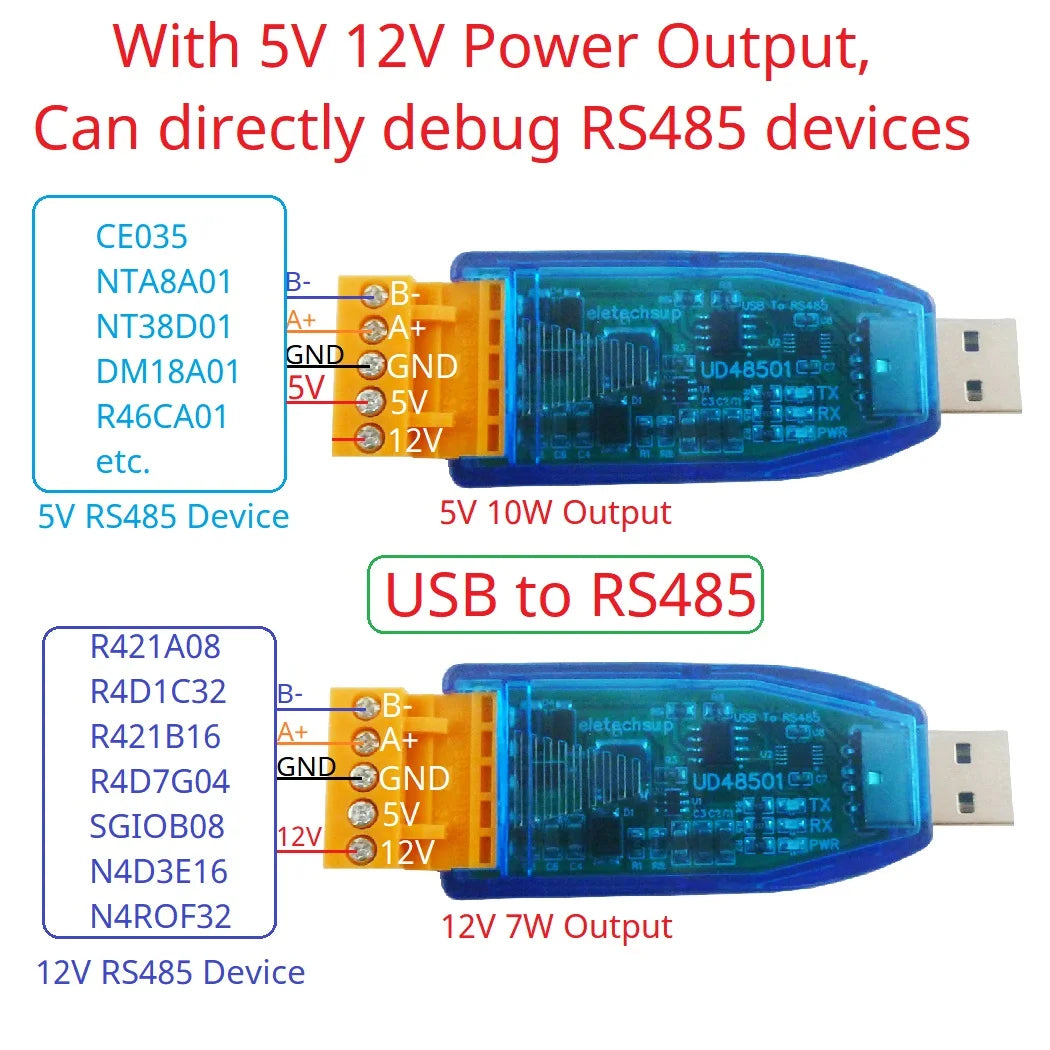

5V 12V RS485 device(CE035 NTA8A01 R46CA01 R4D1C32 R421B16 R4D3B16 etc.)
PLC Modubs Remote IO Device
PTZ IP Camera
Computer communication terminal
Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system;
