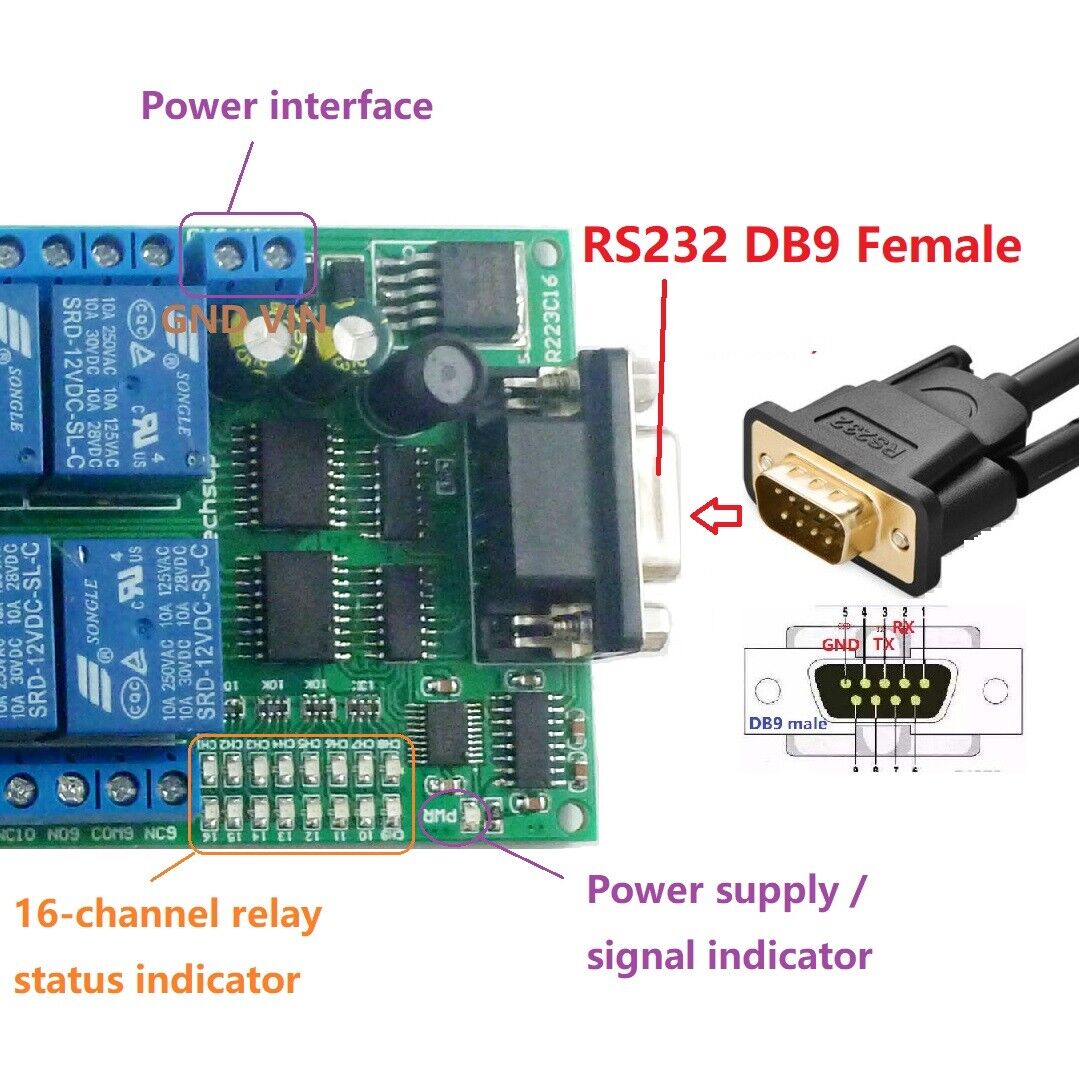

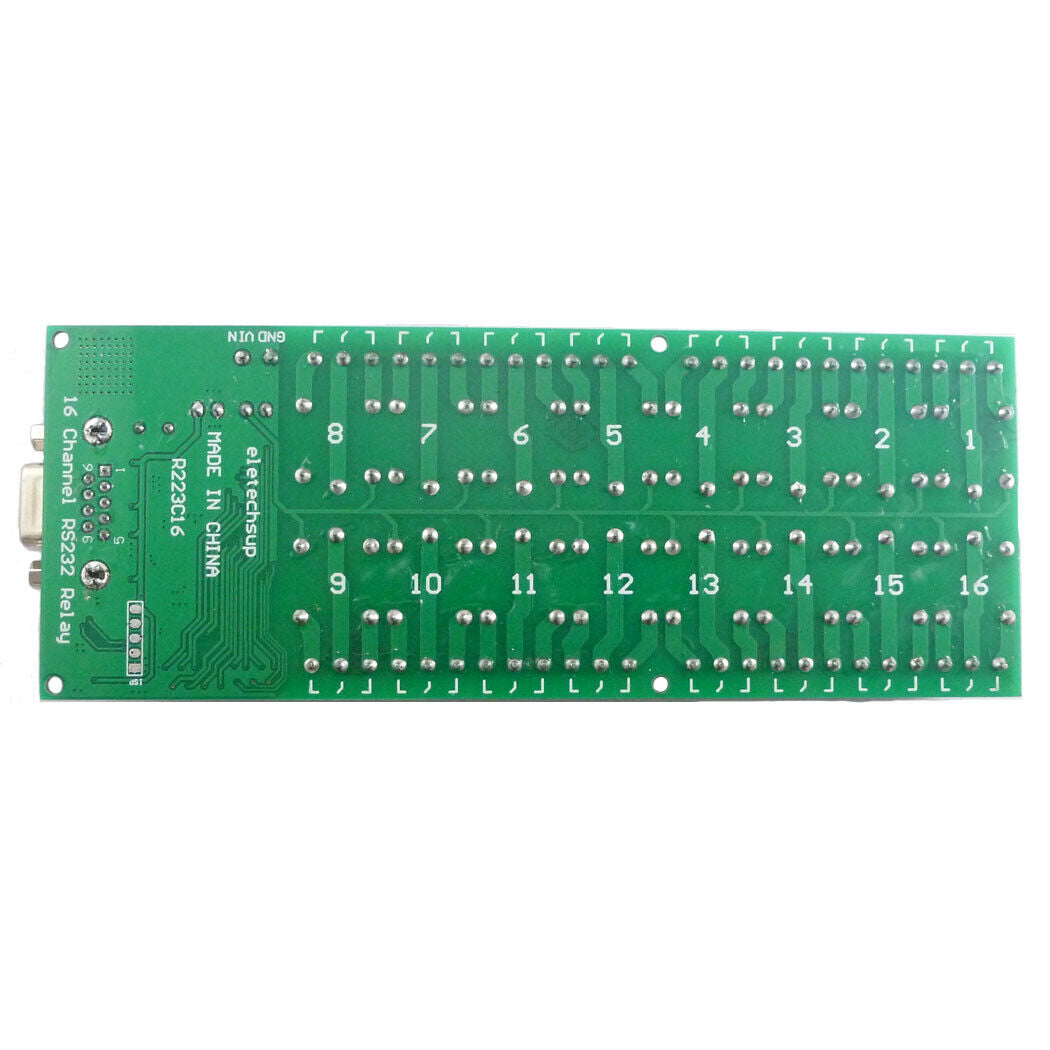

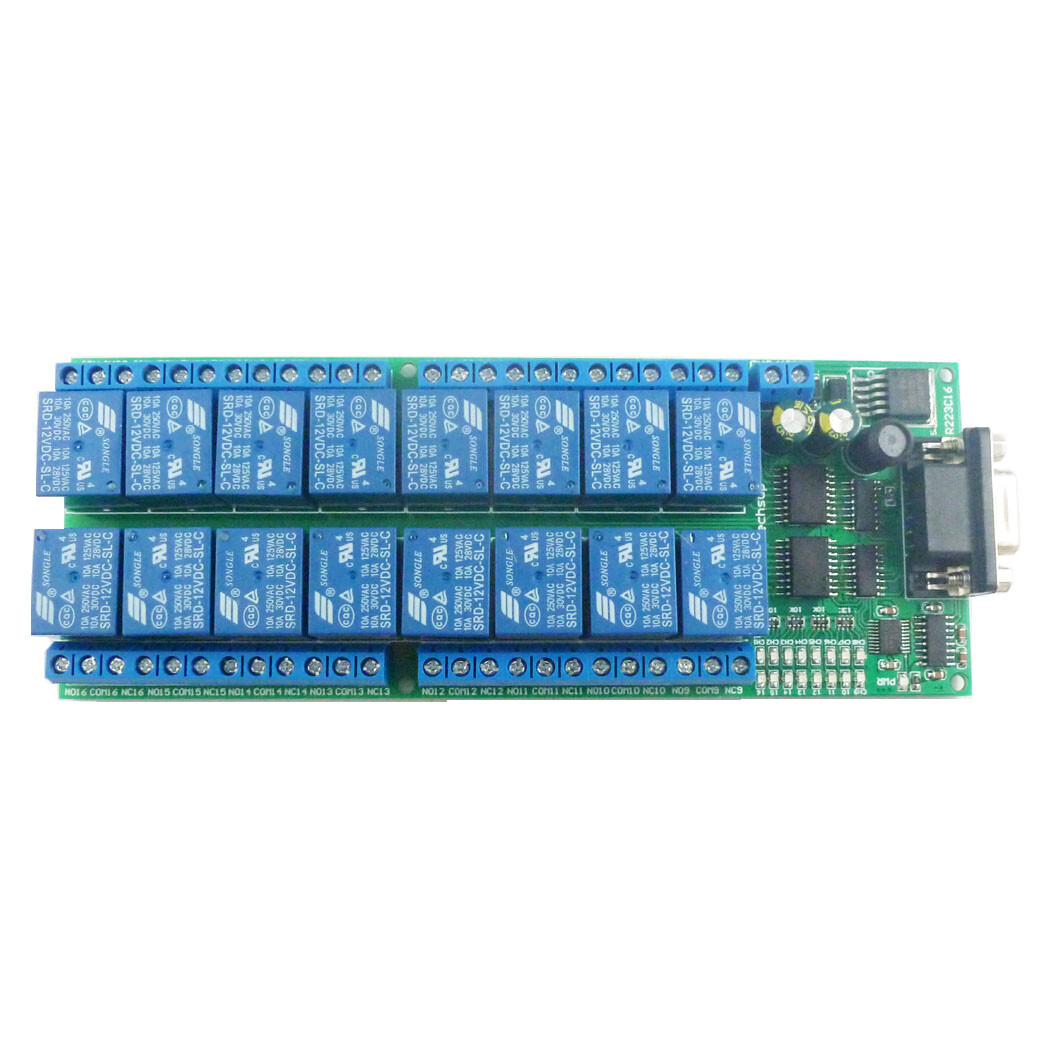

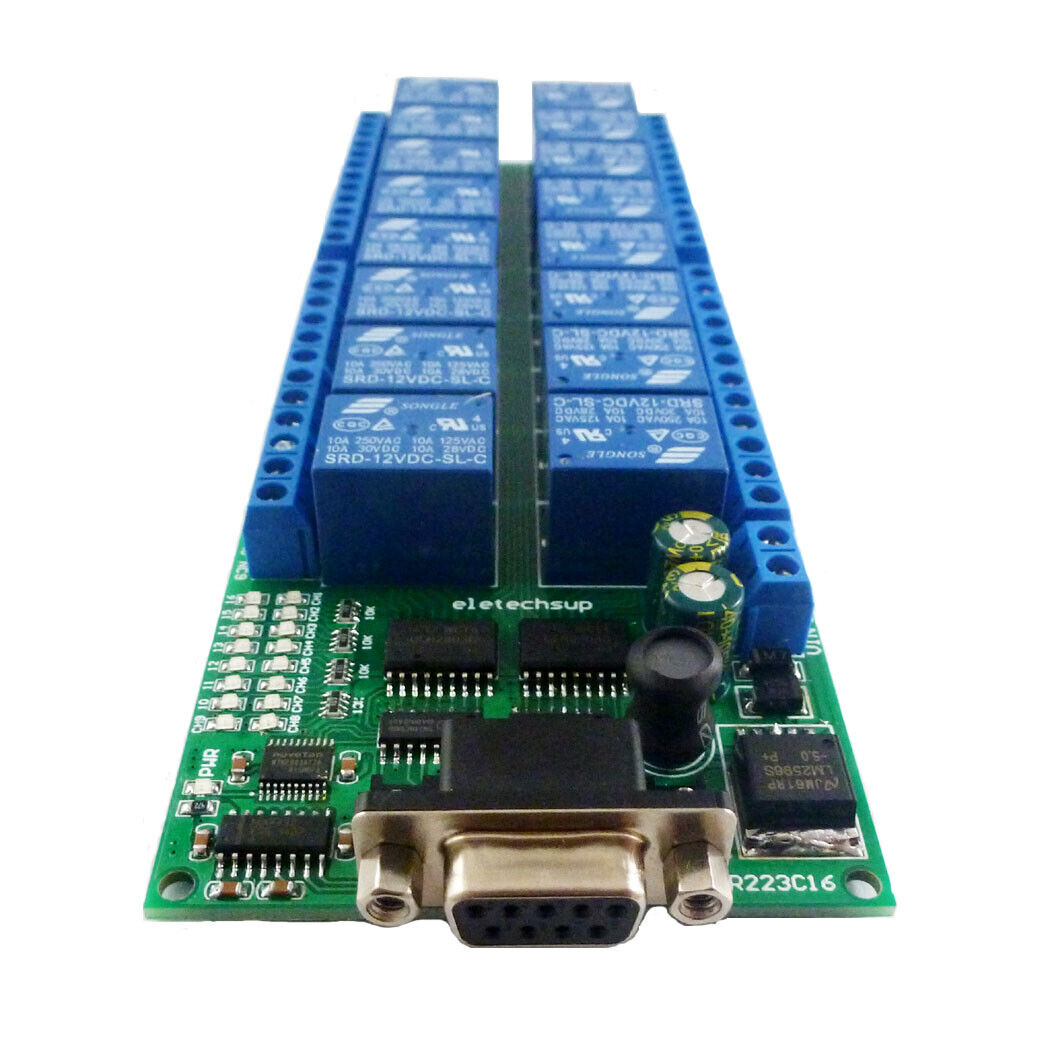

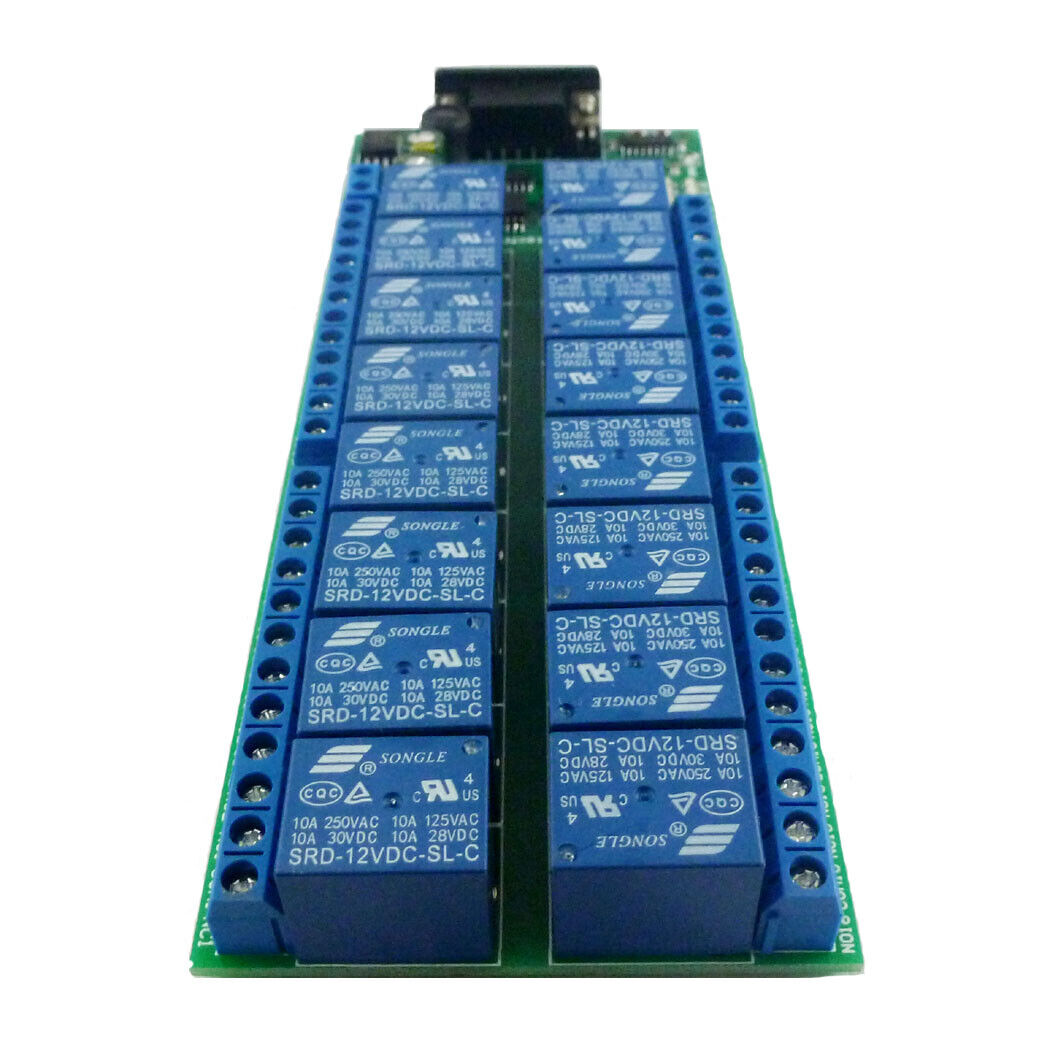

R223C16 16ch 12V RS232 Serial Port DB9 Relay Board UART LED Motor Smart Switch Module




1: Working voltage : DC 12V

2: Standby current (all relays closed) 18MA, 1 relay open 46MA, 2 relays open 73MA, 3 relays open 100MA,4 relays open 126MA,5 relays open 153MA,6 relays open 179MA, 7 relays open 204MA,8 relays open 230MA…

3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay''(Only AT command)  ''All Relays Open'' ''All Relays Close'' 8 Commands

4: Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch.

5: Under the ''Delay'' command ,the maximum delay is 9999 seconds(Only AT command)

6:Output indication : relay output with LED indicators,easy to see working status of the relay;

7:Baud rate 9600kbps, 8 data bits, one stop bit, no parity.

8 Size: 172 * 65 * 19mm
9 Weight: 228 g

10 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

Application

Remote control, remote measurement system;
Wireless meter;

Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance  ;
Intelligence household appliance;
Baby monitoring system;
LED Motor PLC
PC Remote Control

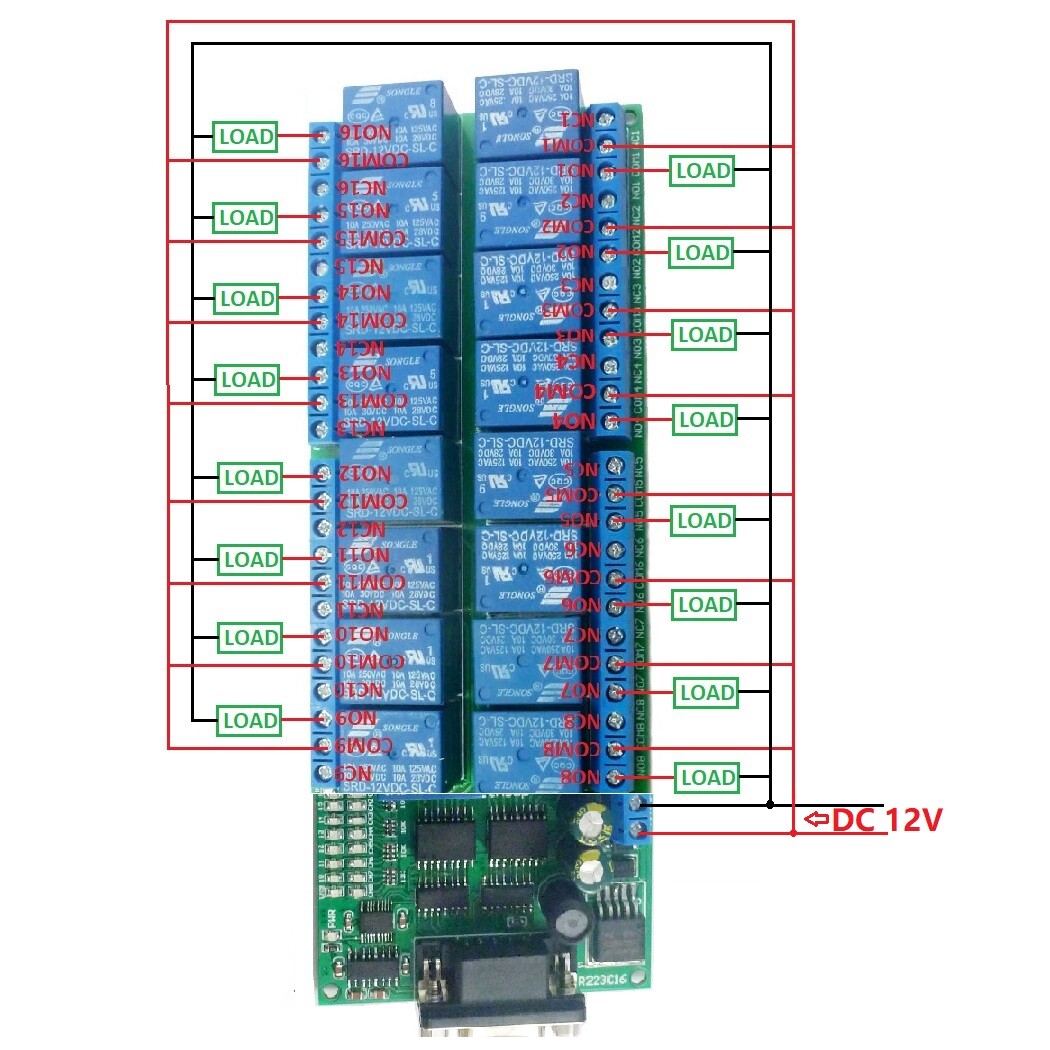

Wiring Diagram:



1 DC 12V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and   other DC 12V equipment
