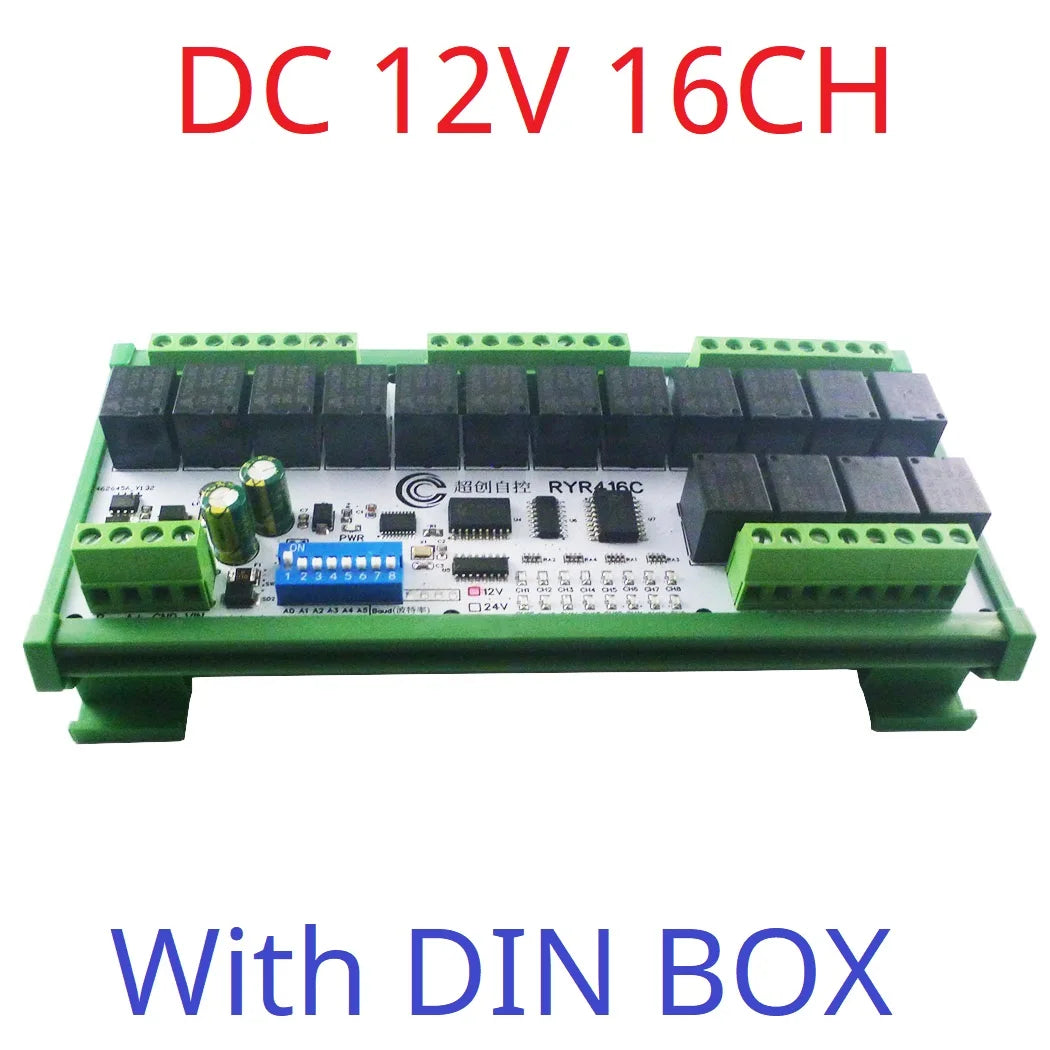

RYR416C 16CH DC 12V 24V Hardware Setup Parameters Modbus Rtu Multifunction RS485 Relay Module PLC HMI IO Expansion Board
RYR416C 16CH DC 12V 24V Hardware Setup Parameters Modbus Rtu Multifunction RS485 Relay Module PLC HMI IO Expansion Board
SKU:RYR416C_R_12V
1000 in stock
Regular price
$26.99
Regular price
$34.21
Sale price
$26.99
Unit price
per
Couldn't load pickup availability
Product Title: 16CH DC 12V 24V Hardware Setup Parameters Modbus Rtu Multifunction RS485 Relay Module PLC HMI IO Expansion Board
Product List: 1PCS 16CH DC 12V 24V Hardware Setup Parameters Modbus Rtu Multifunction RS485 Relay Module
(Specific according to the version and quantity you choose)
Description:
1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 4.8MA, 1 relay open 50MA, ...,16 relay open 800MA
3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

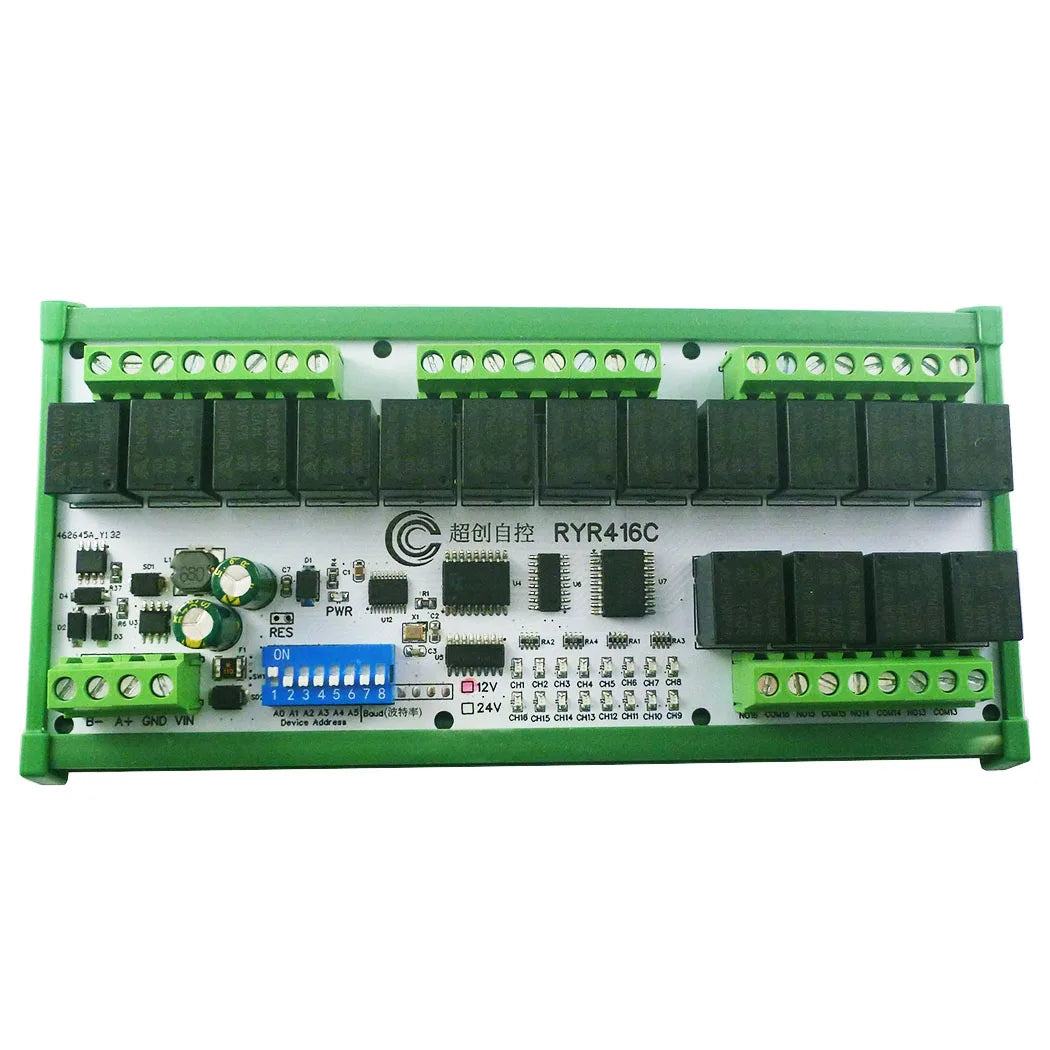

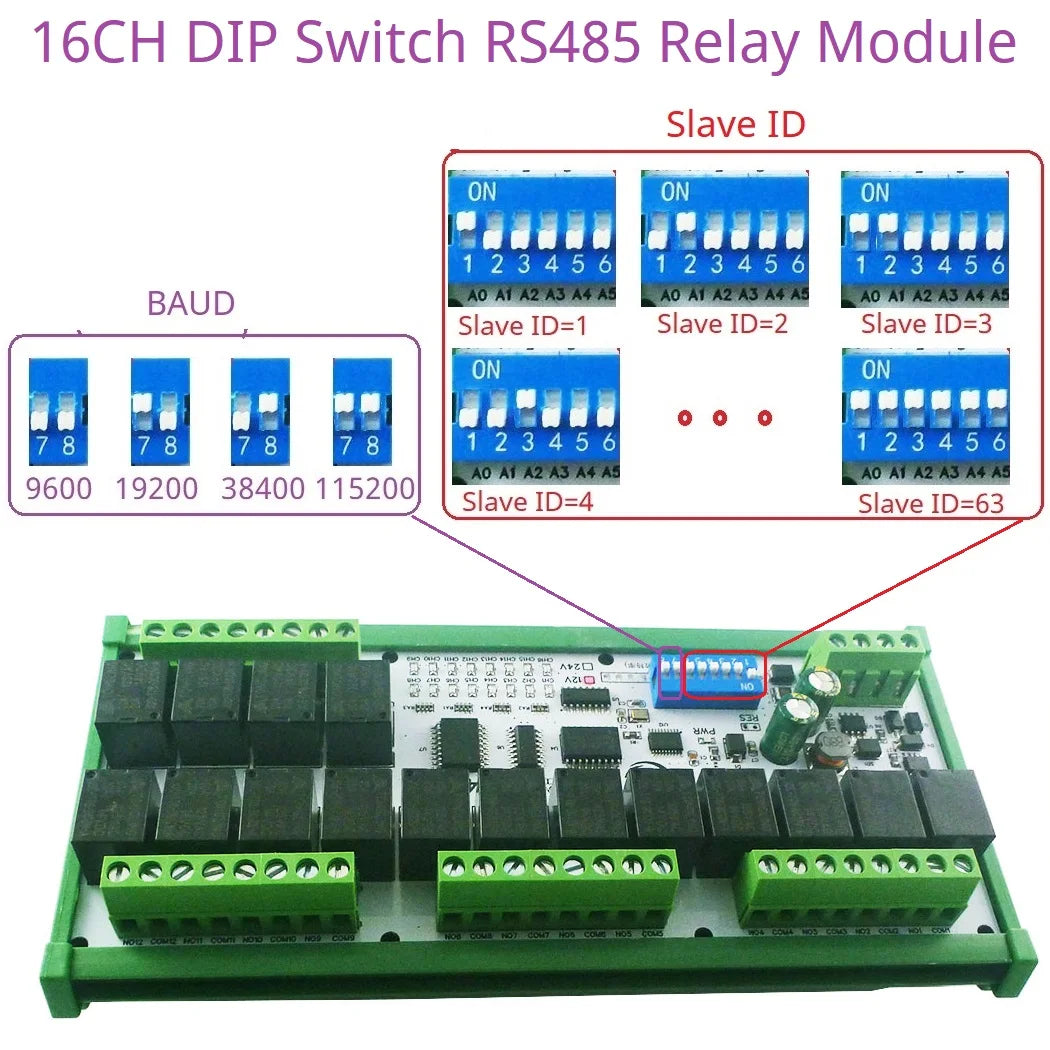

7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd

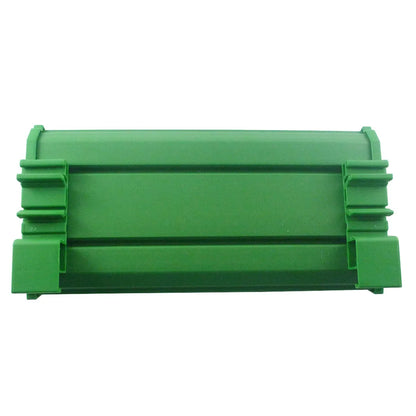

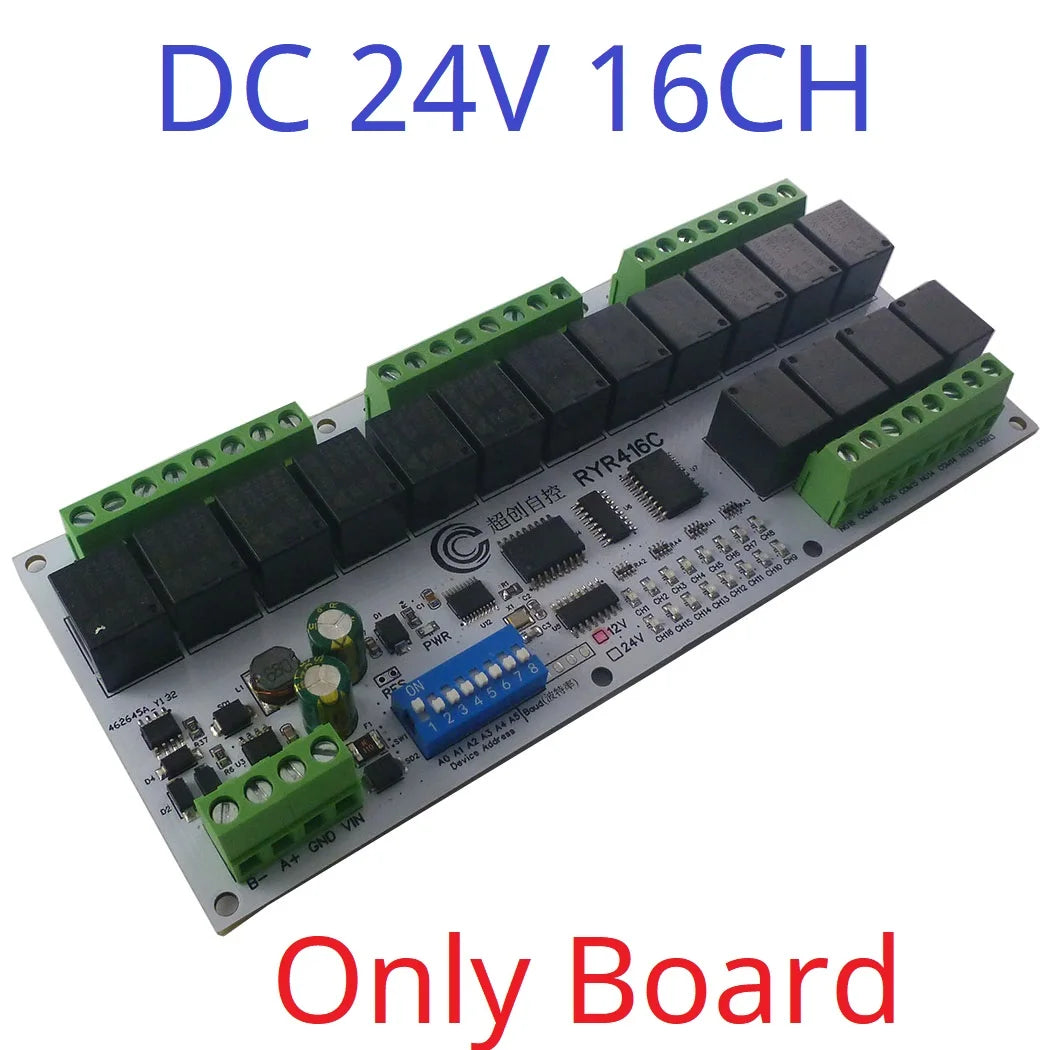

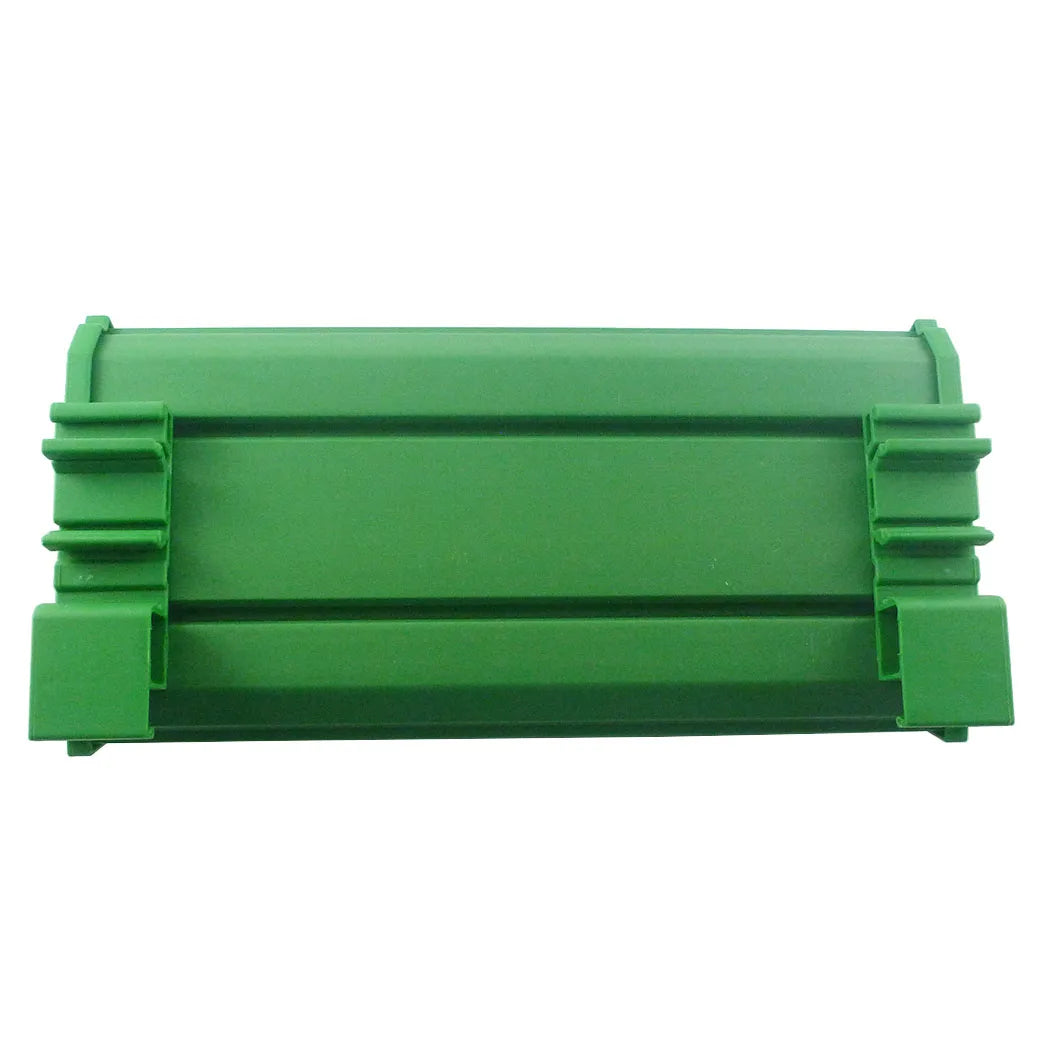

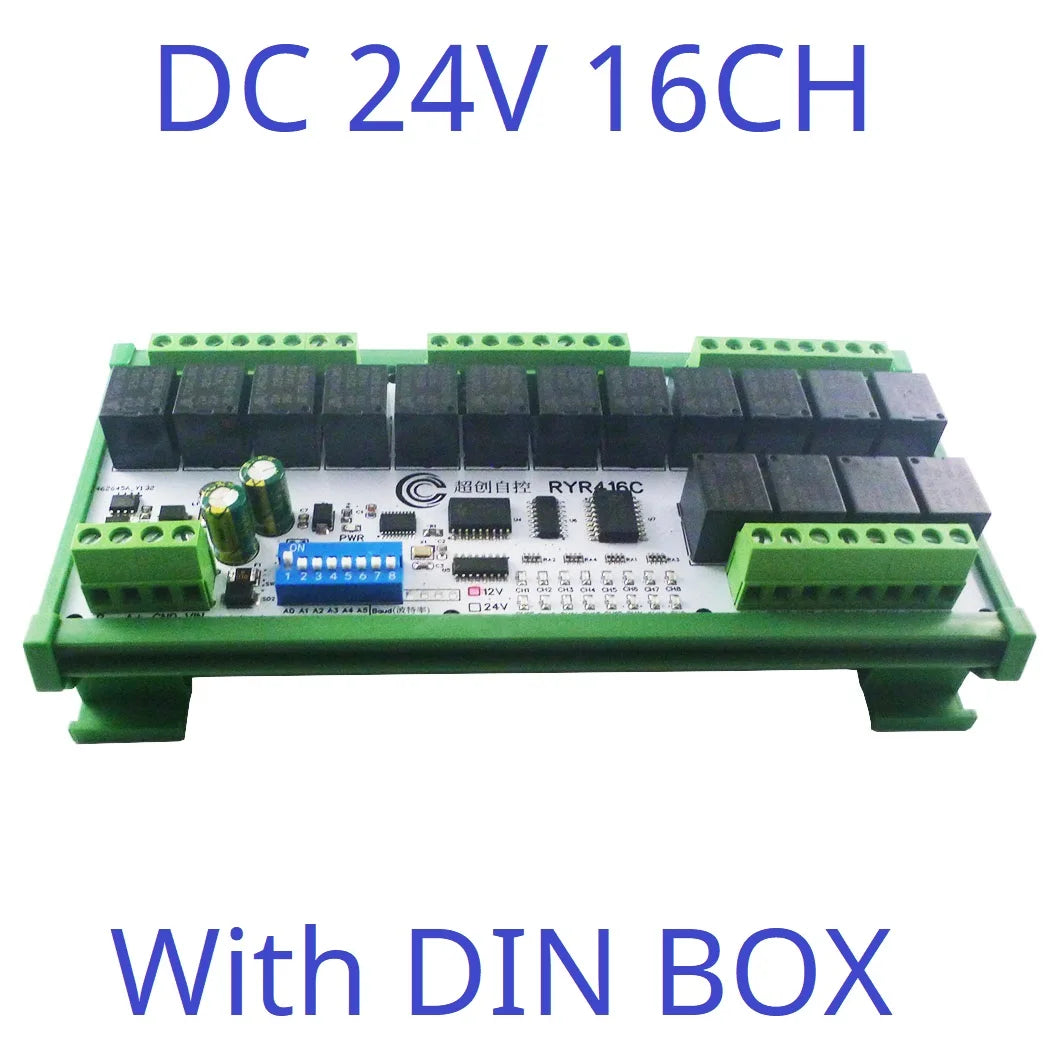

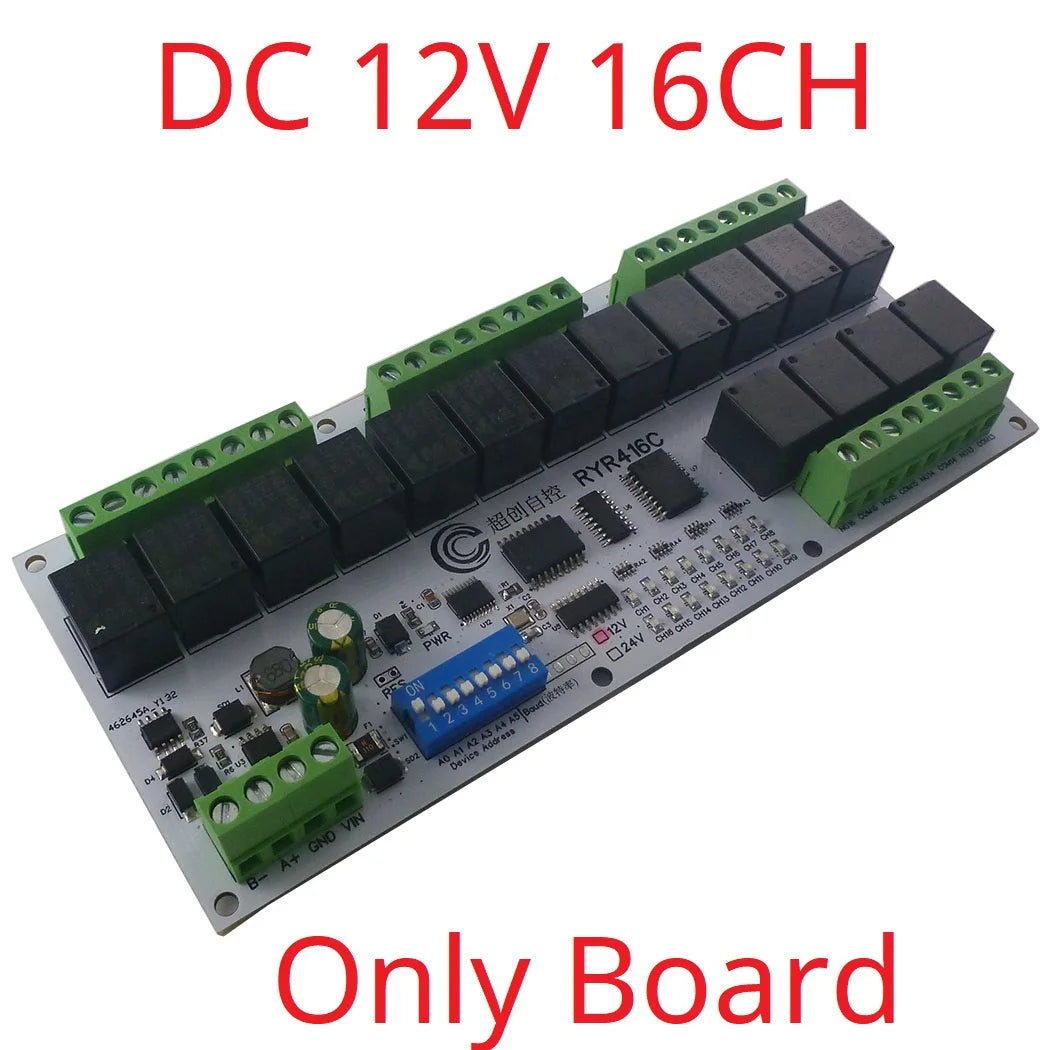

10 Size : 169*72*16MM(Only Board);173*82*36MM(With DIN Box);
11 Weight : 175g(Only Board),294g(With DIN Box)
12 Maximum load: 7A 120VAC;10A 28VDC
For more information, please contact me
Application
Product List: 1PCS 16CH DC 12V 24V Hardware Setup Parameters Modbus Rtu Multifunction RS485 Relay Module
(Specific according to the version and quantity you choose)
Description:
1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 4.8MA, 1 relay open 50MA, ...,16 relay open 800MA
3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd
10 Size : 169*72*16MM(Only Board);173*82*36MM(With DIN Box);
11 Weight : 175g(Only Board),294g(With DIN Box)
12 Maximum load: 7A 120VAC;10A 28VDC
For more information, please contact me
Application
PLC DO Expansion Board
HMI Configuration Software
Smart Home,Home Automation ,Automated industry;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
LED Control
Farm water supply system
Stirring system
