ETIOE16 16CH NPN DI Network Ethernet Modbus RTU TCP Multifunction Remote I/O NPN DI Dry Contact Relay DO 4-20MA 0-10V Current Voltage

ETIOE16 16CH NPN DI Network Ethernet Modbus RTU TCP Multifunction Remote I/O NPN DI Dry Contact Relay DO 4-20MA 0-10V Current Voltage

ETIOE16_12V

1000 in stock

$115.93
$115.93 $115.93
Sale Sold out
Package inlcuded:

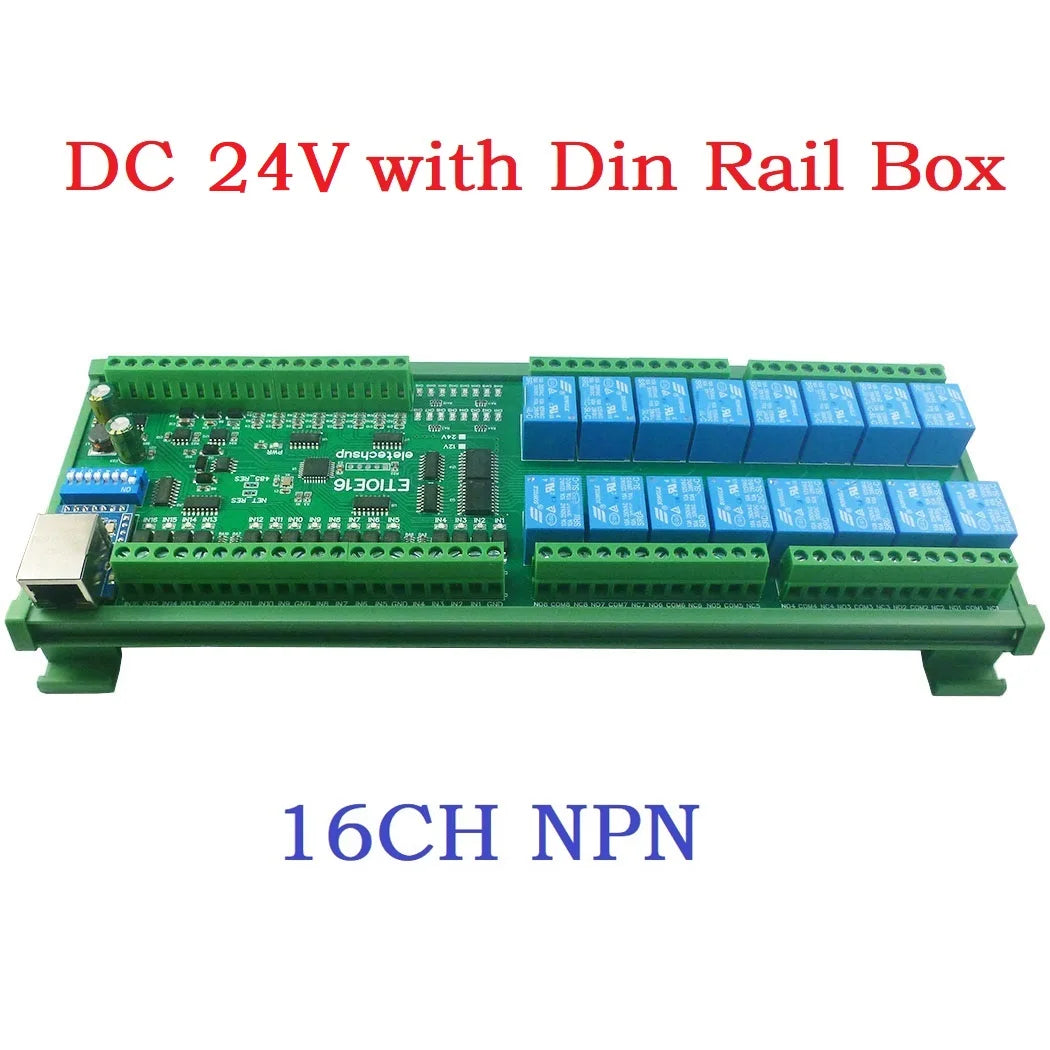

1PCS DC 12V/24V 16-Ch ETIOE16 Network Ethernet RS485 Digital Analog Remote IO Module

(There are multiple versions, please choose the version you need)





Features:

16ch Version:

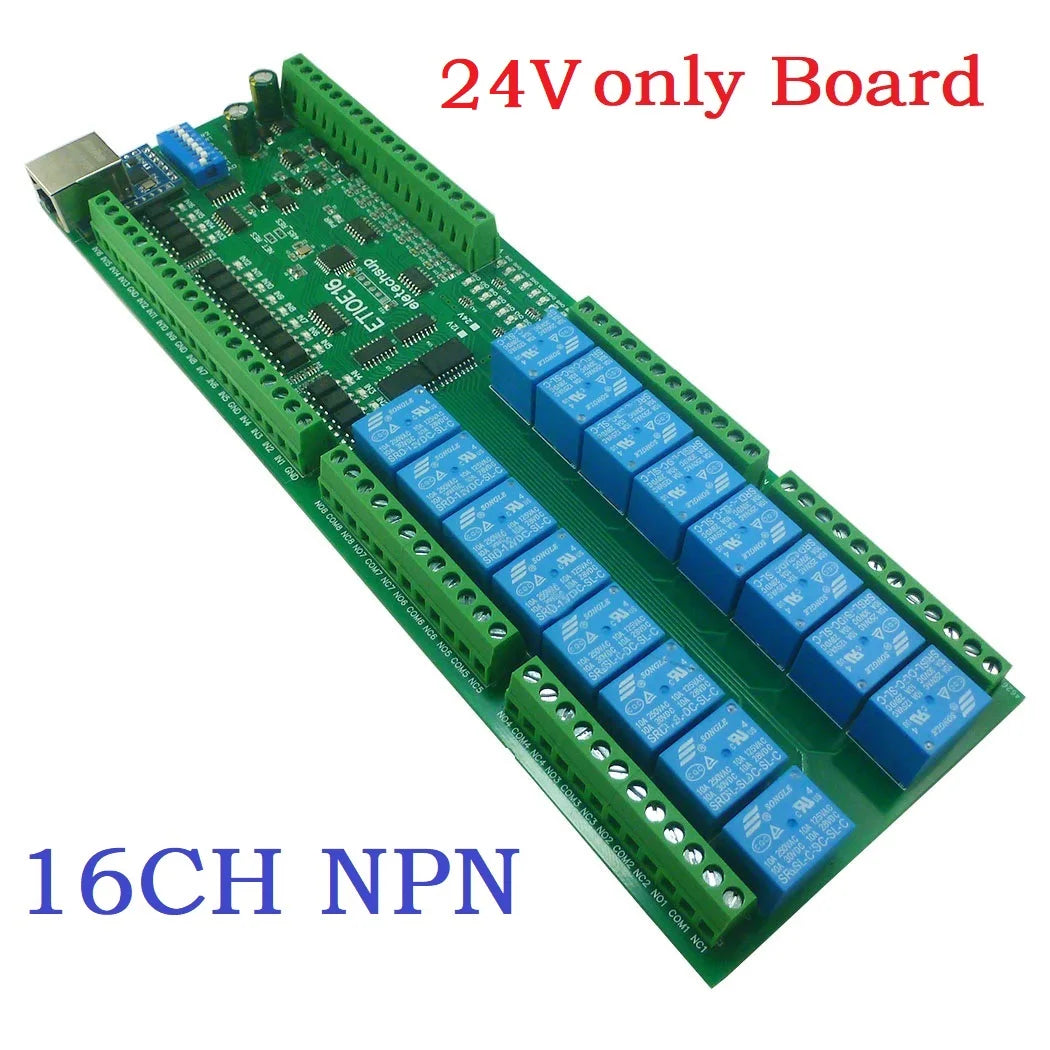

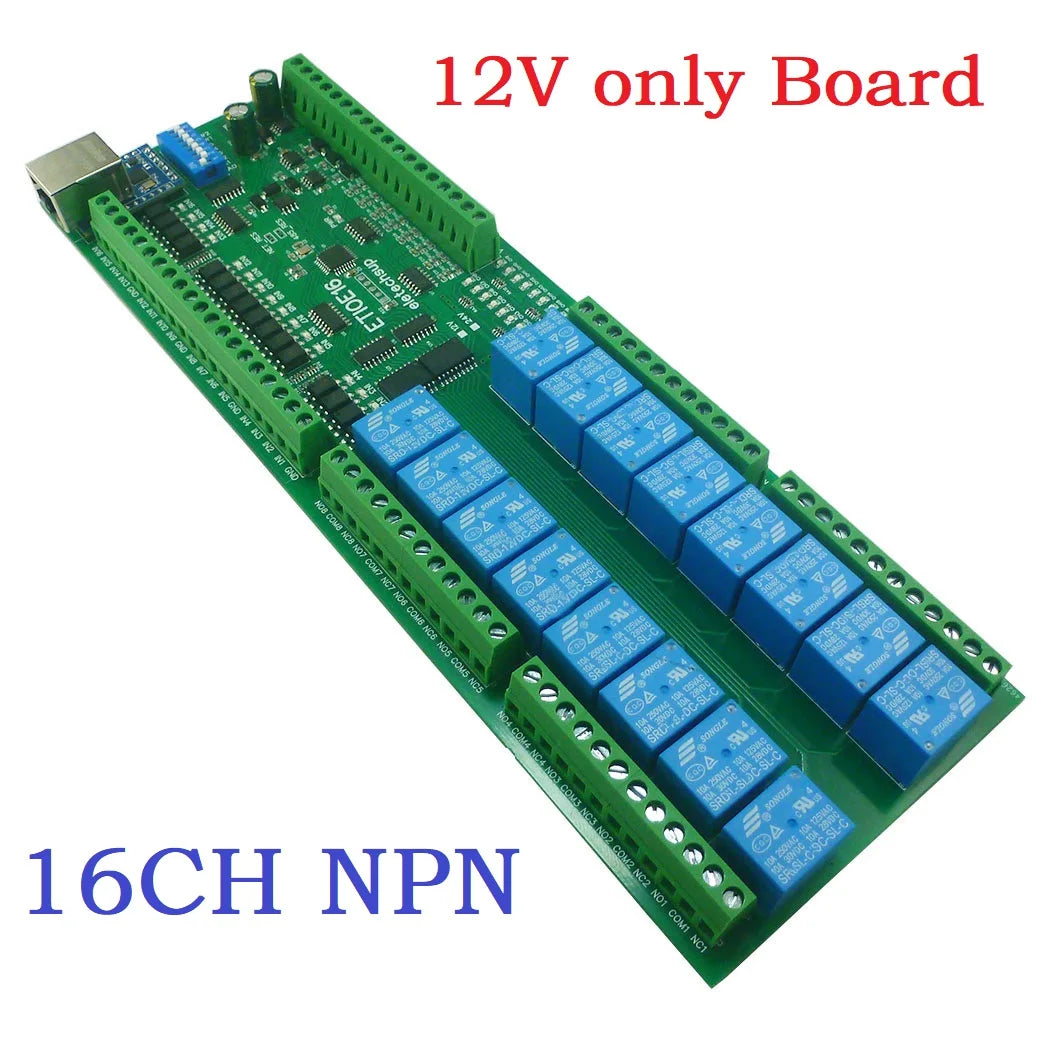

1 Working voltage: DC 12V (12V version); 24V (24V version)

2 Working current (12V): Standby 15MA, single relay ON current 35MA, maximum working current 575MA (16 relay ON)

3 16 photoelectrically isolated input ports (NPN low-level active), the input-output relationship can be set to Unrelated (default)/Self- locking/Interlocking/Momentary/Interlocking(2 ch)/Output=Input.

4.16x relay output ports, 1x 0-5V/10V output port, 1x 0/4-20MA output port, 16x NPN switch input ports, 4x 0/4-20MA input ports, 4x 0-5V /10V input port

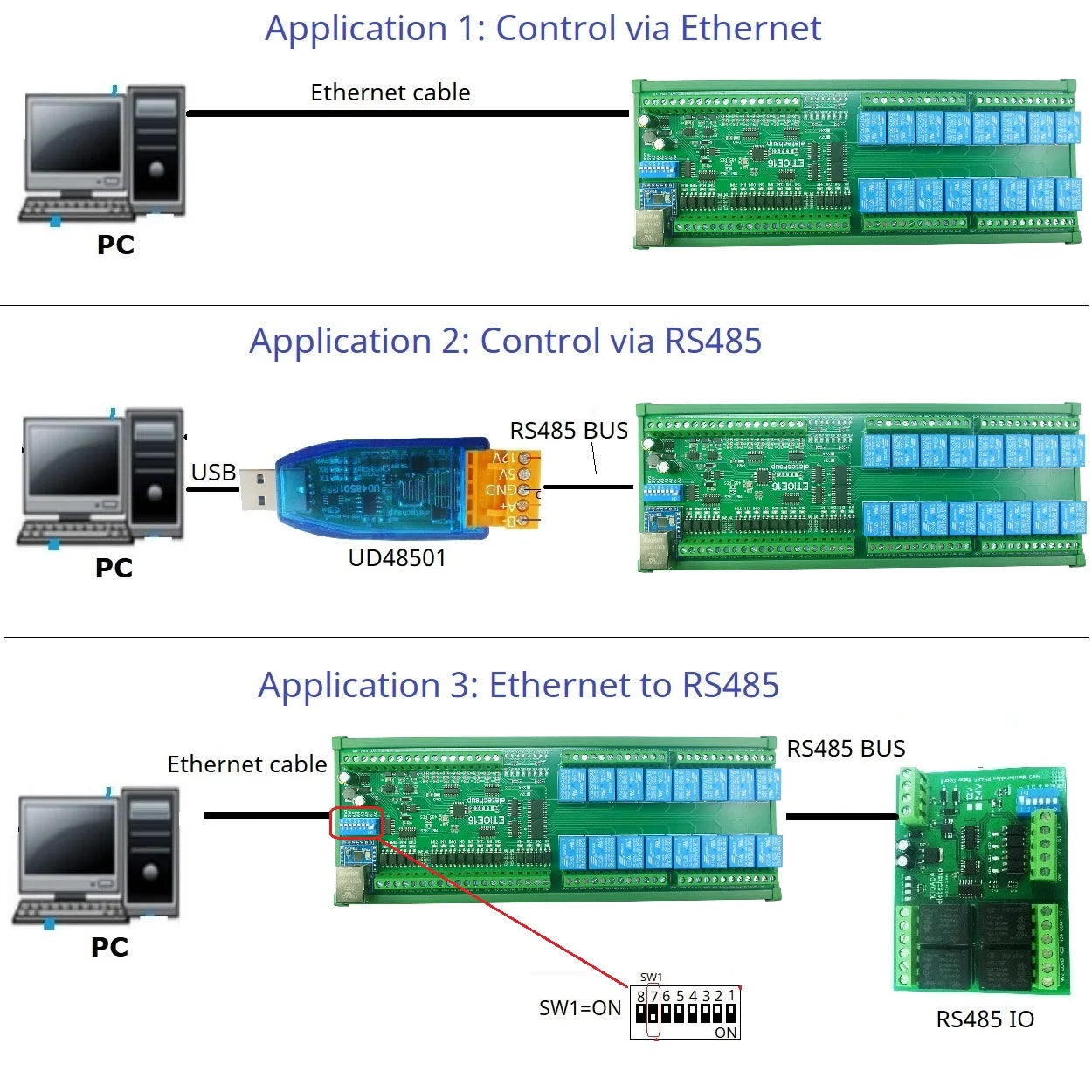

5 Communication interface: RS485/Ethernet (optional)

6 Standard MOSBUS instructions: Write 05/06/15/16, Read 01/02/03/04

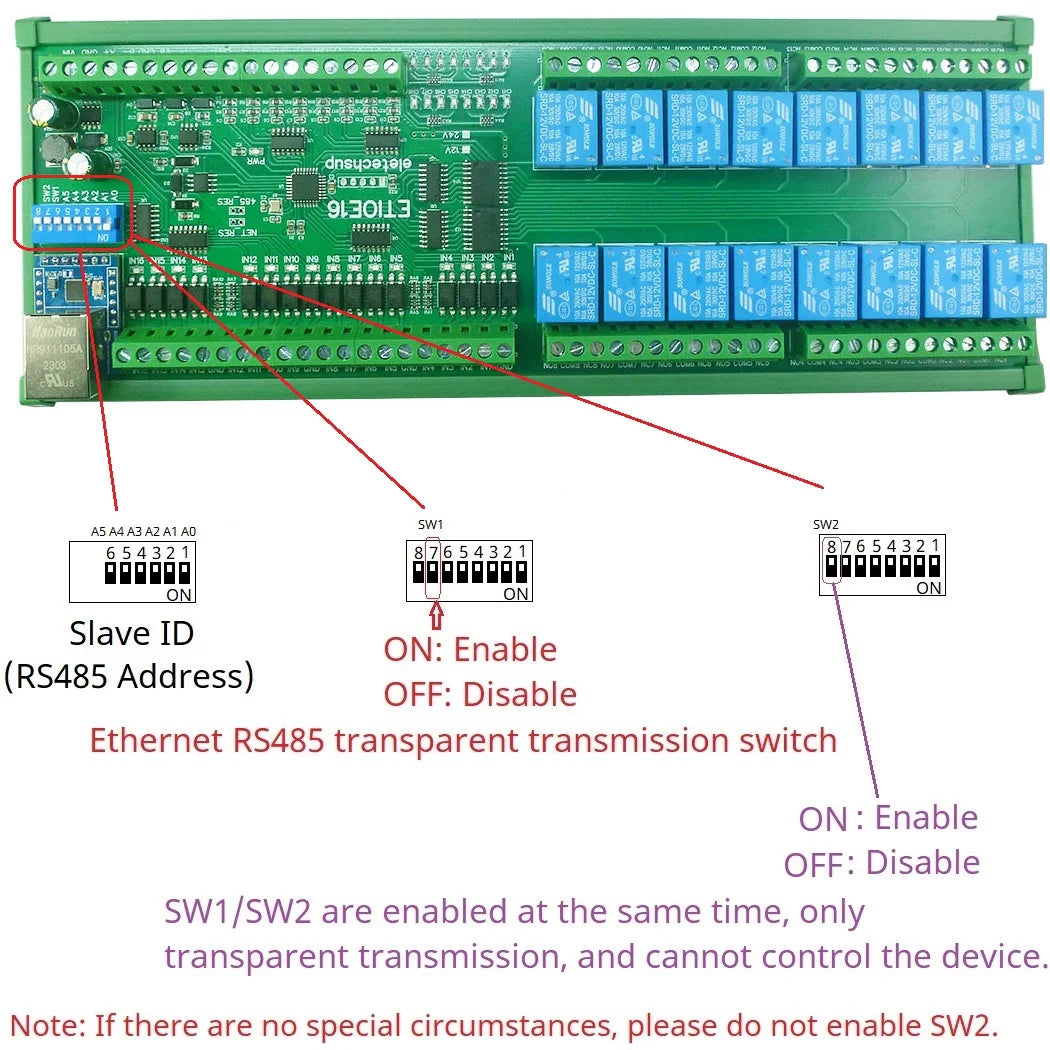

7 Set the Slave Address through the DIP switch (A0-A5), which can support up to 63 devices in parallel.

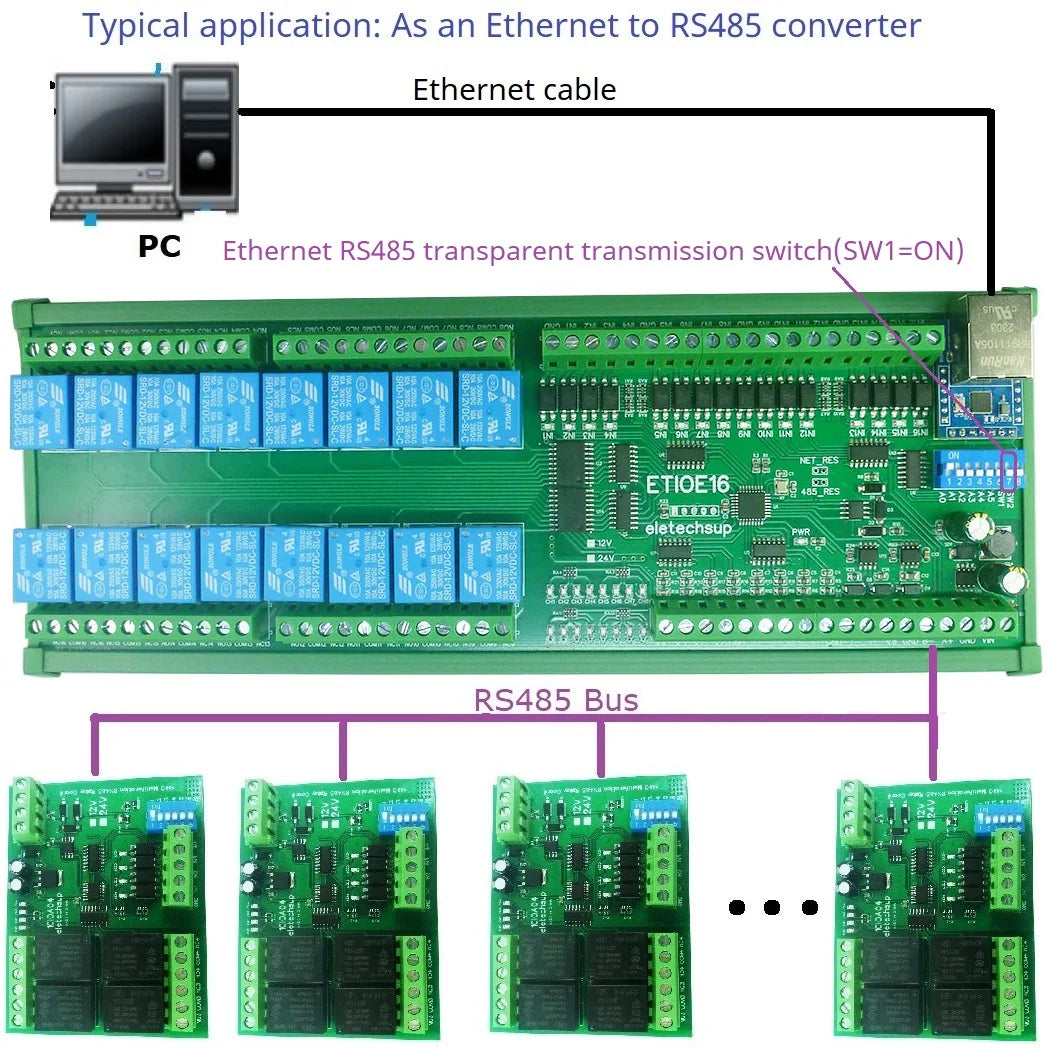

8 Through the DIP switch (SW1=ON), the Ethernet and RS485 ports can be set as Ethernet to RS485 servers.

9 The default baud rate is 9600BPS, the baud rate can be selected through jumpers 2400 4800 19200 38400 57600 115200BPS

10 You can choose the check mode as No Parity, Even Parity and Odd Parity.

11 You can set the data sending return time, the maximum can be set to 1000ms

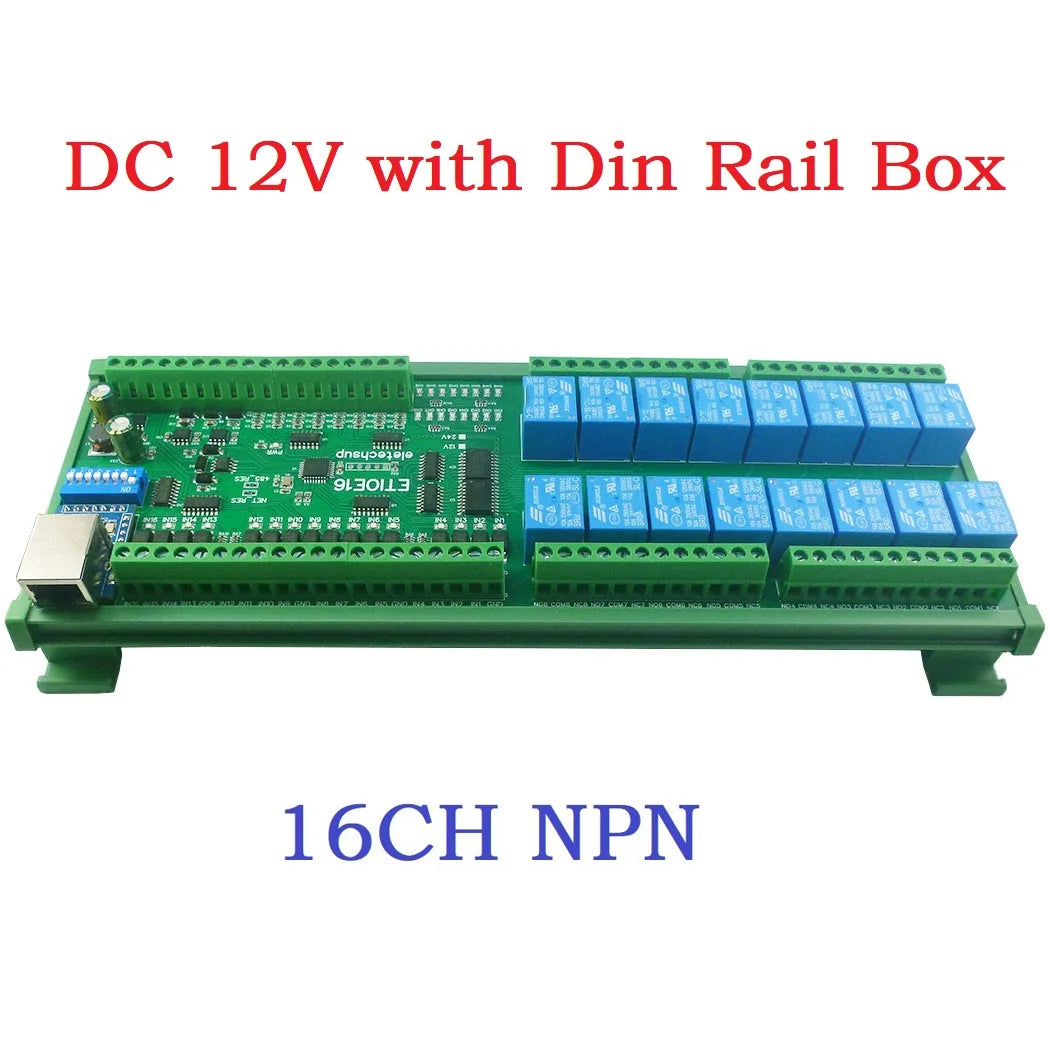

12 Size :265*90*22mm (only board) 268*102*45mm (with din rail box):

13 Weight: 330g (only board); 558g (with din rail box)

14.Maximum load: 10A/250VAC, 10A/125VAC, 10A /30VDC, 10A /28VDC, 10A /12VDC


Please contact me for detailed information!

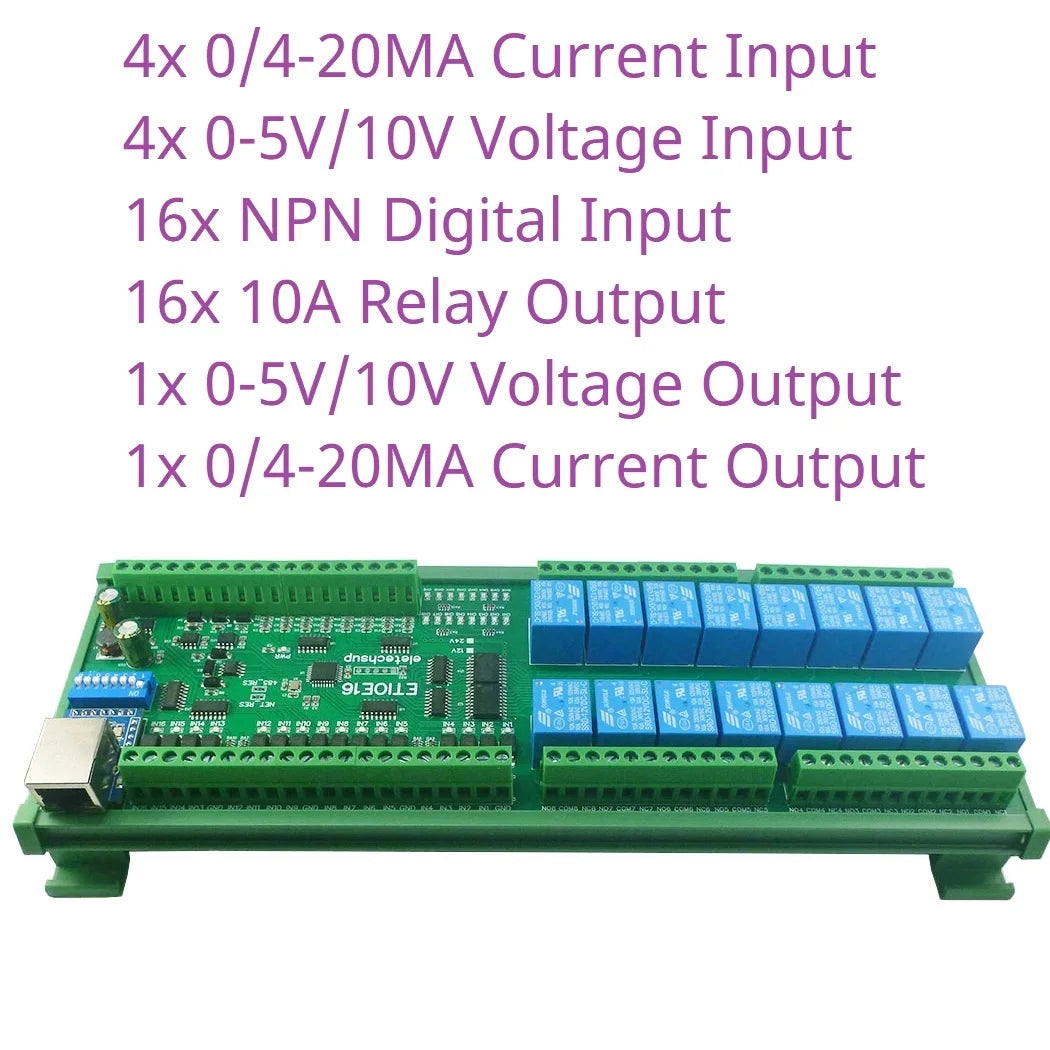

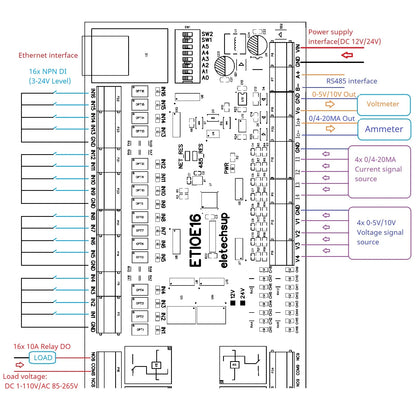

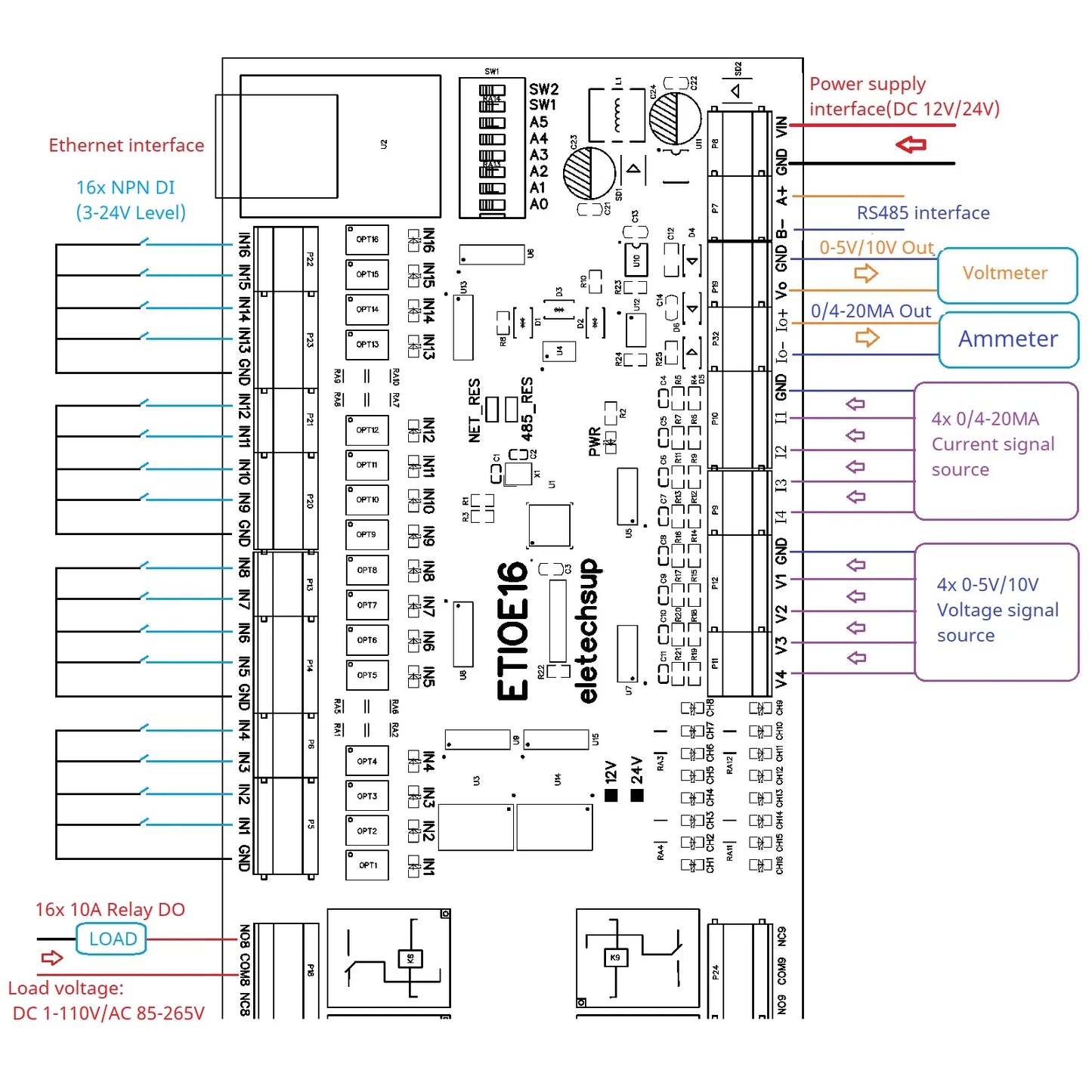

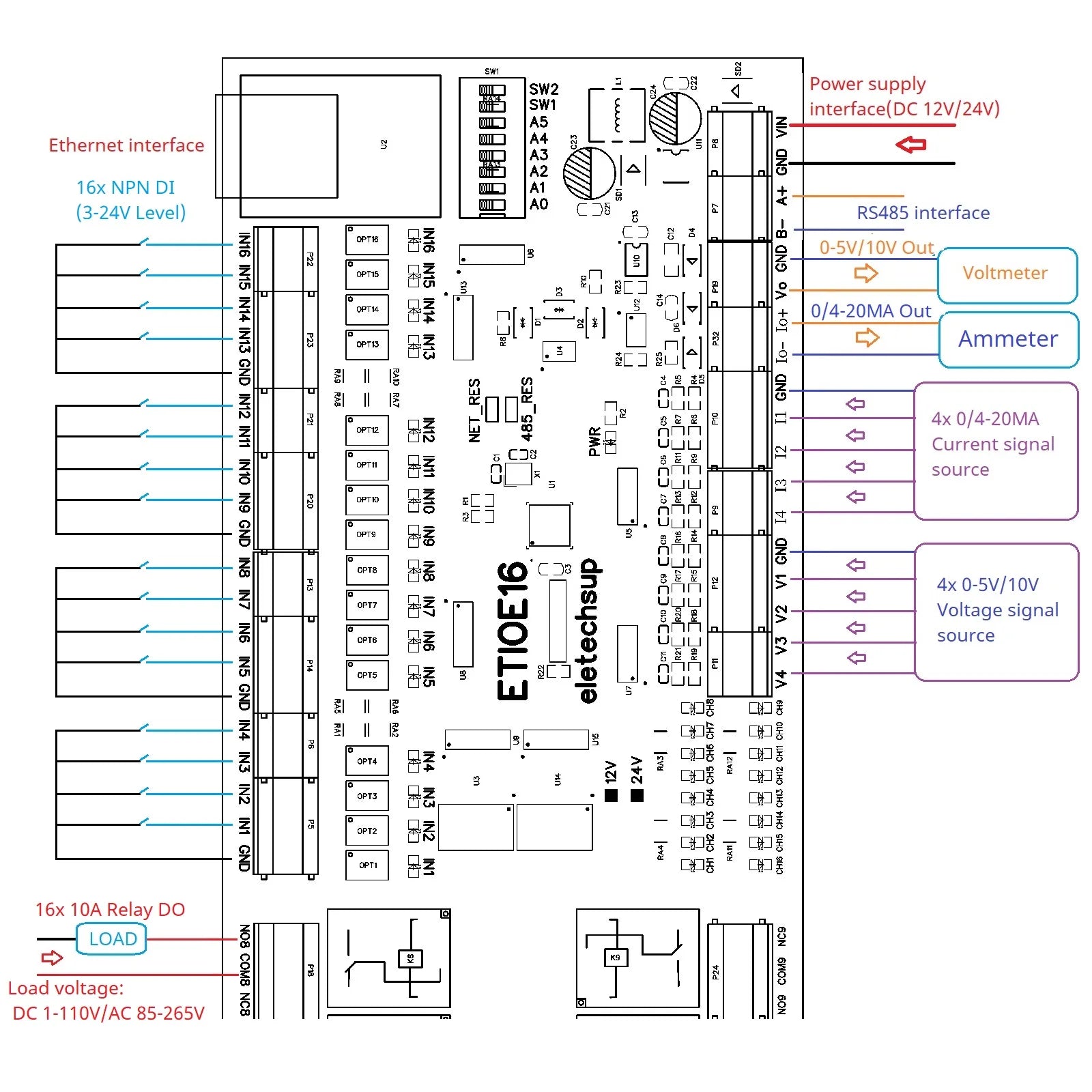

16ch Version Onboard resources:
4x 0/4-20MA Current Input
4x 0-5V/10V Voltage Input
16x NPN Digital Input
16x 10A Relay Output
1x 0-5V/10V Voltage Output
1x 0/4-20MA Current Output
