AMDIB16 16DI NPN PNP Digital Input Module with RS485 Isolated Communication for PLC Expansion Board
AMDIB16 16DI NPN PNP Digital Input Module with RS485 Isolated Communication for PLC Expansion Board
SKU:AMDIB16_PNP
1988 in stock
Regular price
$19.99
Regular price
$28.56
Sale price
$19.99
Unit price
per
Couldn't load pickup availability
Product Name:

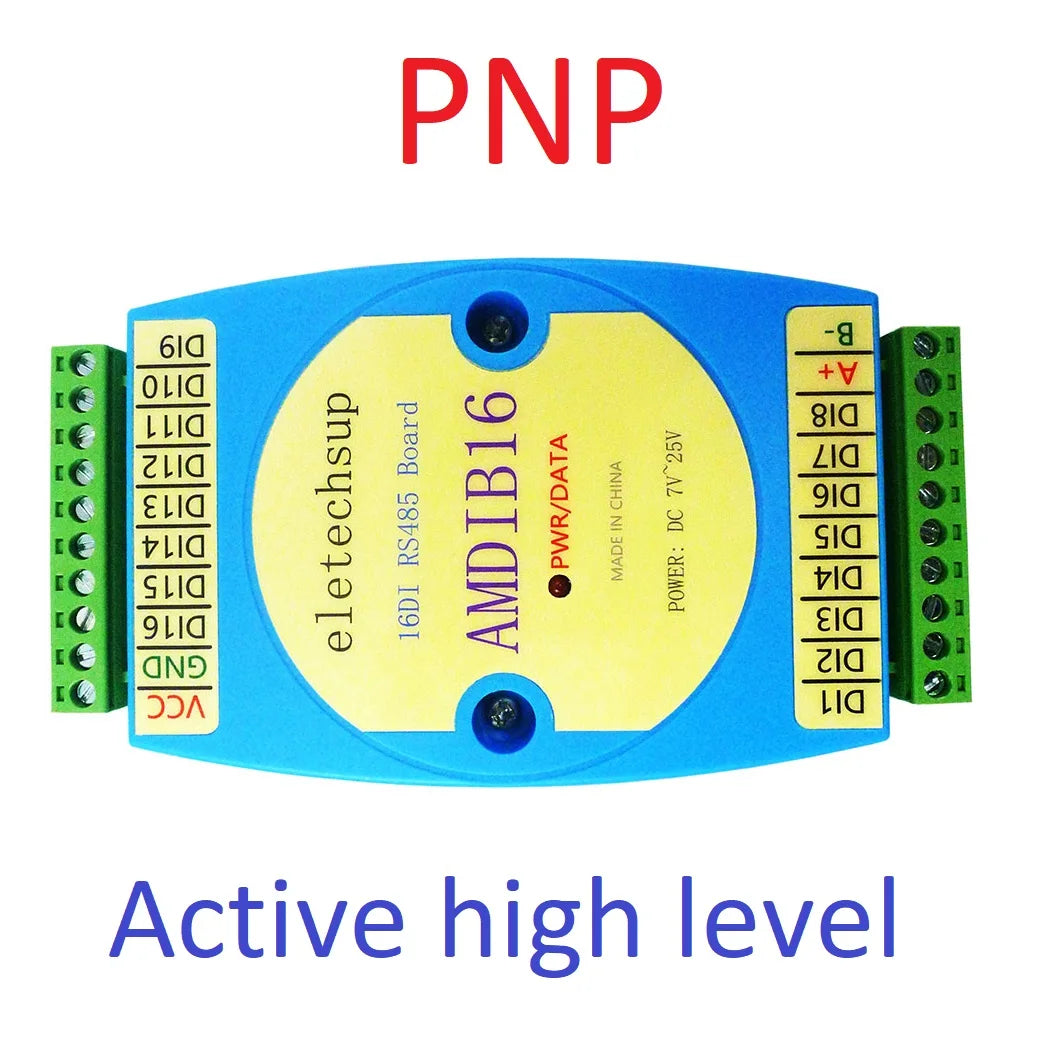

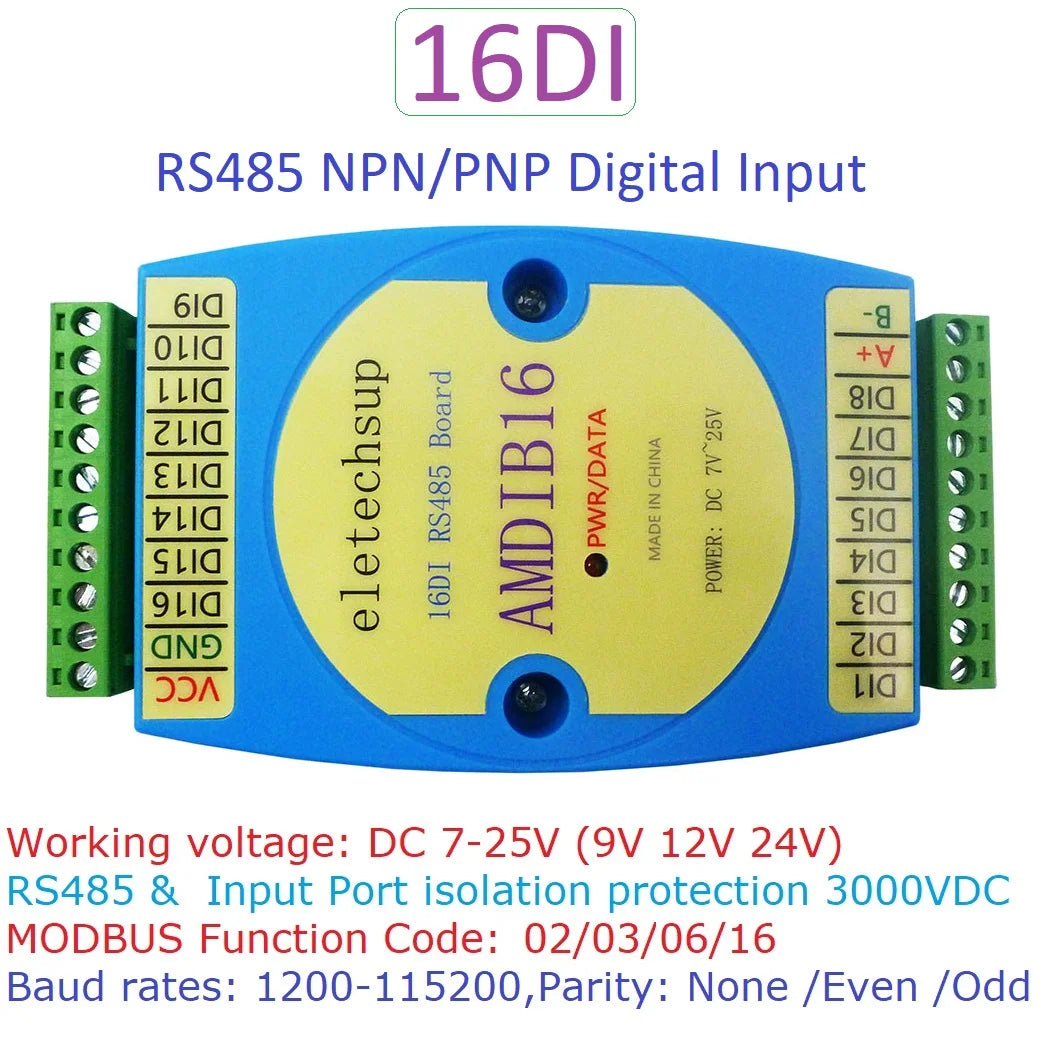

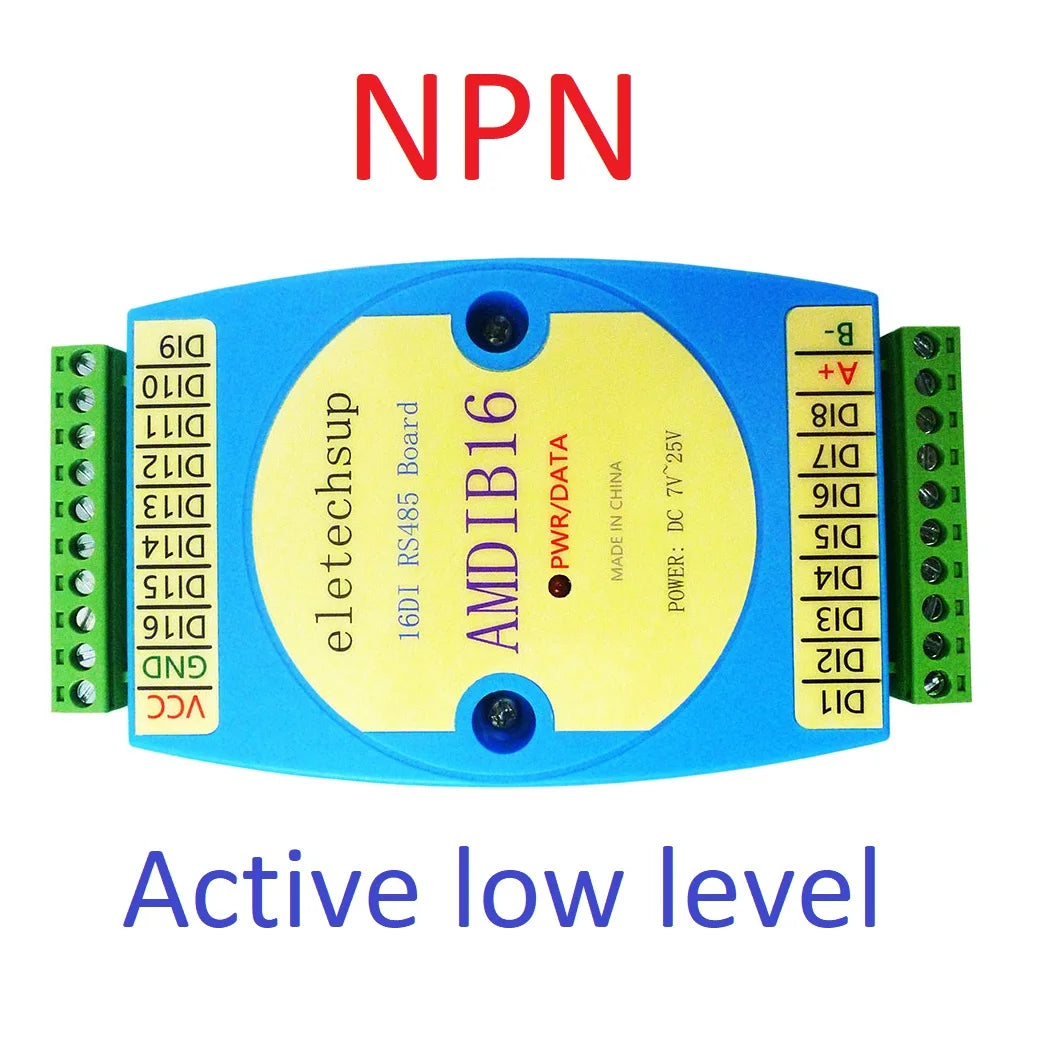

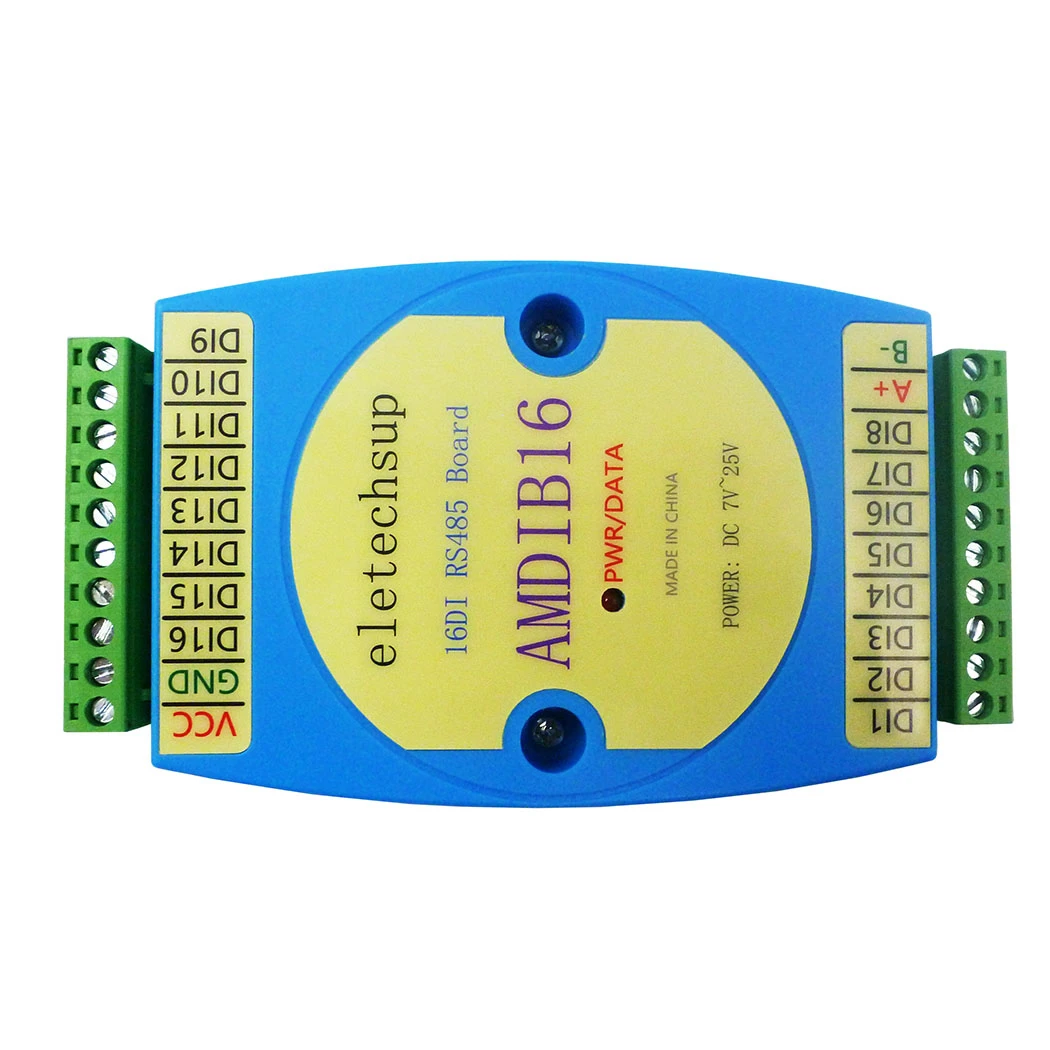

DC 9-24V 16DI NPN/PNP Dry Contact Digital Input Module RS485 Isolated Communication MODBUS RTU PLC Expansion Board
DC 9-24V 16DI NPN/PNP Dry Contact Digital Input Module RS485 Isolated Communication MODBUS RTU PLC Expansion Board
Package inlcuded:
1 PCS DC 12V 24V 16DI RS485 NPN-PNP Digital Input Module
1 Product description
16ch optoelectronic isolation digital input channel (NPN/PNP optional)
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field
2 Specification
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 9-15MA
3 16 optically isolated input ports(NPN/PNP optional)
4 RS485 communication isolation protection 3000VDC, DI digital input port isolation protection 3000VDC

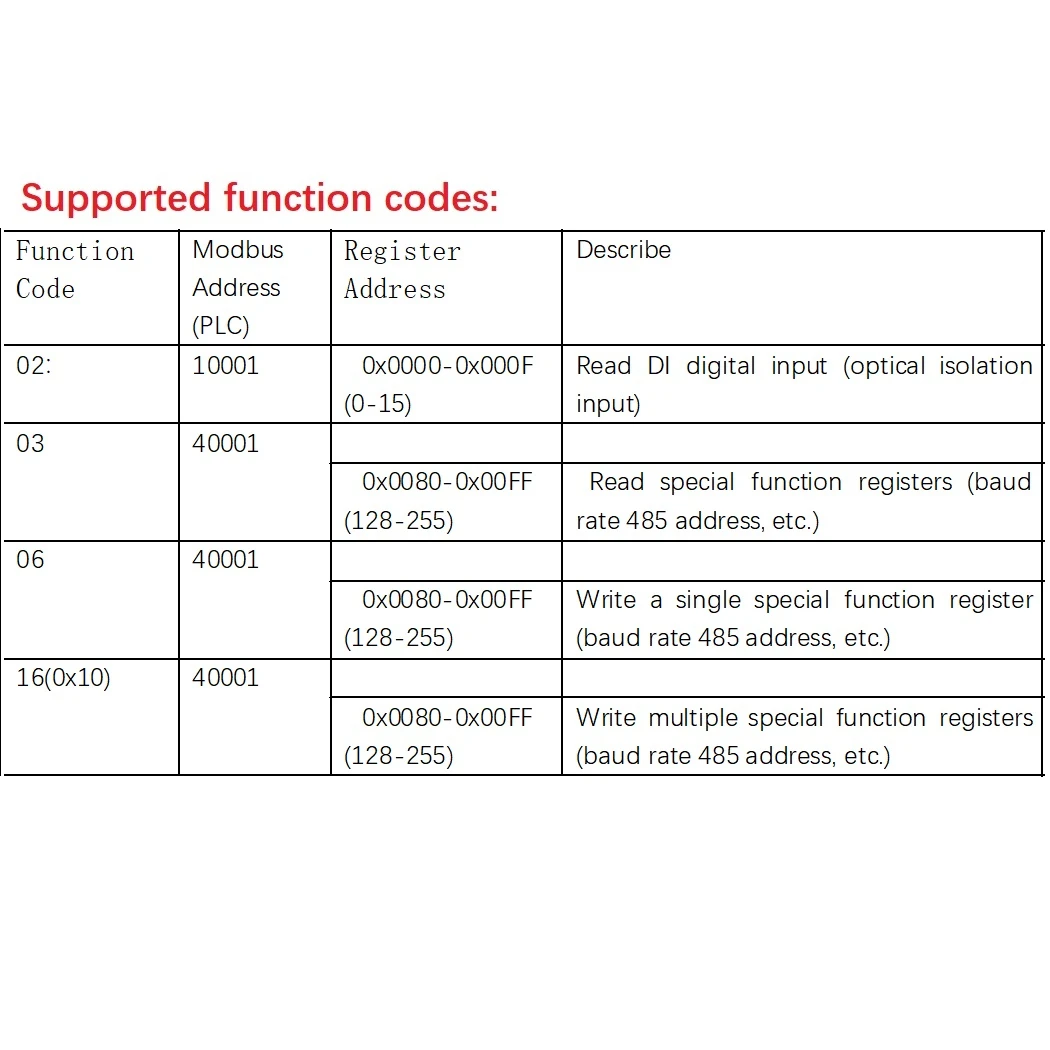

5 Standard MODBUS RTU command (function code, 06/16 Write, 02/03 Read )
6 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
7 Parity bits: None (default) /Even /Odd
8 Installation method Standard DIN rail installation
9 Dimensions 125×70×30mm
10 Weight: 114 grams
3 Interface definition:
VCC : Power input+
GND: Power input-
DI1 : Digital input channel 1
DI2 : Digital input channel 2
DI3 : Digital input channel 3
DI4 : Digital input channel 4
DI5 : Digital input channel 5
DI6 : Digital input channel 6
DI7 : Digital input channel 7
DI8 : Digital input channel 8
DI9 : Digital input channel 9
DI10 : Digital input channel 10
DI11 : Digital input channel 11
DI12 : Digital input channel 12
DI13 : Digital input channel 13
DI14 : Digital input channel 14
DI15 : Digital input channel 15
DI16 : Digital input channel 16
A+: RS485 signal A+
B-: RS485 signal B-
For more information, please contact me
Application
PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control

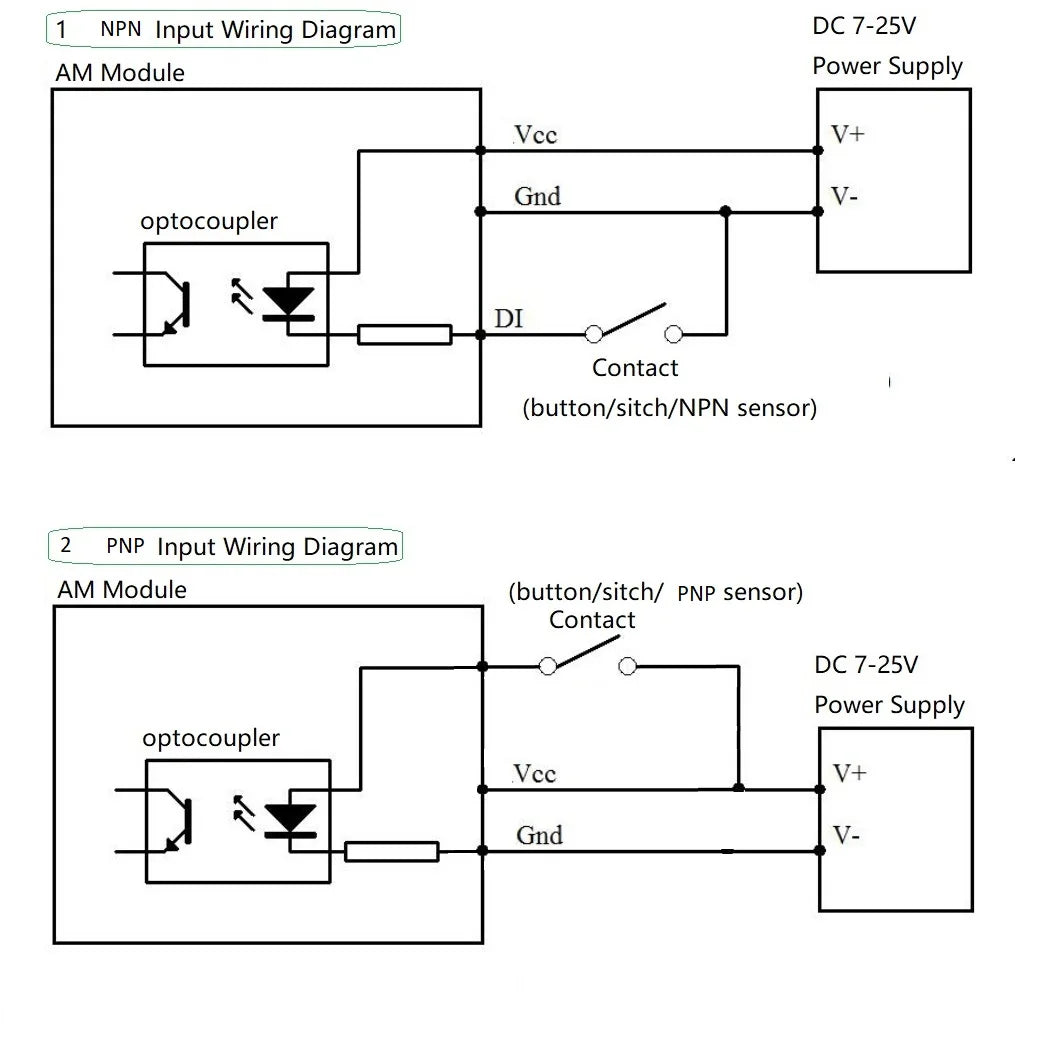

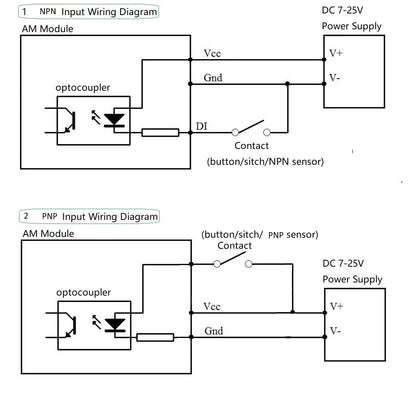

1 NPN Digital Input Wiring Diagram
2 PNP
Digital Input Wiring Diagram

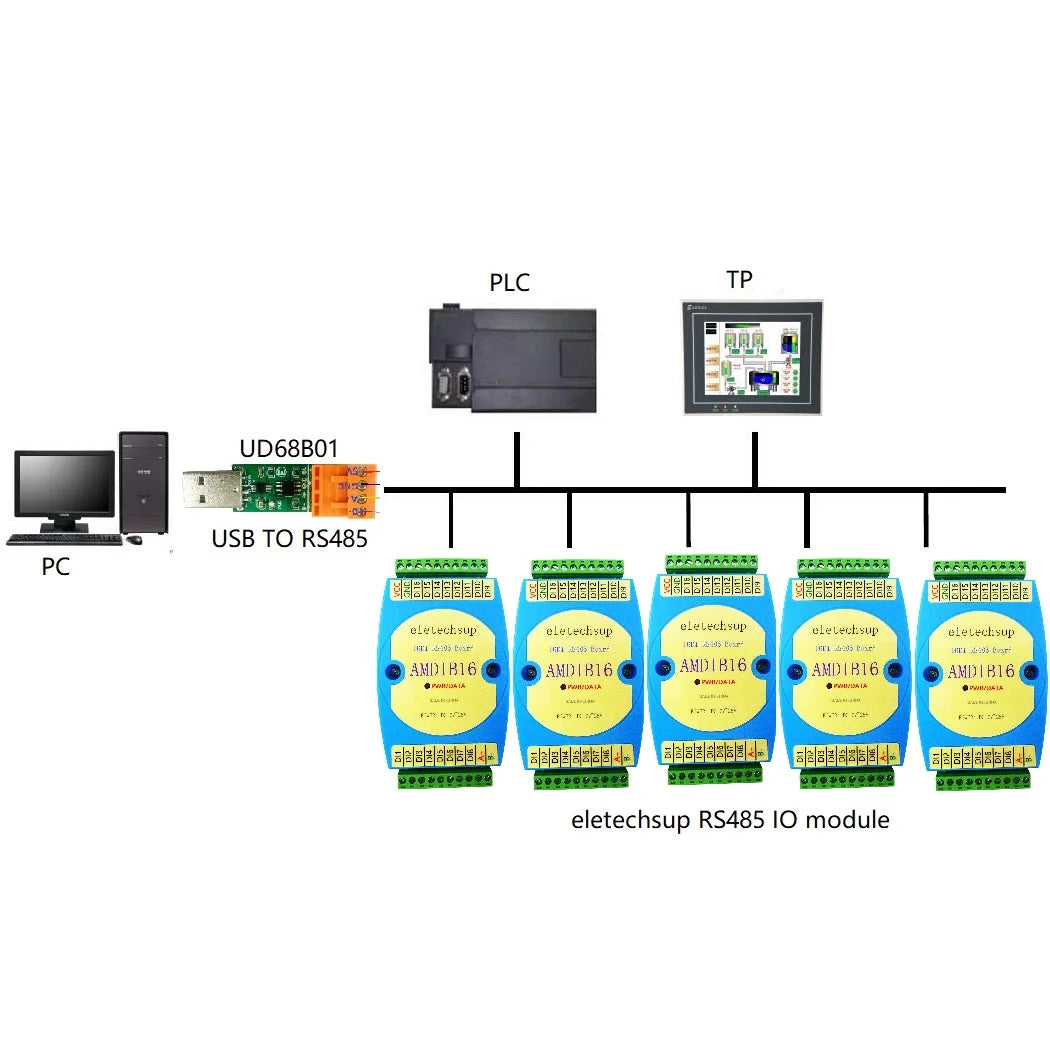

RS485 Networking Diagram

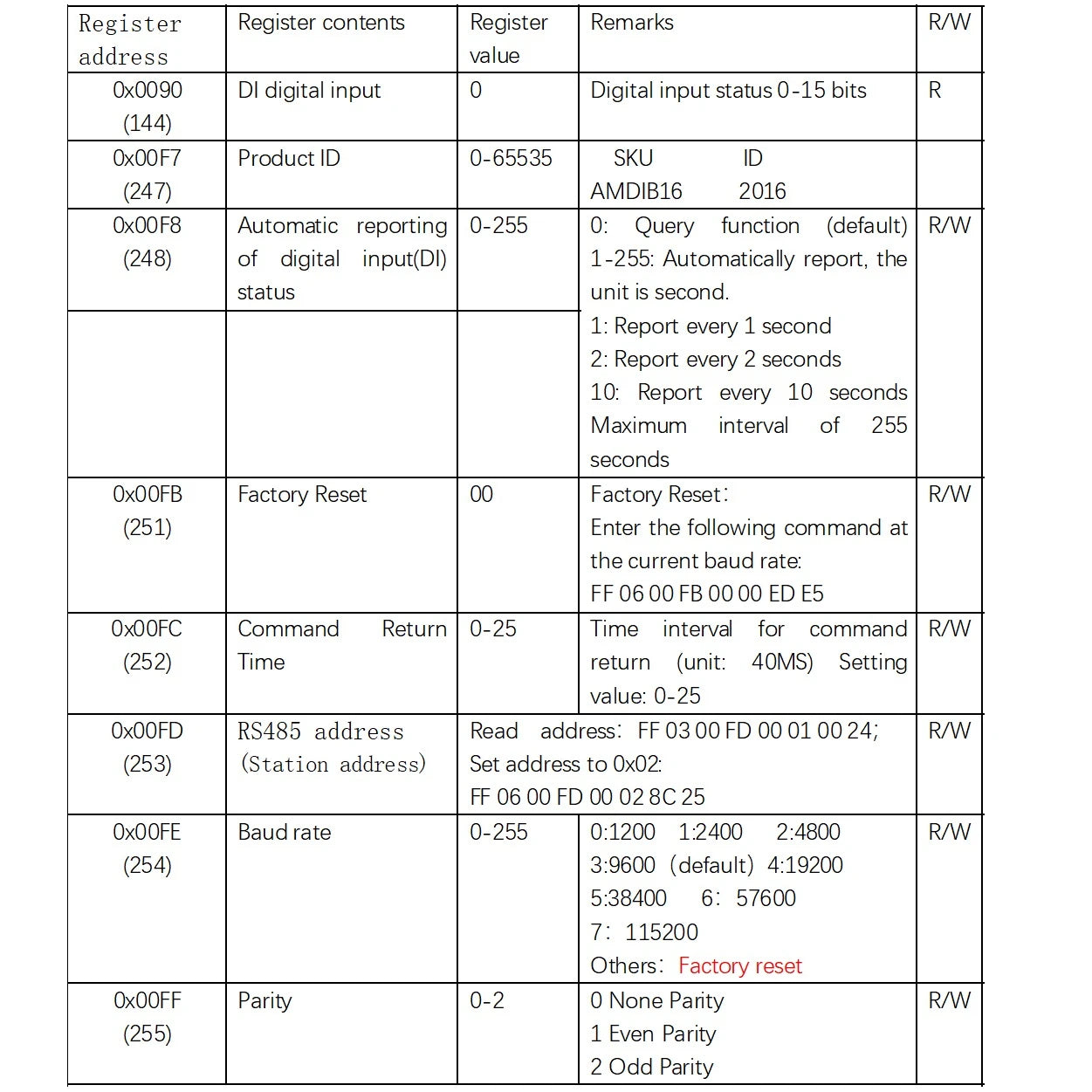

Modbus Rtu Register:
Automatic curtain control

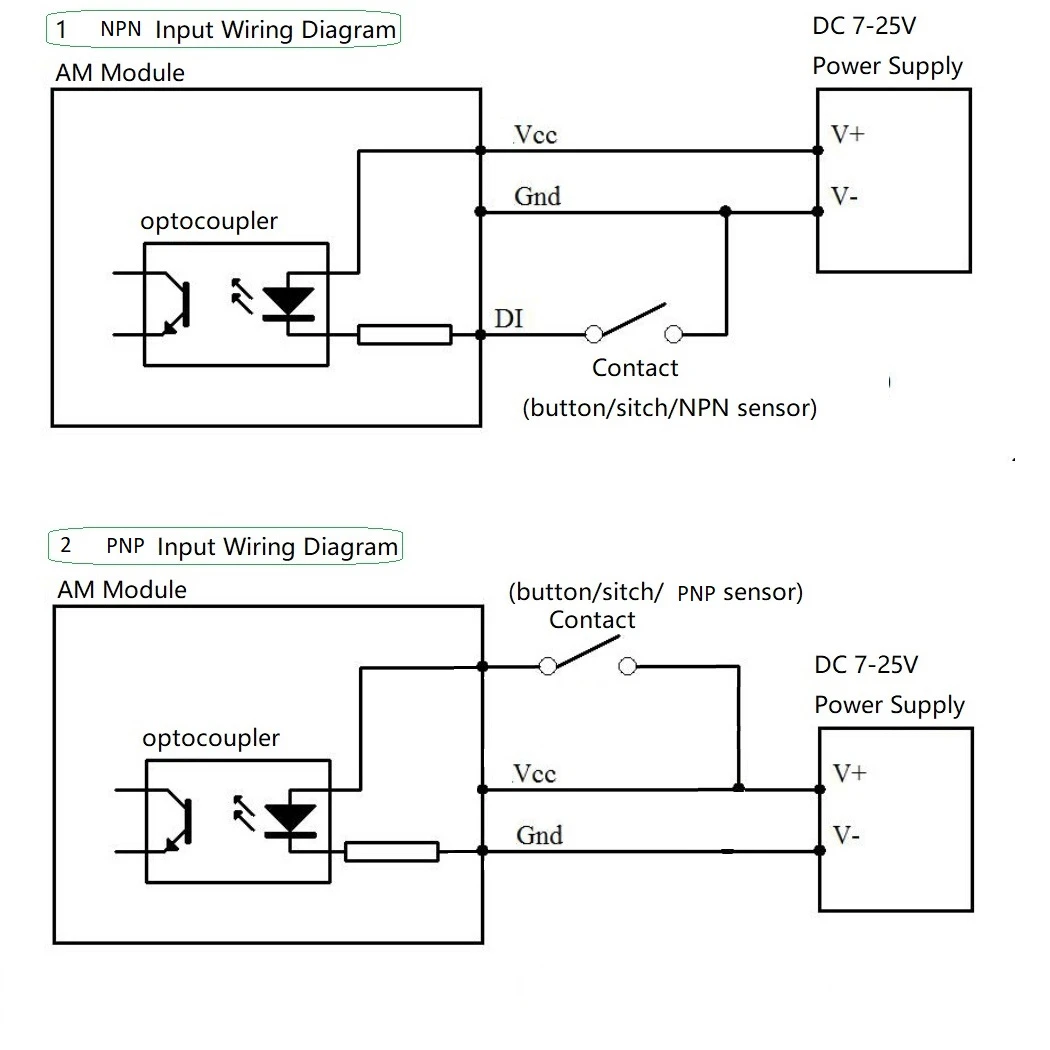

1 NPN Digital Input Wiring Diagram
