NT38D01 1k-100K Resistance to RS485 RS232(TTL) Converter 10K 3950 NTC Thermistor Temperature Acquisition Module
NT38D01 1k-100K Resistance to RS485 RS232(TTL) Converter 10K 3950 NTC Thermistor Temperature Acquisition Module
SKU:NT38D01_485_A
100 in stock
Regular price
$2.99
Regular price
$2.09
Sale price
$2.99
Unit price
per
Couldn't load pickup availability
Product Name: 1k-100K Resistance to RS485 RS232(TTL) Converter 10K 3950 NTC Thermistor Temperature Acquisition Module
Package inlcuded:

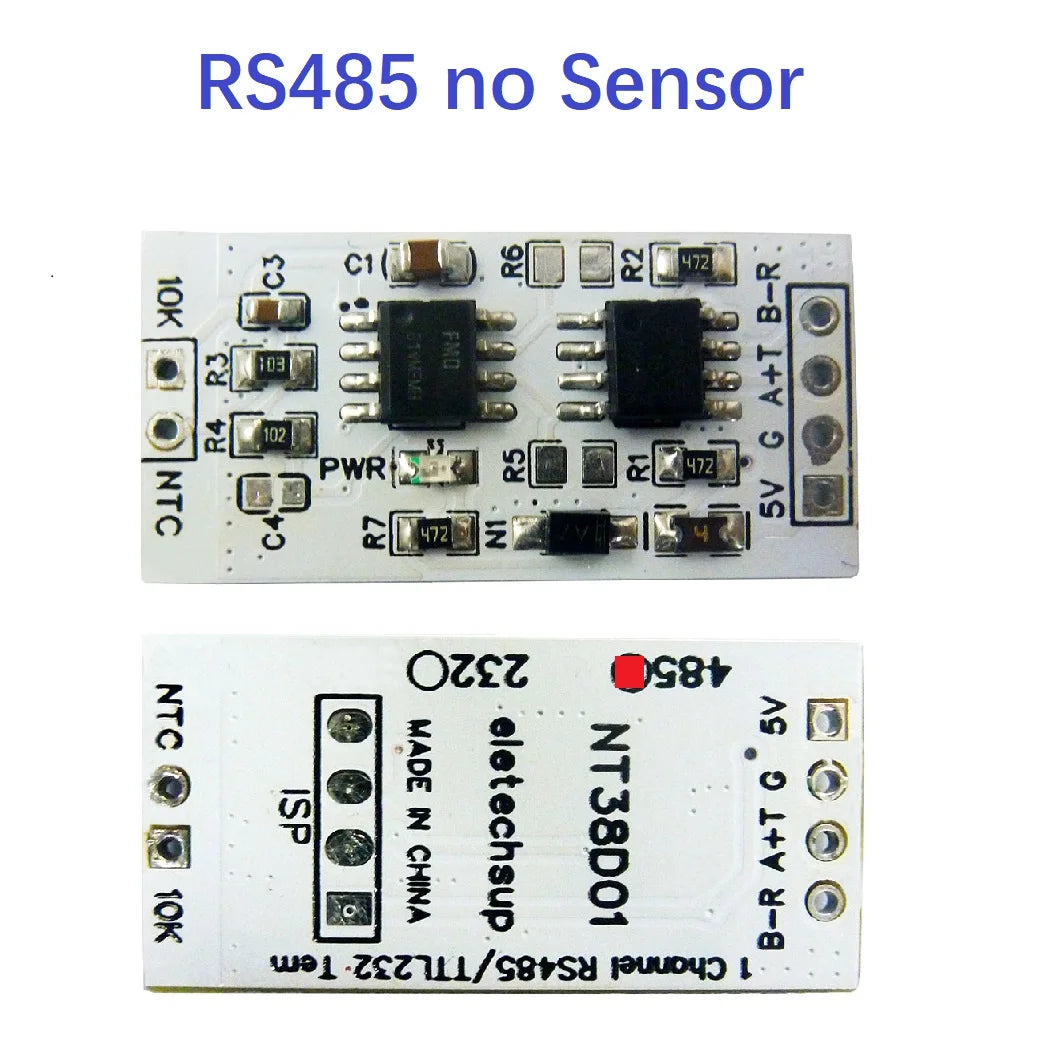

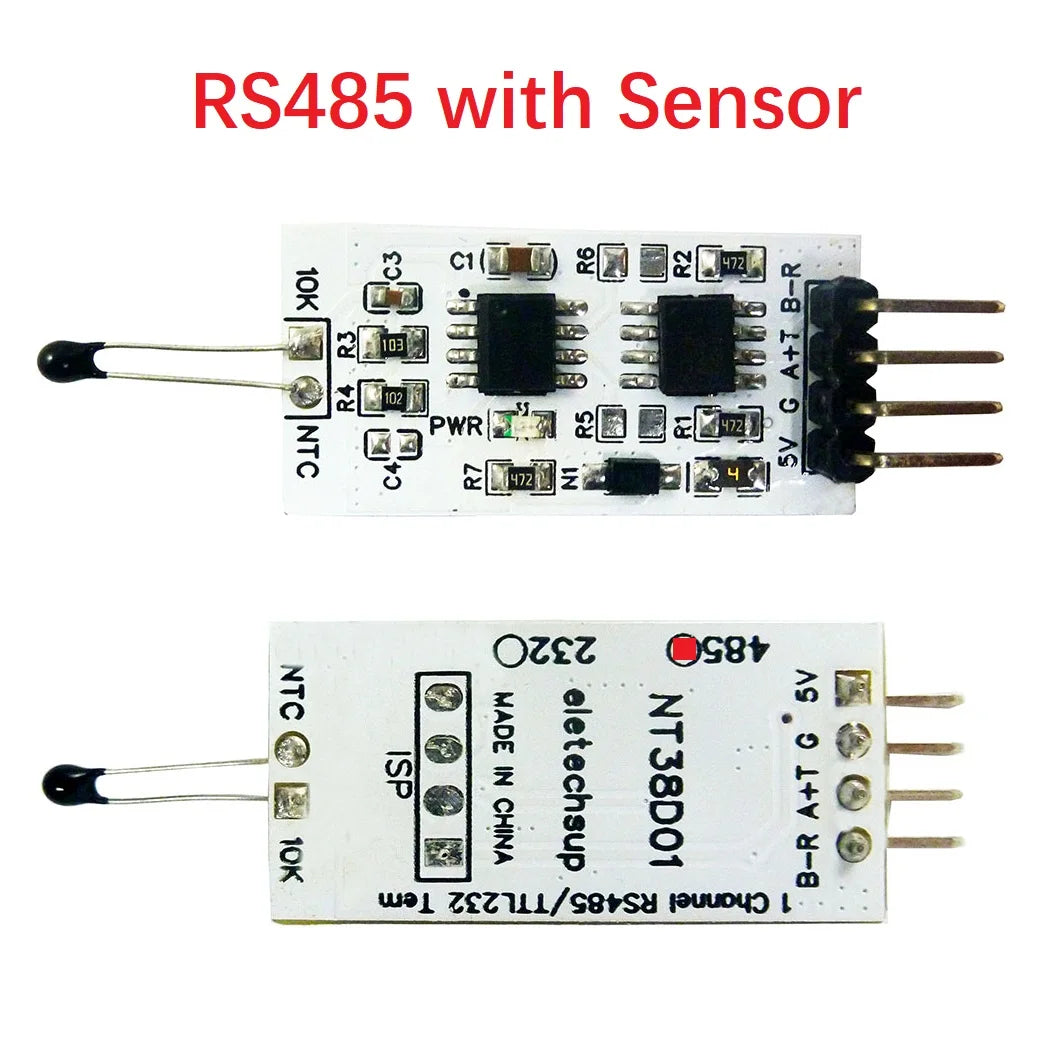

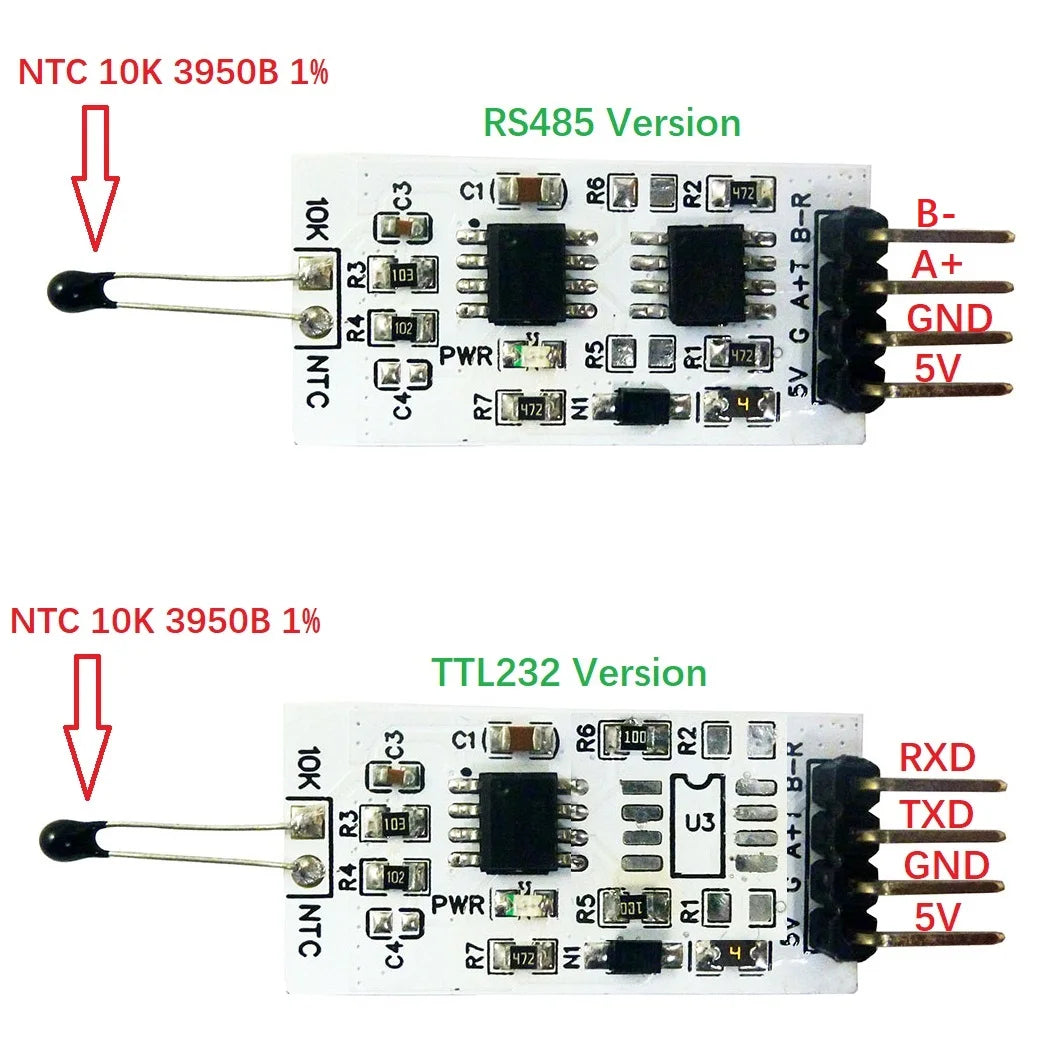

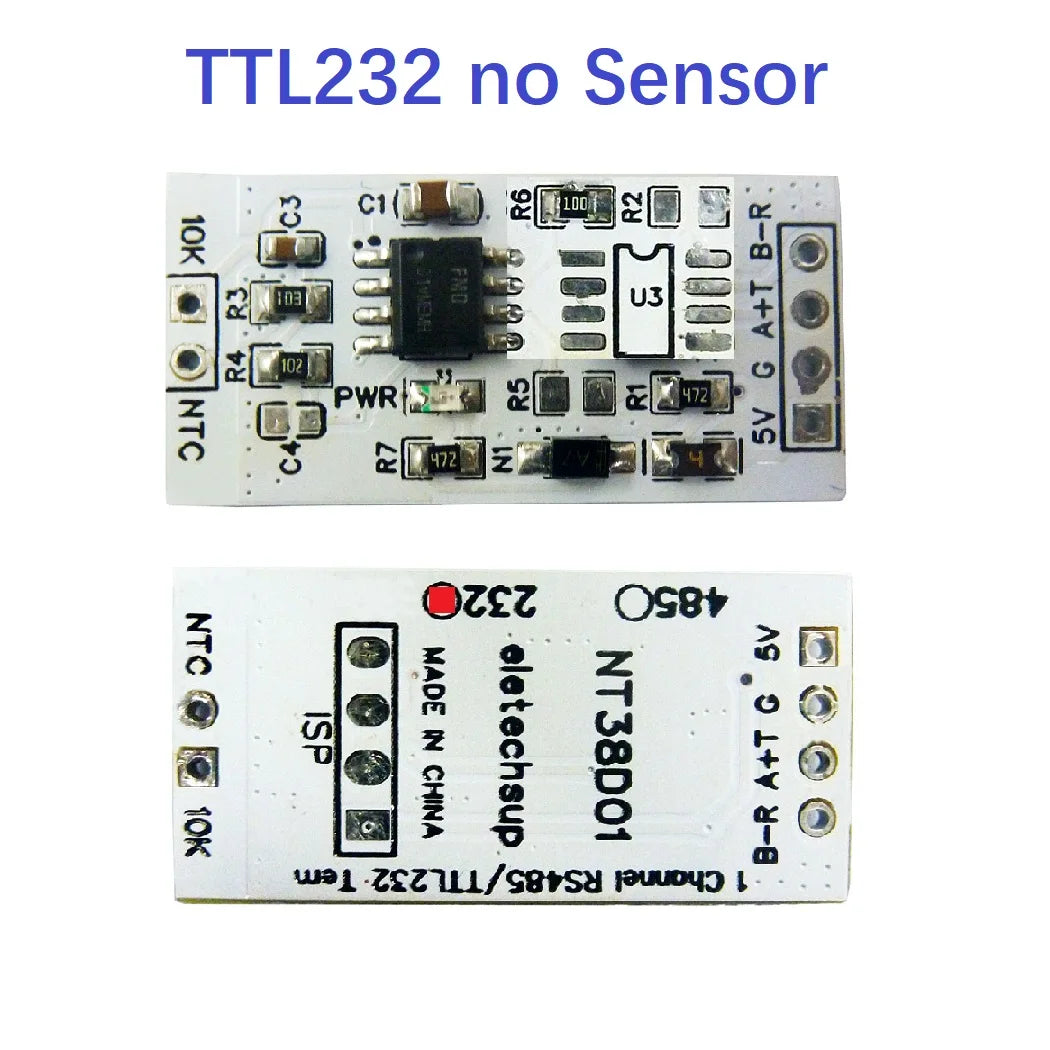

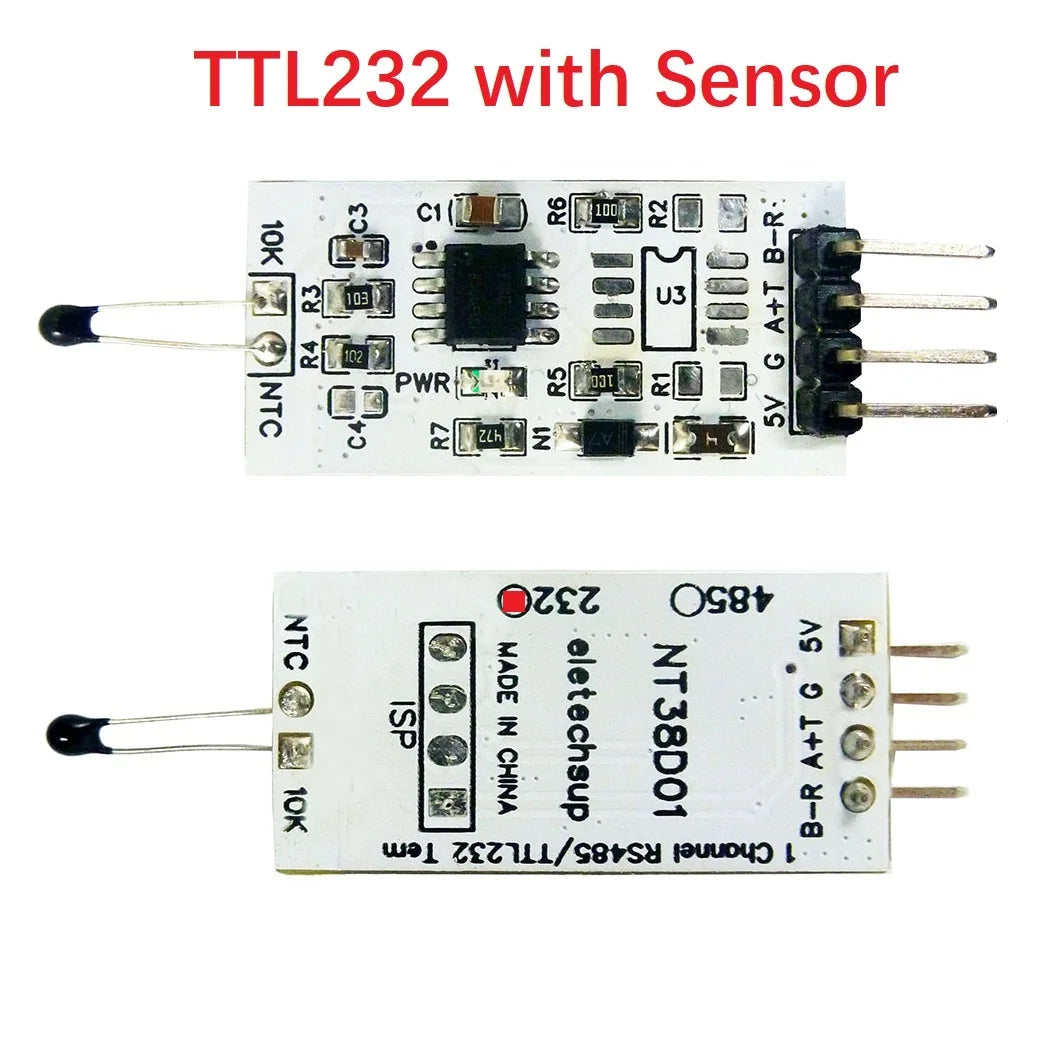

1 pcs NT38D01 RS485/TTL232 NTC Thermistor sensor converter(Please choose the version you need)
Features:
Working voltage: DC 5V(4.5-5.5V)
Working current: 10-13MA

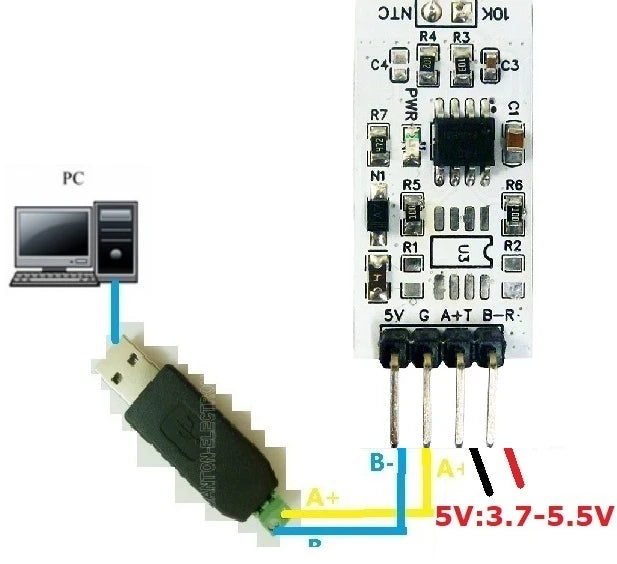

MODBUS RTU protocol, 03 read command, 06 write command.

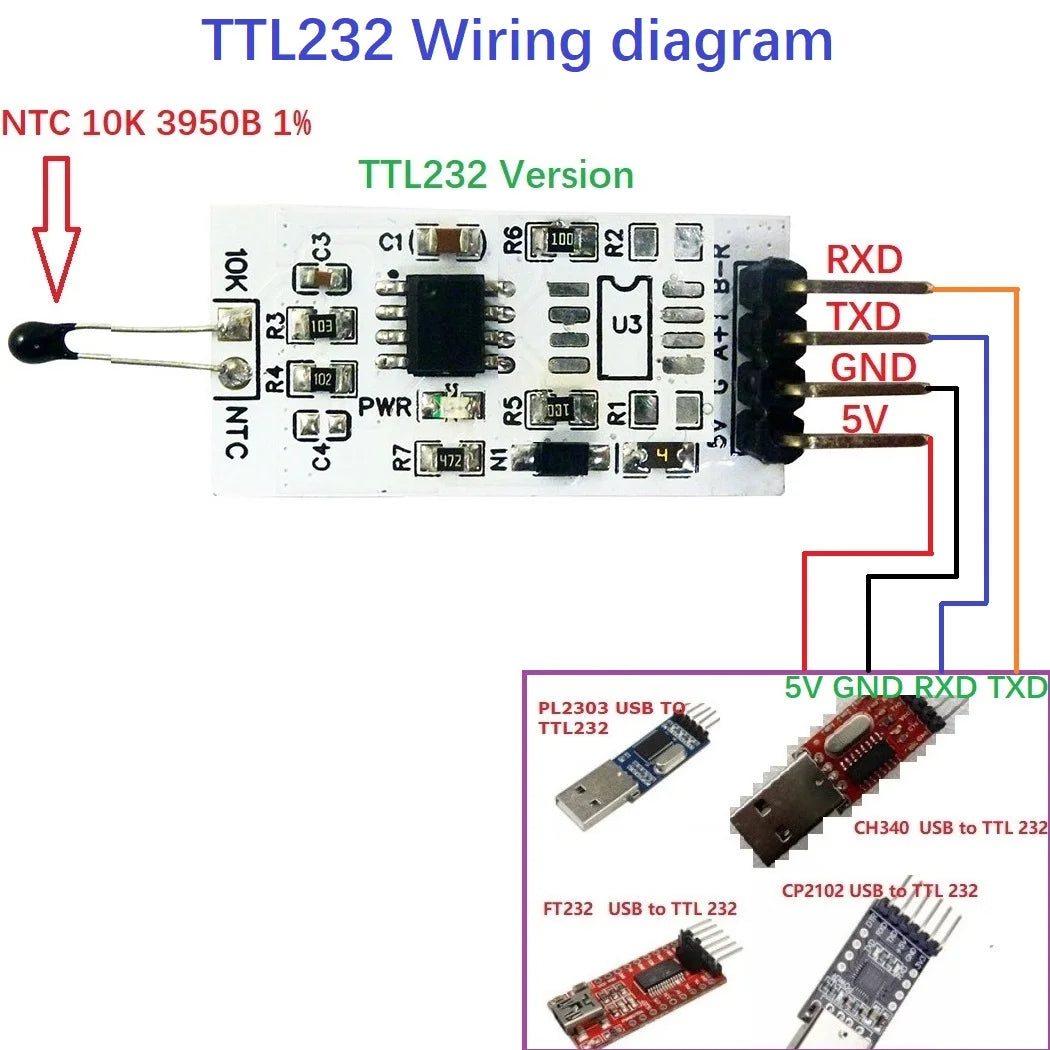

Serial port baud rate: 9600 (default), N, 8, 1

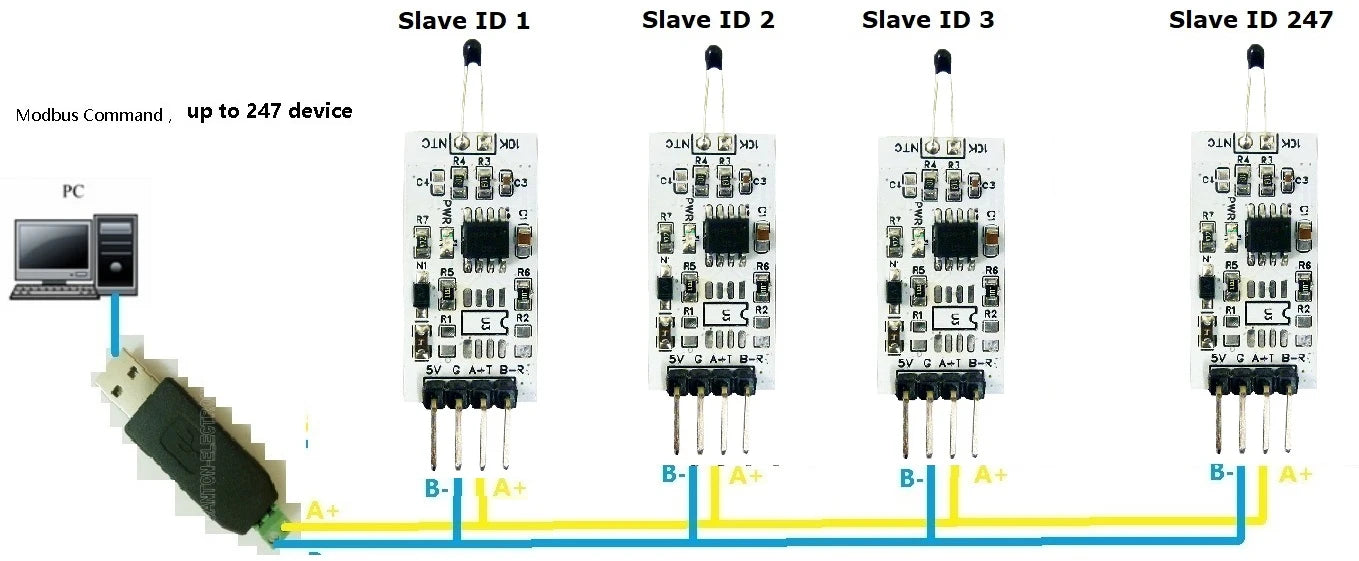

By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)

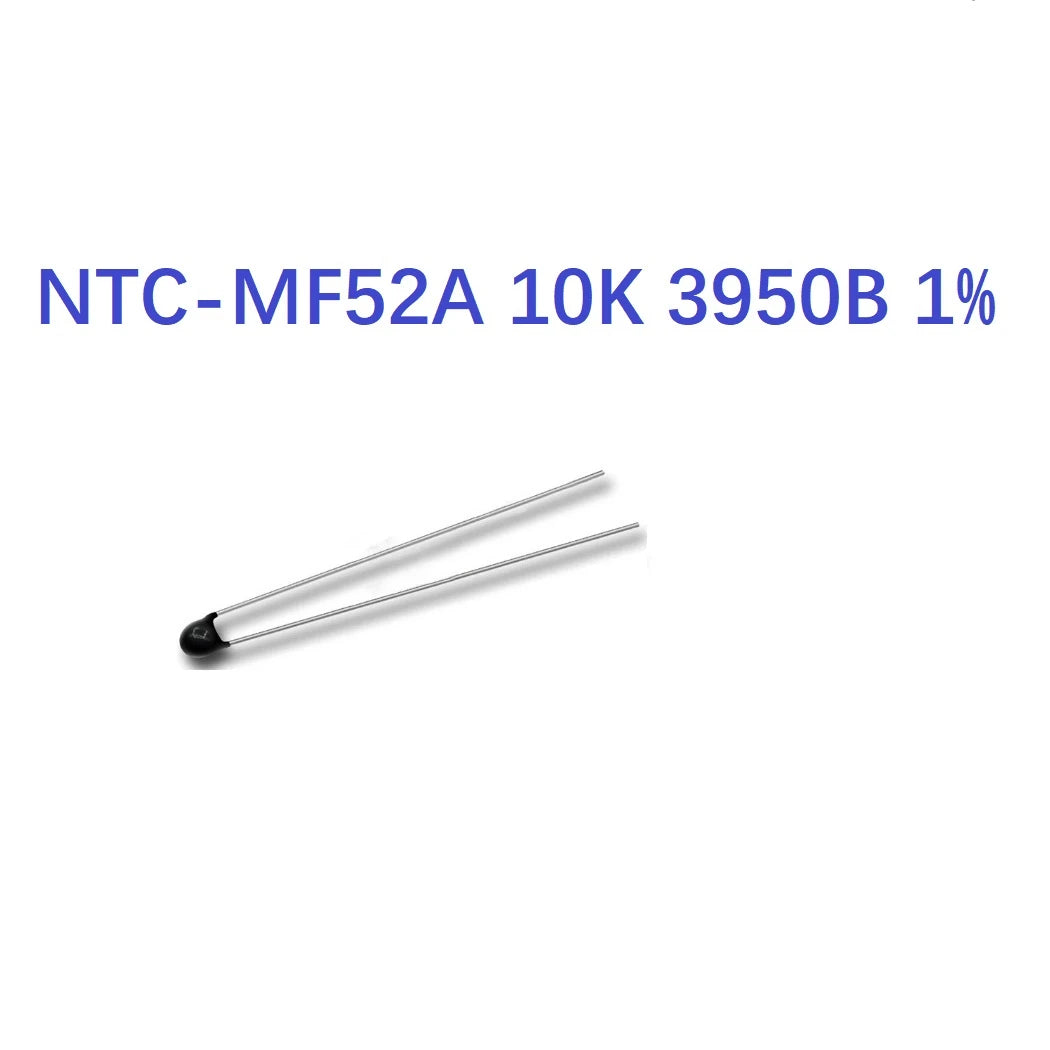

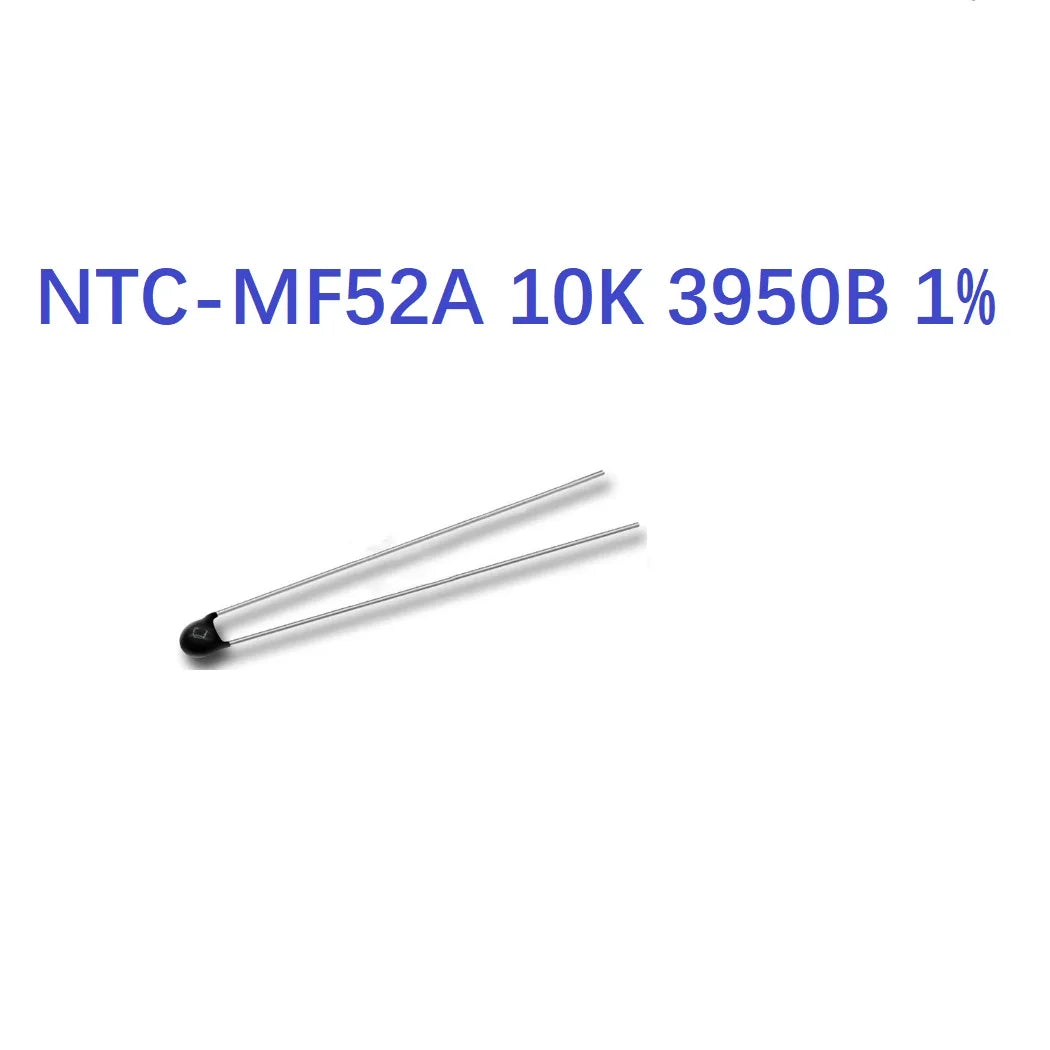

Adapted sensor: B3950 10K 1% NTC thermistor Resistor

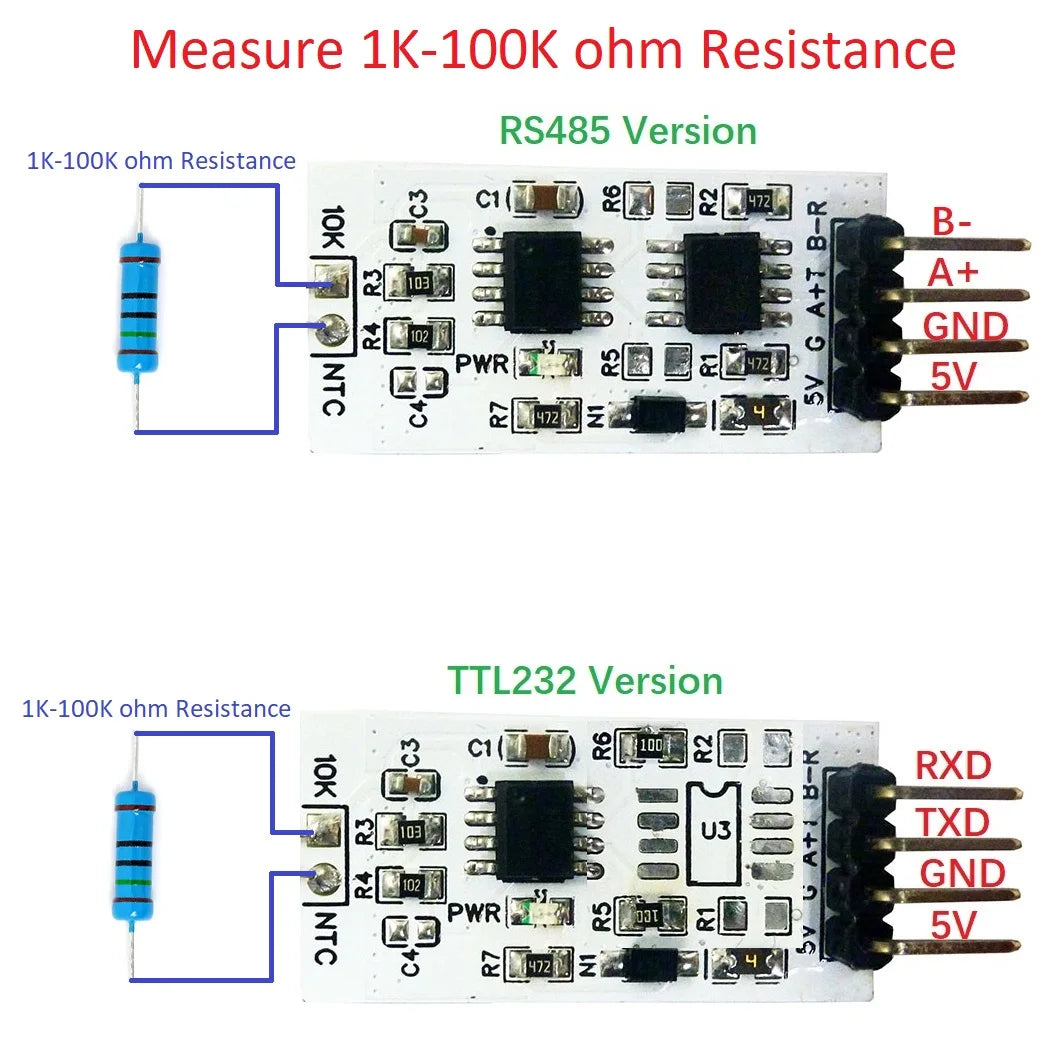

Can measure 1K ohm-100K ohm resistance
Temperature measurement range (using our NTC sensor): -20 ° C to +125 ° C.
Temperature measurement accuracy (using our NTC sensor): 1%.
Size: 30 X 15 X 6MM
Weight: 2g
For more information, please contact us!!!
Typical application:
PLC control system
NTC thermistor sensor
Thermostatic Controls
Industrial Systems
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature in Computer Room
Warehouse temperature
NTC thermistor sensor
Thermostatic Controls
Industrial Systems
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature in Computer Room
Warehouse temperature
