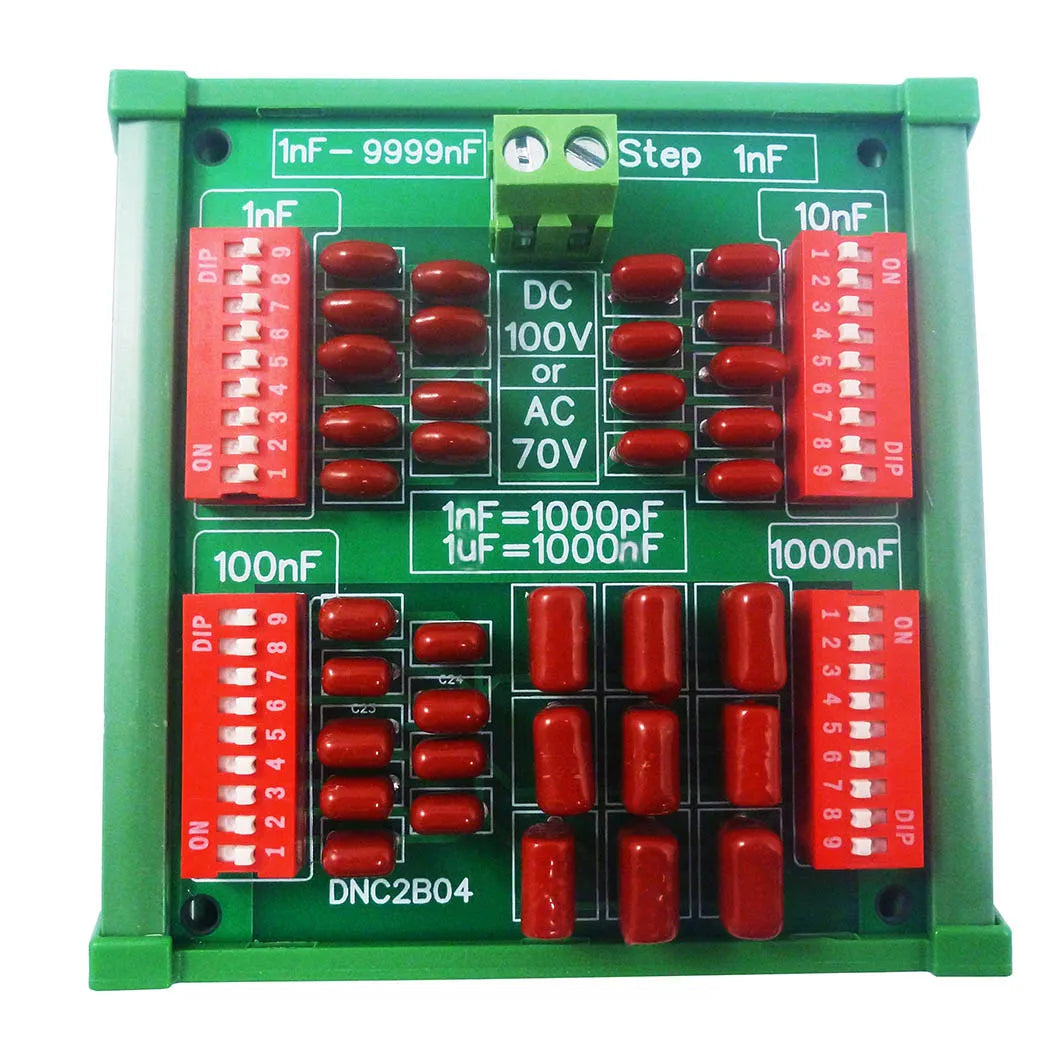

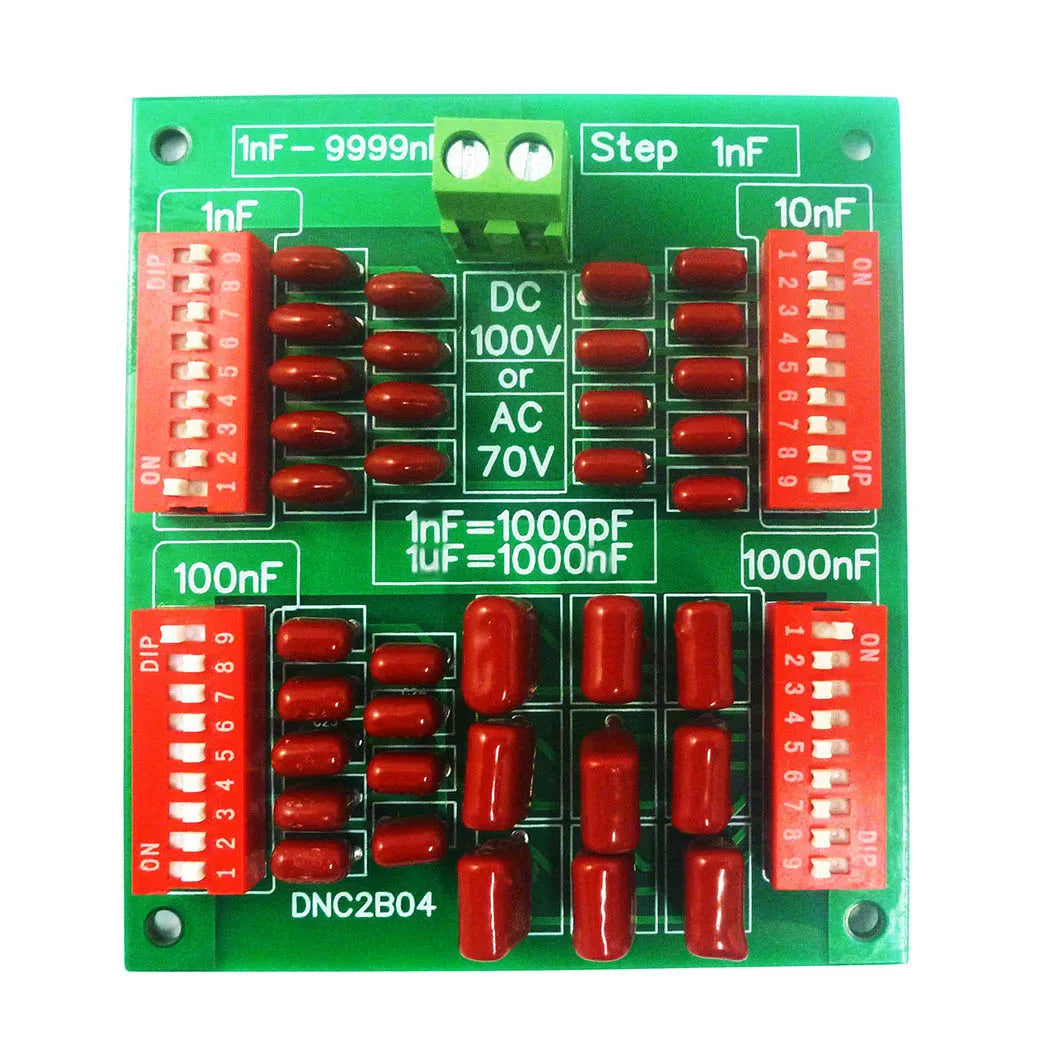

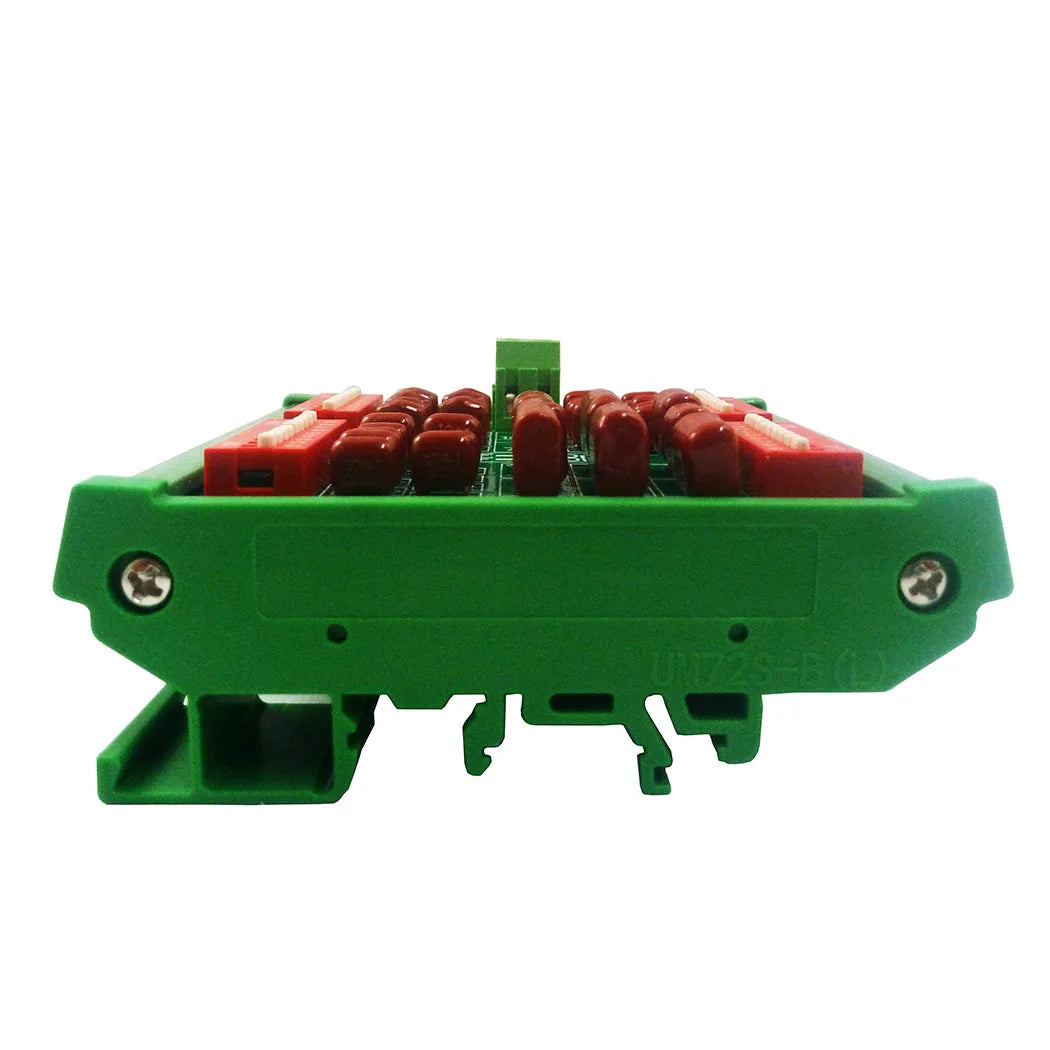

DNC2B04 1nF to 9999nF Step-1nF cztery dekady Programmable Capacitor Board Polypropylene Film Capacitor C35 DIN Rail For PLC
DNC2B04 1nF to 9999nF Step-1nF cztery dekady Programmable Capacitor Board Polypropylene Film Capacitor C35 DIN Rail For PLC
SKU:DNC2B04
1000 in stock
Regular price
$11.99
Regular price
$10.62
Sale price
$11.99
Unit price
per
Couldn't load pickup availability
Product model:
1nF to 9999nF Step-1nF Four Decade Programmable Capacitor Board Polypropylene Film Capacitor C35 DIN Rail for PLC
Packing List:
Low-cost alternative to ''capacitor replacement box'', this module can flexibly and quickly set the capacitance range you need, the adjustable range of this module is 1nF~9999nF, the step is 1nF, the accuracy is 5%, DC 100V or AV 70V capacitor module, 4 decimal numbers Programmable Capacitor Module. It can be used in education, experiment, testing, electronic engineering design and other fields.

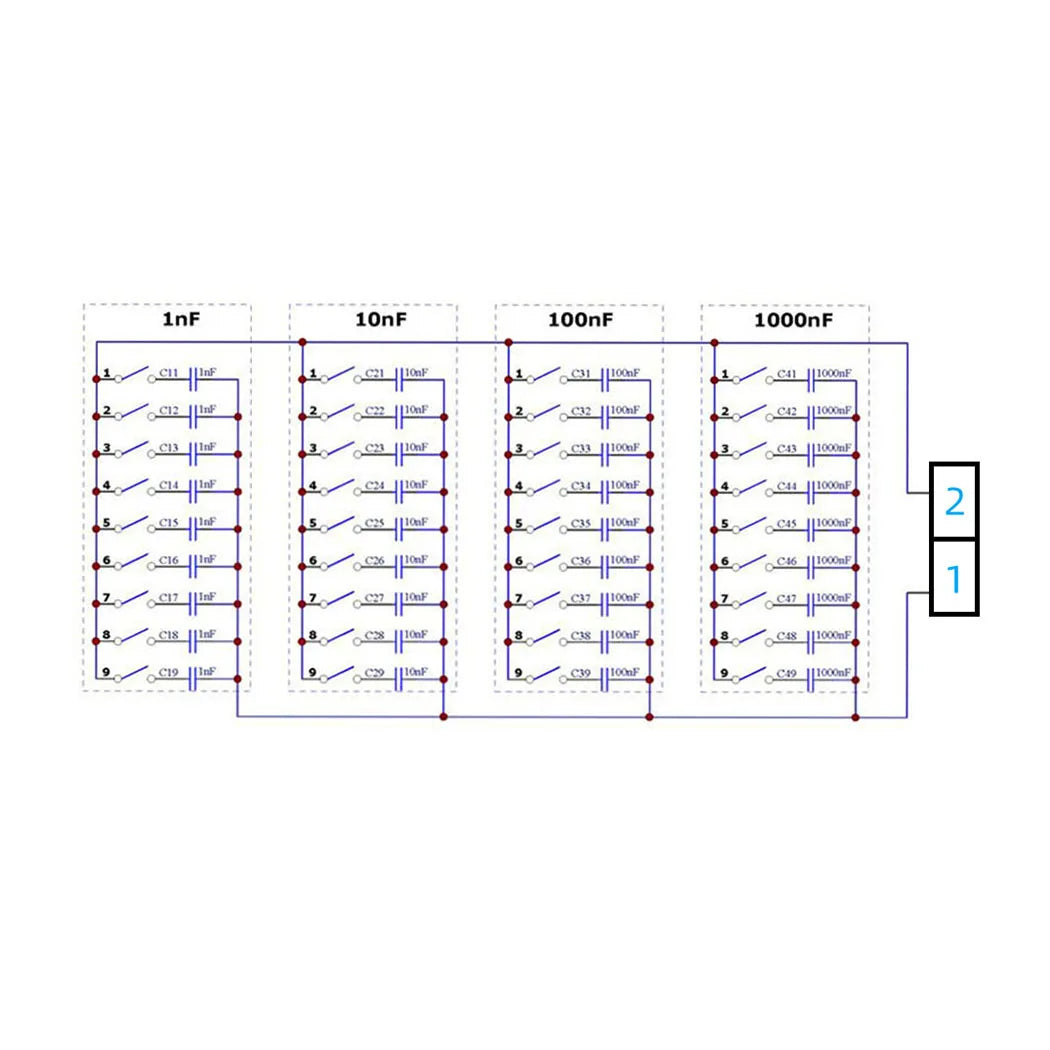

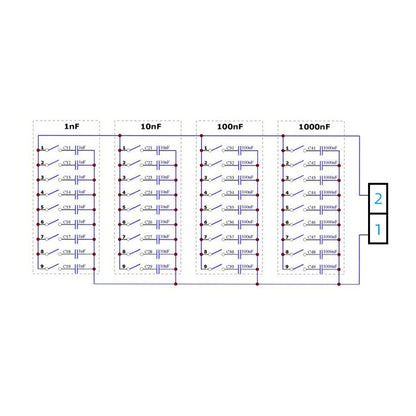

Design principle: Design based on the ''capacitor parallel'' theorem.
Product parameters:
Precision: 5%
Stepping: 1nF
Capacitance difference: ±5%
Adjustable range 1nF~9999nF
Working voltage: DC100V / AC70V
4 decimal numbers Programmable Capacitor Module
Terminals: screw terminals are used to connect wires quickly and easily
How to use: Use the DIP switch to select the parameter value you need.
Weight without shell: 38g
Weight with shell: 103.3g

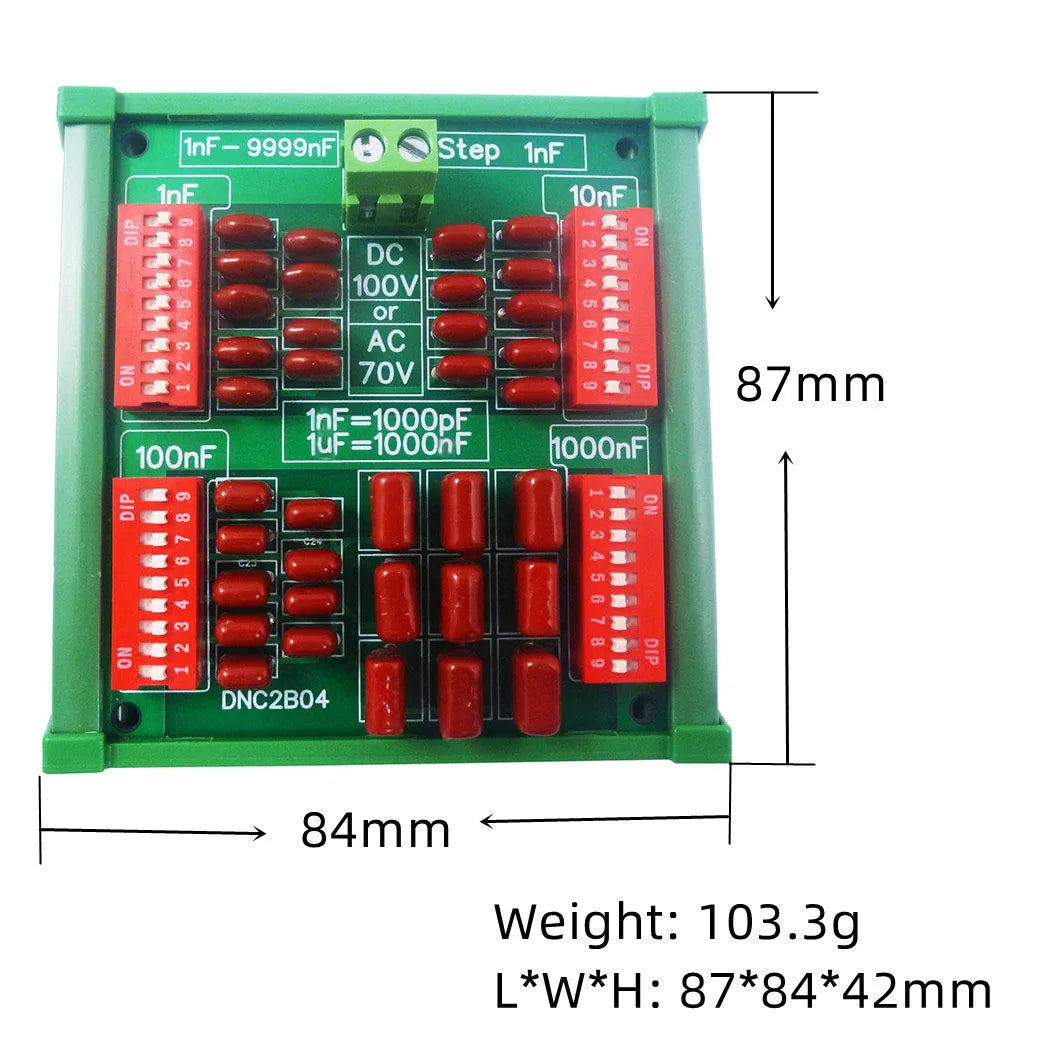

With shell size: 87*84*42mm

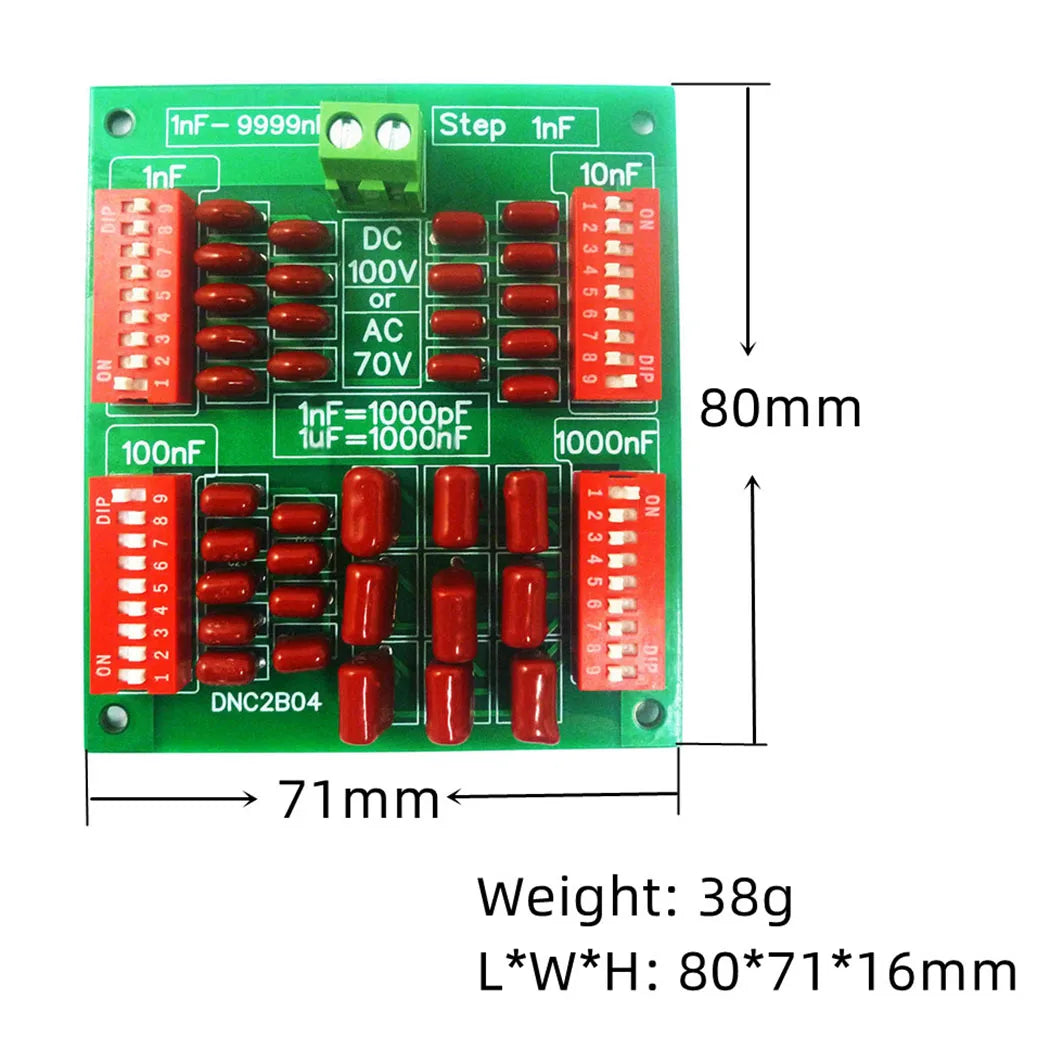

Size without shell: 80*72*16mm
