AK016 AK008 1PCS Wireless Remote Relay RF Control Switch System12PCS Receivers 433MHZ DC24V

AK016 AK008 1PCS Wireless Remote Relay RF Control Switch System12PCS Receivers 433MHZ DC24V

AK016*12+AK008*1

1000 in stock

$95.98
$95.98 $95.98
Sale Sold out
1PCS Wireless Remote Relay RF Control Switch System12PCS Receivers 433MHZ DC24V

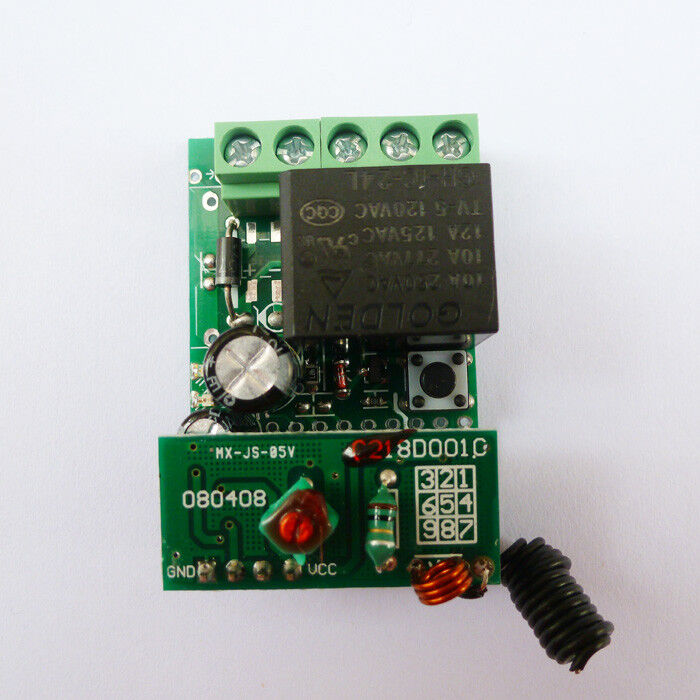

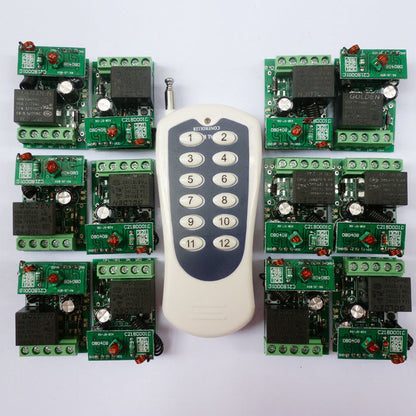

QTY: 12 pcs 1 Channel receiver contrller and 1 pcs 12 button handsender . (This remote doesnot have a battery inside )



Receiver :



Technical indicators:


Working voltage: DC24V;
Operating frequency: 433.92MHz;
Receiver sensitivity:-95dB;
Encoding: Receiver Recording;
Momentary / Latch / Toggle selectable (defult is Momentary , Latch Mode need 2 buttons handsender );
Output mode : Relay switch;
Receiver size: 62 * 35 * 22 mm;
Max load : 500W;

Advantage :
1:  Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 remotes to re-learn;

Output:



Work mode (programmable )
singnal Inter-locking (Latch)
singnal Self-locking (Toggle)
singnal Non-locking (Momentary is defult )


Program steps :
1: keep pressing learning key on the receiver controller ,
LED turn on after 2 second , then turn off after 4 second, then the receiver controller enter programming state , but not release the finger , still keep pressing the learning button ,
LED blink once after 2 second , release the finger on learing key , it is Momentary mode ,
or still keep pressing learing key ,
LED blink twice after 2 second , release the finger on learing key , it is Toggle mode ,
or still keep pressing learing key ,
LED blink 3 times after 2 second , release the finger on learing key , it is Latch mode ,


Learning method and steps

   Keep pressing learnig key on receiver controller board , LED turn on after 2 seconds , release the finger on learning key , press the key on remote , work state LED blink 3 times , it means learnig successfully  ;

Clear the deposit information

      Keep pressing learnig key on receiver controller board , LED turn on after 2 seconds , then turn off after 4 seconds , it means clearing successfully .

 Relay mode :
Normally close (NC ) ;
Normally open (NO ) ;
  • Normally-open (NO) contacts connect the circuit when the relay is activated; the circuit is disconnected when the relay is inactive. It is also called a Form A contact or "make" contact. NO contacts may also be distinguished as "early-make" or NOEM, which means that the contacts close before the button or switch is fully engaged.
  • Normally-closed (NC) contacts disconnect the circuit when the relay is activated; the circuit is connected when the relay is inactive. It is also called a Form B contact or "break" contact. NC contacts may also be distinguished as "late-break" or NCLB, which means that the contacts stay closed until the button or switch is fully disengaged.

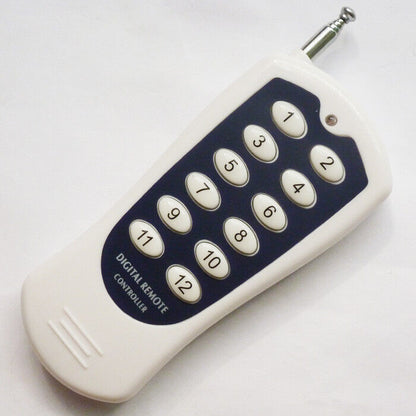

Transmitter :


Technical Data :
Transmitter Module No.: AK009;
Power supply : 12V 23A battery  replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 10mA;
Transmit Power : 10mW;
Oscillation mode: SAW resonator;
Modulation mode:ASK/OOK;
Operating frequency:433.92MHZ ;
Encoding format: PT2264 fixed code (compatiable for PT2262 SC2262 PT2260 );
RC  Resistance : 4.7M;
SAW Frequency stability :±75KHZ
Remote distance : 100-500 meter ;
