DNC3D05 1uF To 9999uF 10mF Large-Capacity Programmable Adjustable Electrolytic Capacitors Module for Electronic Circuit Development
DNC3D05 1uF To 9999uF 10mF Large-Capacity Programmable Adjustable Electrolytic Capacitors Module for Electronic Circuit Development
SKU:DNC3D05
1000 in stock
Regular price
$11.99
Regular price
$13.28
Sale price
$11.99
Unit price
per
Couldn't load pickup availability
Product name: 1uF To 9999uF Step-1uF Four Decade Programmable High Capacity Electrolytic Capacitors Board DC-DC Power Development Debugger
Packinglist:
1PCS 1uF To 9999uF 10mF Adjustable Cap Board Module
Low-cost alternative to ''capacitor replacement box'', this module can flexibly and quickly set the capacitance range you need, the adjustable range of this module is 1UF~9999UF, the step is 1UF, the accuracy is 12%, DC 0-50V capacitor module, 4 decimal numbers Programmable Capacitor Module. It can be used in education, experiment, testing, electronic engineering design and other fields.

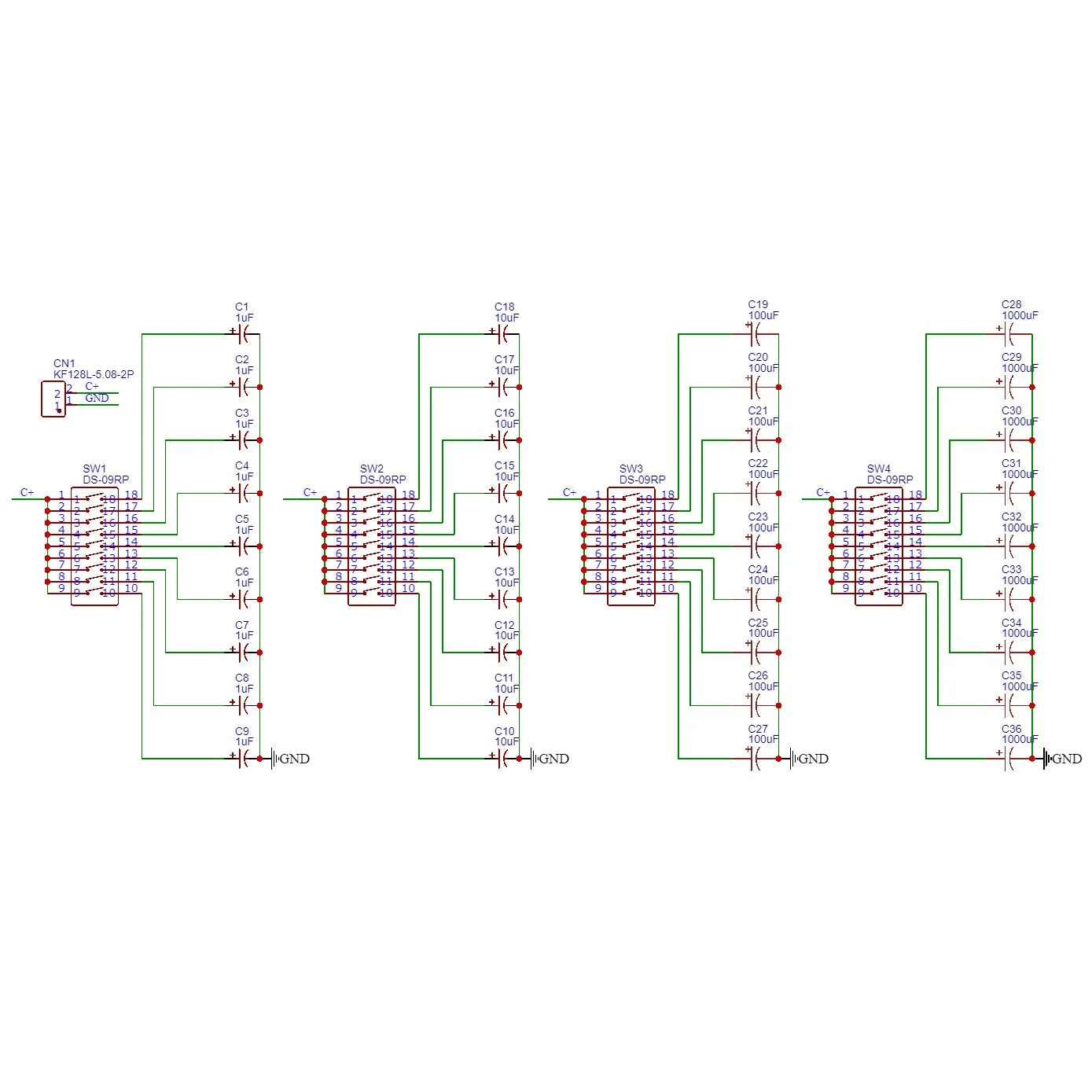

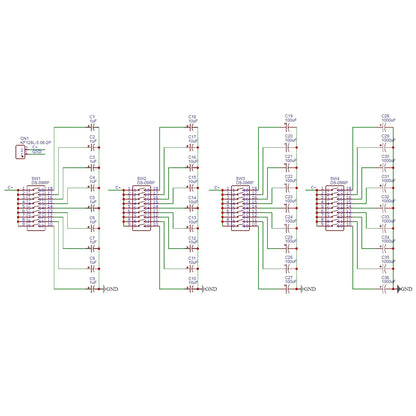

Design principle: Design based on the ''capacitor parallel'' theorem.
Product parameters:
Precision: 12%
Stepping: 1uF
Capacitance difference: ±12%
Adjustable range 1uF~9999uF
Working voltage: DC 0-35V(Maximum Voltage DC 50V)
4 decimal numbers Programmable Capacitor Module
Terminals: screw terminals are used to connect wires quickly and easily

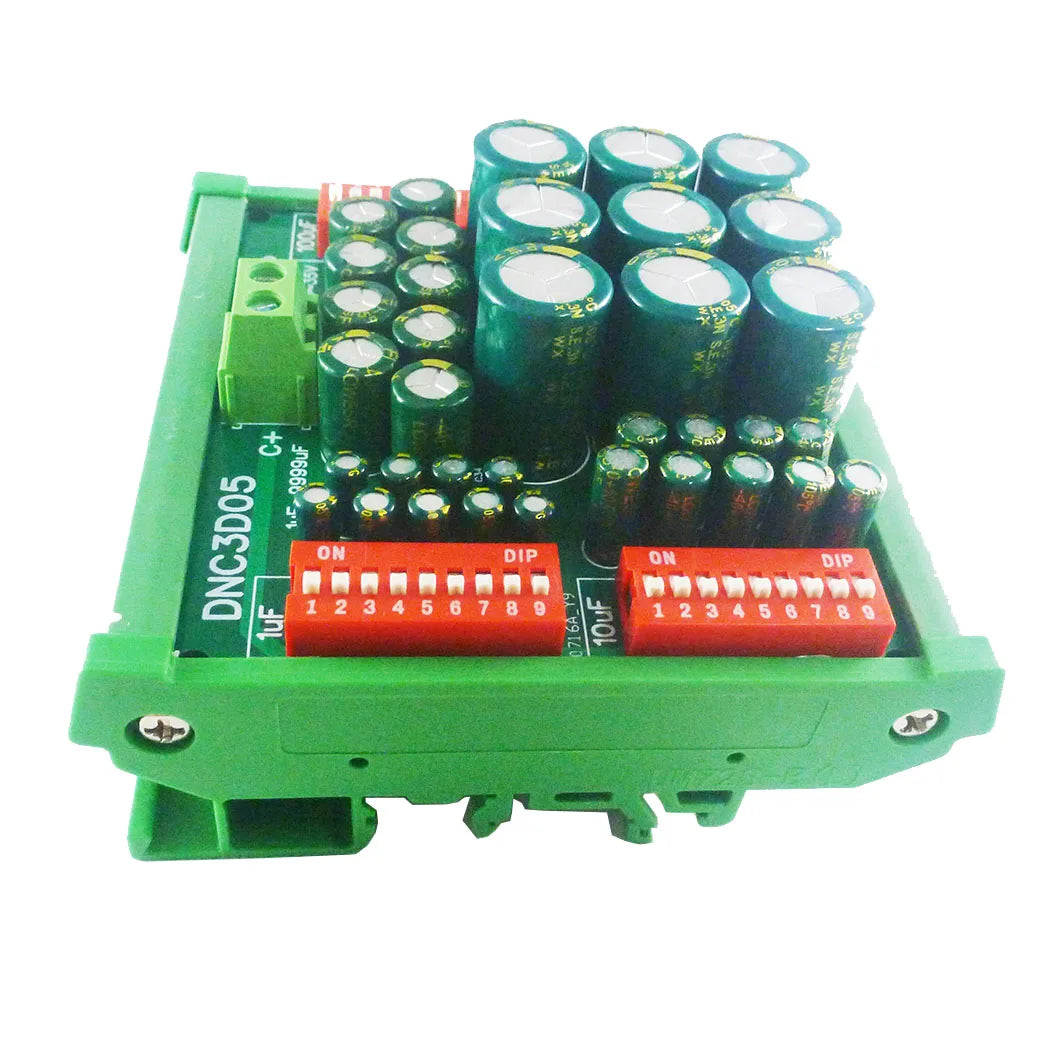

How to use: Use the DIP switch to select the parameter value you need.

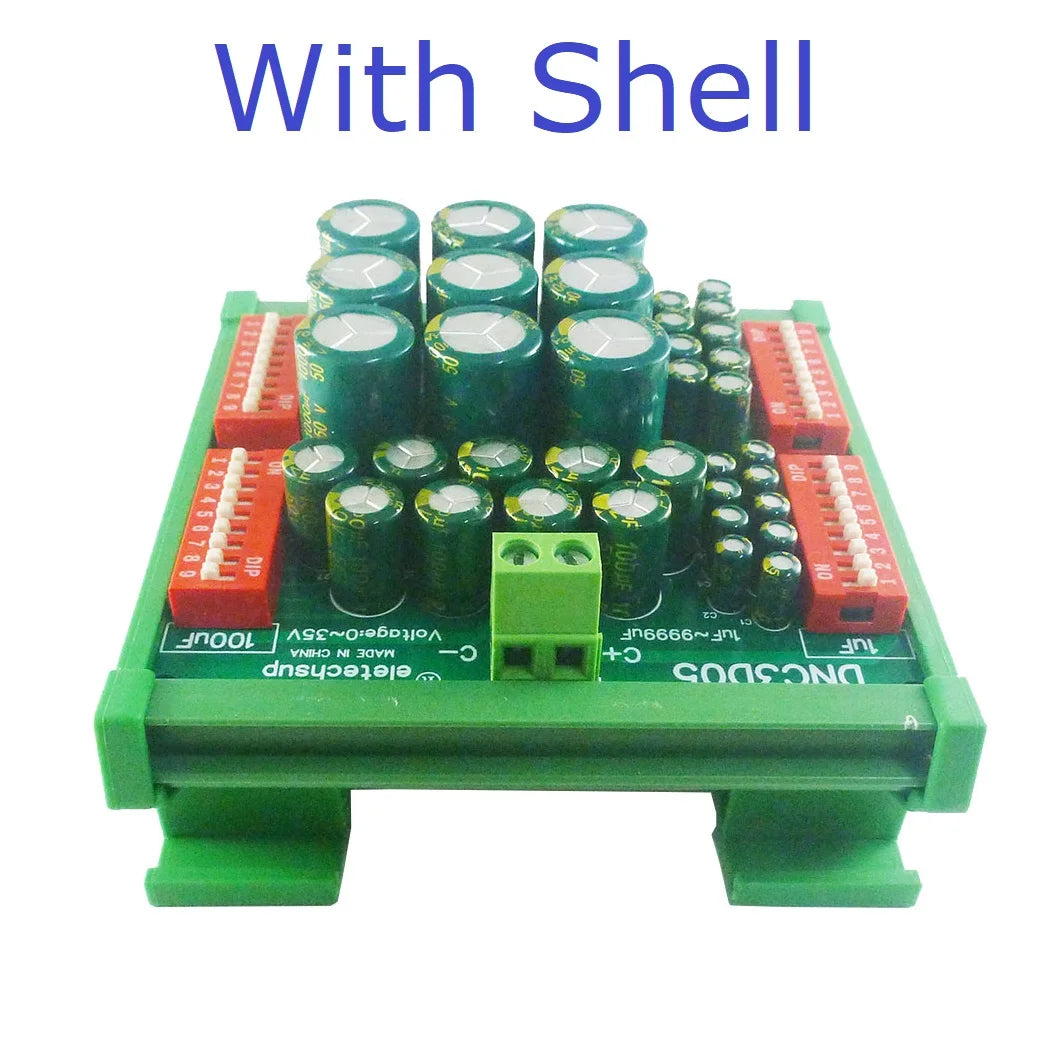

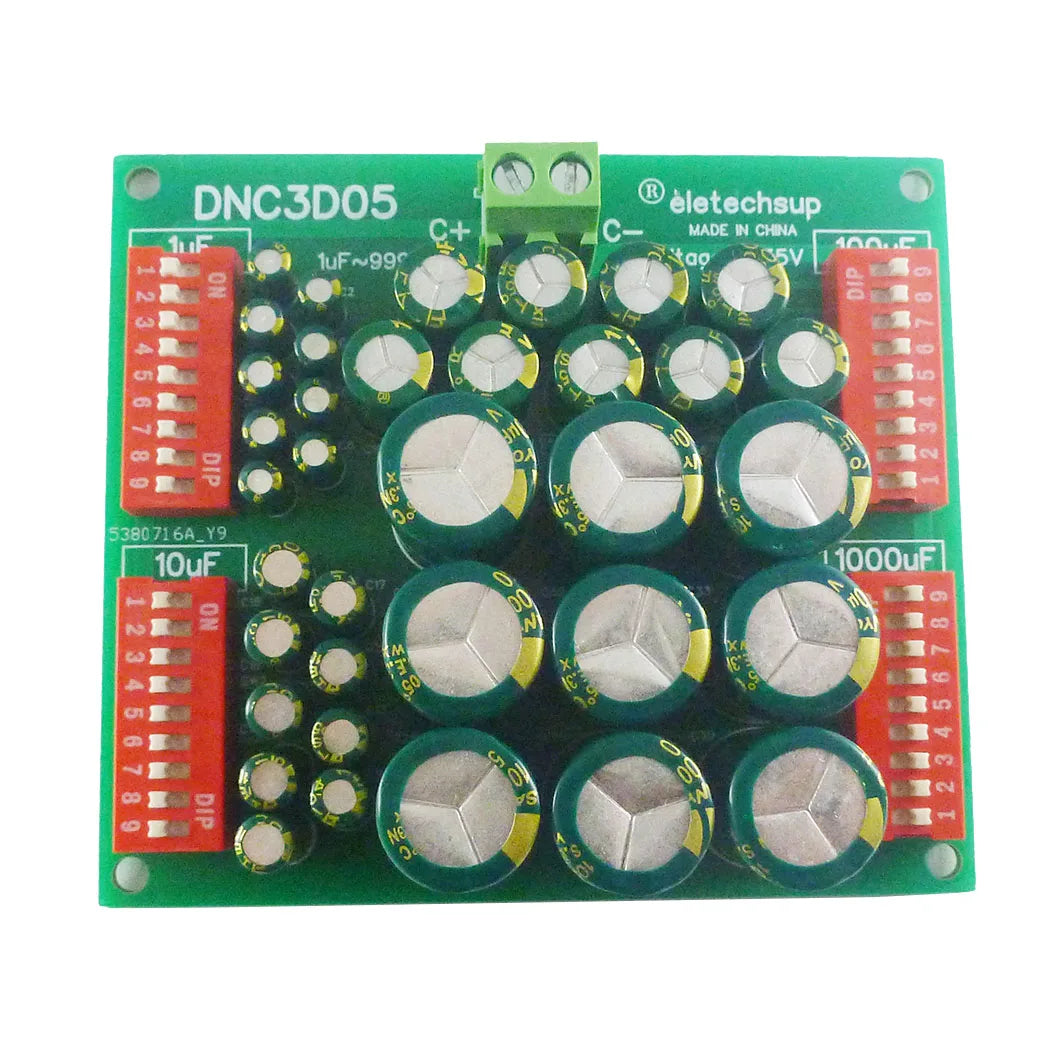

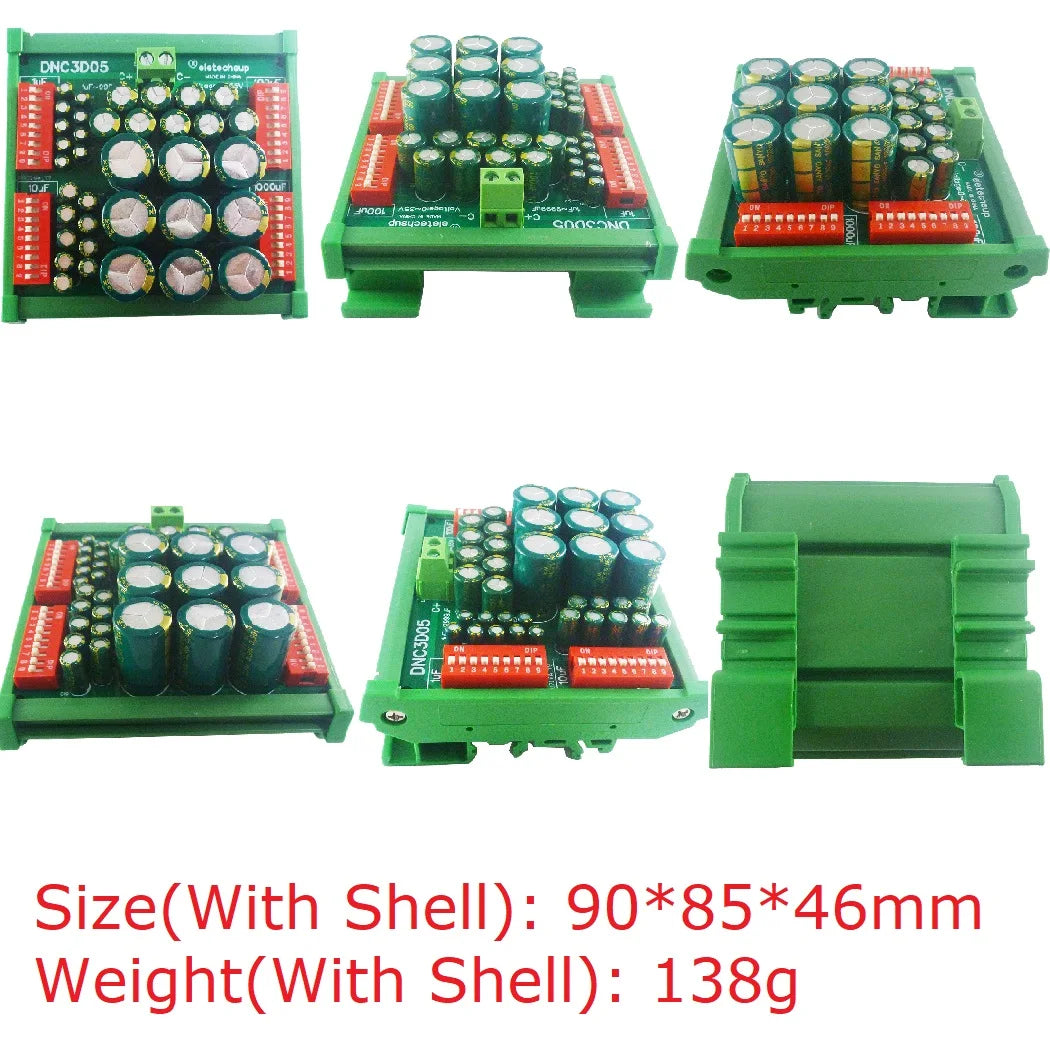

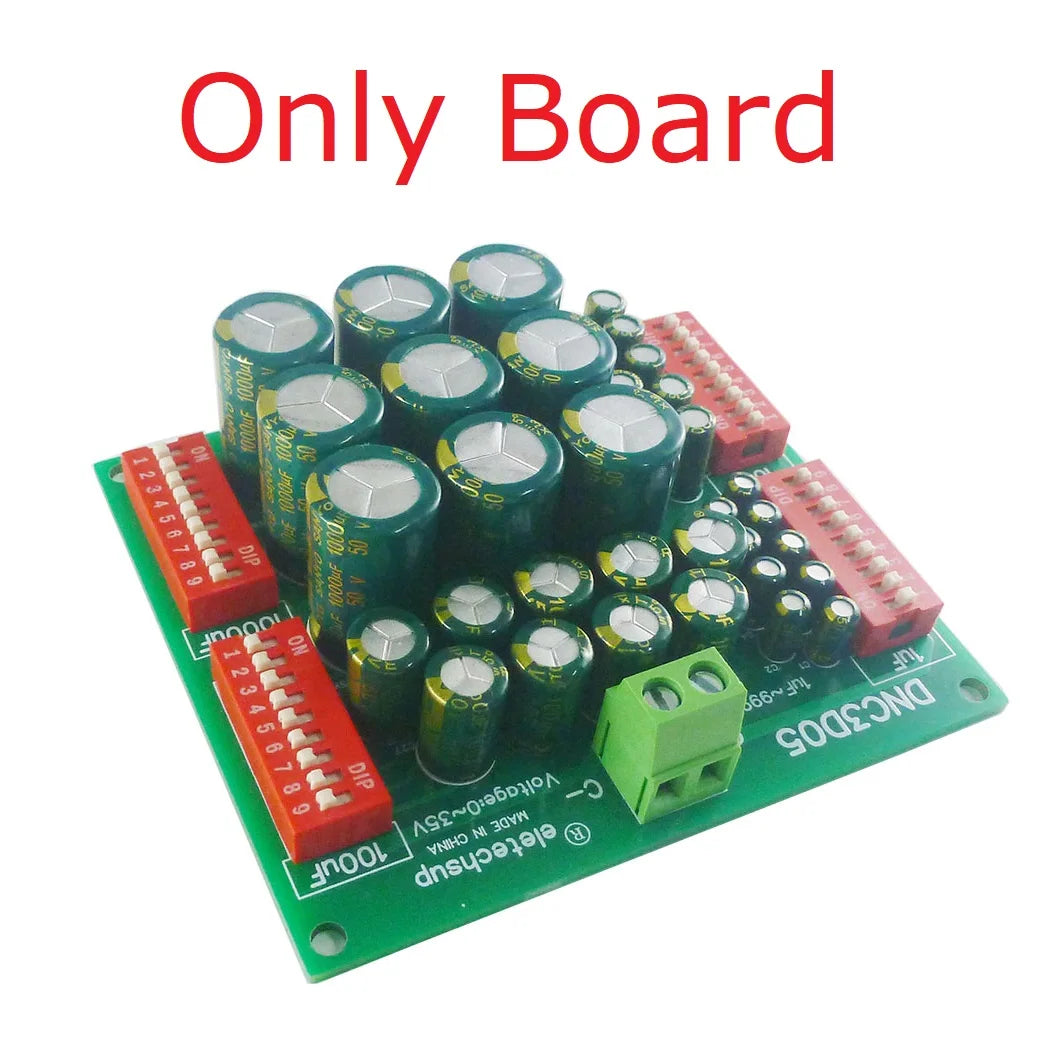

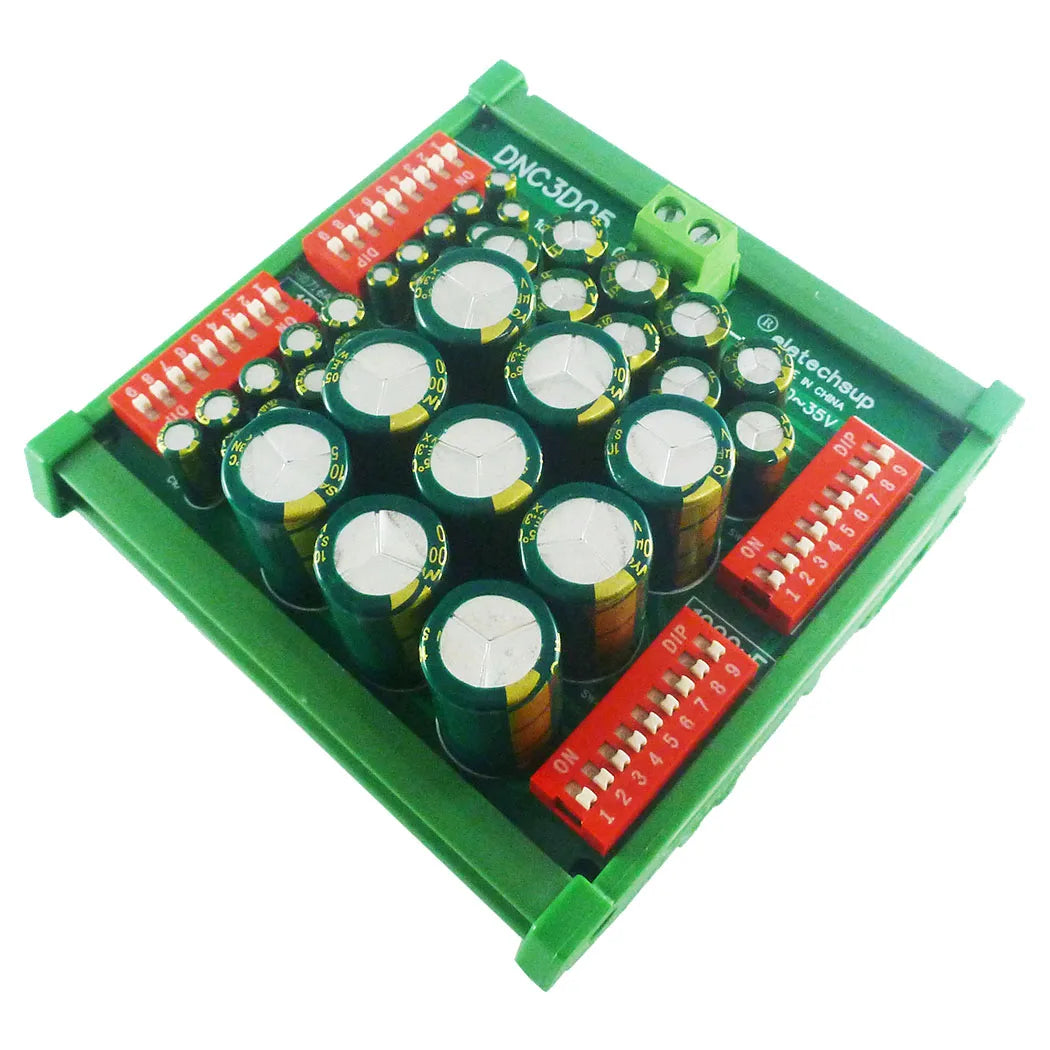

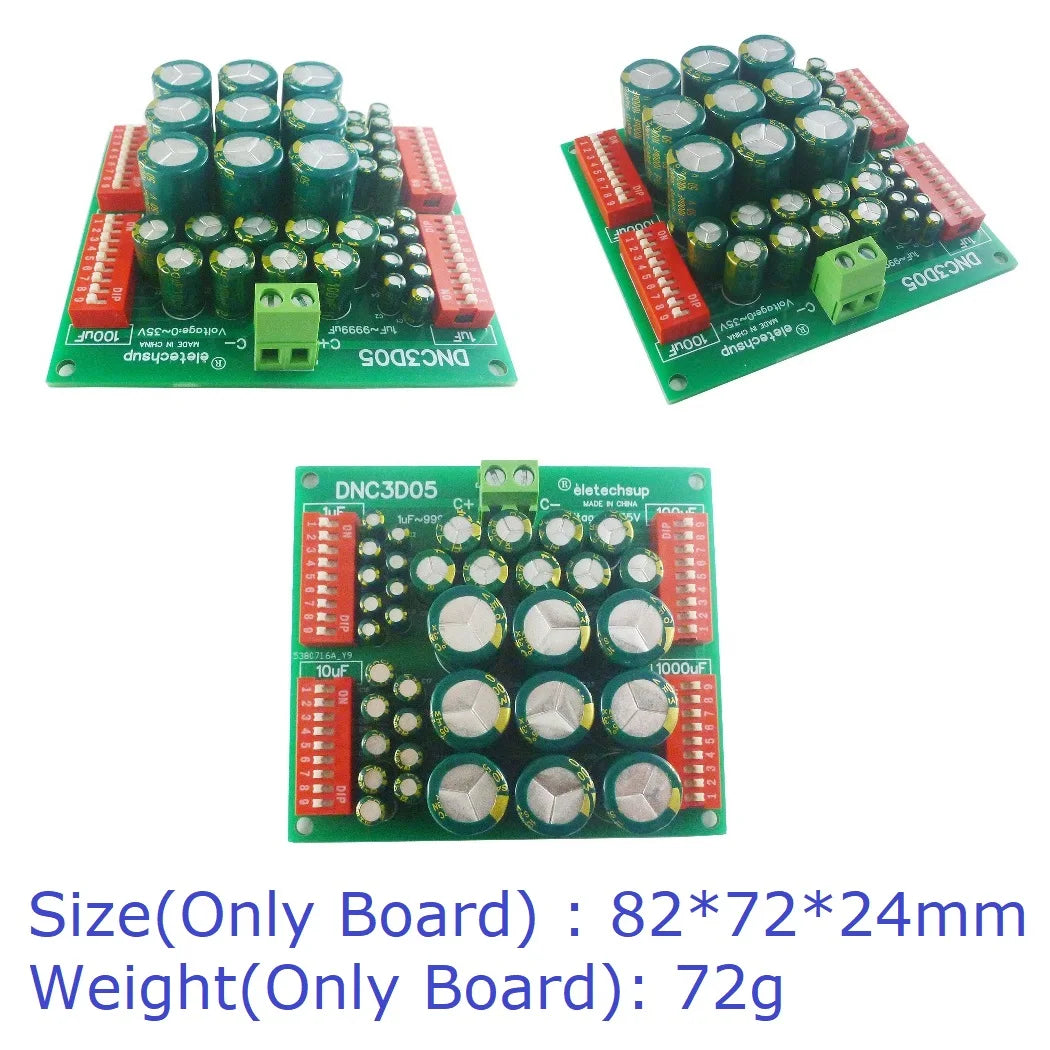

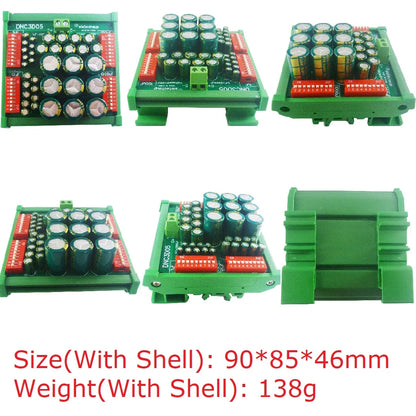

Size : 82*72*24mm(Only Board),90*85*46mm(With Shell)
Weight: 72g(Only Board), 138g(With Shell)
