2.5V-6V 6A Flip-Flop Latch Bistable Self-locking Trigger Switch Module for Arduiuo Breadboard MCU Board LED Motor

Name: 2.5V-6V 6A Flip-Flop Latch Bistable Self-locking Trigger Switch Module for Arduiuo Breadboard MCU Board LED Motor
Brand: Eletechsup Factory store
SKU: IO15A01
Price: 1.99 USD
Availability: InStock

$1.99 USD

~~$1.99 USD~~ $1.99 USD

Sale Sold out

Quantity

Product Name: 2.5V-6V 6A Flip-Flop Latch Bistable Self-locking Trigger Switch Module for Arduiuo Breadboard MCU Board LED Motor

Packing list:

1 PCS IO25A01 2.5-6V 5A LED Motor Flip-Flop Latch Switch Module

Description:

Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.

Low standby power consumption, high output power.

Electrical parameters:

Power supply voltage:DC 2.5V-6V

Standby current:less than 10uA

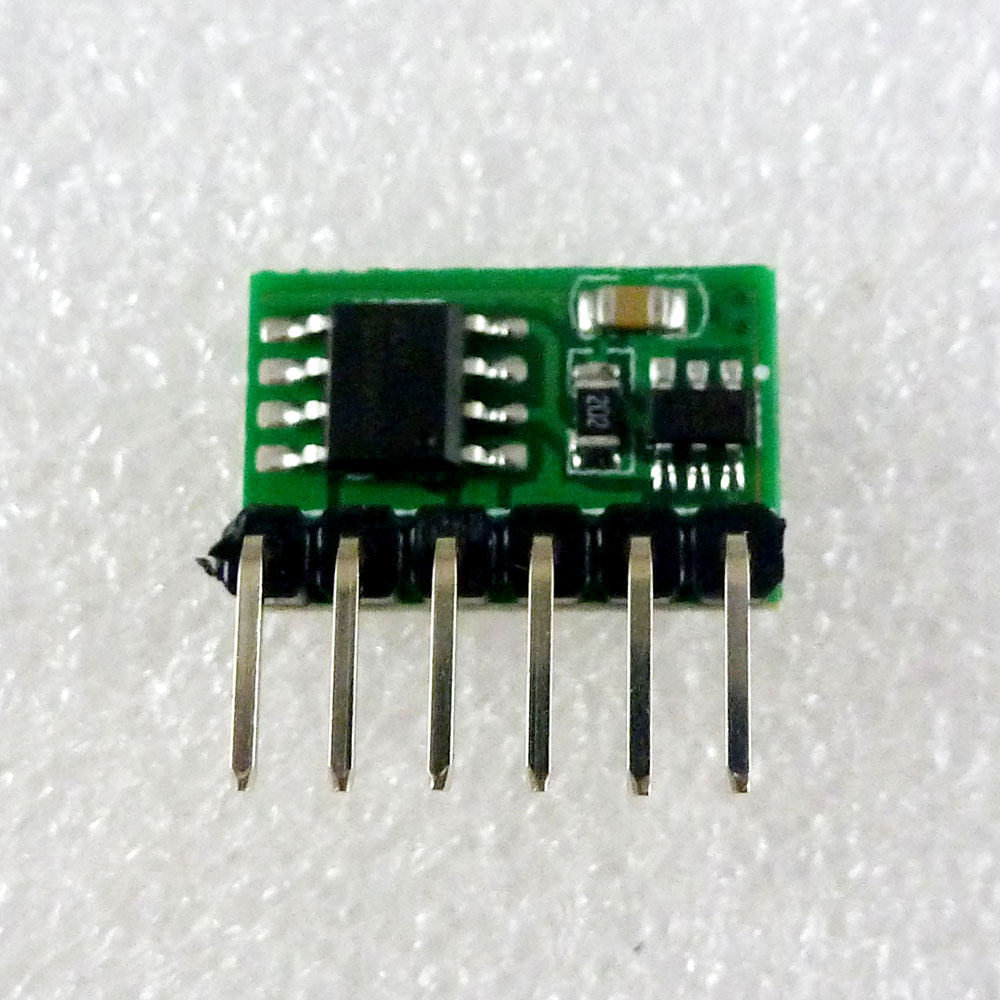

Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A

Allowing continuous output current:

5A(5V-6V)

4A(3.7V-5V)

2A(2.5V-3.7V)

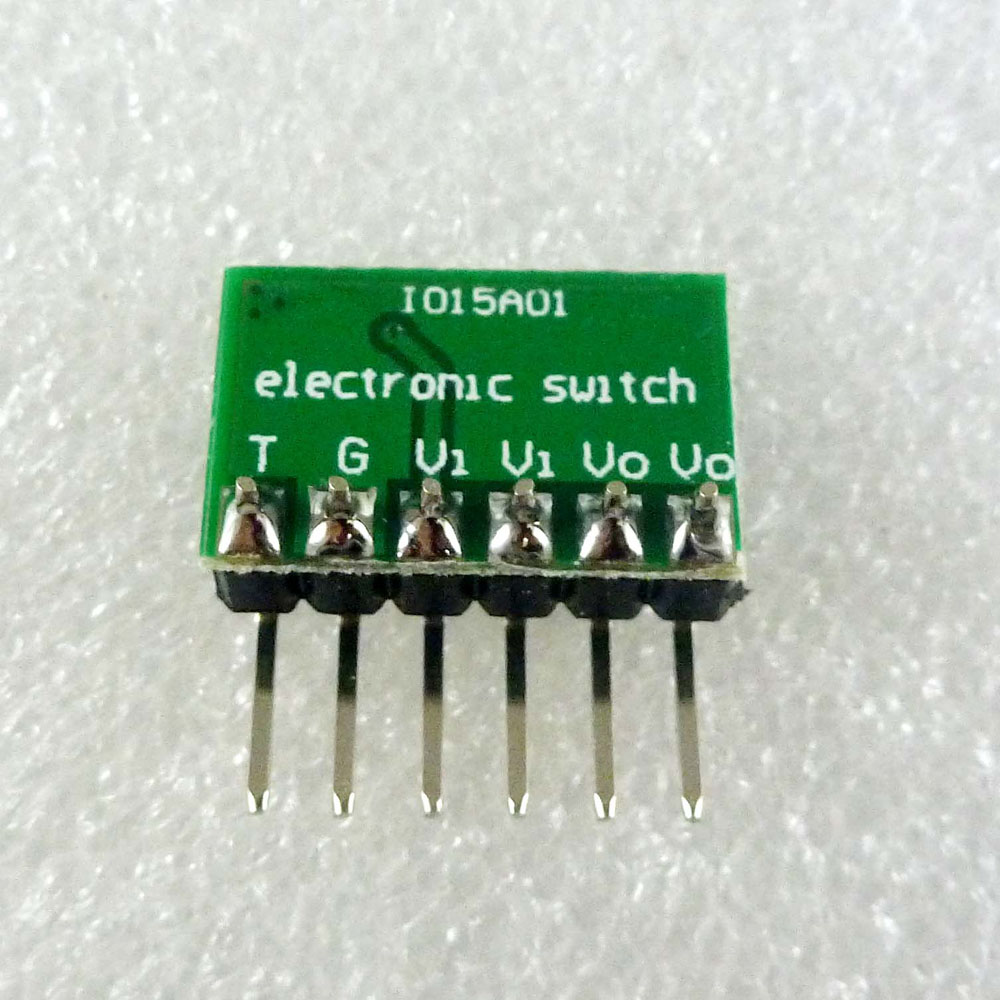

Pin pitch 2.54mm.

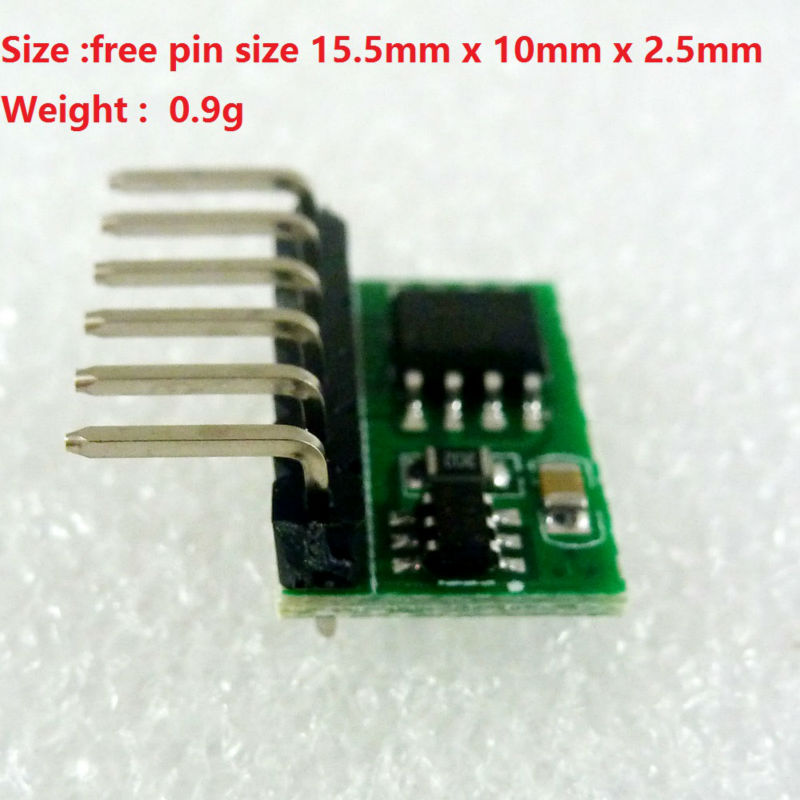

Size:free pin size 15.5mm x 10mm x 2.5mm.

Weight : 0.9g
