2 Switch EV1527 Encoder Keyfob 2 Ways Relay Receiver Controller 433.92MHZ DC12V

2 Switch EV1527 Encoder Keyfob 2 Ways Relay Receiver Controller 433.92MHZ DC12V

$25.48 USD
$25.48 USD $25.48 USD
Sale Sold out

Product Description

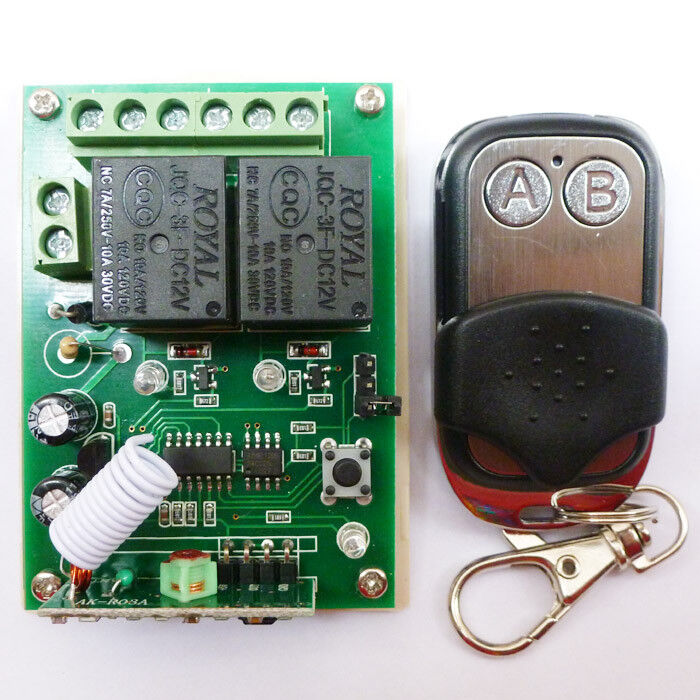

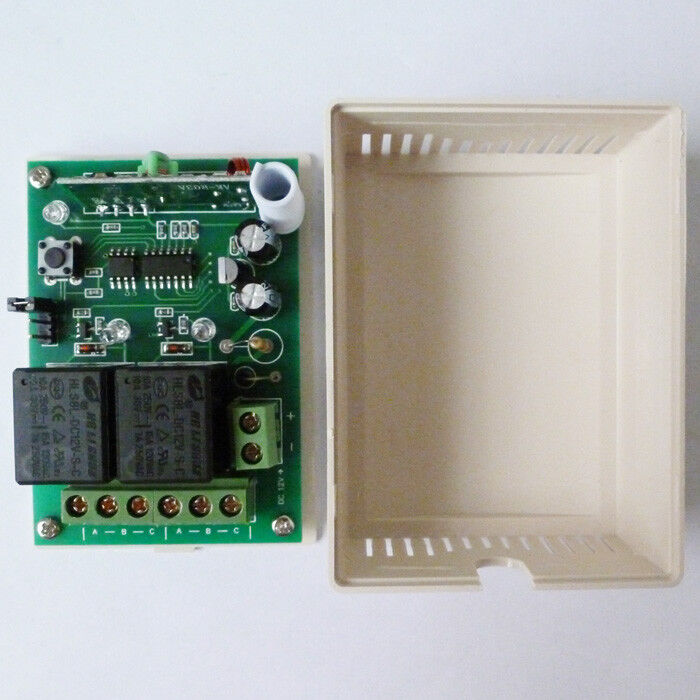

2 Switch EV1527 Encoder Keyfob 2 Ways Relay Receiver Controller 433.92MHZ DC12V



QTY: 1 pcs key fobs and 1 pcs Receiver Controller . (These remotes don't have battery inside )






Technical indicators:

1.operating voltage: DC 12V ;

2.static operating current:≤8mA, Single chanel working current  ≤ 40 mA ,2 Chanels Work current (self-locking/Toggle )≤ 80mA;

3.Working temperature :-10°C- +60°C;

4.Receive sensitivity:≥-105dBm;

5.the working frequency:433.92MHz;
6.output current:≤10A;

7.size:74.5*54.5*27mm ;

8: Momentary Mode ,Latch Mode  , Toggle Mode can be adjustable by jumper .
9. Pls connect the receiver modules properly before power supply ;
10: 4 chanels;
11: Learning function (can works with EV1527 and PT2262 remote , can store 8 pcs different code remote );
12: Max load : 1000W;


Advantage :

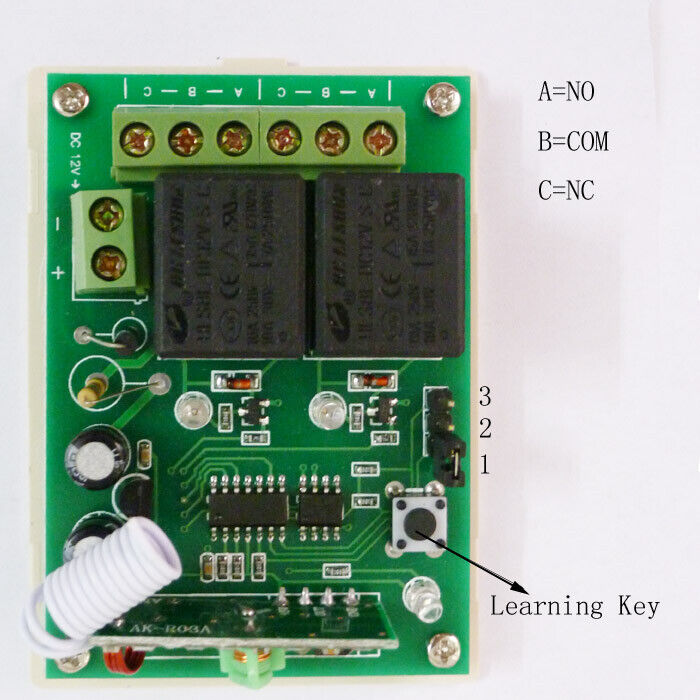

1:  Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 Learning remotes to re-learn;


Output





Output

A.singnal Inter-locking (Latch)----connect 2 and 3 ;

B.singnal Self-locking (Toggle) ---- connect 1 and 2 ;

C.singnal Non-locking (Momentary ) ---- disconnect the jumper ;


·         Latched : Press->On; Press other button->Off ;

·       Keep pressing learnig key on receiver board , release the button when LED is off , enter the learning state ;

2.<span ;"="">       Press any key on remote control within 5 seconds , LED flash 3 times and then turn on , then it have success in learning .



Clear the deposit information

Keep Pressing Learning Key , LED turns off , Wait 10 Seconds , LED turn on , that deposited information has been successfully cleared ;





Transmitter :





Technical Data :
Transmitter Module No.: YK004 -2 2 Chanels
 Power supply : 12V 27A battery  replacable .(This remote doesnot have a battery , Please buy in on local market )
Operating current: ≤ 12mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK;
Operating frequency:433.92MHZ ;
Frequency deviation:±0.2MHz;
Encoding format: Learning Code ( EV1527 ) . Cannot cloning or copy any remotes ;
Transmit power:10 mW.

Data Rate : 50~60KHZ;





Similar connection :

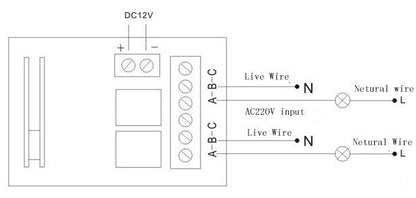

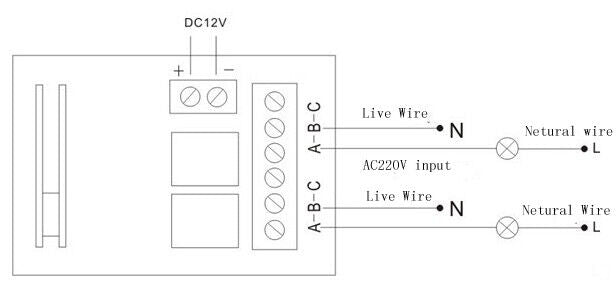

Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V

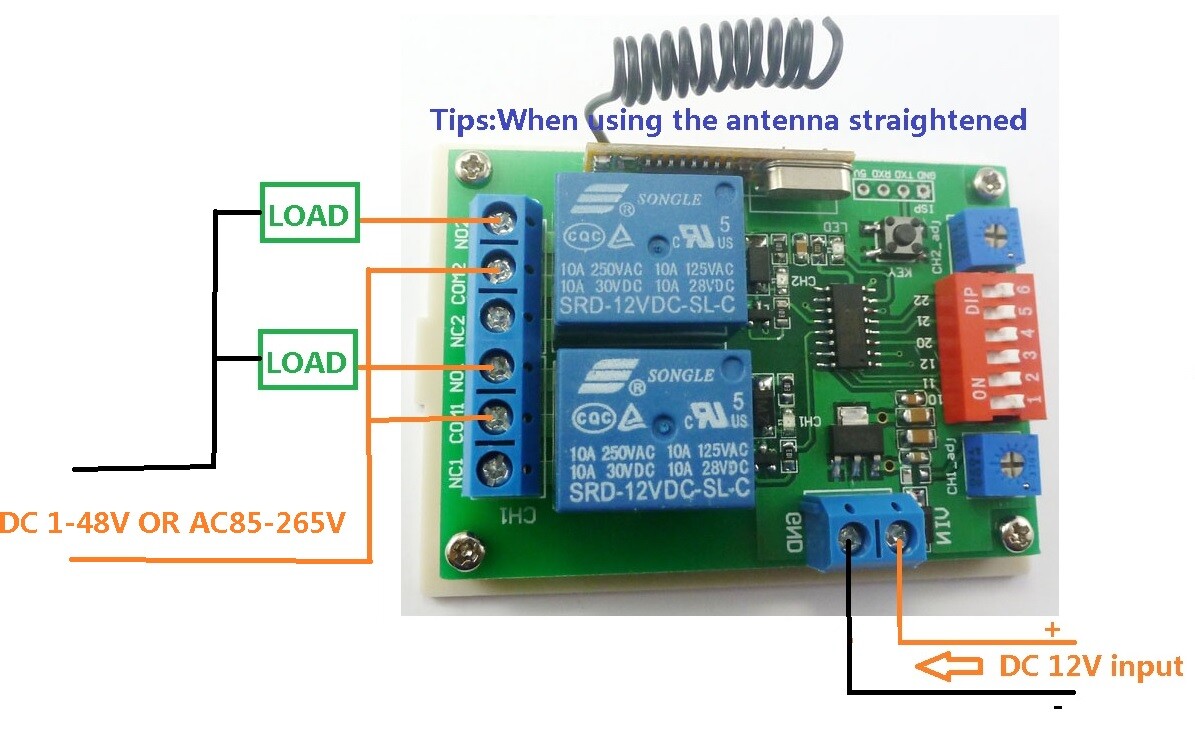

Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
