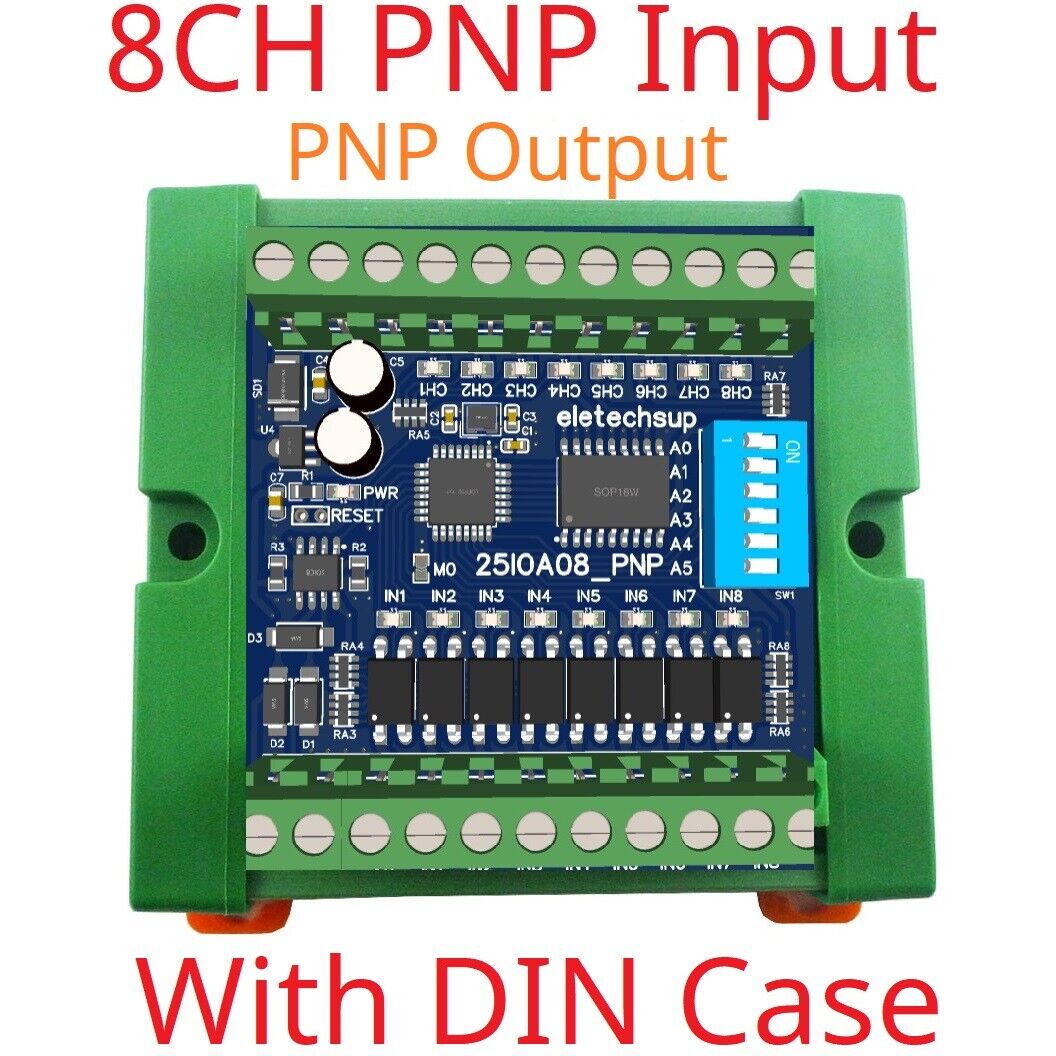

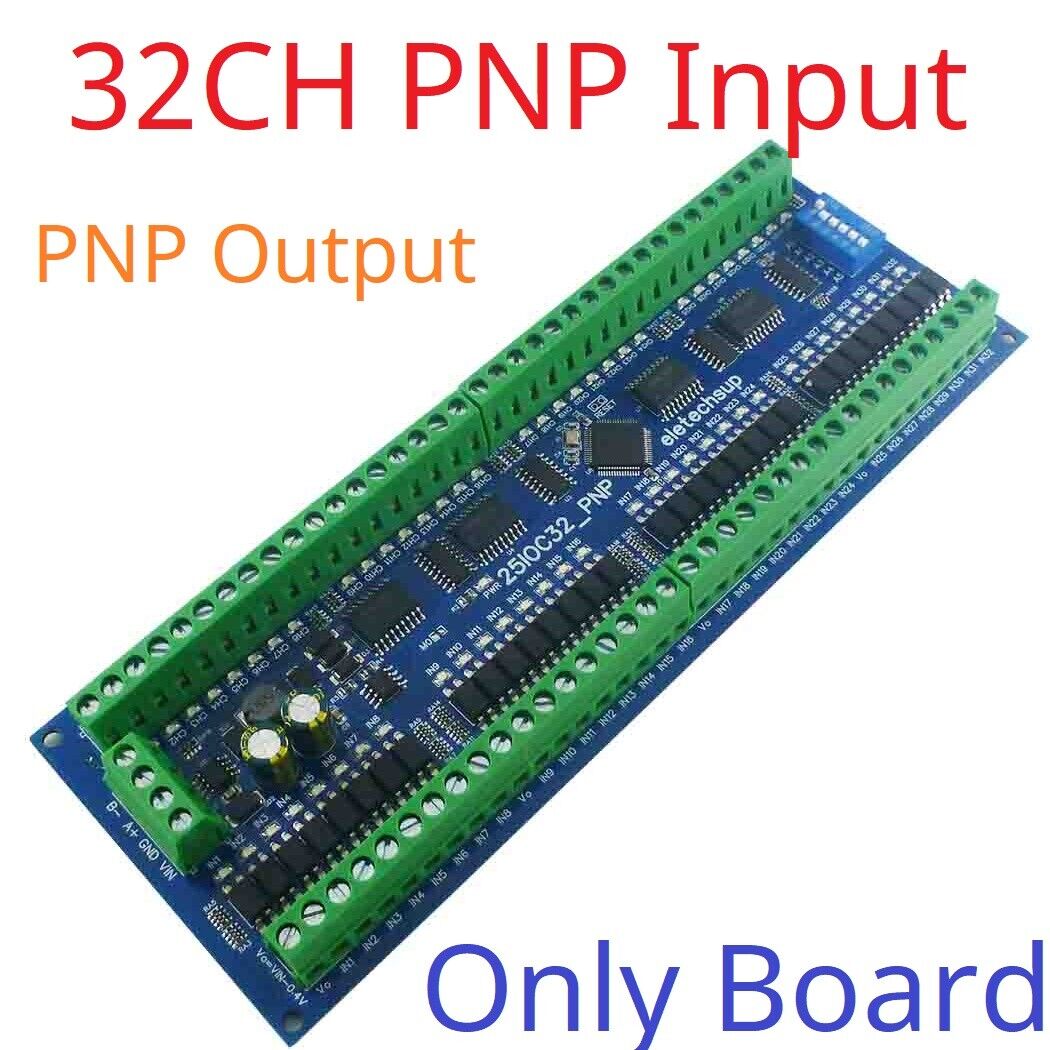

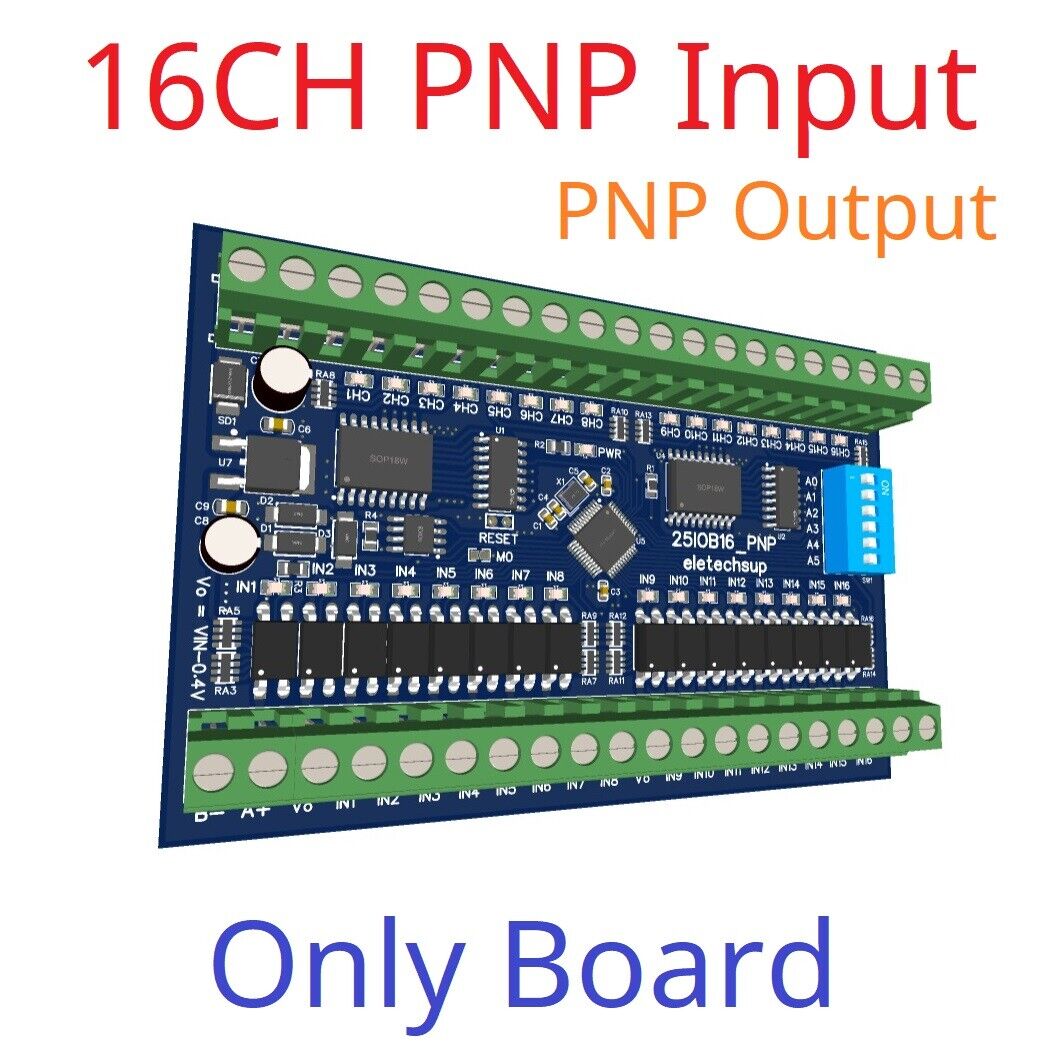

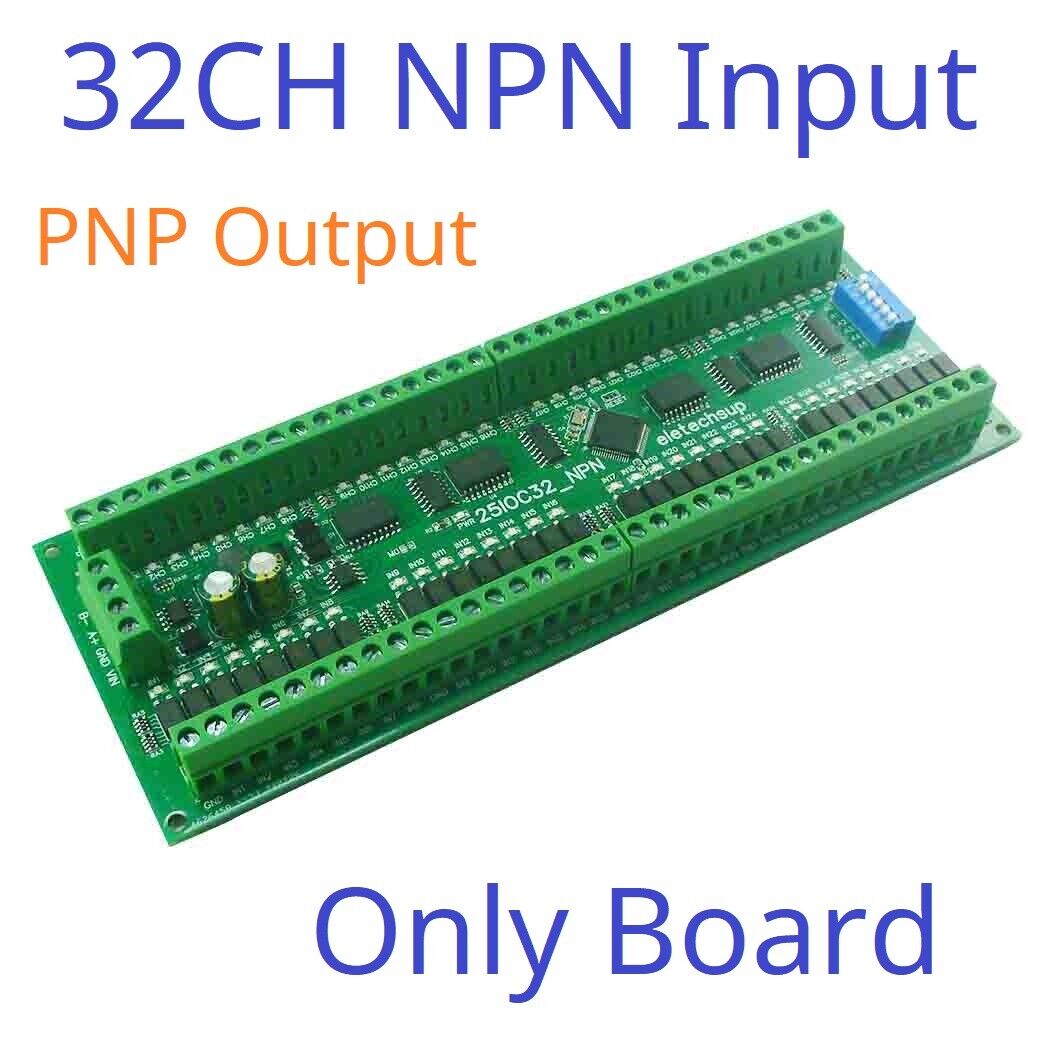

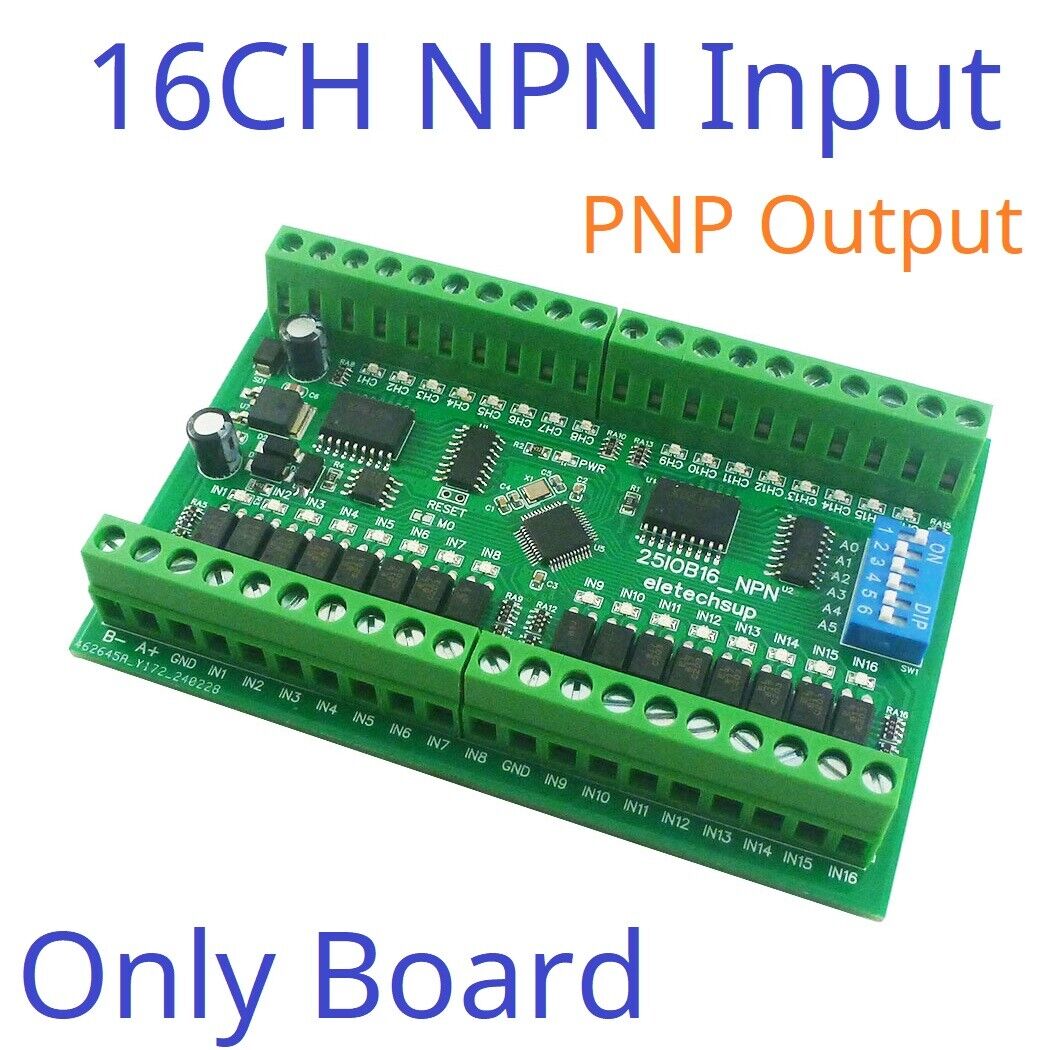

25IOA08 25IOB16 25IOC32 8-32 DI-DO PNP to PNP RS485 Modbus Rtu Remote IO Module DC 12-24V 300MA DMOS PNP
25IOA08 25IOB16 25IOC32 8-32 DI-DO PNP to PNP RS485 Modbus Rtu Remote IO Module DC 12-24V 300MA DMOS PNP
SKU:25IOA08_NPN_R
1000 in stock
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Couldn't load pickup availability

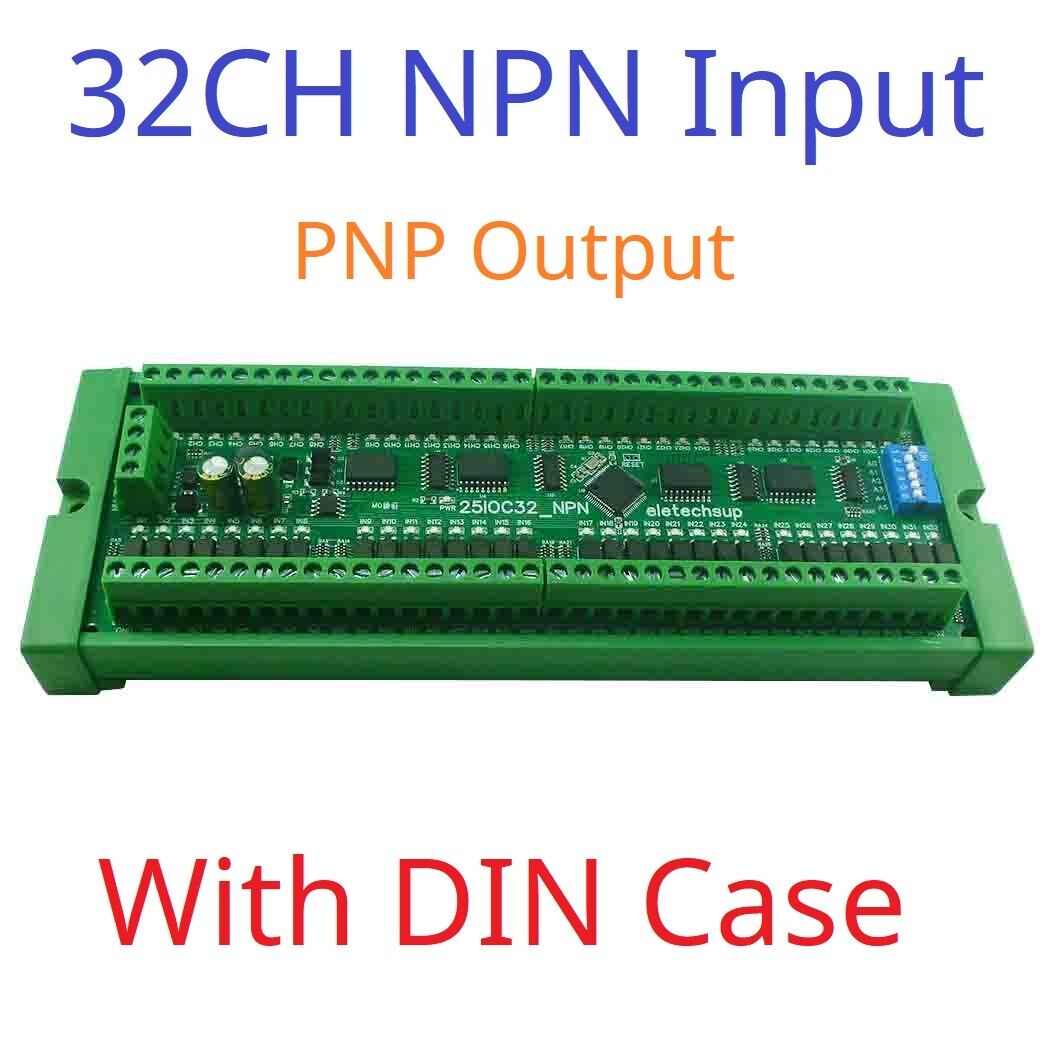

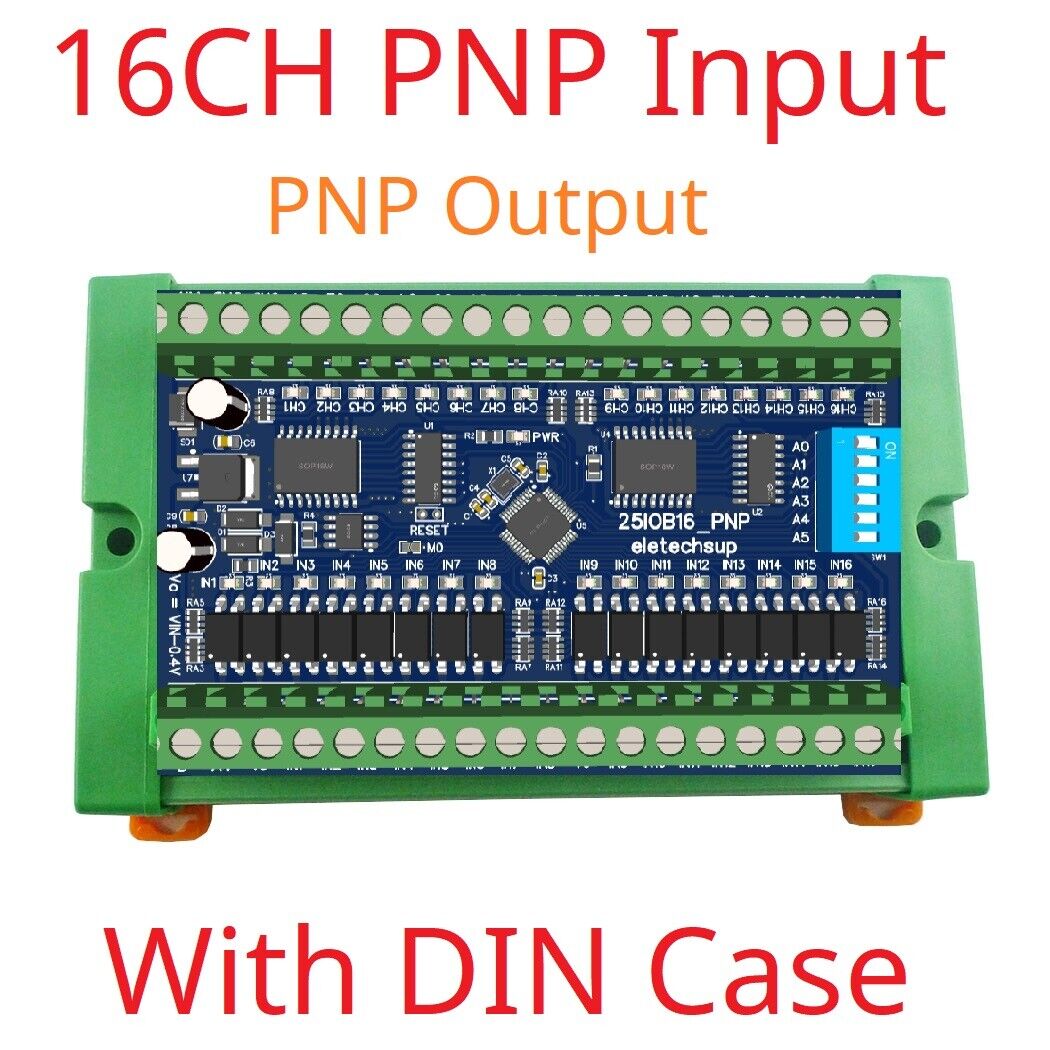

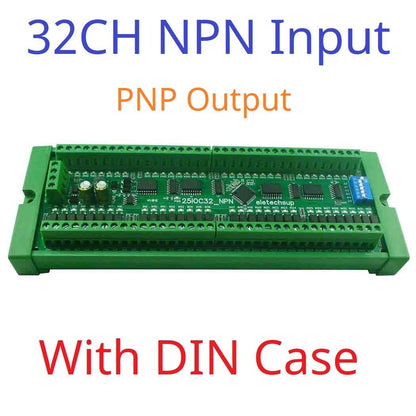

25IOA08 25IOB16 25IOC32 series products are eletechsup's first PNP Output RS485 IO module. With 8/16/32 channels NPN/PNP Photoelectric isolation input and the same channels 300MA DMOS PNP Output.(NPN Output Please select 23IOA08 23IOB16 23IOC24 23IOD32 23IOE48)
Features:
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 10-48MA

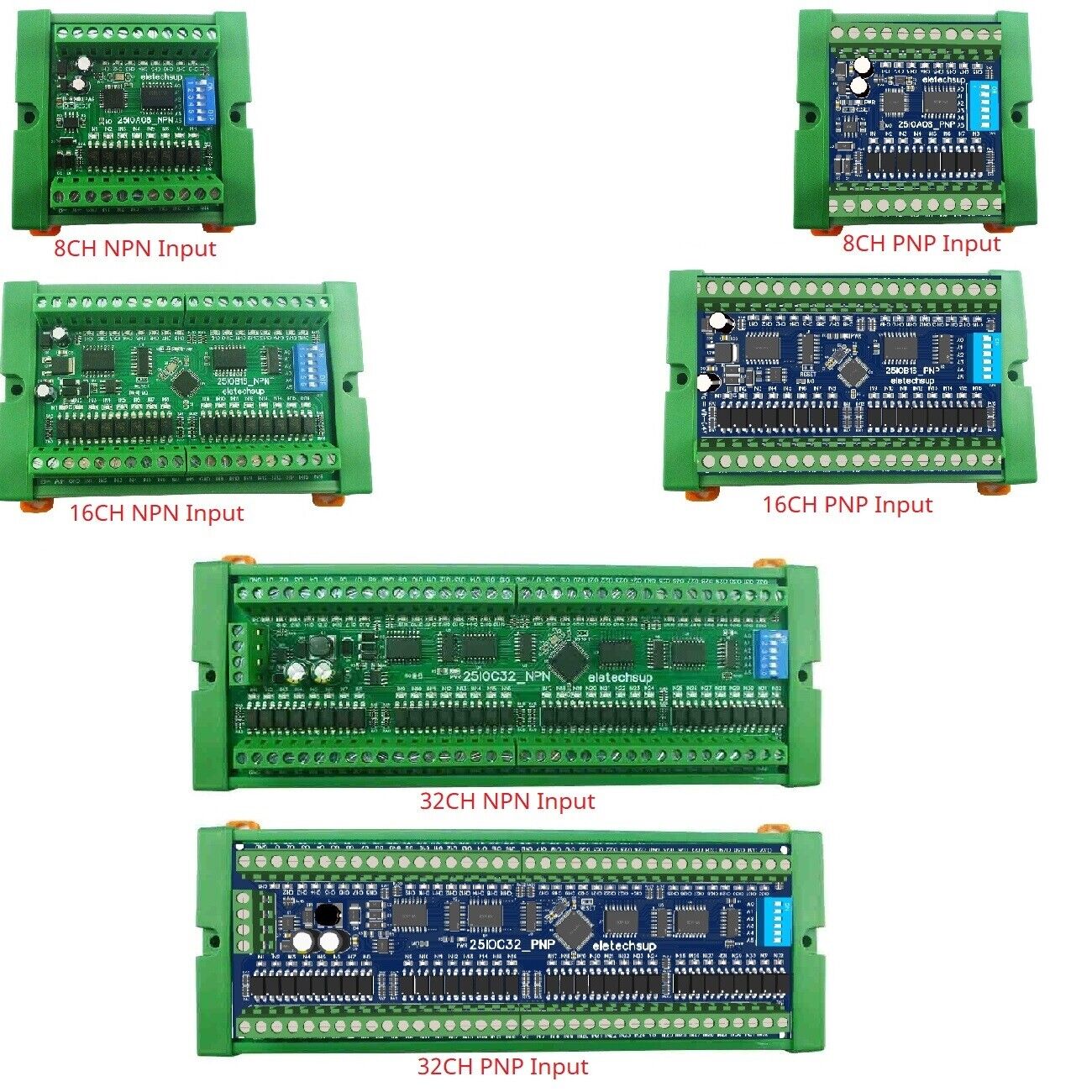

3 8/16/32 photoelectrically isolated input ports, NPN/PNP(optional)
4 8/16/32 DMOS PNP outputs (high level output, drive current 300MA)
5 The default command has multiple output modes: six output modes: Open/Close/Toggle (Self-locking)/Latch(Inter-locking)/Momentary (Non-locking) /Delay .

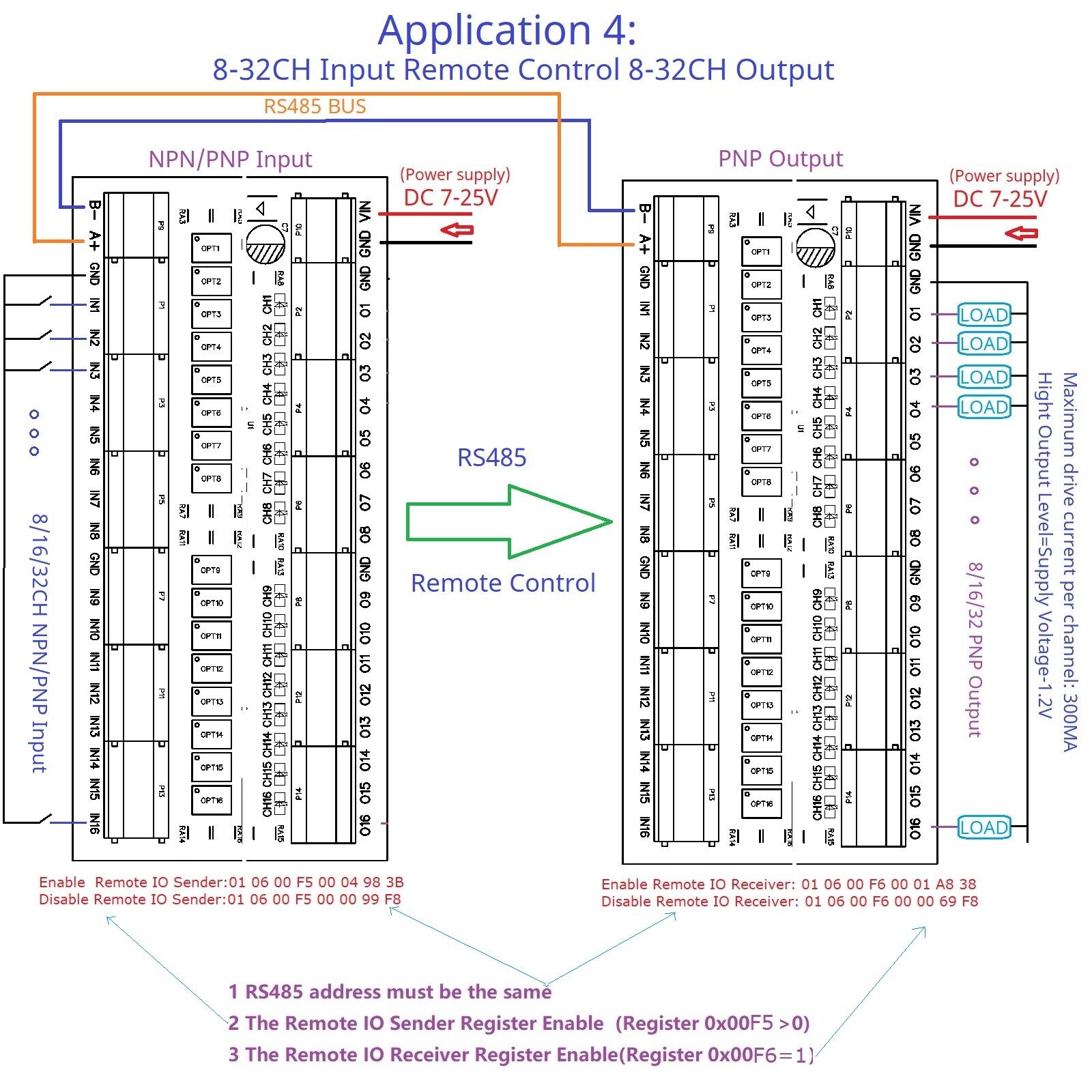

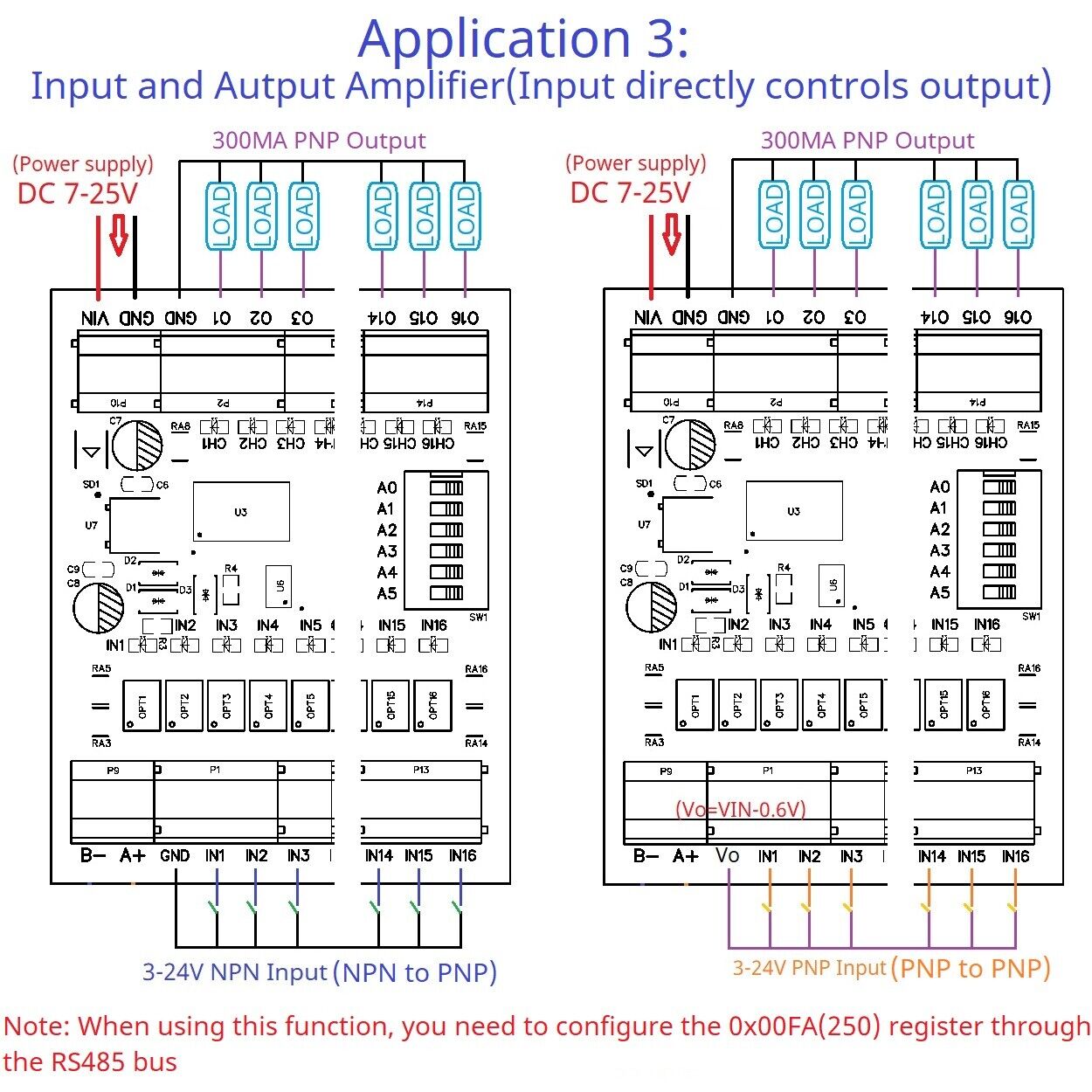

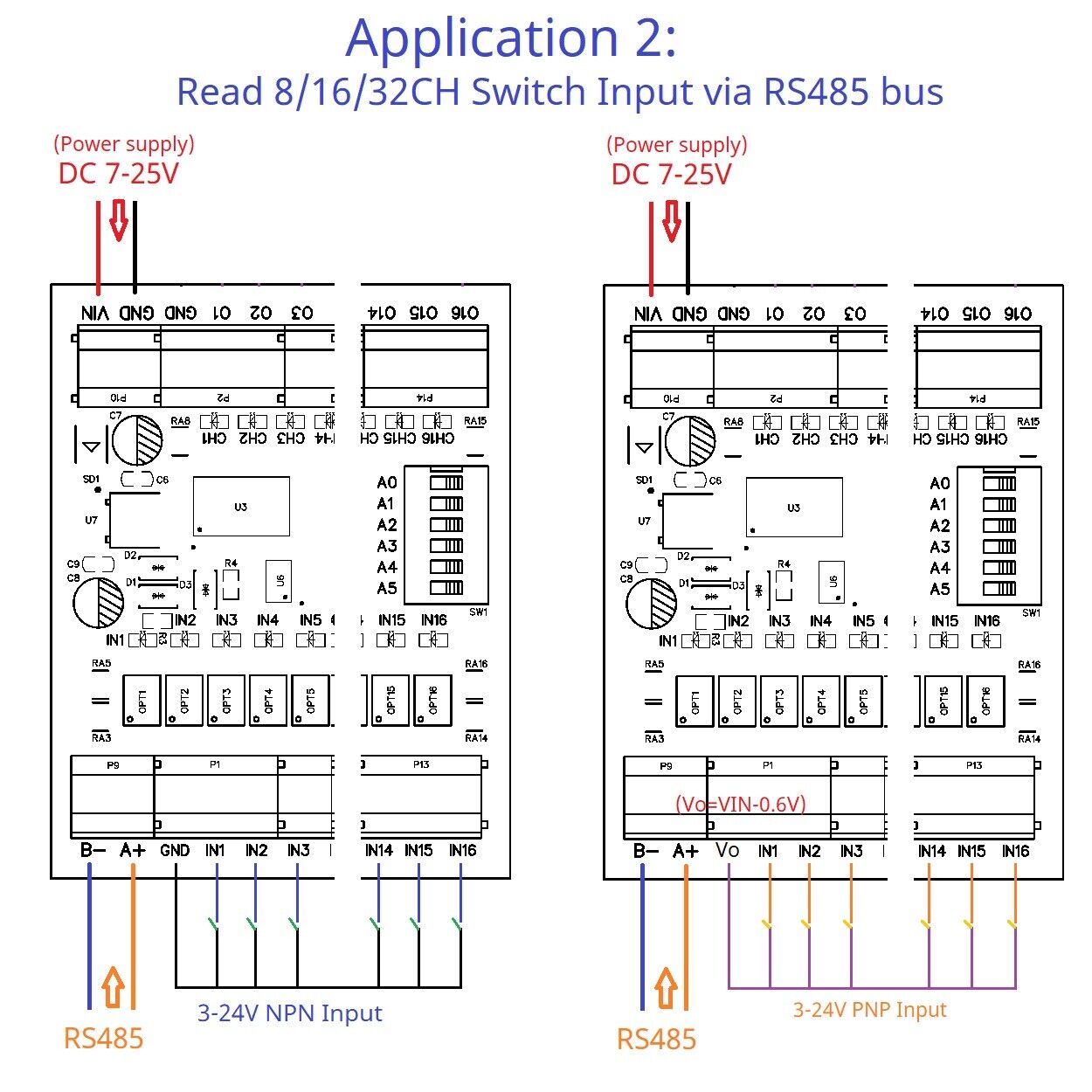

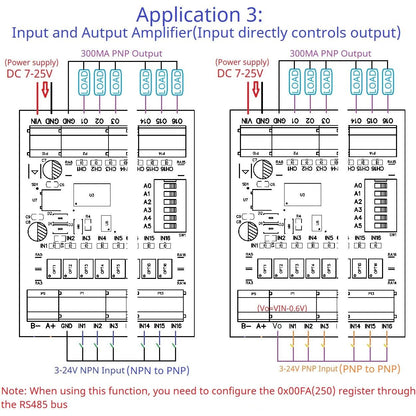

6 The input port can remotely control the output port of another board through the RS485 bus
7 MODBUS command 1 supports 03 06 16 function code, MODBUS command 2 supports 01/02/03/05/06/15/16 function code
8 The maximum delay under MODBUS command 1 is 255 seconds.

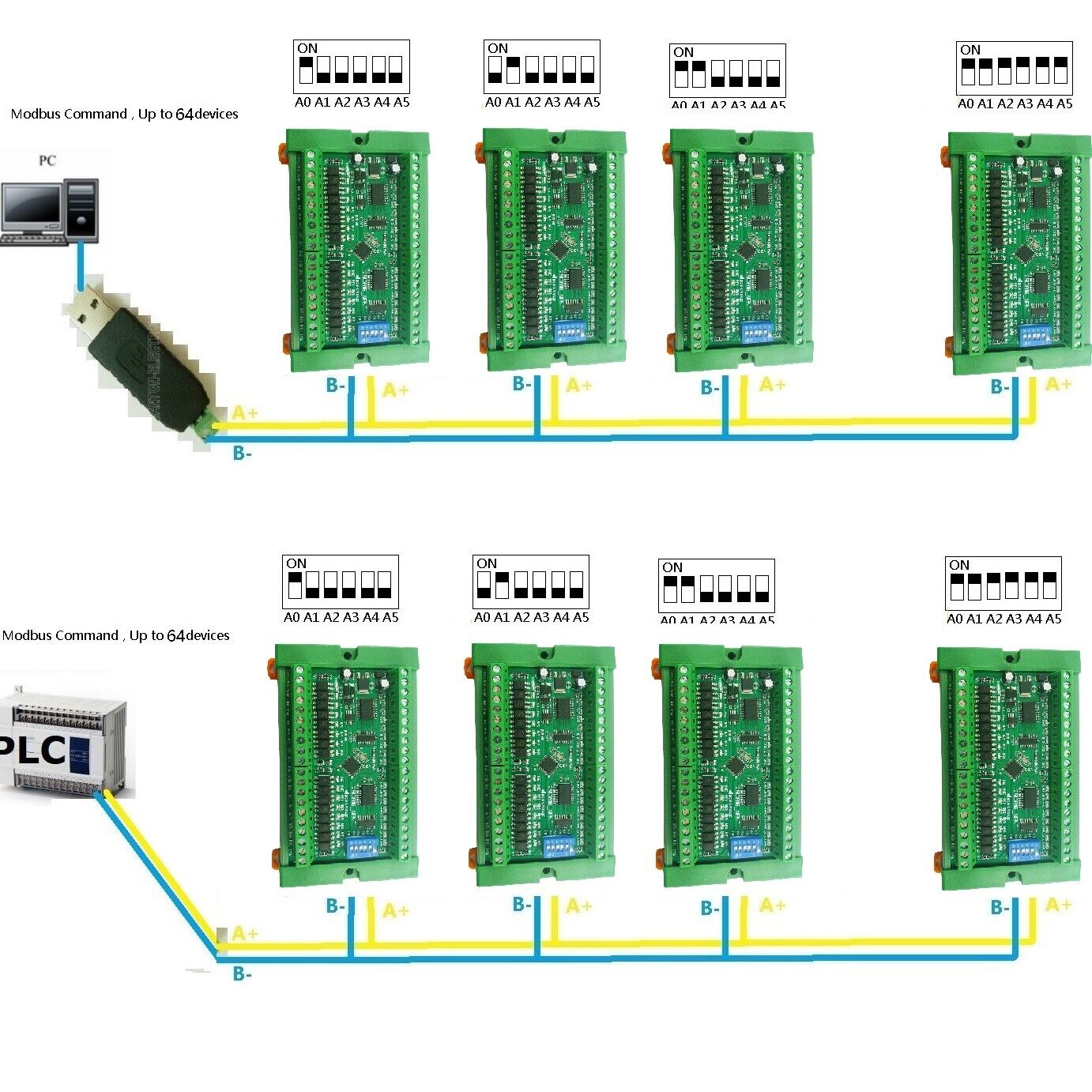

9 In MODBUS command mode, up to 64 devices can be supported in parallel.
10 The default baud rate is 9600BPS, Can be set :1200/2400/4800/19200/38400/57600/115200BPS

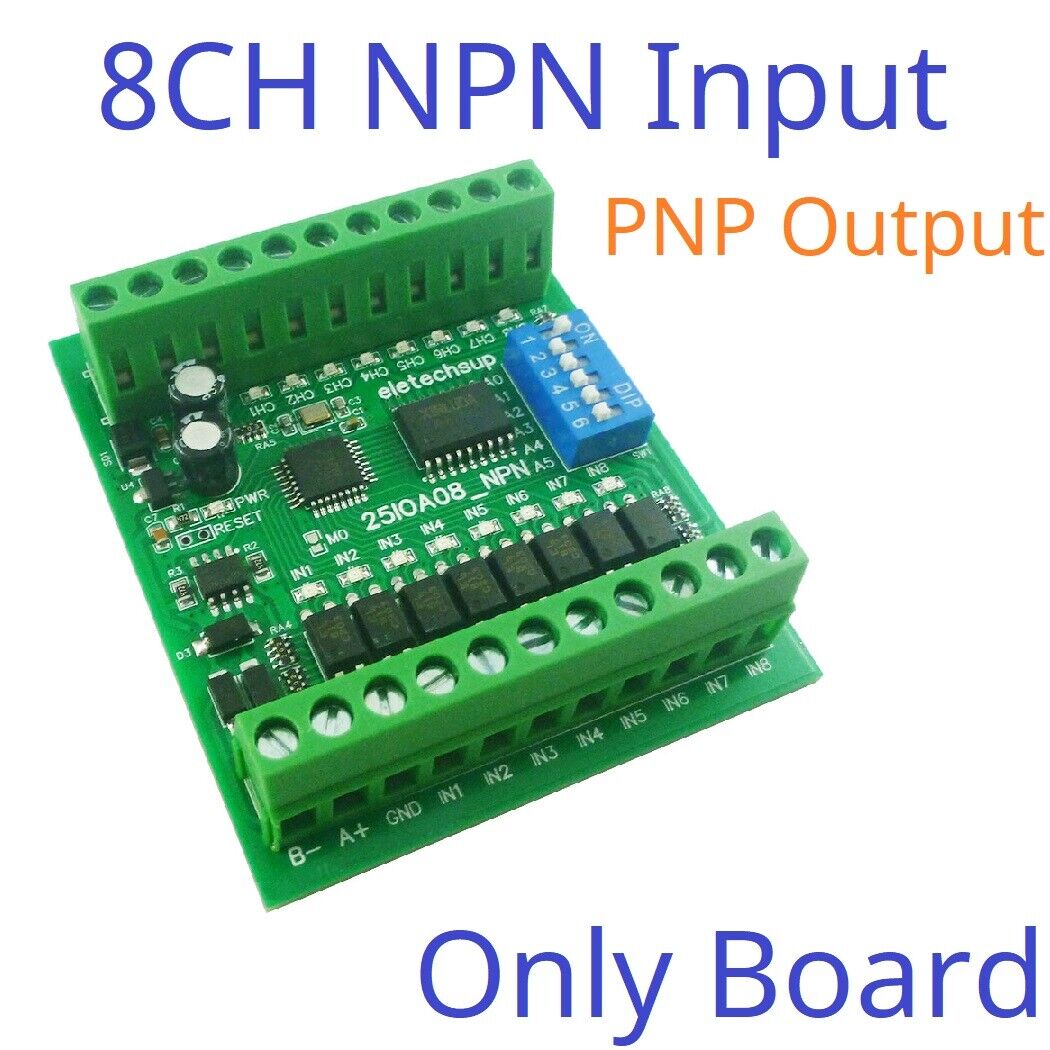

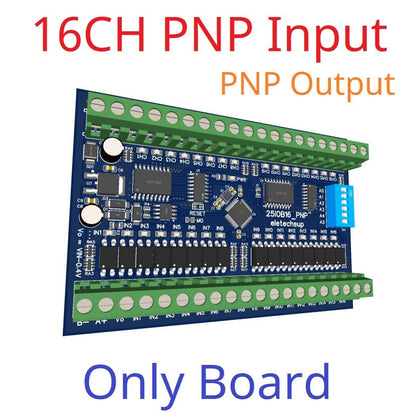

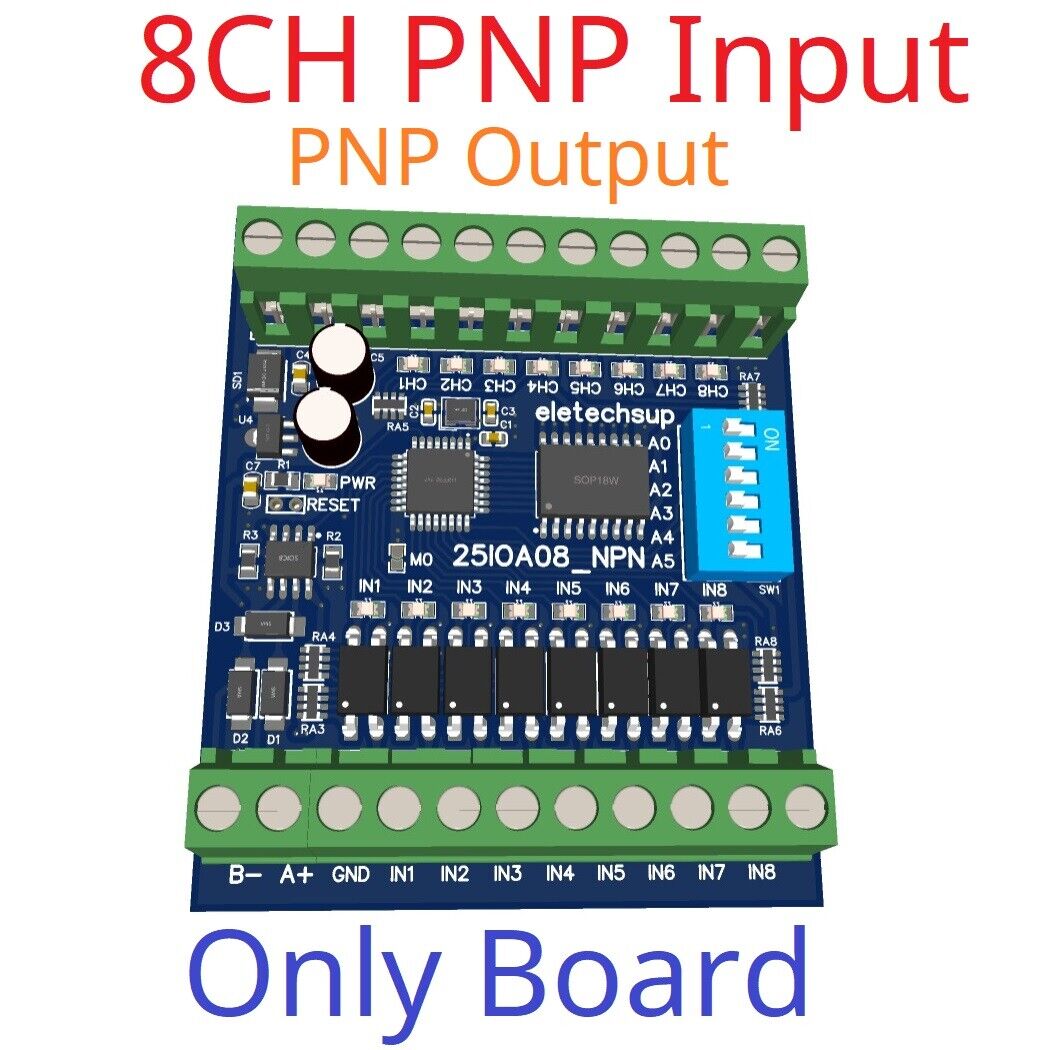

11 Sizes (Only Board): 61x72x18MM (8CH), 106x72x18MM (16CH), 196x72x18MM (32CH)

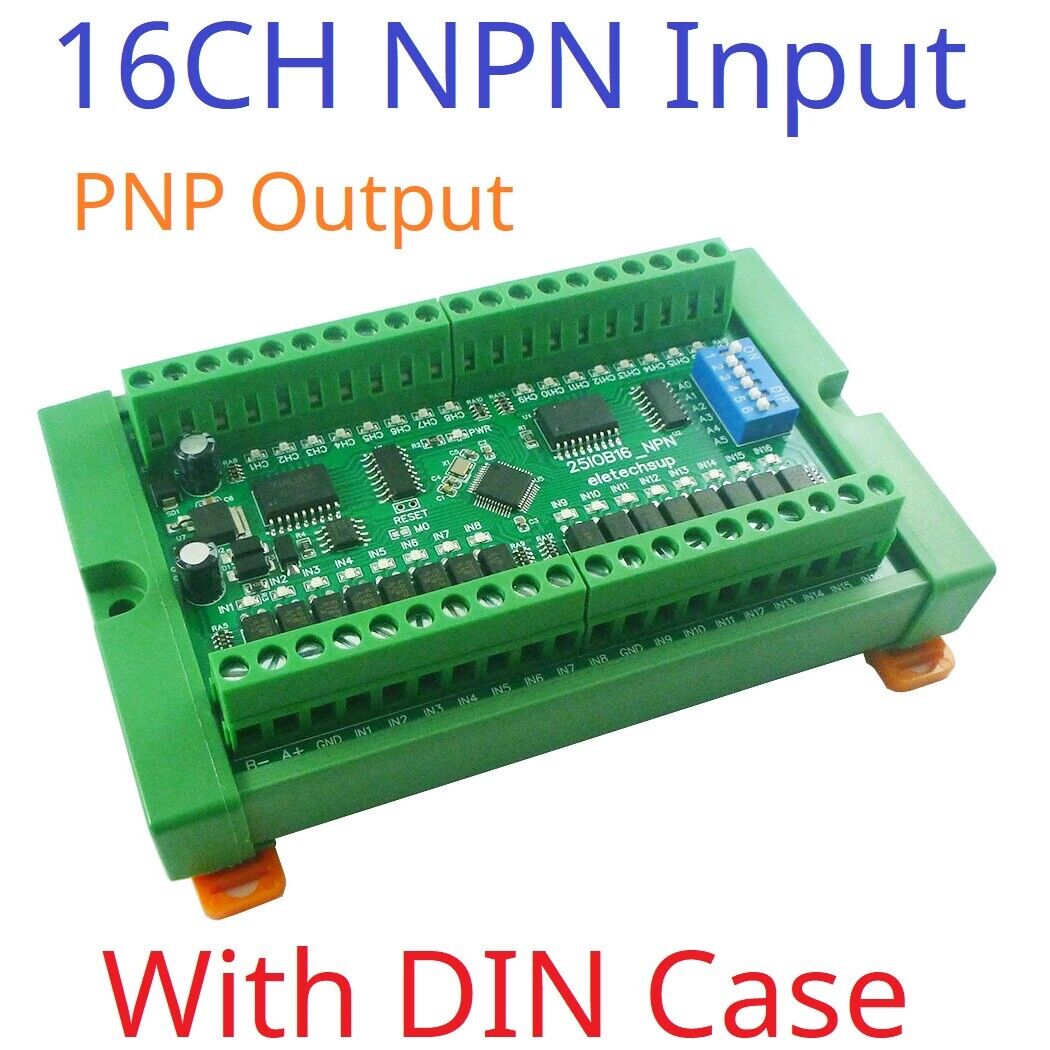

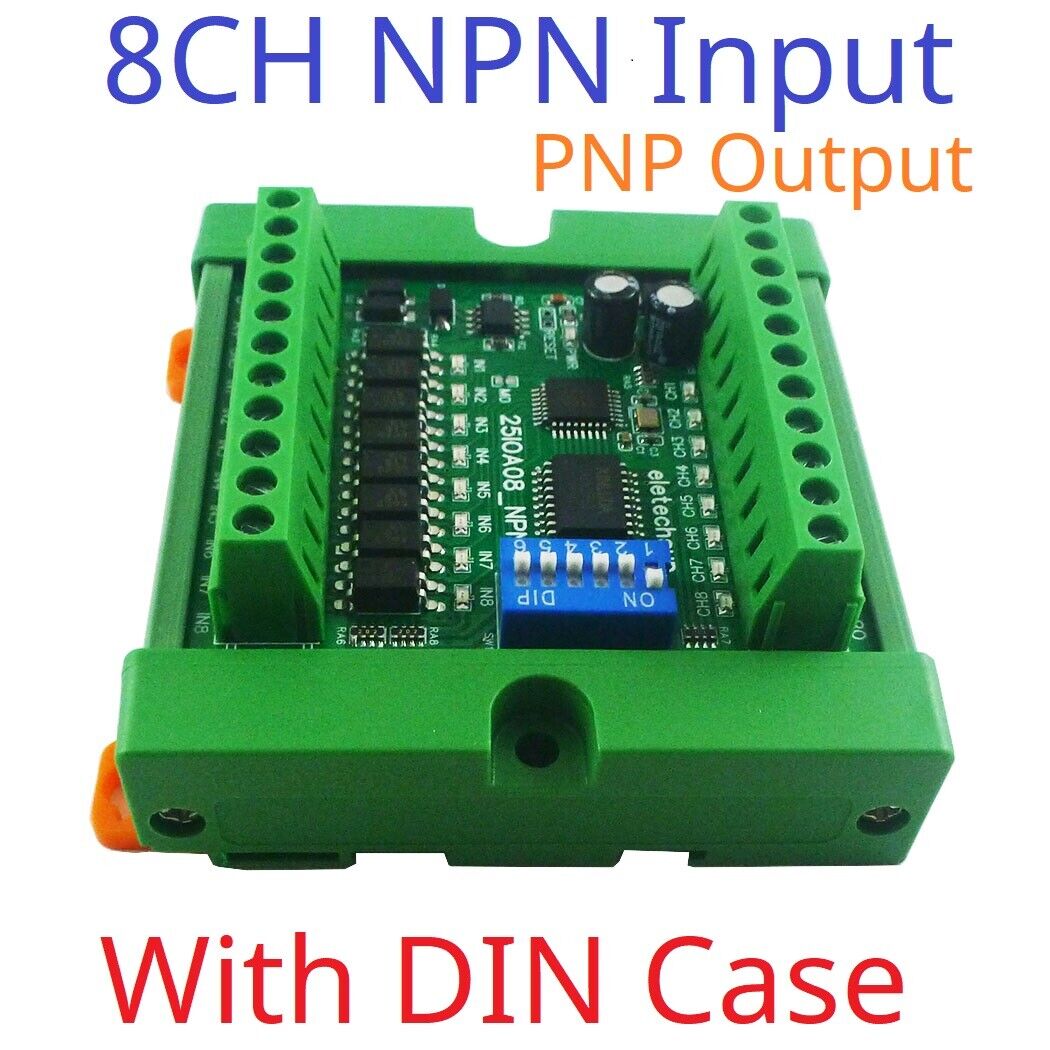

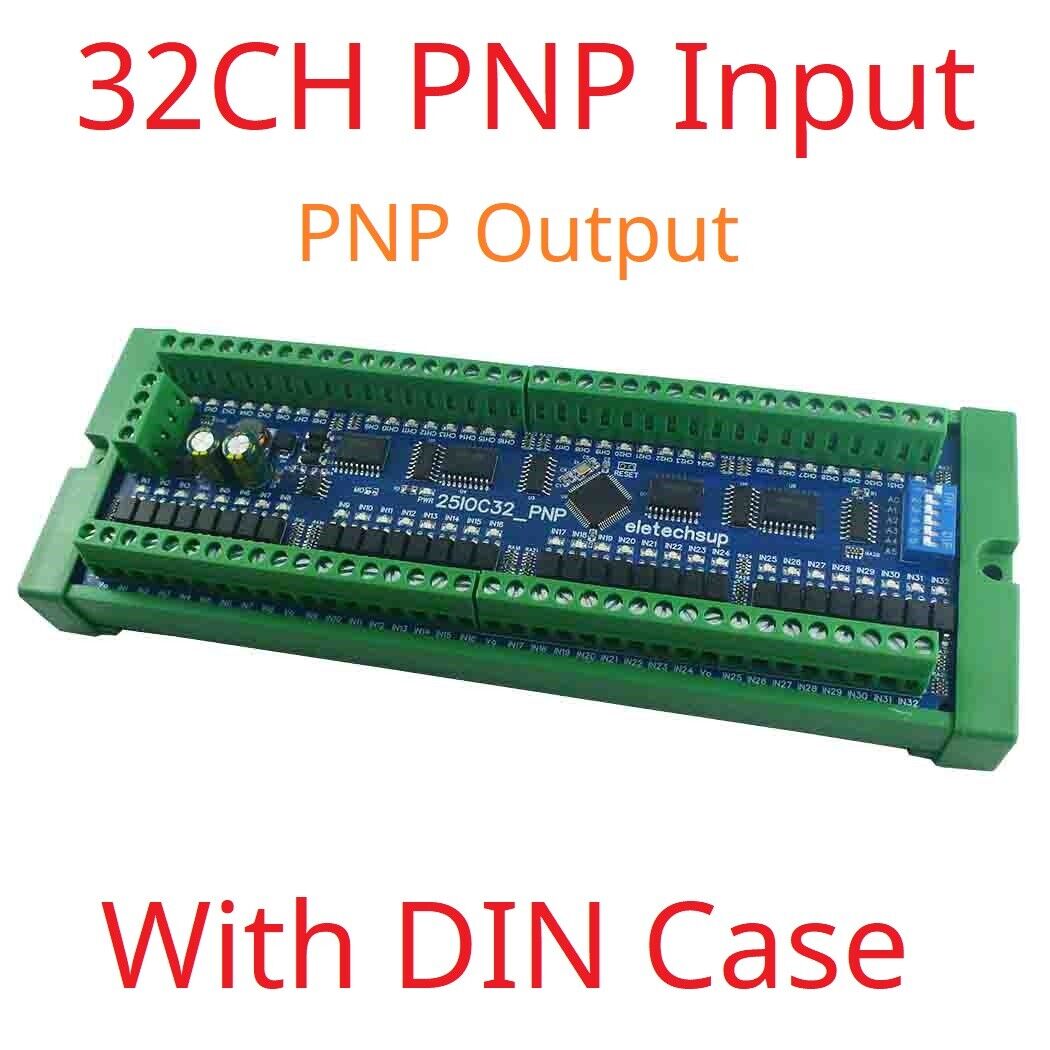

12 Dimensions (Wth DIN Box): 64x80x30MM (8CH), 109x80x30MM (16CH), 199x80x30MM (32CH)
14 Weight (Only Board): 46g (8CH), 80g (16CH), 152g (32CH),
15 Weight (Wth DIN Box): 85g (8CH), 145g (16CH), 247g (32CH)
16 Maximum load: The maximum load current of each channel is 300MA
Features:
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 10-48MA
3 8/16/32 photoelectrically isolated input ports, NPN/PNP(optional)
4 8/16/32 DMOS PNP outputs (high level output, drive current 300MA)
5 The default command has multiple output modes: six output modes: Open/Close/Toggle (Self-locking)/Latch(Inter-locking)/Momentary (Non-locking) /Delay .
6 The input port can remotely control the output port of another board through the RS485 bus
7 MODBUS command 1 supports 03 06 16 function code, MODBUS command 2 supports 01/02/03/05/06/15/16 function code
8 The maximum delay under MODBUS command 1 is 255 seconds.
9 In MODBUS command mode, up to 64 devices can be supported in parallel.
10 The default baud rate is 9600BPS, Can be set :1200/2400/4800/19200/38400/57600/115200BPS
11 Sizes (Only Board): 61x72x18MM (8CH), 106x72x18MM (16CH), 196x72x18MM (32CH)
12 Dimensions (Wth DIN Box): 64x80x30MM (8CH), 109x80x30MM (16CH), 199x80x30MM (32CH)
14 Weight (Only Board): 46g (8CH), 80g (16CH), 152g (32CH),
15 Weight (Wth DIN Box): 85g (8CH), 145g (16CH), 247g (32CH)
16 Maximum load: The maximum load current of each channel is 300MA
For more information, please contact me
Application

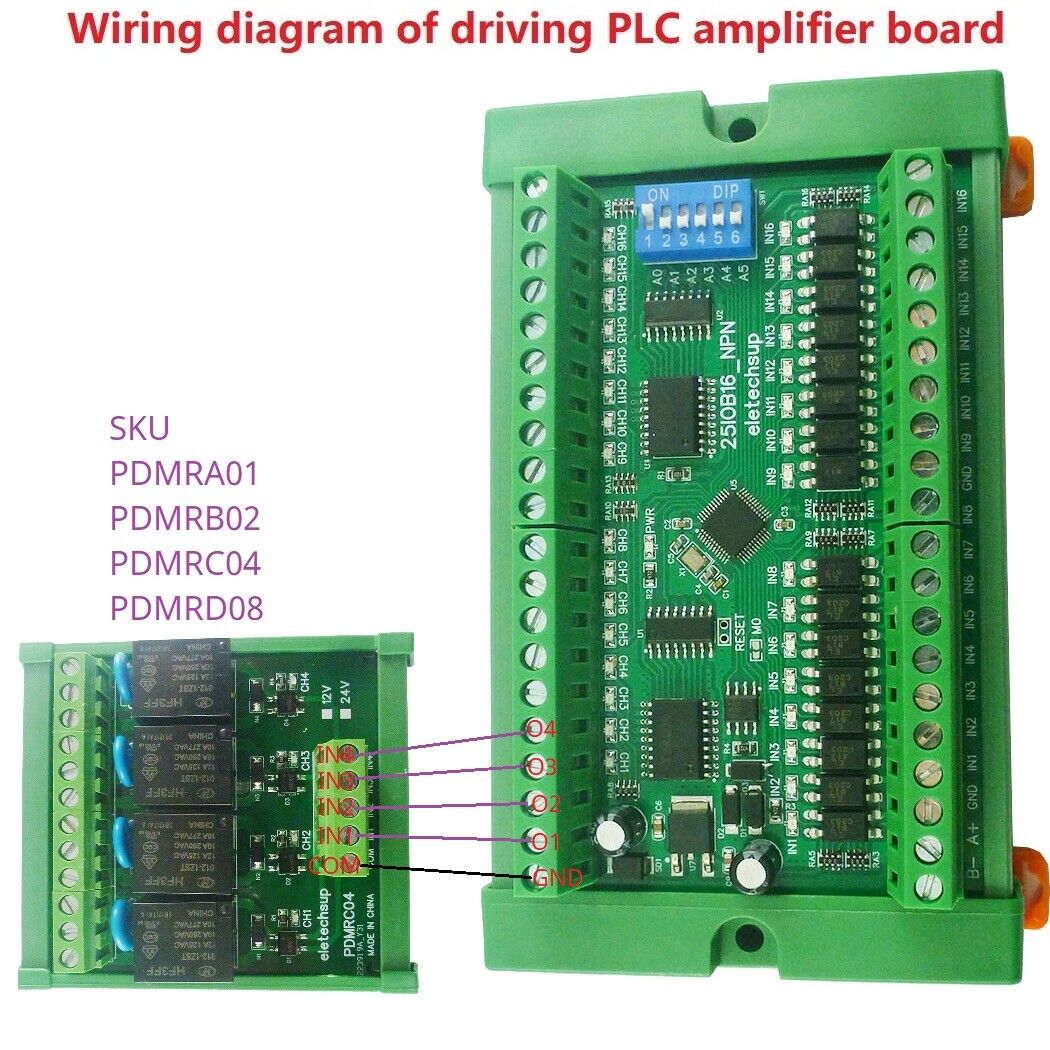

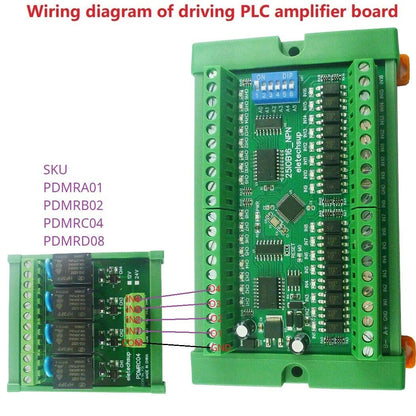

PLC PNP Output
RS485 Remote Control
Smart Home,Home Automation ,Wiser Home;
PTZ IP Camera
Security Monitoring
Identification system;
LED Lamp Drivers
Automatic curtain control
RS485 Remote Control
Smart Home,Home Automation ,Wiser Home;
PTZ IP Camera
Security Monitoring
Identification system;
LED Lamp Drivers
Automatic curtain control
