Product Name: 2pcs DC 3.3V 5V 12V 6bits Multicolor LED 2.54mm PIN 0603 Package for Arduiuo UNO MEGA2560 LoL Breadboard PCB Rapid Prototyping
Packing list(Does not include UNO Board):
2 pcs 6 bit Multicolor LED's Board(Does not include UNO R3);
Description:

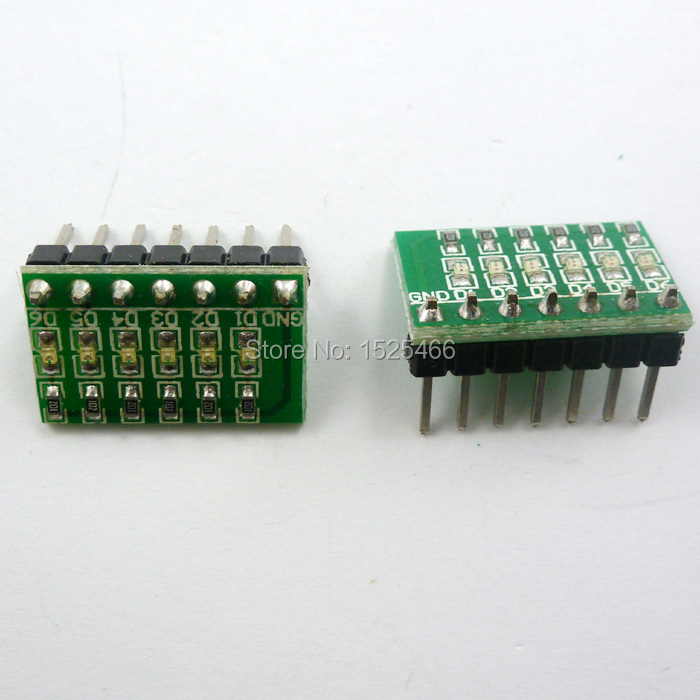

2.54MM PIN 6 Digitals LED Board ,Can be inserted directly into Arduiuo UNO MEGA2560 DUE Board ,Ideal for linking up to your Arduiuo UNO Pro Mini Nano Mega2560 DUE Development Boardetc,or others MCU Embedded development board
(AVR STM32 STM8 STM0 ARM7 ARM9 ARM11 PIC C8051 C51 STC MSP430 FPGA/CPLD etc.)
(AVR STM32 STM8 STM0 ARM7 ARM9 ARM11 PIC C8051 C51 STC MSP430 FPGA/CPLD etc.)
Note : White LED light than any other color lights, so use PWM reducing the brightness(reflected on arduiuo code)
1. 6 bit 6 colors Common Cathode LEDs.
2 . M u lt ic ol or are White Blue Chartreuse Yellow Pink Red
3 .7 PIN OUT 2.54mm
3 .7 PIN OUT 2.54mm
4 .1K ohm Limiting resistor
5. Power Supply Voltage: 3.3-12V;
6 .LED & Resistor Package : 0603
7. Size: 17.78MM x 11.43MM.
PCB:
Circuit schematics :
Connection with Arduiuo(Only 6 bit LED's Board ,Does not include UNO R3):
Arduiuo uno/mega2560 Code 1 (Light water)
//******************************************************//
/*
Arduiuo_6Color_led
White Blue Chartreuse Yellow Pink Red
This example code is in the public domain.
*/
// give it a name:
int D1 = 13;//White
int D2 = 12;//Blue
int D3 = 11;//Chartreuse
int D4 = 10;//Yellow
int D5 = 9;//Pink
int D6 = 8;//Red
int GND = 7;//GND
int D11 = 6;//White
int D12 = 5;//Blue
int D13 = 4;//Chartreuse
int D14 = 3;//Yellow
int D15 = 2;//Pink
int D16 = 1;//Red
int i;
#define ms_cnt 200//Millisecond delay count
// the setup routine runs once when you press reset:
void setup() {
// initialize the digital pin as an output.
pinMode(D1, OUTPUT);
pinMode(D2, OUTPUT);
pinMode(D3, OUTPUT);
pinMode(D4, OUTPUT);
pinMode(D5, OUTPUT);
pinMode(D6, OUTPUT);
pinMode(D11, OUTPUT);
pinMode(D12, OUTPUT);
pinMode(D13, OUTPUT);
pinMode(D14, OUTPUT);
pinMode(D15, OUTPUT);
pinMode(D16, OUTPUT);
pinMode(GND, OUTPUT);
digitalWrite(GND, LOW);
}
// the loop routine runs over and over again forever:
void loop() {
//White LED light than any other color lights, so reducing the brightness
for(i=0;i< ms_cnt/6;i++)
{
digitalWrite(D1, HIGH);
delay(1);
digitalWrite(D1, LOW);
delay(5);
}
digitalWrite(D2, HIGH); // turn the LED on (HIGH is the voltage level)
delay(ms_cnt); // wait for a Millisecond
digitalWrite(D2, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D3, HIGH); // turn the LED on (HIGH is the voltage level)
delay(ms_cnt); // wait for a Millisecond
digitalWrite(D3, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D4, HIGH); // turn the LED on (HIGH is the voltage level)
delay(ms_cnt); // wait for a Millisecond
digitalWrite(D4, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D5, HIGH); // turn the LED on (HIGH is the voltage level)
delay(ms_cnt); // wait for a Millisecond
digitalWrite(D5, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D6, HIGH); // turn the LED on (HIGH is the voltage level)
delay(ms_cnt); // wait for a Millisecond
digitalWrite(D6, LOW); // turn the LED off by making the voltage LOW
//White LED light than any other color lights, so reducing the brightness
for(i=0;i< ms_cnt/6;i++)
{
digitalWrite(D11, HIGH);
delay(1);
digitalWrite(D11, LOW);
delay(5);
}
digitalWrite(D12, HIGH);
delay(ms_cnt);
digitalWrite(D12, LOW);
digitalWrite(D13, HIGH);
delay(ms_cnt);
digitalWrite(D13, LOW);
digitalWrite(D14, HIGH);
delay(ms_cnt);
digitalWrite(D14, LOW);
digitalWrite(D15, HIGH);
delay(ms_cnt);
digitalWrite(D15, LOW);
digitalWrite(D16, HIGH);
delay(ms_cnt);
digitalWrite(D16, LOW);
}
//******************************************************//
uno/mega2560 Code 2 (light up All LED)
//******************************************************//
/*
Arduiuo_6Color_led
White Blue Chartreuse Yellow Pink Red
This example code is in the public domain.
*/
// give it a name:
int D1 = 13;//White
int D2 = 12;//Blue
int D3 = 11;//Chartreuse
int D4 = 10;//Yellow
int D5 = 9;//Pink
int D6 = 8;//Red
int GND = 7;//GND
int D11 = 6;//White
int D12 = 5;//Blue
int D13 = 4;//Chartreuse
int D14 = 3;//Yellow
int D15 = 2;//Pink
int D16 = 1;//Red
int i;
#define ms_cnt 200//Millisecond delay count
// the setup routine runs once when you press reset:
void setup() {
// initialize the digital pin as an output.
pinMode(D1, OUTPUT);
pinMode(D2, OUTPUT);
pinMode(D3, OUTPUT);
pinMode(D4, OUTPUT);
pinMode(D5, OUTPUT);
pinMode(D6, OUTPUT);
pinMode(D11, OUTPUT);
pinMode(D12, OUTPUT);
pinMode(D13, OUTPUT);
pinMode(D14, OUTPUT);
pinMode(D15, OUTPUT);
pinMode(D16, OUTPUT);
pinMode(GND, OUTPUT);
digitalWrite(GND, LOW);
}
// the loop routine runs over and over again forever:
void loop() {
//White LED light than any other color lights, so reducing the brightness
for(i=0;i< ms_cnt/6;i++)
{
digitalWrite(D1, HIGH);
digitalWrite(D11, HIGH);
delay(1);
digitalWrite(D1, LOW);
digitalWrite(D11, LOW);
delay(5);
}
digitalWrite(D2, HIGH); // turn the LED on (HIGH is the voltage level)
digitalWrite(D3, HIGH); // turn the LED on (HIGH is the voltage level)
digitalWrite(D4, HIGH); // turn the LED on (HIGH is the voltage level)
digitalWrite(D5, HIGH); // turn the LED on (HIGH is the voltage level)
digitalWrite(D6, HIGH); // turn the LED on (HIGH is the voltage level)
digitalWrite(D12, HIGH);
digitalWrite(D13, HIGH);
digitalWrite(D14, HIGH);
digitalWrite(D15, HIGH);
digitalWrite(D16, HIGH);
}
//******************************************************//
