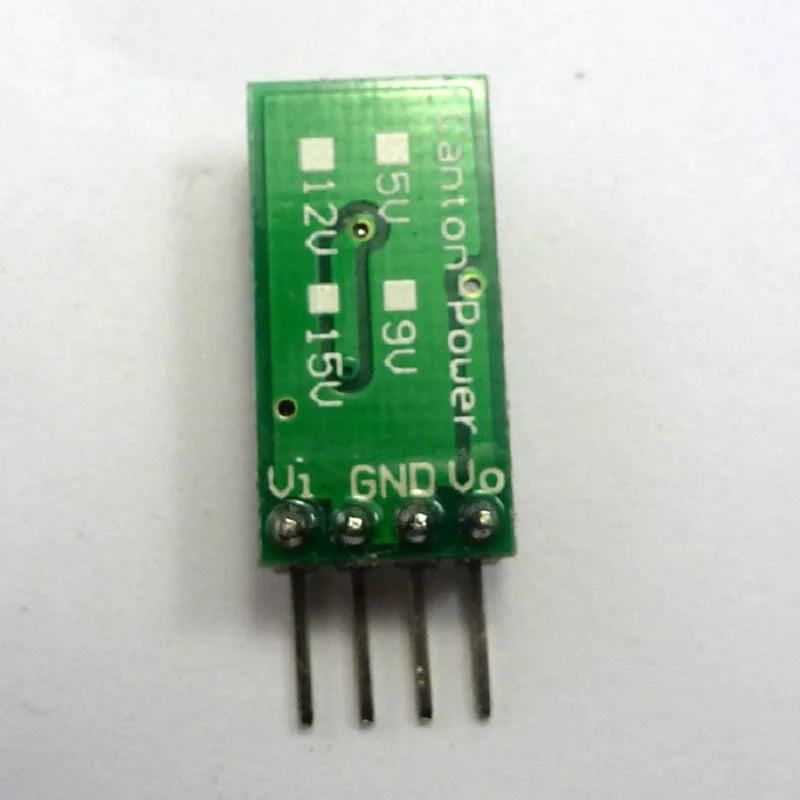

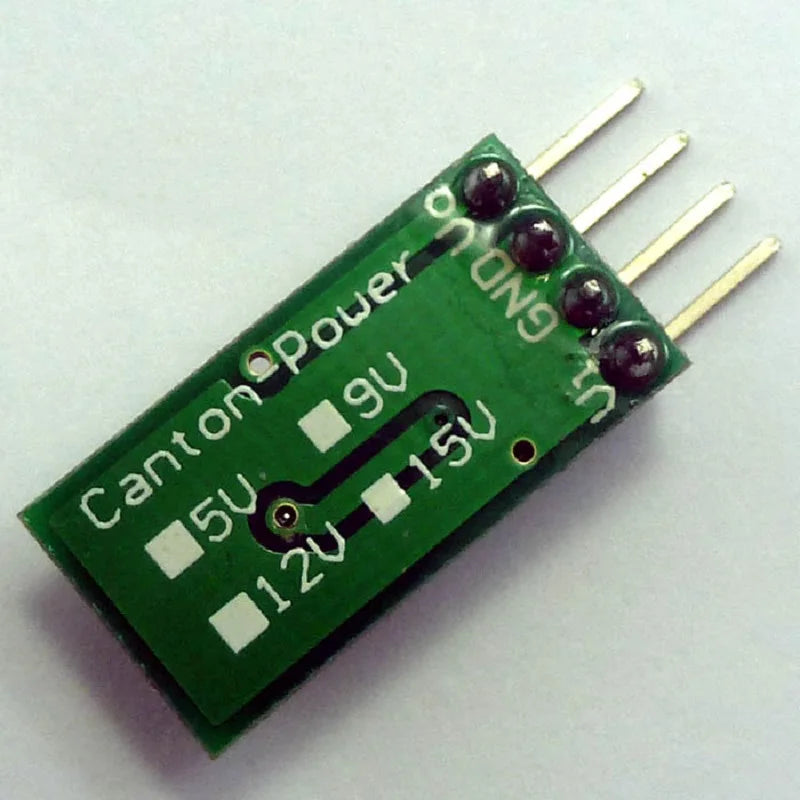

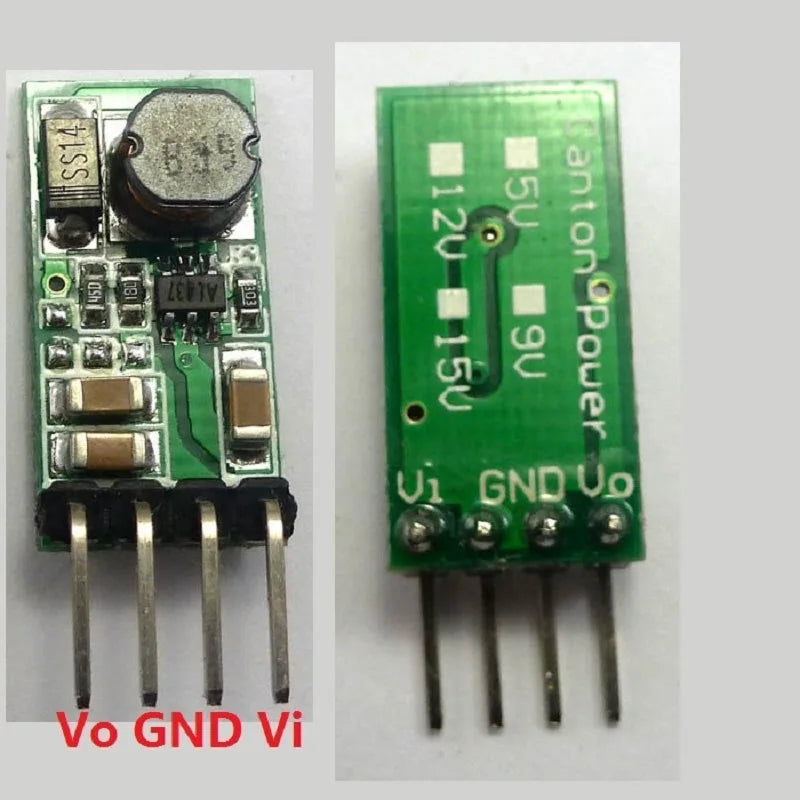

Product Name : 2pcs dc dc converter step up boost module 5v to 12v for Arduino Breadboard Relay LED 315M 433M Wireless remote control
Packing list:
2pcs dc dc converter step up boost module 5v to 12v
Description:

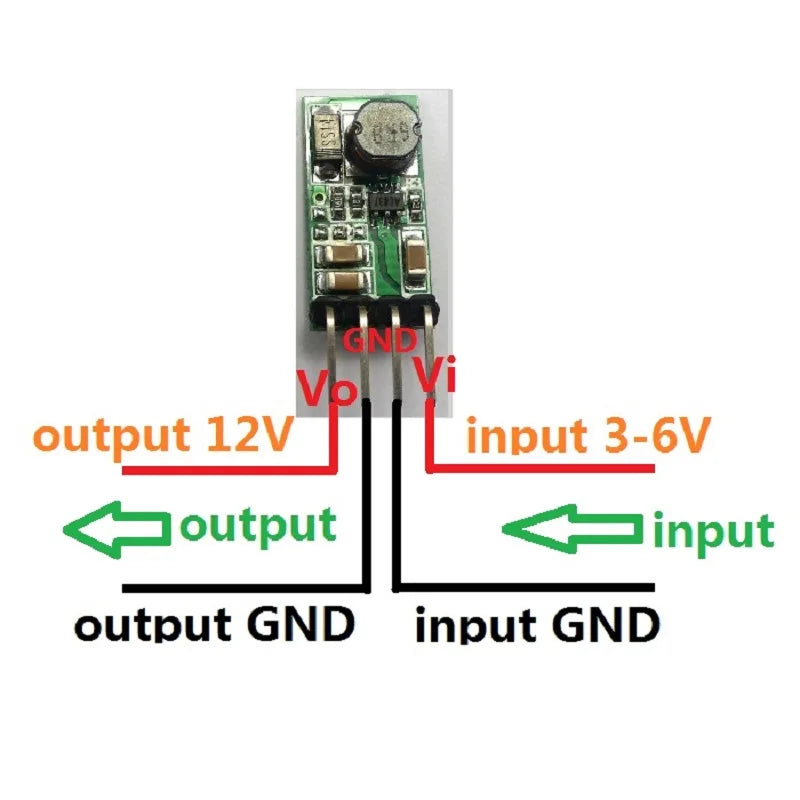

Input voltage 3~6V, output 12V (deviation +-5%)

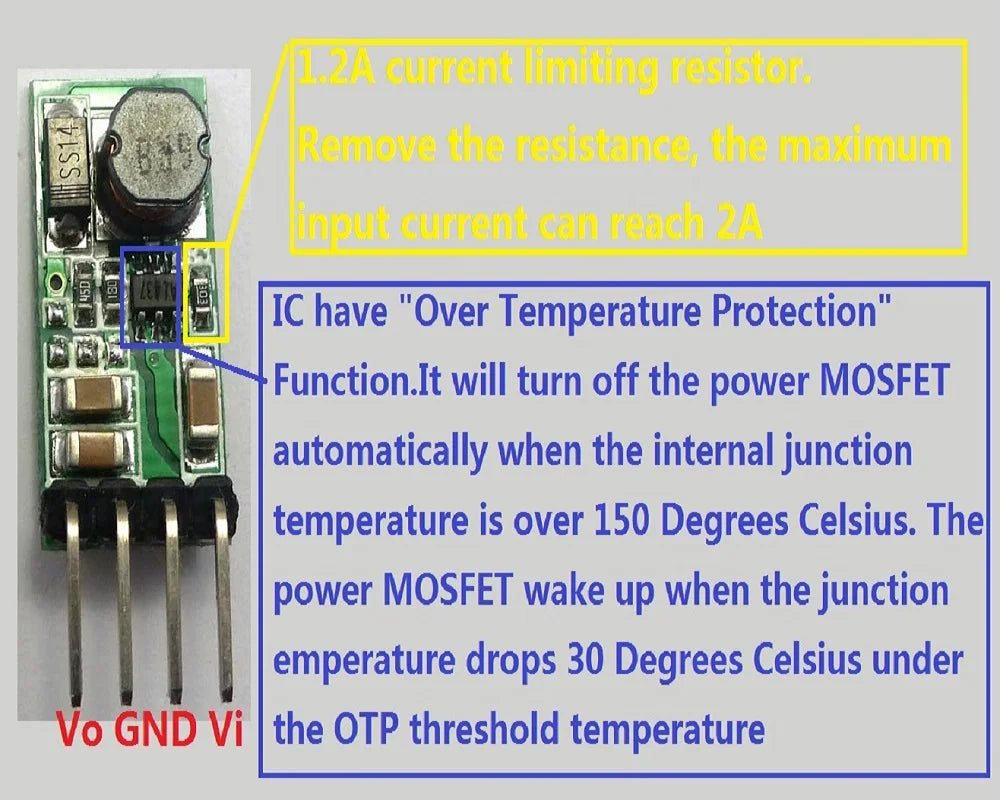

Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%
Start Voltage 2.8V, Output Current 50MA
INPUT 3V 1A; OUTPUT 12V 220MA
INPUT 3.3V 1A; OUTPUT 12V 250MA
INPUT 3.7V 1A; OUTPUT 12V 280MA
INPUT 4.5V 1A; OUTPUT 12V 340MA
INPUT 5V 1A; OUTPUT 12V 370MA
INPUT 6V 1A; OUTPUT 12V 450MA
DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -25~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO MEGA2560 DUE Breadboard FPGA/CPLD AVRDevelopment Board friendly.

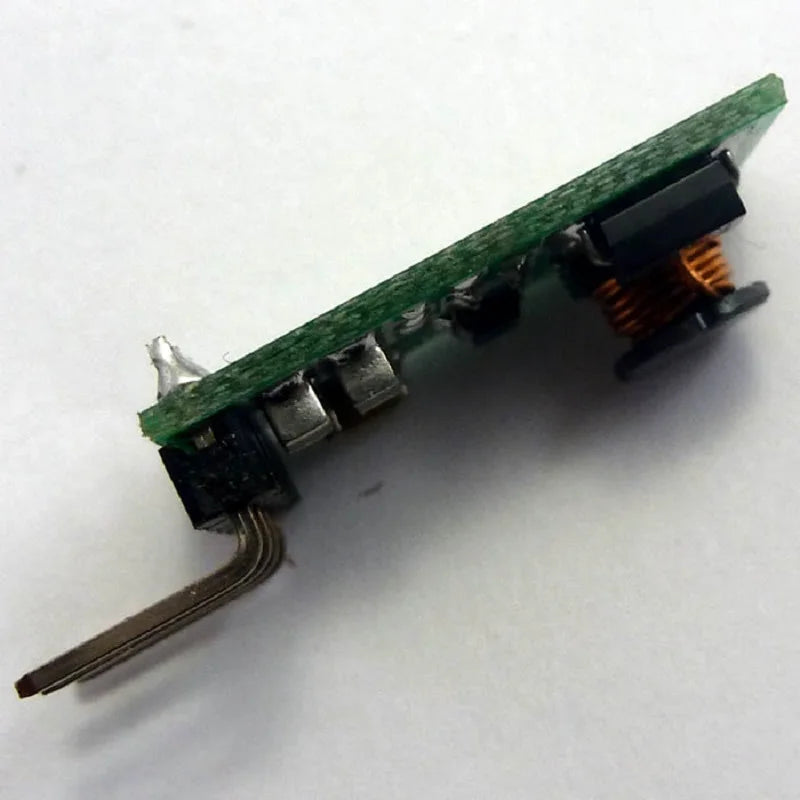

Excluding Pin Size 20.5mm x 10.16mm x 5.6mm(Very small)
Weight : about 1.4g(Very light)
Applications:
12V wifi router
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR STM32 etc
PLC Modbus RS485
LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
