RF11A04 3-5V 433M PT2262 remote control & RF Wireless Delay Decoding module

RF11A04 3-5V 433M PT2262 remote control & RF Wireless Delay Decoding module

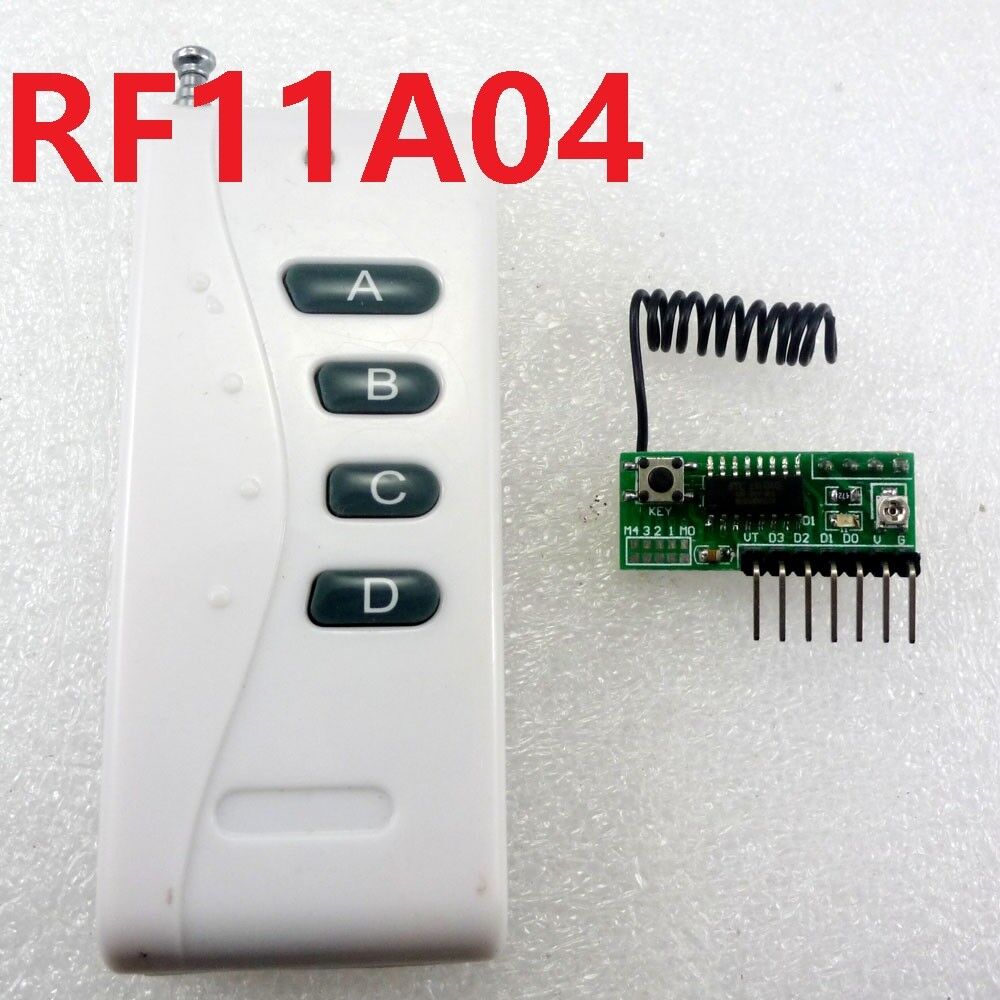

RF11A04*1+XD006*1

1000 in stock

$20.98
$20.98 $20.98
Sale Sold out



3-5V 433M PT2262 remote control & RF Wireless Delay Decoding module for toy car

Packing list :

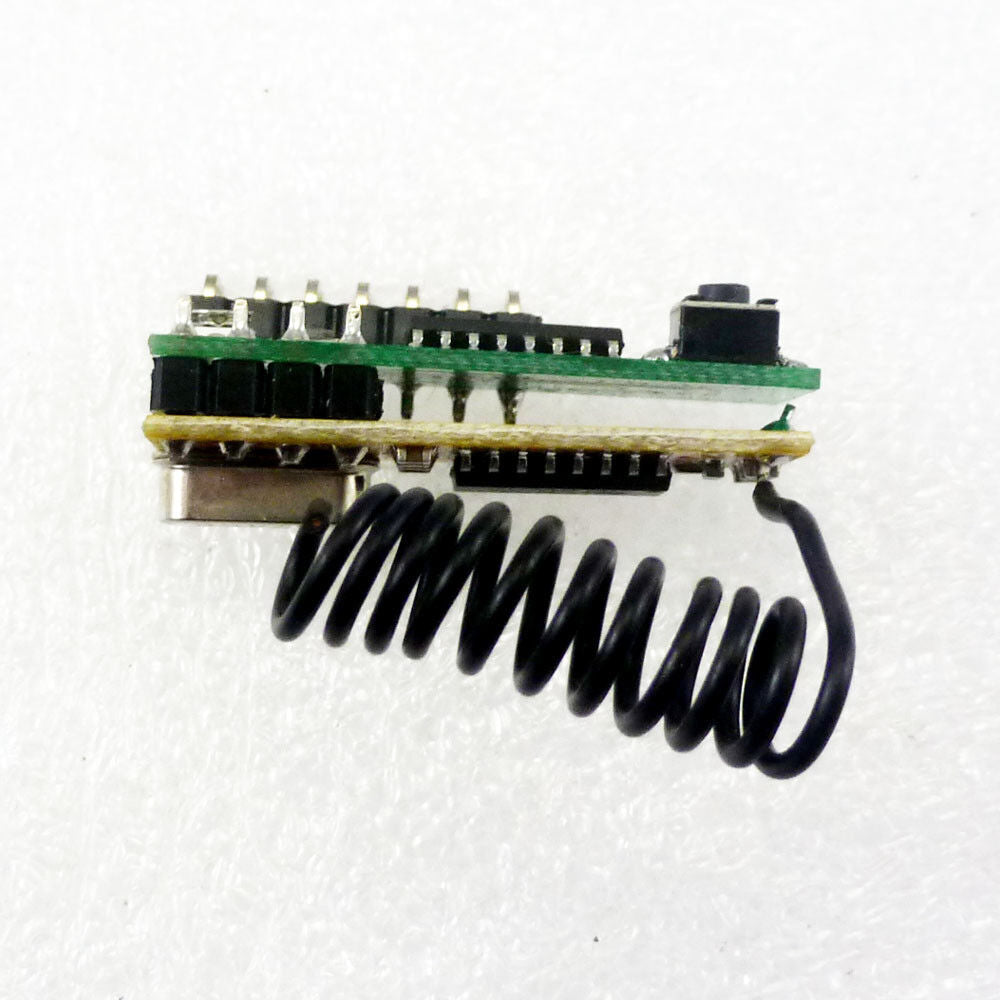

1 pcs RF11A04 433M 1527/2262 Superheterodyne Receiver decoder delay module;
1PCS 433M 4 Channel PT2264 ASK OOK RF Wireless Transmitter KeyFob(USE 12V 23A battery,Batteries not included)

Receiver parameters:

Model No.: RF11A04 OR CE-RF11A-045V

Operating voltage: DC 3V/3.3V/5V
Operating current: less 11mA (DC 5V)
Working priceple: super heterodyne
modulation Mode: OOK / ASK
Operating Frequency : 433.92MHZ
Receiving sensitivity: -108dBm
Output level: 3-5V TTL level, low standby, the maximum current 20MA (to add a current-limiting resistor)
Decode: learning code, adapted EV1527 / PT2262 and a compatible remote control, you can store up to eight remote control

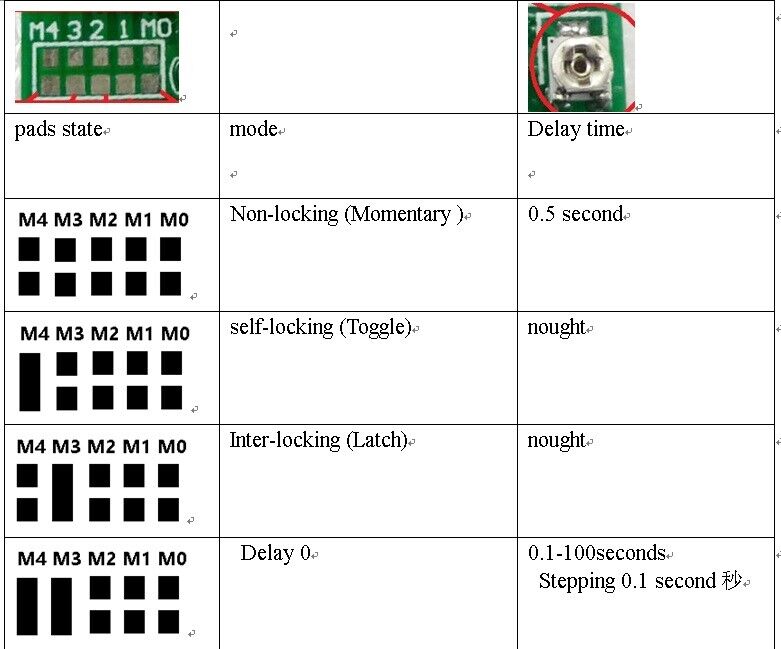

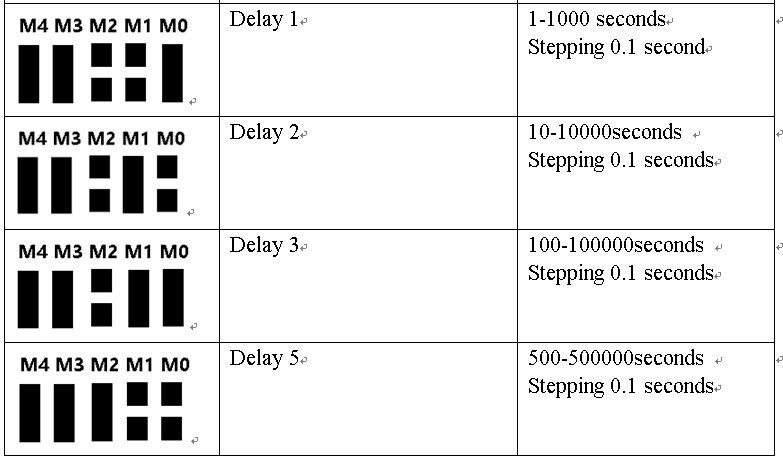

Working modes: Non-locking (Momentary ), self-locking (Toggle), Inter-locking; 0.1-500000 seconds adjustable delay time

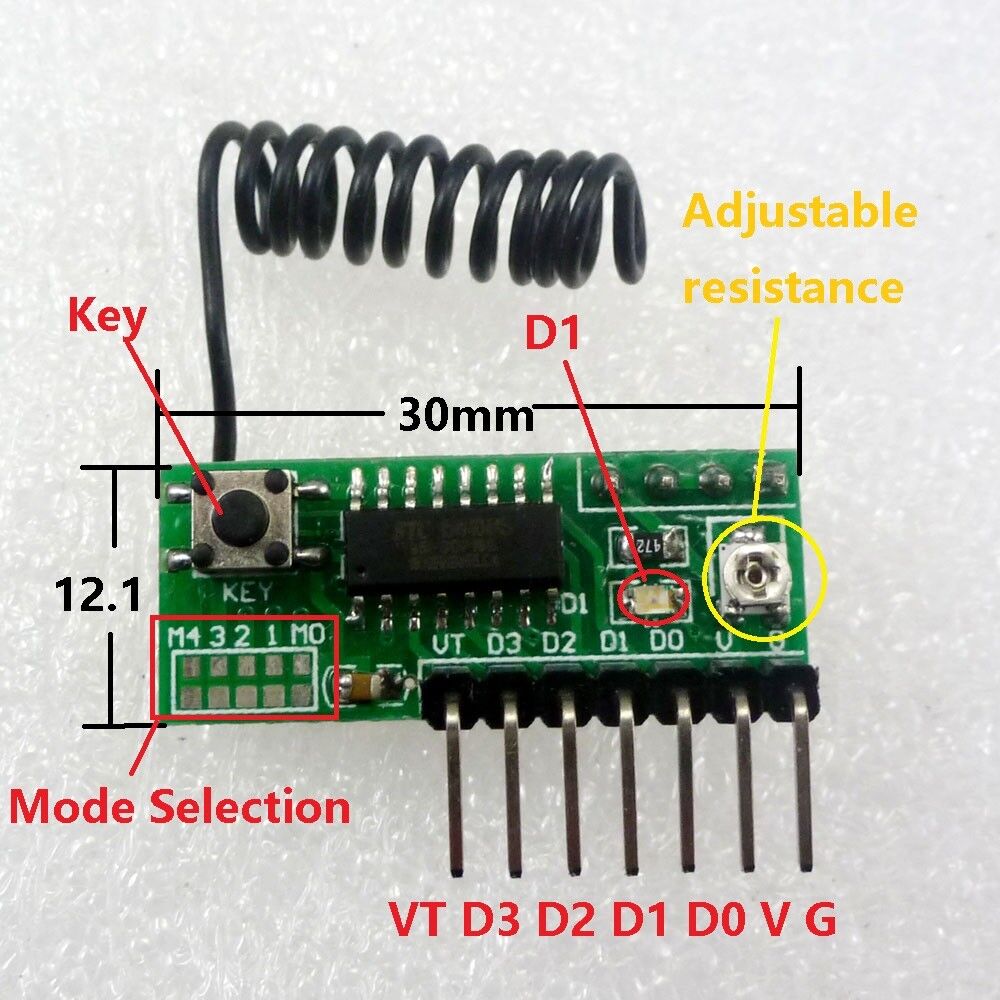

Size: 30x12.1x12.5mm
Weight: 4 grams or less

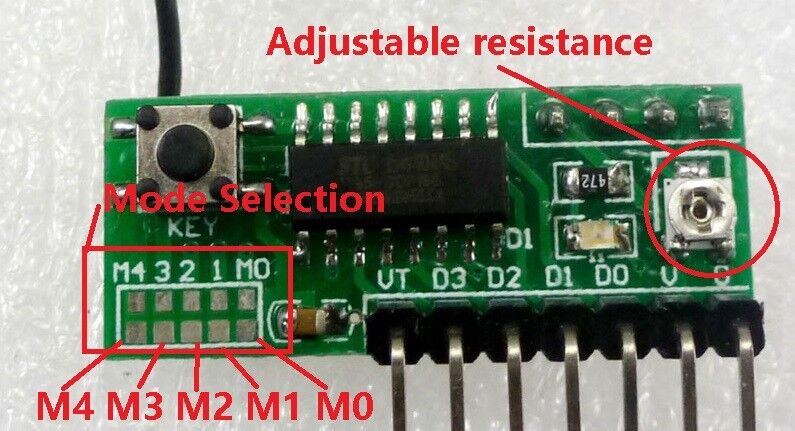

Working Mode Description:






Normally, we would adapter remote control and receiver.
If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below


Learning method and steps:

In normal operation mode, LED (D1) will be lit, when receiving a valid remote control (EV1527 / PT2262) key value, LED will flash.

Clean code: hold the button to press.LED offs, keep pressing about 8 seconds until LED lights. At that time, clean code completion (Note: After the implementation of clean code, previous remote controls do not exist.

Adaptation (learning):

Step 1 (into the learning mode):trigger the key button, LED offs;


Step 2 (adapter channel 1): press the first button of remote control and then, LED offs after flashes for four times. This time means that it had learned the value of the first button


Step 3 (Adaptation Channel 2): Press the second remote control, LED offs after flashes 4 times, This time means that it had learned the value of the second button


Step 4 (adapter Channel 3): Then press the remote's third button, LED offs after flashes 4 times, This time means that it had learned the value of the third button


Step 5 (Adaptation Channel 4): Then press the remote control's fourth button, LED lights after flashes 4 times, This time means that it had learned the value of the fourth button.


NOTE: The process must be completed within 15 seconds



Use more details, please click here!





433M 4 Channel PT2264 ASK OOK RF Wireless Transmitter KeyFob:

Technical Data :
Power supply : DC 12V 23A battery .(This remote doesnot have a battery , Please buy in your local market );
Operating current: 9mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK/OOK;
Operating frequency : 433.92MHZ ;
Encoding IC : PT2264 OR compatiable IC;
Output power : 60MW;
RC Resistance : 4.7M ;
