3 Channel Wireless Switch DC5V Universal RF Wireless Control Arduino DIY 433MHz

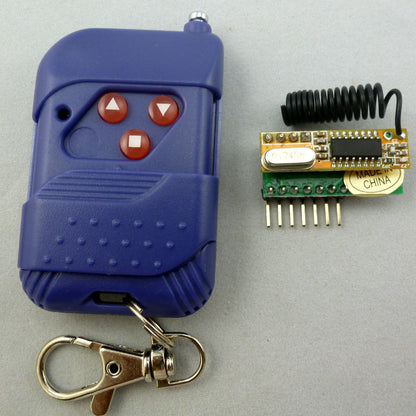

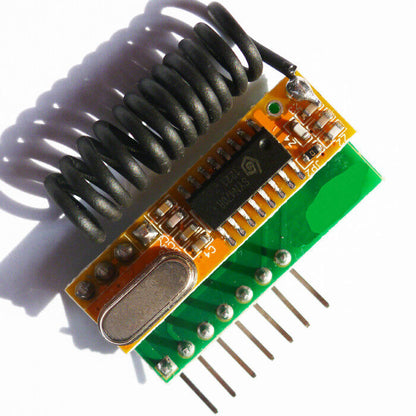

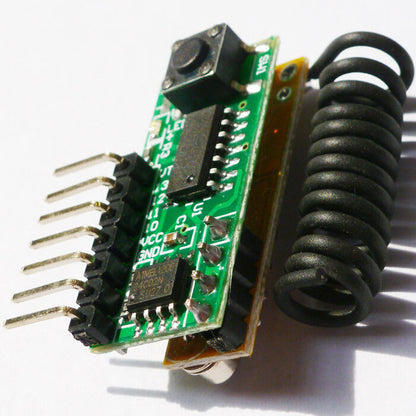

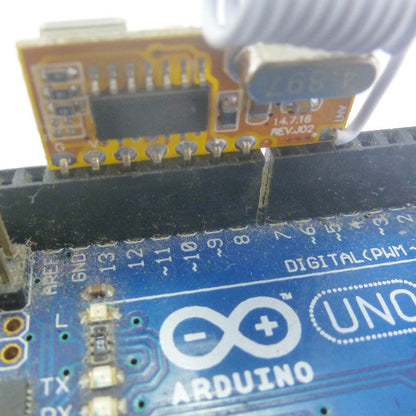

1 pcs Super-Heterodyne decoder receiver and 1 pcs 3 buttons PT2262 encoder transmitter ;





Model No.
CJ018

Operating voltage
5.0VDC ±0.5V

 Working priceple

 can work with transmitter signal from PT2262 SC2262 EV1527 PT2264 PT2260

Static current
≤7 mA (DC 5V)

Operating frequency
433MHz

modulation Mode
ASK/OOK

Receiving sensitivity
over -102 dBm (50 Ω)

Speed
< 5 K bps (at 315 MHz, -95 dBm)

Operating temp.
-10 °C ~ +60 °C
Max rate 1 KHZ
Antenns length
20 cm (315 MHz), 18 cm (433.92 MHz)

Dimension
30*13mm

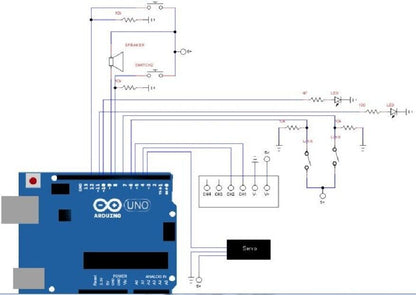

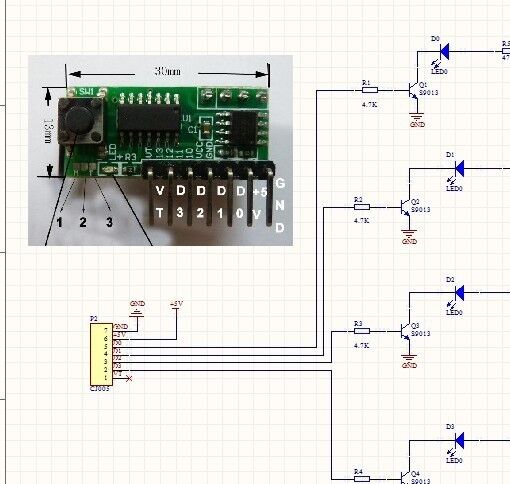

Output signal

4 Channels output , TTL level , Momentary, Latch, Toggle ,user can set it  by welding, Latch is defult.

Band width
2MHz(315MHz, Sensitivity go down 3dBm test )




A.singnal Non-locking (Momentary)----connect 1  and 2 ;

B.singnal Self-locking (Toggle) ---- connect 2 and 3 ;

C.singnal Inter-locking (Latch) ---- disconnect all  ;




Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF, the same as B/C/D ,Every channel is Independent ;



Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, the same as B/C/D. Every channel is Independent ;



Latched------------------

Press transmitter button A, the receiver relay A is ON, the relay B/C/D is OFF.

Press transmitter button B, the receiver relay B is ON, the relay A/C/D is OFF.

Press transmitter button C, the receiver relay C is ON, the relay A/B/D is OFF

Press transmitter button D, the receiver relay D is ON, the relay A/B/C is OFF.



It also mean .Latched only can keep 1 Channel ON .and it will often have 1Channel is ON.




Transmitter Module:















Technical Data :
Transmitter Module No.:  XD007  ;
Power supply : 12V 23A battery  replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 9mA ;
Decode Type : land or pad ;
Oscillation mode: SAW resonator;
Modulation mode:ASK;
Operating frequency:433.92MHZ ;
Encoding IC : Fixed code SC2262（Compatiable PT2262、PT2264） ;
(CANNOT program , HAVENOT Learning Function , Cannot copy your existing remote ,Can be duplicate if your receiver board have a learning key ) ;
RC  Resistance : 4.7M ;
Remote size: 58×39×16 mm;
