23IOD32 32CH RS485 IO Master-Slave Remote Control Switch Board NPN/PNP Isolation Input 300MA MOS Output Modbus RTU PLC Expansion Module
23IOD32 32CH RS485 IO Master-Slave Remote Control Switch Board NPN/PNP Isolation Input 300MA MOS Output Modbus RTU PLC Expansion Module
SKU:23IOD32_NPN
1000 in stock
Regular price
$27.99
Regular price
Sale price
$27.99
Unit price
per
Couldn't load pickup availability

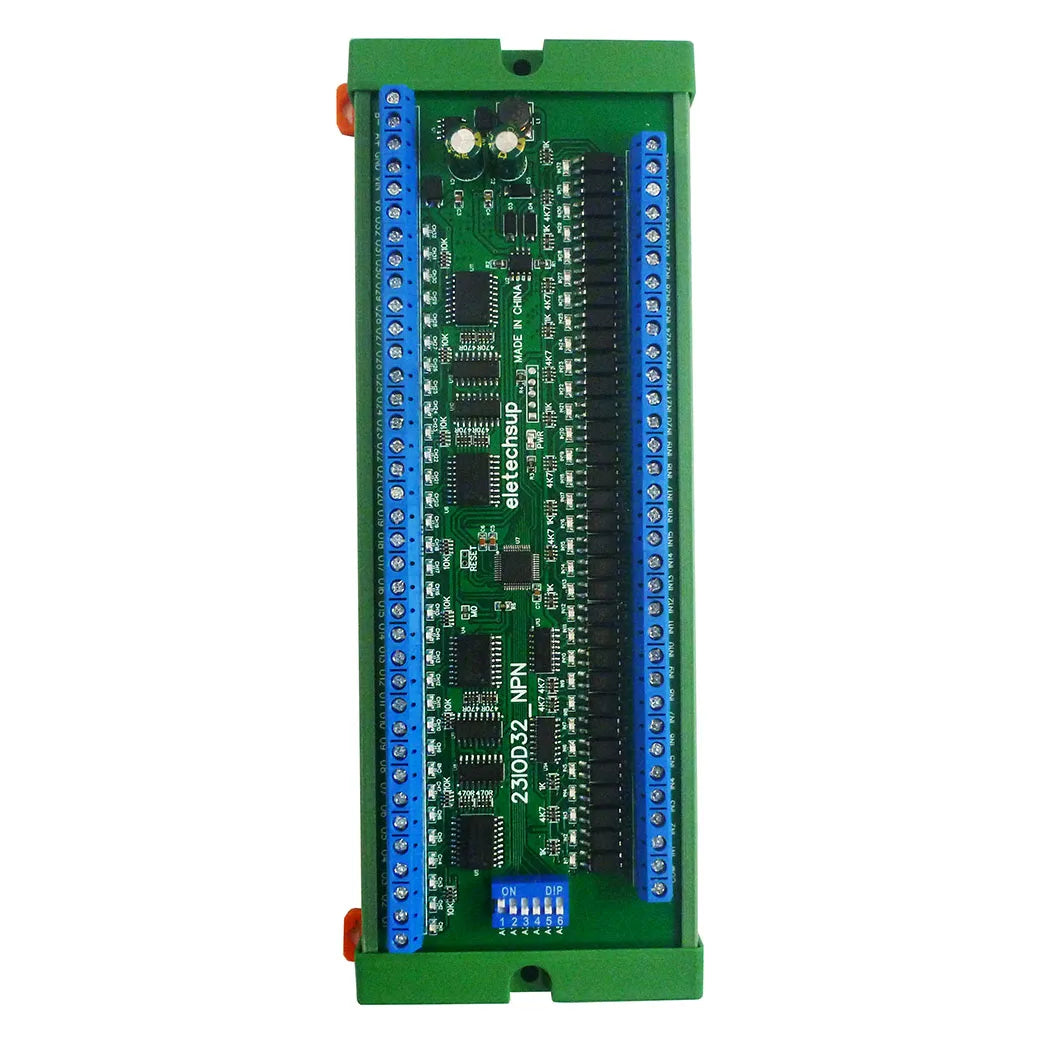

Product Name: 32CH NPN/PNP Optically Isolated Input & 32CH 300MA NPN Solid State Relay Output RS485 Modbus RTU PLC IO Expansion Board
Package inlcuded:
1PCS DC12V-24V 32 NPN/PNP Input & 32 NPN Output RS485 PLC IO Expansion Board
1PCS DC12V-24V 32 NPN/PNP Input & 32 NPN Output RS485 PLC IO Expansion Board
Description:
1 Working voltage: DC 6.5-30V (9V 12V 24V)
2 Working current: 8-56MA
3 32CH Optically Isolated Input Ports, NPN/PNP input

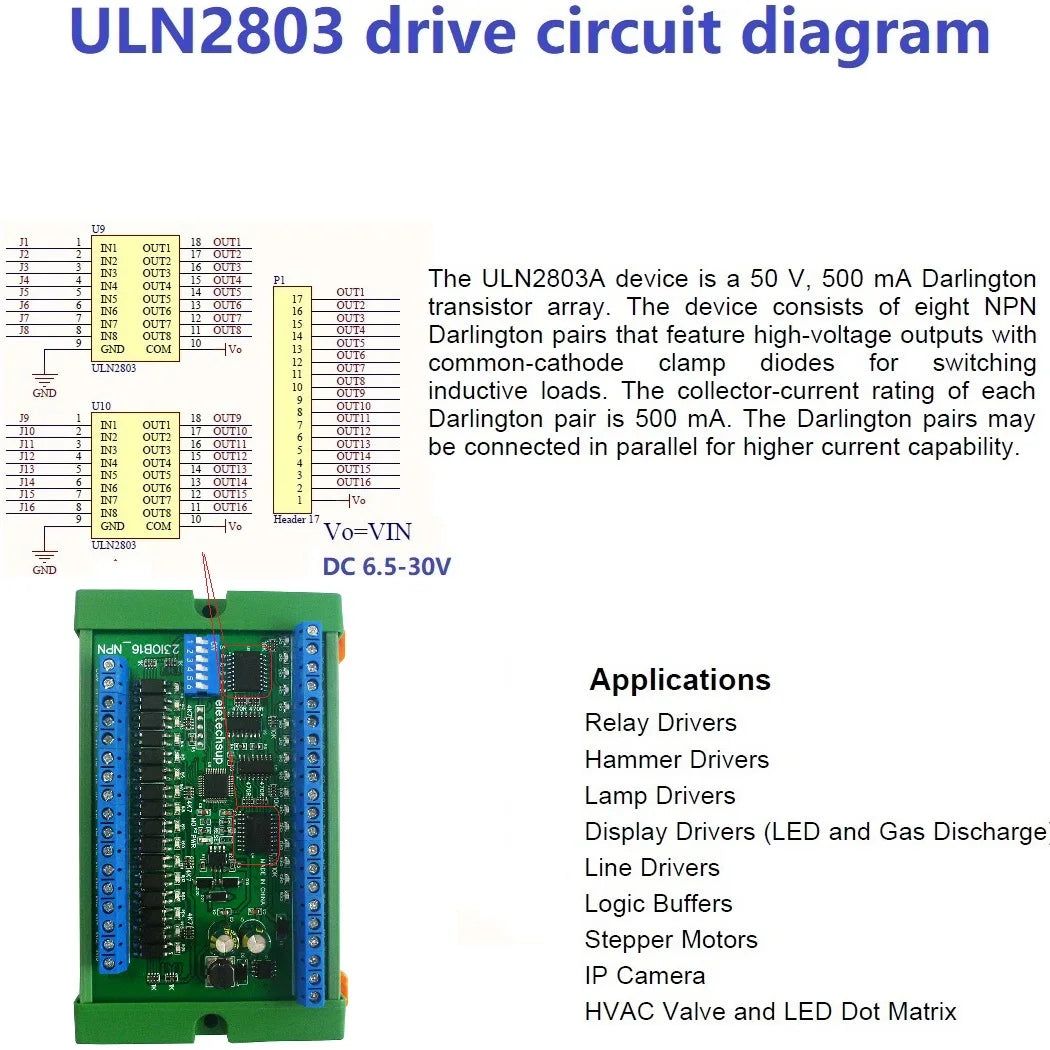

4 32CH Darlington Transistor Outputs (ULN2803 NPN output)
5 The default command has a variety of output modes: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
6 The input port can remotely control output port of another board via RS485 bus (relevant registers must be set)
7 MODBUS command 1 supports 03 06 16 function codes, MODBUS command 2 supports 01/02/03/05/06/15/16 function codes
8 The maximum delay of 1 MODBUS command is 255 seconds
9 In MODBUS command mode, up to 64 devices can be used in parallel
10 The default baud rate is 9600BPS, you can choose the baud rate by jumper:
1200/2400/4800/19200/38400/57600/115200BPS
11 Sizes (with box): 215x80x30mm
12 Weight (with box): 246 g
13 Maximum load: the maximum load current of each channel is 300MA
For more information, please contact me
2 Working current: 8-56MA
3 32CH Optically Isolated Input Ports, NPN/PNP input
4 32CH Darlington Transistor Outputs (ULN2803 NPN output)
5 The default command has a variety of output modes: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
6 The input port can remotely control output port of another board via RS485 bus (relevant registers must be set)
7 MODBUS command 1 supports 03 06 16 function codes, MODBUS command 2 supports 01/02/03/05/06/15/16 function codes
8 The maximum delay of 1 MODBUS command is 255 seconds
9 In MODBUS command mode, up to 64 devices can be used in parallel
10 The default baud rate is 9600BPS, you can choose the baud rate by jumper:
1200/2400/4800/19200/38400/57600/115200BPS
11 Sizes (with box): 215x80x30mm
12 Weight (with box): 246 g
13 Maximum load: the maximum load current of each channel is 300MA
For more information, please contact me
Application
PLC RS485 IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ Camera
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
Smart Home,Home Automation ,Wiser Home;
PTZ Camera
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control

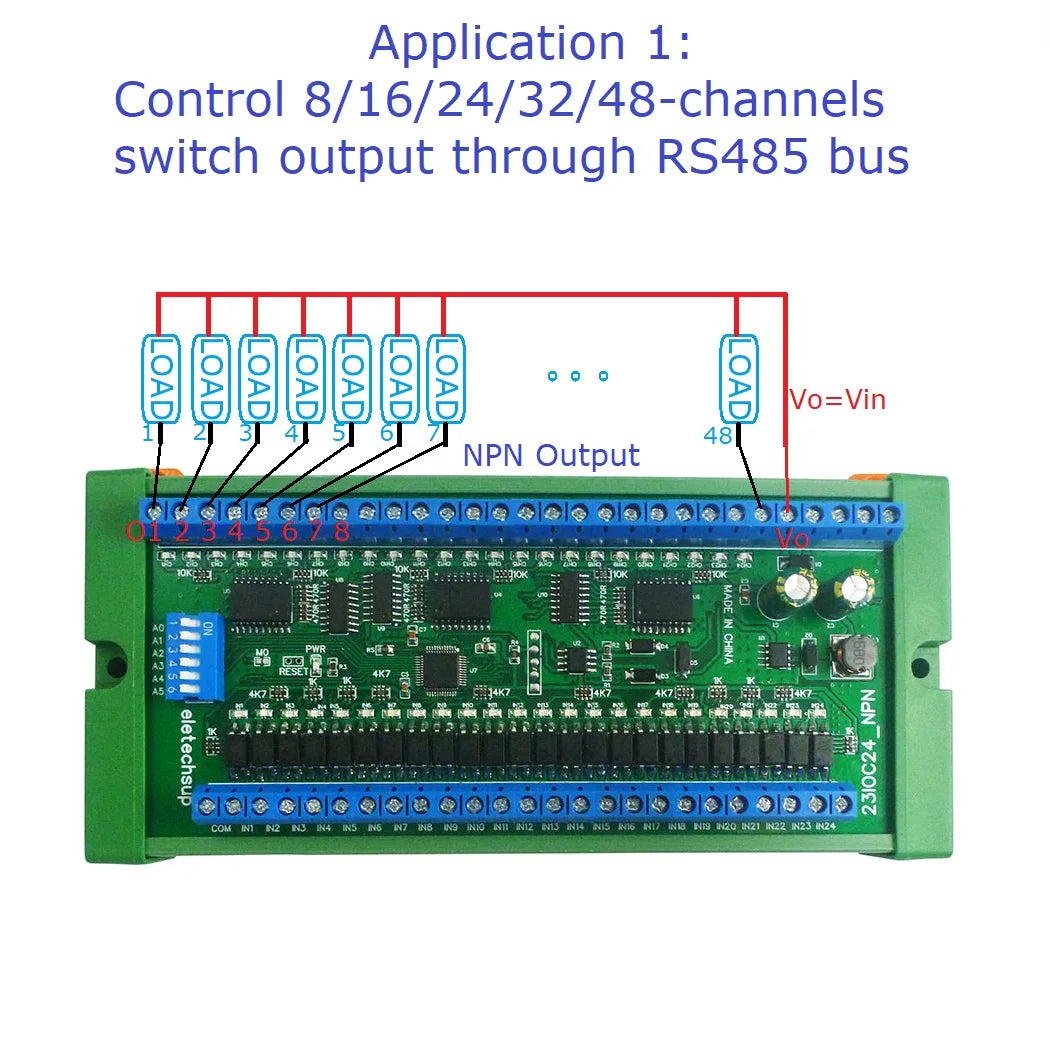

Application 1: Control 32channel switch output through RS485 bus

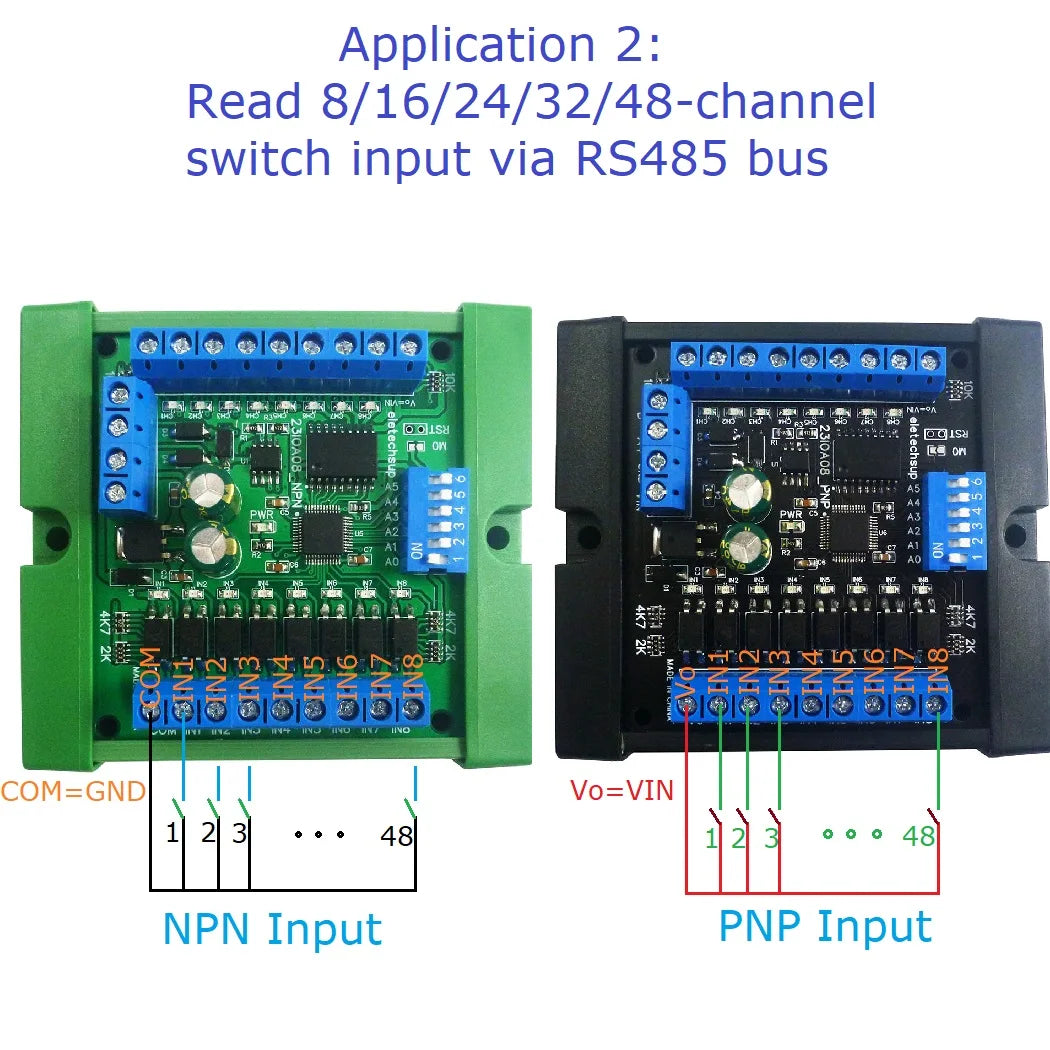

Application 2: Read 32 channel switch input via RS485 bus

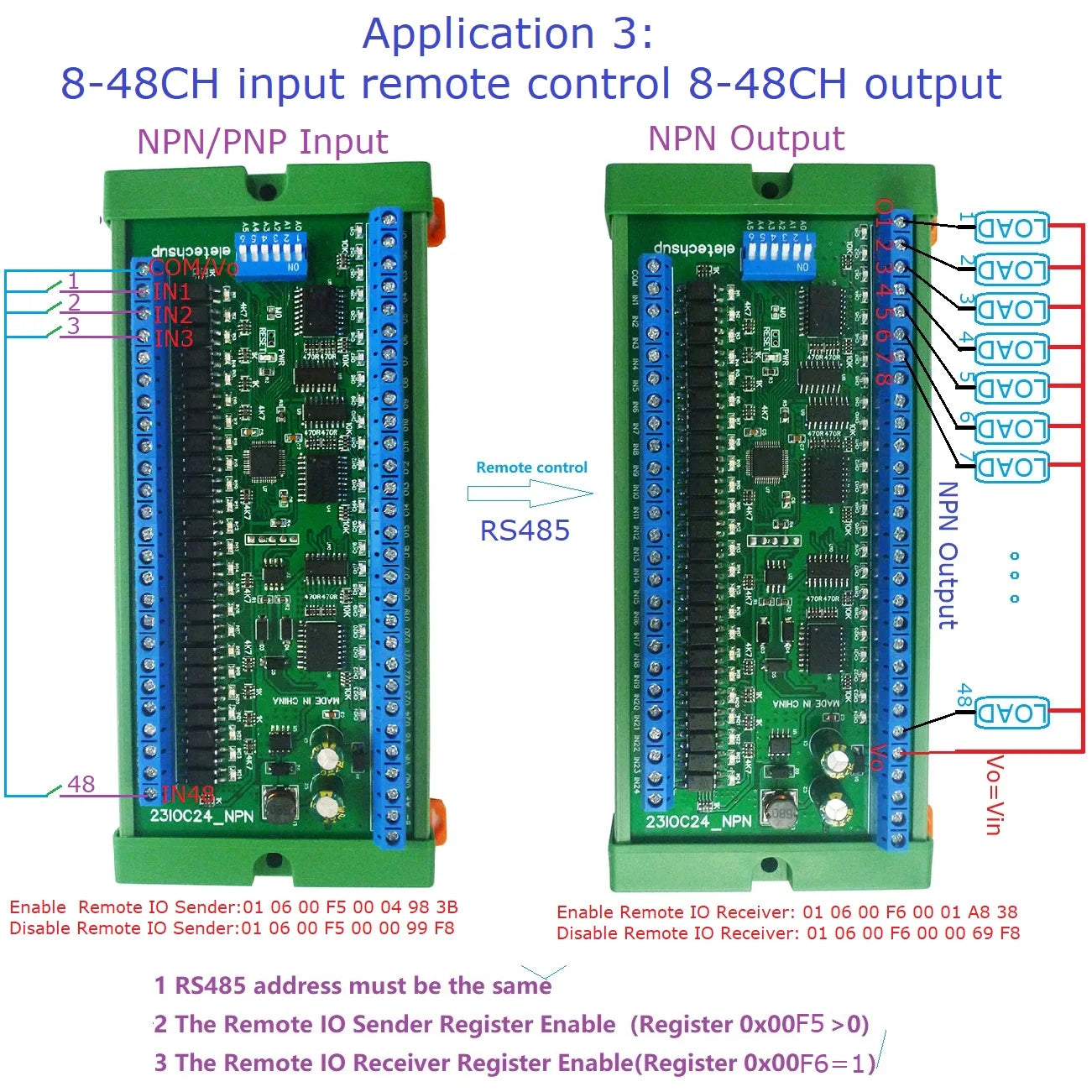

Application 3: 32 channel input remote control 32 channel output
Application 2: Read 32 channel switch input via RS485 bus
Application 3: 32 channel input remote control 32 channel output
