DNPWA0 3A DIN Rail Mount DC-DC Step-down Converter Voltage Regulator Module PLC DC 5-35V to 3.3V 3.7V 5V 6V 9V 12V 24V Adjustable
DNPWA0 3A DIN Rail Mount DC-DC Step-down Converter Voltage Regulator Module PLC DC 5-35V to 3.3V 3.7V 5V 6V 9V 12V 24V Adjustable
SKU:DNPWA0_R
1000 in stock
Regular price
$7.99
Regular price
$6.30
Sale price
$7.99
Unit price
per
Couldn't load pickup availability
Product model:3A DIN Rail Mount DC-DC Step-down Converter Voltage Regulator Module PLC DC 5-35V to 3.3V 3.7V 5V 6V 9V 12V 24V Adjustable
Packing List:
1PCS 3A Din Rail DC-DC Buck Converter Module
Product parameters:
Input voltage: DC 4V~35V
Output voltage: DC 1.25V~30V Adjustable
Output ripple: <30mV
Switching frequency: 150KHz
Maximum output current: 3A
IC : XL2595(LM2596 Compatible)
The highest conversion efficiency: 92%
Working temperature: - 45℃~ 85℃
Weight with shell: 57.6g
Weight without shell: 24.2g

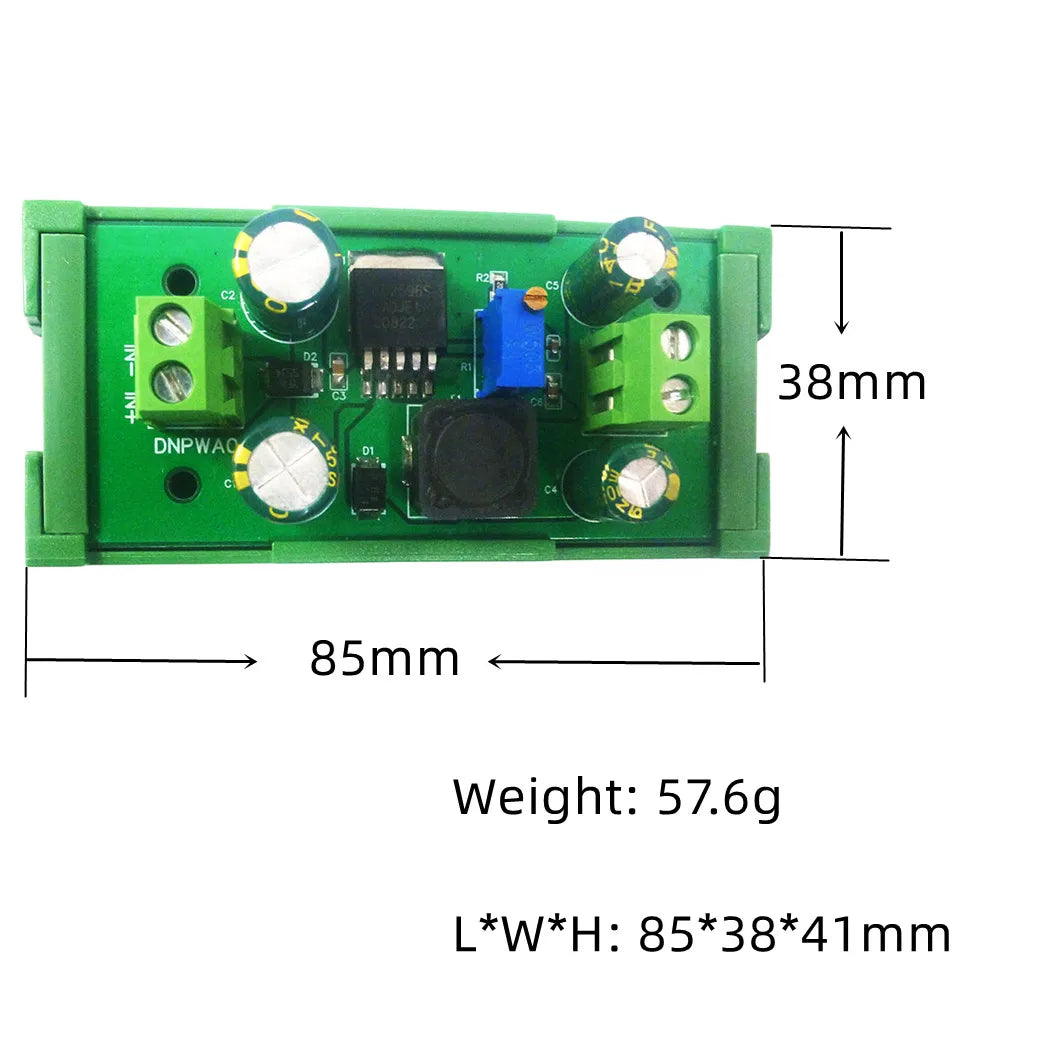

With shell size: 85*38*41mm
Size without shell: 72*35*16mm
