CE001 3g Light Weight Small Size 17 * 12 * 9mm 2 Channels RF Wireless Decoder Receiver
CE001 3g Light Weight Small Size 17 * 12 * 9mm 2 Channels RF Wireless Decoder Receiver
SKU:CE001
1000 in stock
Regular price
$13.48
Regular price
$13.48
Sale price
$13.48
Unit price
per
Couldn't load pickup availability

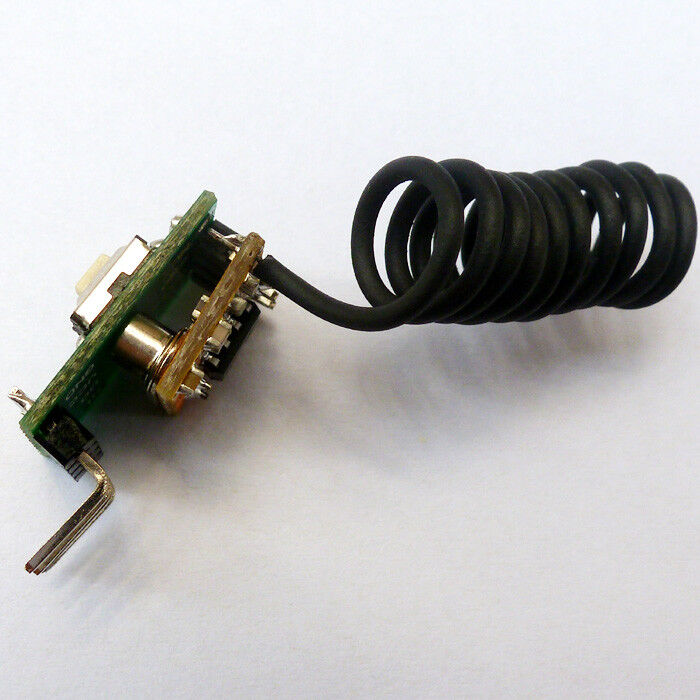

Dimension:
Size (LxWxT): 17 * 12 * 9mm;
Weight: 2g (not including antenna) , 3g (including the antenna);
Size (LxWxT): 17 * 12 * 9mm;
Weight: 2g (not including antenna) , 3g (including the antenna);
Very small and light Receiver Module(Use Model airplane Model car is Perfect!)
Specifications:
|
Operating voltage |
5.0VDC ±0.5V
|
|
Working priceple |
can work with transmitter signal from PT2262 SC2262 EV1527 PT2264 PT2260 |
|
Operating frequency |
433MHz
|
| Receiver Sensivity | -107dBm |
|
modulation Mode |
ASK/OOK
|
|
Operating temp. |
-10 °C ~ +60 °C
|
|
Antenns length
|
20 cm (315 MHz), 18 cm (433.92 MHz)
|
|
Output signal |
2 Channels output , TTL level , |

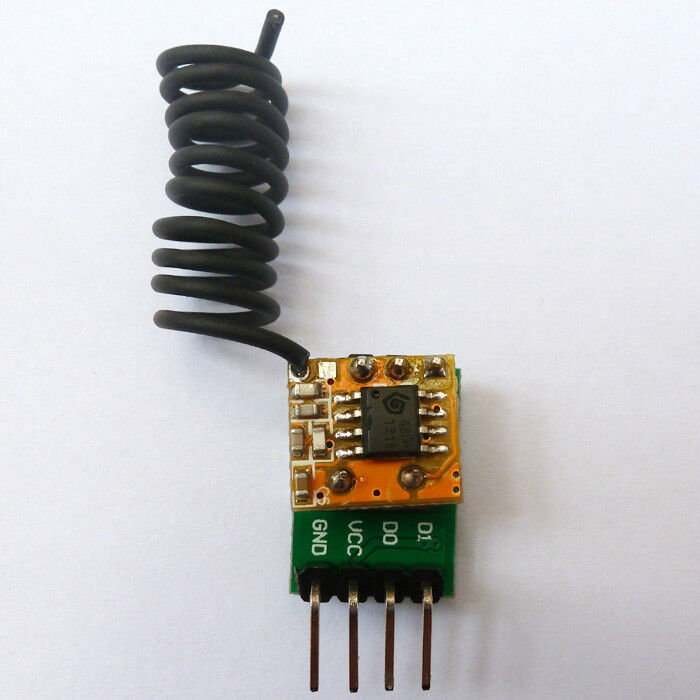

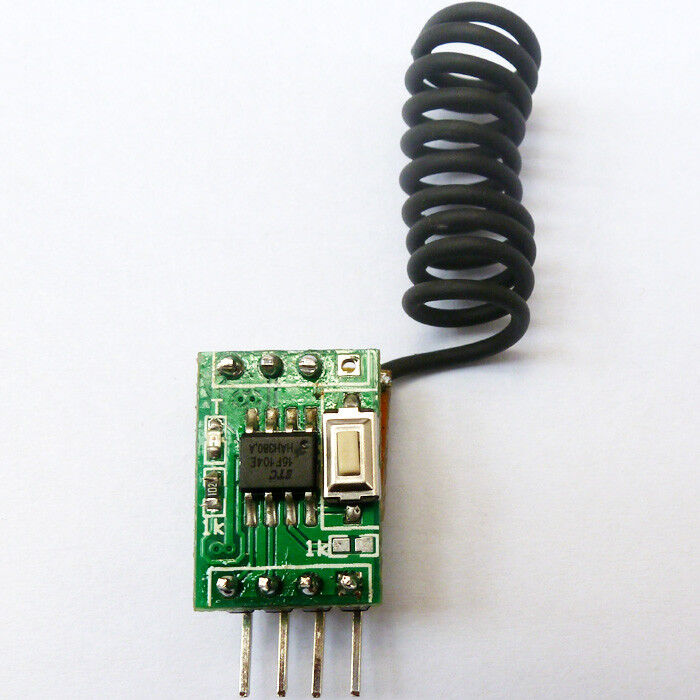

Pin assignment :
GND: Connect to Ground ;
VCC: Positive Power Supply DC 5V (range 4.5 ~ 5.5V);
D0 channel : 0 output. Sink current up to 20MA, pull current 270UA ;
D1 channel : 1 output. Sink current up to 20MA, pull current 270UA ;
VCC: Positive Power Supply DC 5V (range 4.5 ~ 5.5V);
D0 channel : 0 output. Sink current up to 20MA, pull current 270UA ;
D1 channel : 1 output. Sink current up to 20MA, pull current 270UA ;
Typical Applications :
Model airplane;
Car Security System;
Garage Door Controller;
Remote Control Fan;
Home Security/Automation System;
Remote Control Toys;
Model airplane;
Car Security System;
Garage Door Controller;
Remote Control Fan;
Home Security/Automation System;
Remote Control Toys;
GSM/PSTN Alarm ;
Delete Memory :
Keep press S1 button ， LED is on and off after 8 second , then it mean Deleting successfully ;
Learing to Memory :
(1): Press S1 button until LED is on , release S1 button , this receiver enter program status ;
(2): press " button 1 " on the remote, LED blink quickly , it mean "button 1" was memoried by channel "D0" ;
(3): press " button 2 " on the remote, LED blink quickly , it mean "button 2" was memoried by channel "D1" ;
Note :
Note :
The learning process must be completed within the 10 second, or it will automatically quit program status ;
How to quit program status while in program status :
(1) Keep pressing S1 button , it will quit program status when LED is off ;
(2) Don't press any thing and it will auto quit program status ;
Output mode :
A.singnal Non-locking (Momentary)----Disconnect J1 (defult is Momentary) ;
B.singnal Self-locking (Toggle) ---- connect J1；
Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF, the same as B/C/D ,Every channel is Independent ;
Toggle-------------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, the same as B/C/D. Every channel is Independent ;
