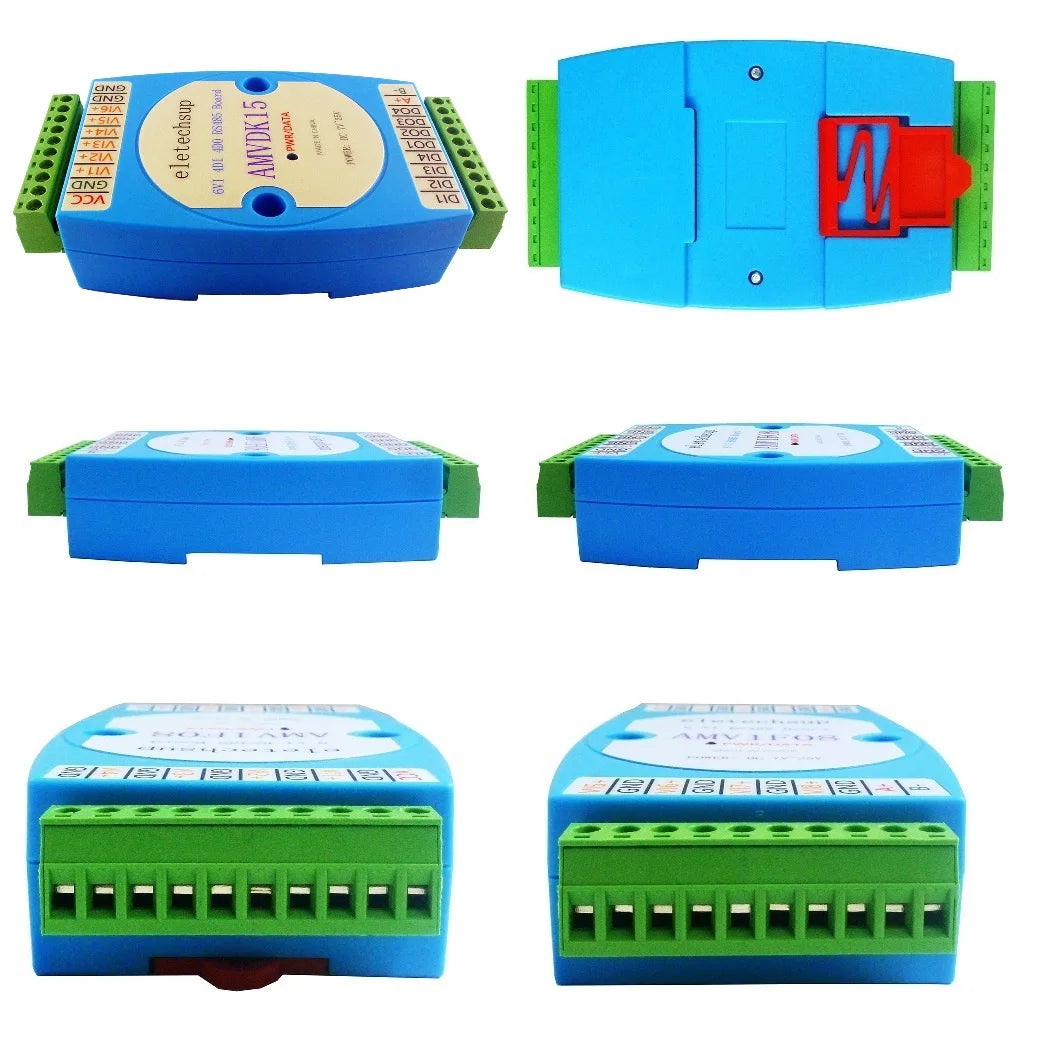

AMIDJ14 AMVDK15 3IN1 6AI-4DI-4DO 4-20MA 0-5 0-10V DI-DO RS485 IO Module for Temperature Humidity PT100 K J Thermocouple Sensor Motion Detector
AMIDJ14 AMVDK15 3IN1 6AI-4DI-4DO 4-20MA 0-5 0-10V DI-DO RS485 IO Module for Temperature Humidity PT100 K J Thermocouple Sensor Motion Detector
SKU:AMIDJ14
1999 in stock
Regular price
$19.99
Sale price
$19.99
Unit price
per
Couldn't load pickup availability
Package inlcuded:
1 PCS

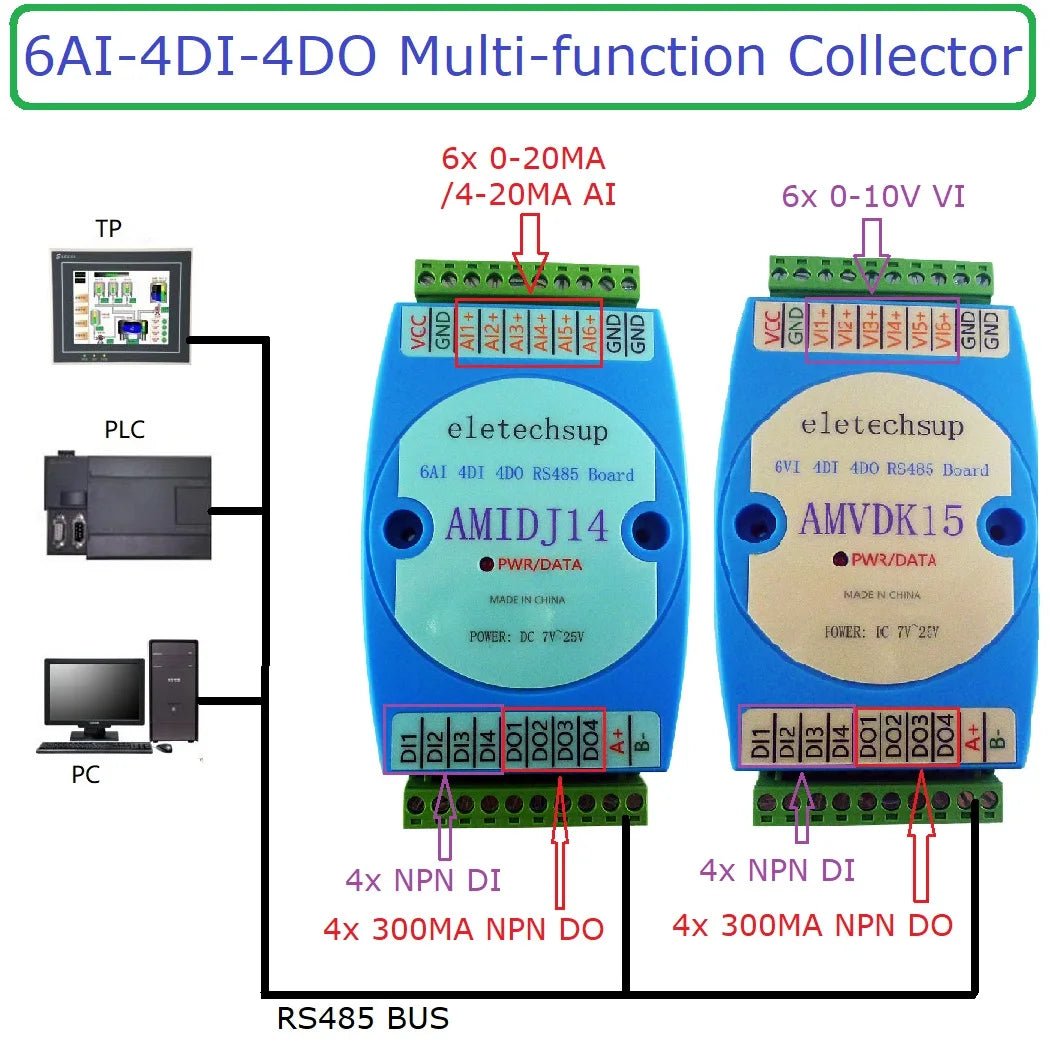

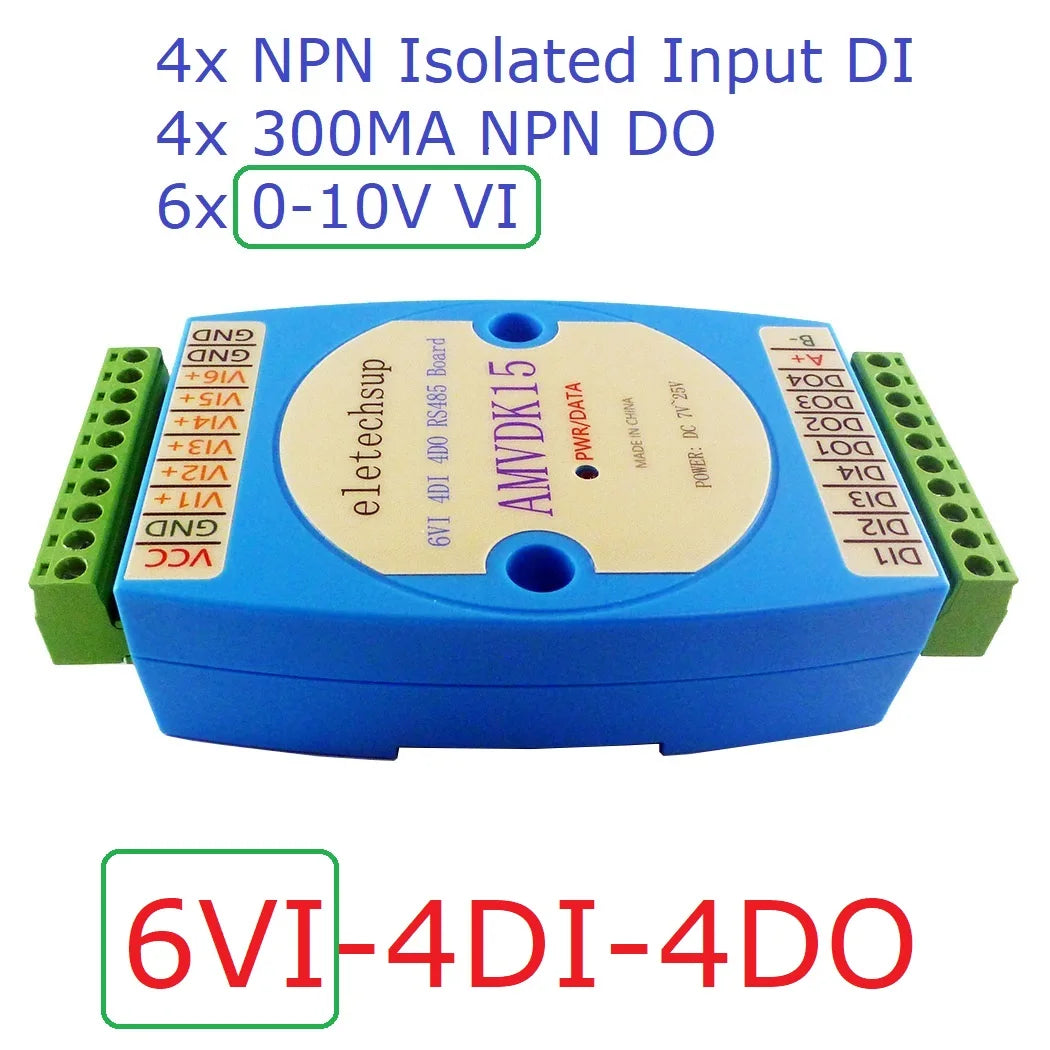

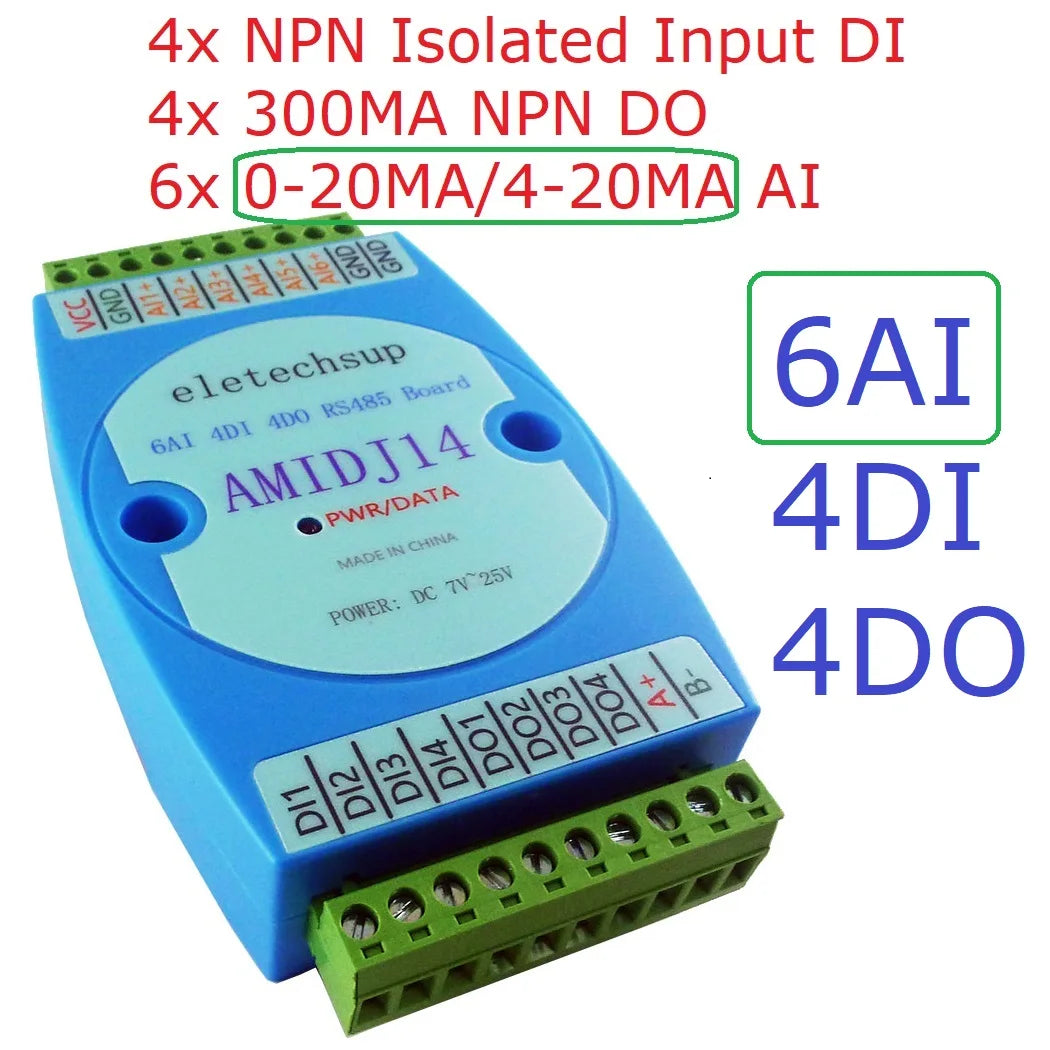

DC 12V 24V 6AI-4DI-4DO/6VI-4DI-4DO RS485 Analog Digital Multi-function IO Collector Module
1 Product description
4ch optoelectronic isolation digital input channel (NPN Low level input)
4ch Darlington tube digital output channel (ULN2803 NPN output)
6ch 4-20MA/0-10V Current/ Voltage Analog Input
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field
2 Specification
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 8-50MA
3 4x optically isolated input ports (NPN active low)
4 4x Darlington tube outputs (ULN2803 NPN output), the maximum load current of each channel is 300MA
5 6x 4-20MA/0-10V Current/Voltage Analog Input
6 RS485 communication isolation protection 3000VDC, DI digital input port isolation protection 3000VDC
7 Standard MODBUS RTU command (function code, 05/06/15/16 Write, 01/02/03 Read )
8 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
9 Parity bits: None (default) /Even /Odd
10 Installation method Standard DIN rail installation
11 Dimensions 125×70×30mm
12 Weight: 116 grams

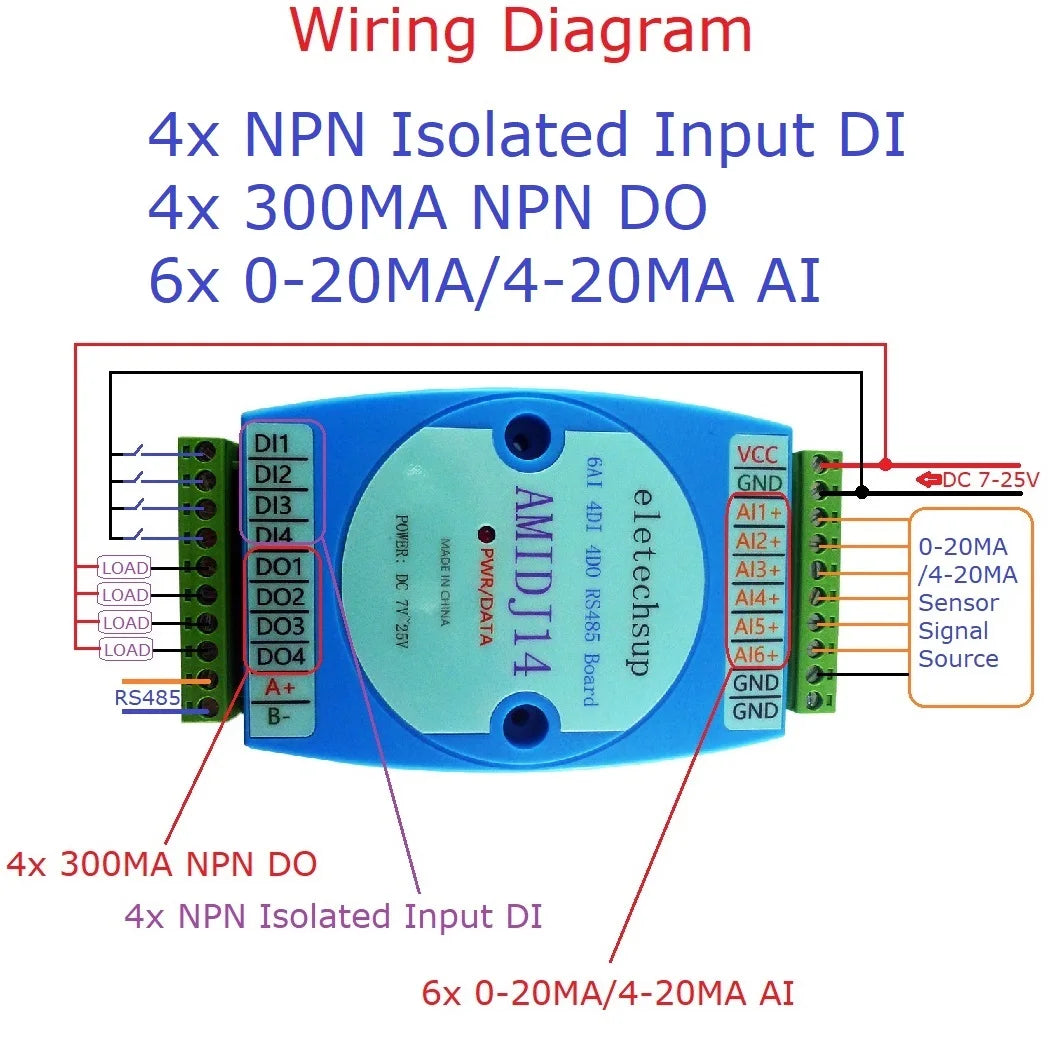

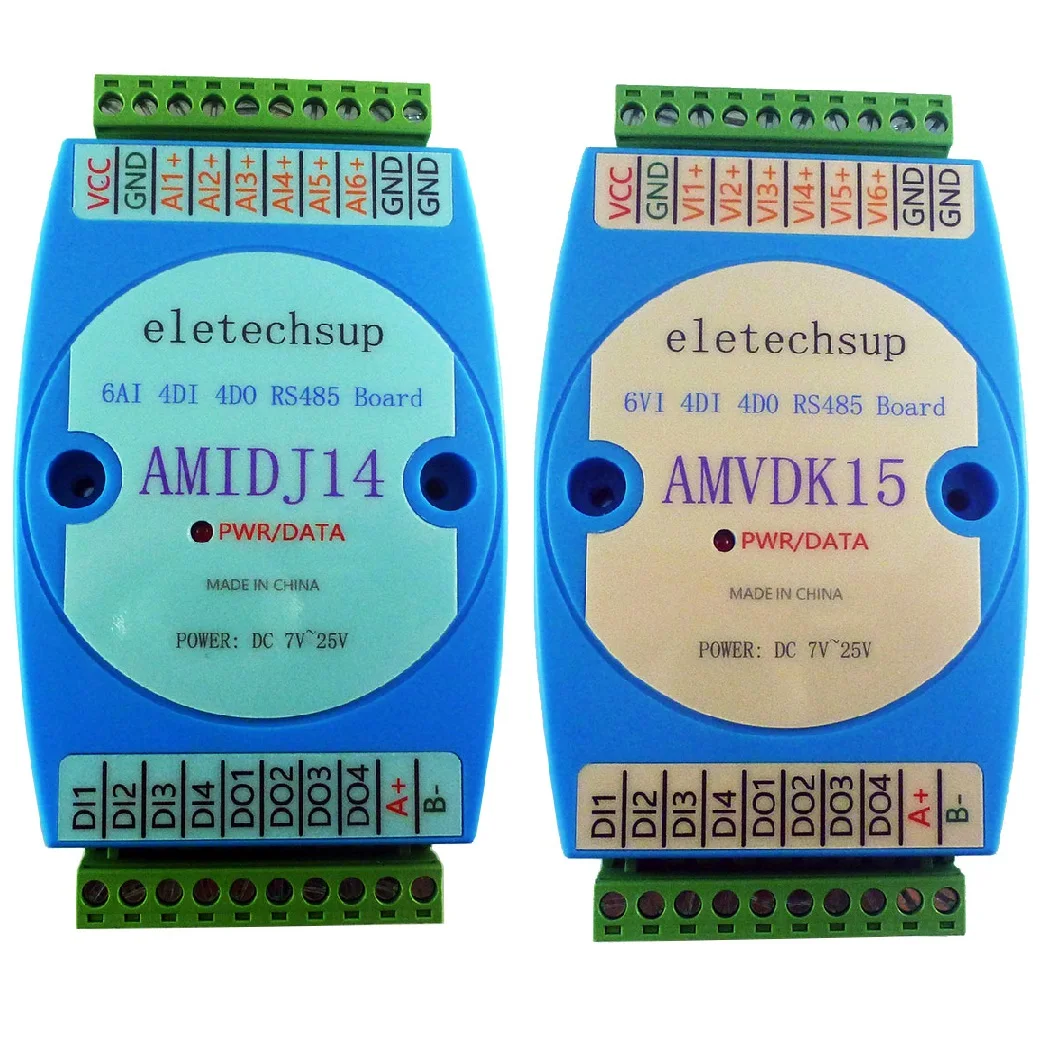

3 Interface definition:
VCC : Power input+
GND: Power input-
AI1+/VI1+: Current/Voltage input channel 1
AI2+/VI2+: Current/Voltage input channel 2
AI3+/VI3+: Current/Voltage input channel 3
AI4+/VI4+: Current/Voltage input channel 4
AI5+/VI5+: Current/Voltage input channel 5
AI6+/VI6+: Current/Voltage input channel 6
DI1 : Digital input channel 1
DI2 : Digital input channel 2
DI3 : Digital input channel 3
DI4 : Digital input channel 4
DO1: digital output channel 1
DO2: digital output channel 2
DO3: digital output channel 3
DO4: digital output channel 4
A+: RS485 signal A+
B-: RS485 signal B-
For more information, please contact me
Application
PLC Output expansion board
0-20MA/4-20MA/0-5V/0-10V Temperature and humidity sensor
Smart Home,Home Automation ,Wiser Home;
0-20MA/4-20MA/0-5V/0-10V Temperature and humidity sensor
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
PLC HMI PC Configuration Software
Automatic curtain control

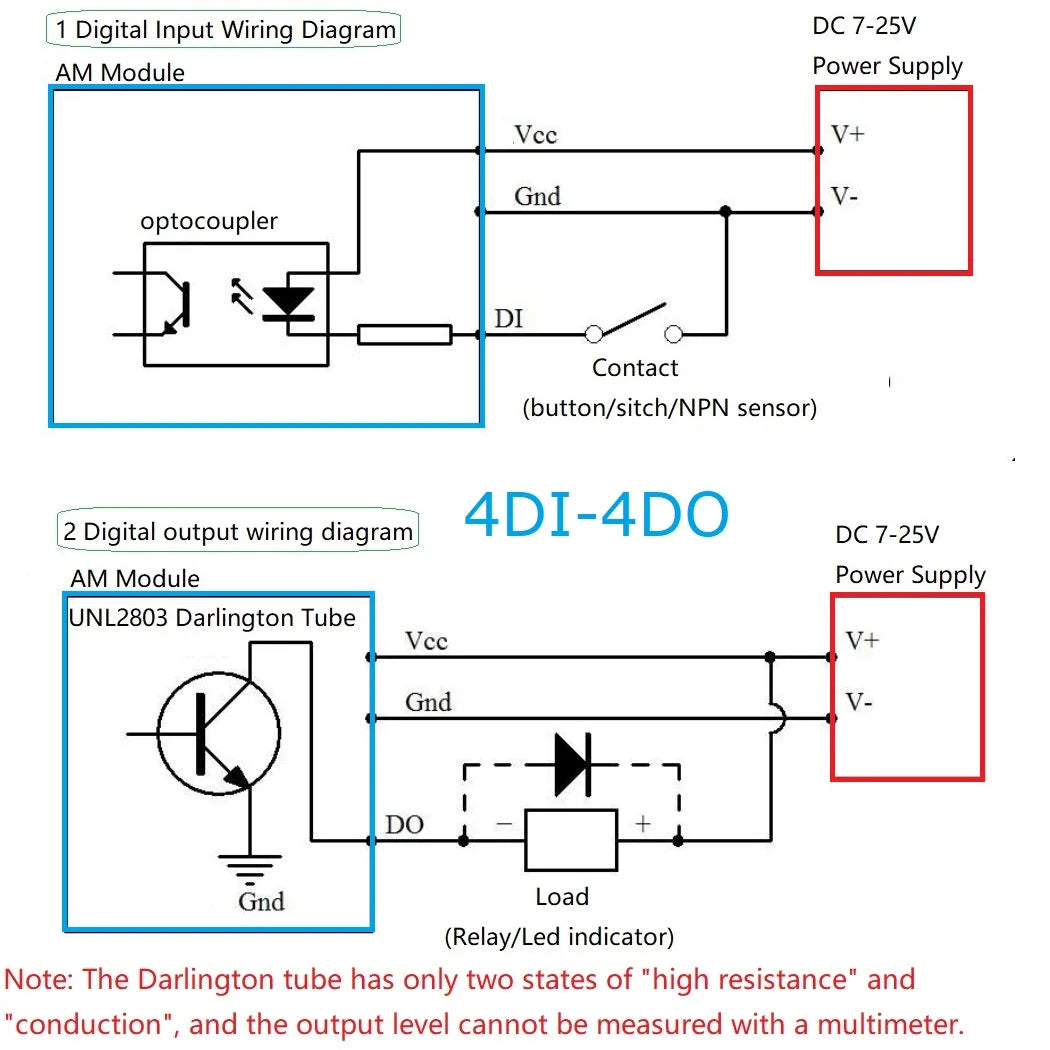

1 Digital Input Wiring Diagram
2 Digital output wiring diagram
Note: The Darlington tube has only two states of ''high resistance'' and ''conduction'', and the output level cannot be measured with a multimeter.

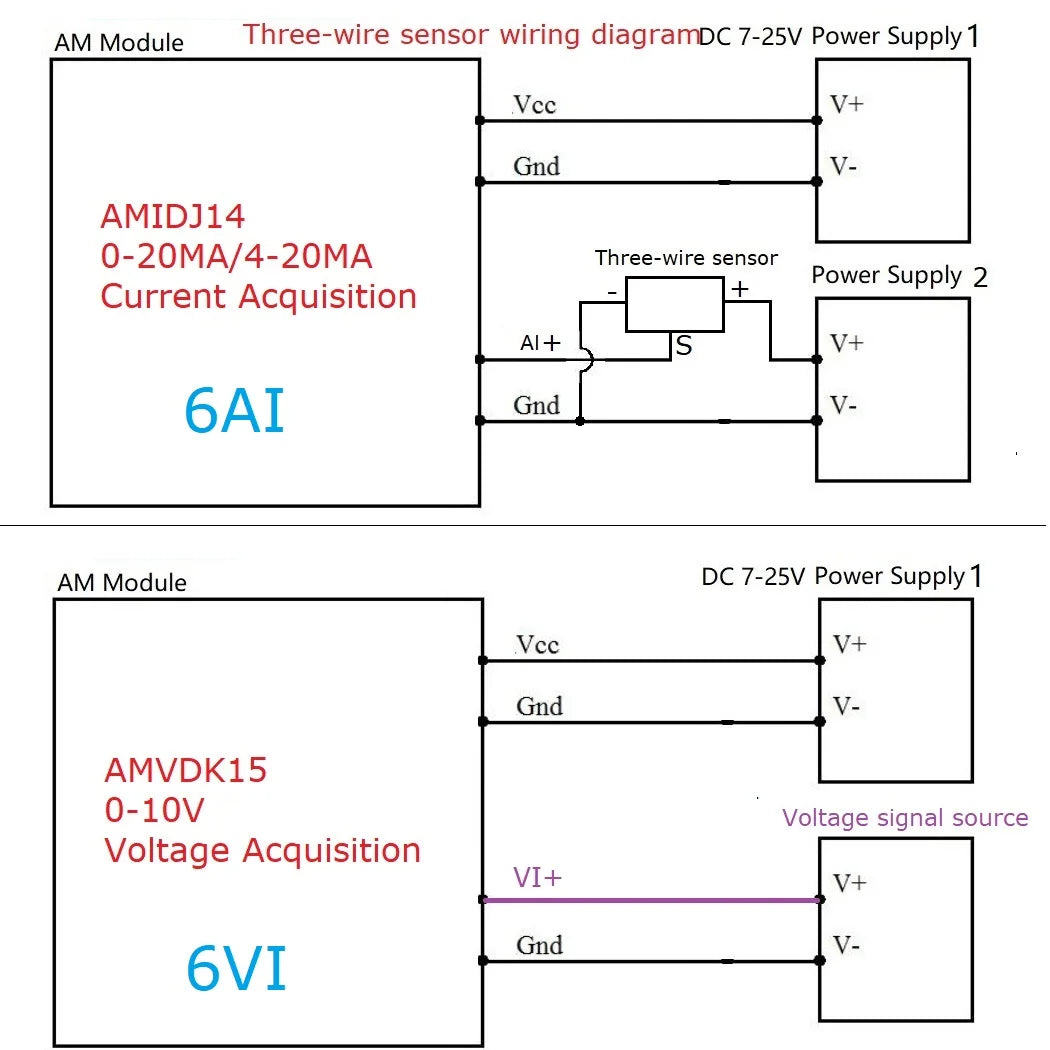

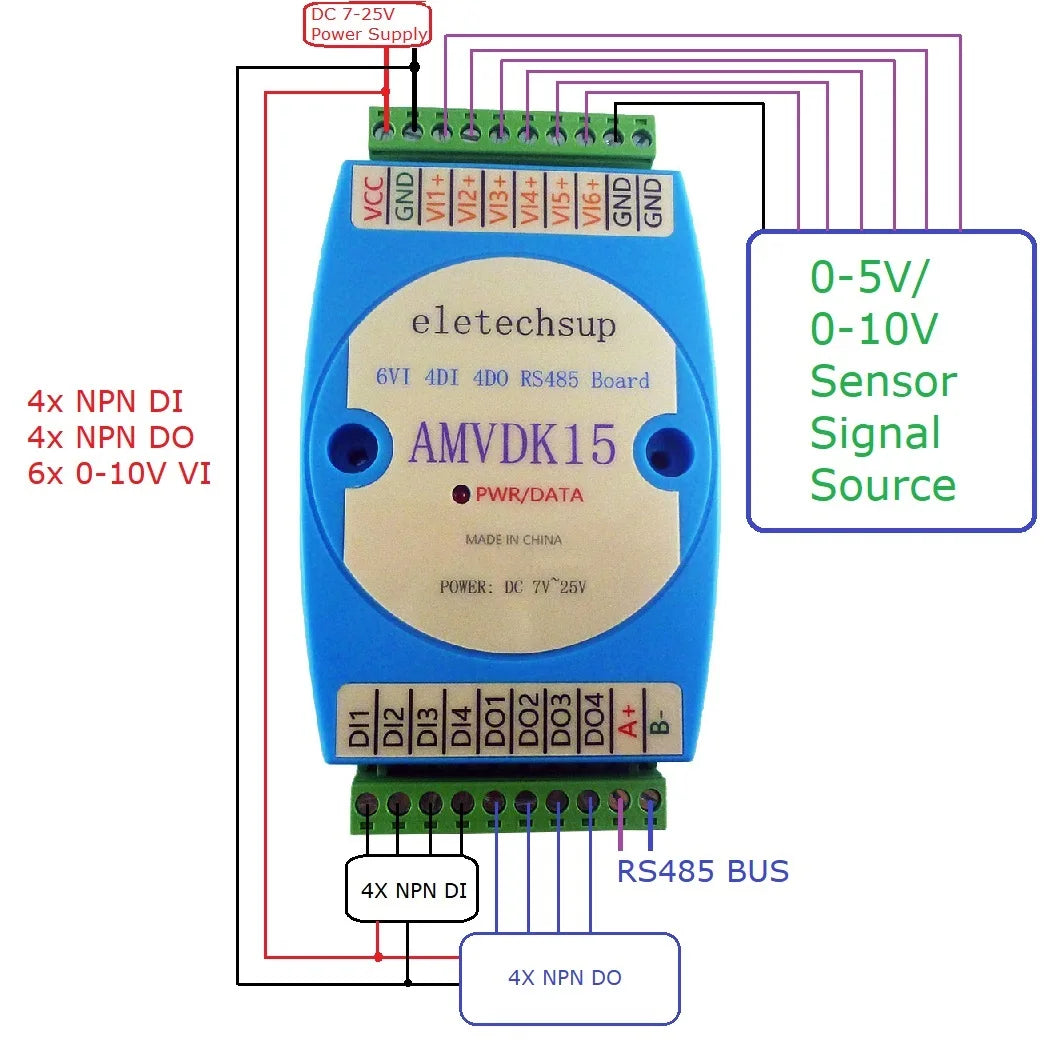

3 Current/Voltage sensor wiring diagram:
Automatic curtain control
1 Digital Input Wiring Diagram
2 Digital output wiring diagram
Note: The Darlington tube has only two states of ''high resistance'' and ''conduction'', and the output level cannot be measured with a multimeter.
3 Current/Voltage sensor wiring diagram:
