4 Buttons Remote Controls 2 PCS 2 CH RF Wireless Receiver DC12V 433.92MHz EV1527

4 Buttons Remote Controls 2 PCS 2 CH RF Wireless Receiver DC12V 433.92MHz EV1527

$35.98 USD
$35.98 USD $35.98 USD
Sale Sold out
4 Buttons Remote Controls 2 PCS 2 CH RF Wireless Receiver DC12V 433.92MHz EV1527



 Qty :

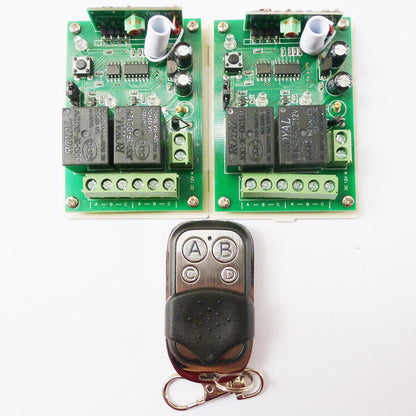

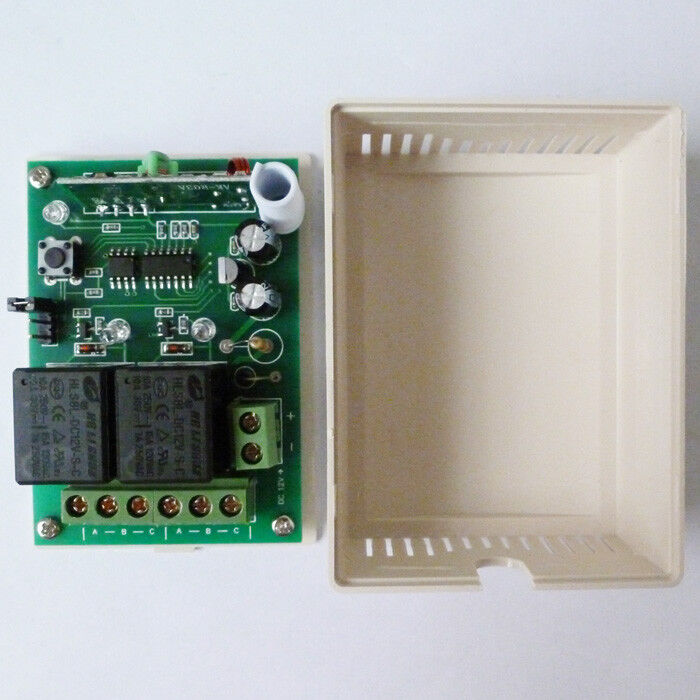

1 pcs 4 Button Fixed code remote ;
2 PCS 2 Chancel Receiver .




Technical indicators:

1.operating voltage: DC 12V ;

2.static operating current:≤8mA, Single chanel working current  ≤ 40 mA ,2 Chanels Work current (self-locking/Toggle )≤ 80mA;

3.Working temperature :-10°C- +60°C;

4.Receive sensitivity:≥-105dBm;

5.the working frequency:433.92MHz;
6.output current:≤10A;

7.size:74.5*54.5*27mm ;

8: Momentary Mode ,Latch Mode  , Toggle Mode can be adjustable by jumper .
9. Pls connect the receiver modules properly before power supply ;
10: 4 chanels;
11: Learning function (can works with EV1527 and PT2262 remote , can store 16 pcs different code remote );
12: Max load : 1000W;





Advantage :
1:  Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 Learning remotes to re-learn;






Output



A.singnal Inter-locking (Latch)----connect 2 and 3 ;

B.singnal Self-locking (Toggle) ---- connect 1 and 2 ;

C.singnal Non-locking (Momentary ) ---- disconnect the jumper ;




·         Toggle : Press->On; Press again->Off ;

·         Latched : Press->On; Press other button->Off ;

·            Momentary : Press and hold->On; Release->Off ;

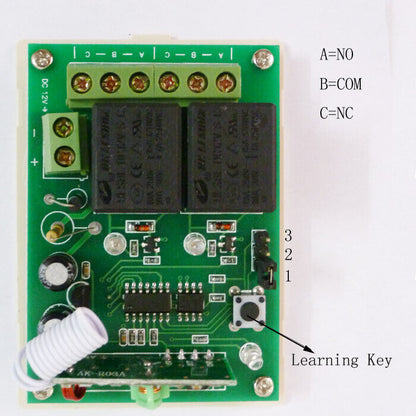

Relay mode :

BC= Normally close (NC ) ;
AB= Normally open (NO ) ;
  • Normally-open (NO) contacts connect the circuit when the relay is activated; the circuit is disconnected when the relay is inactive. It is also called a Form A contact or "make" contact. NO contacts may also be distinguished as "early-make" or NOEM, which means that the contacts close before the button or switch is fully engaged.
  • Normally-closed (NC) contacts disconnect the circuit when the relay is activated; the circuit is connected when the relay is inactive. It is also called a Form B contact or "break" contact. NC contacts may also be distinguished as "late-break" or NCLB, which means that the contacts stay closed until the button or switch is fully disengaged.

Learning method and steps

1.       Keep pressing learnig key on receiver board , release the button when LED is off , enter the learning state ;

2.       Press any key on remote control within 5 seconds , LED flash 3 times and then turn on , then it have success in learning .





Clear the deposit information

Keep Pressing Learning Key , LED turns off , Wait 10 Seconds , LED turn on , that deposited information has been successfully cleared ;

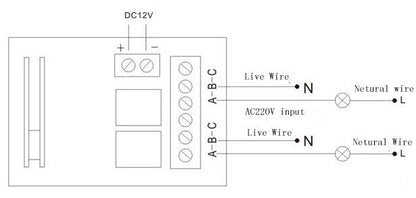

Connect to AC220V home light system :


Transmitter :


Transmitter Module No.: YK004 ;








Technical Data :

 Power supply : 12V 27A battery  replacable .(This remote doesnot have a battery , Please buy in on local market )
Operating current: ≤ 12mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK;
Operating frequency:433.92MHZ ;
Frequency deviation:±0.2MHz;
Encoding format: Learning Code ( EV1527 ) . Cannot cloning or copy any remotes ;
Transmit power:10 mW.
Data Rate : 50~60KHZ;

Similar connection ：
Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V






Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
