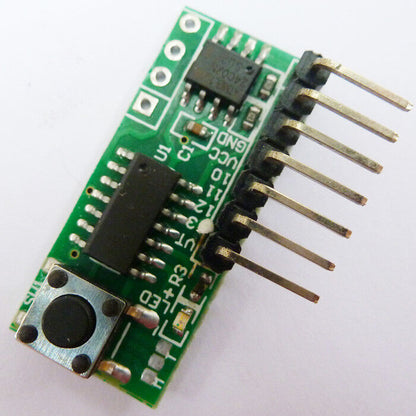

CJ020 4 Channels EV1527 PT2264 PT2262 PT2260 PT2264 SC2262 Fixed Code Decoder Modules

CJ020 4 Channels EV1527 PT2264 PT2262 PT2260 PT2264 SC2262 Fixed Code Decoder Modules

CJ020

1000 in stock

$6.48
$6.48 $6.48
Sale Sold out
Qty : 1 pcs decoder modules ;



Model No.
CJ020

Operating voltage
5.0VDC ±0.5V

 Working priceple

 Fixed code , learning type . decoding EV1527 PT2264 PT2262 PT2260 PT2264 SC2262 SC2260 ;

Speed
< 5 K bps (at 315 MHz, -95 dBm)

Operating temp.
-10 °C ~ +60 °C
Max rate 1 KHZ

Dimension
30*13mm

Output signal

TTL level , Momentary, Latch, Toggle ,user can set it  by soldering , Latch is defult.






Output

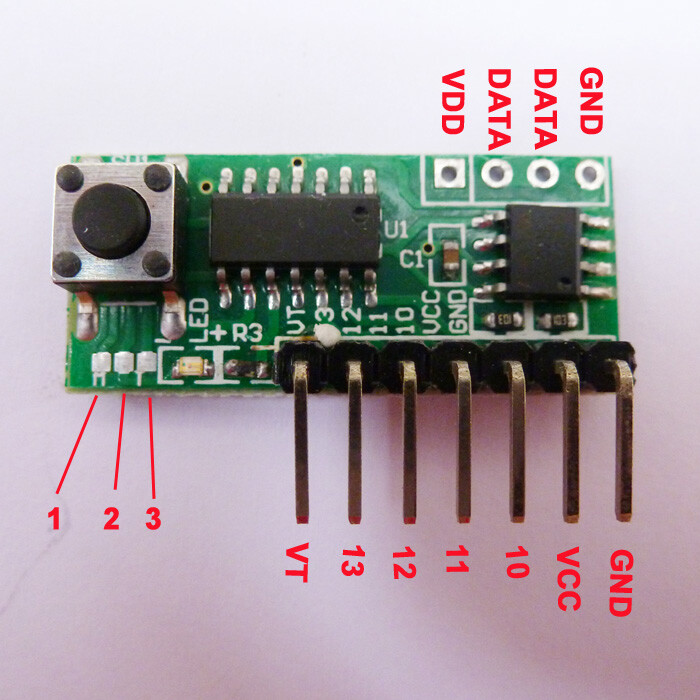

A.singnal Non-locking (Momentary)----connect 1  and 2 ;

B.singnal Self-locking (Toggle) ---- connect 2 and 3 ;

C.singnal Inter-locking (Latch) ---- disconnect all  ;

·         Toggle : Press->On; Press again->Off ;

·         Latched : Press->On; Press other button->Off ;

·            Momentary : Press and hold->On; Release->Off ;

Note :

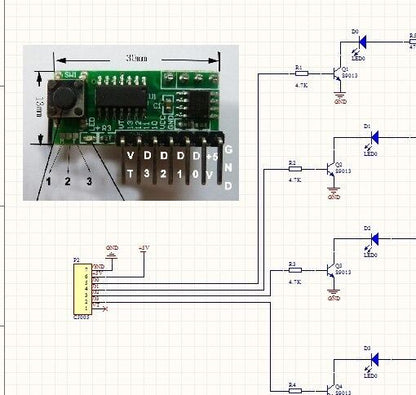

1: VT gives an intermittent output when it receive a signal , no matter from which chanel . it can receive signal from all 4 chanels and connect to external LED indicator;

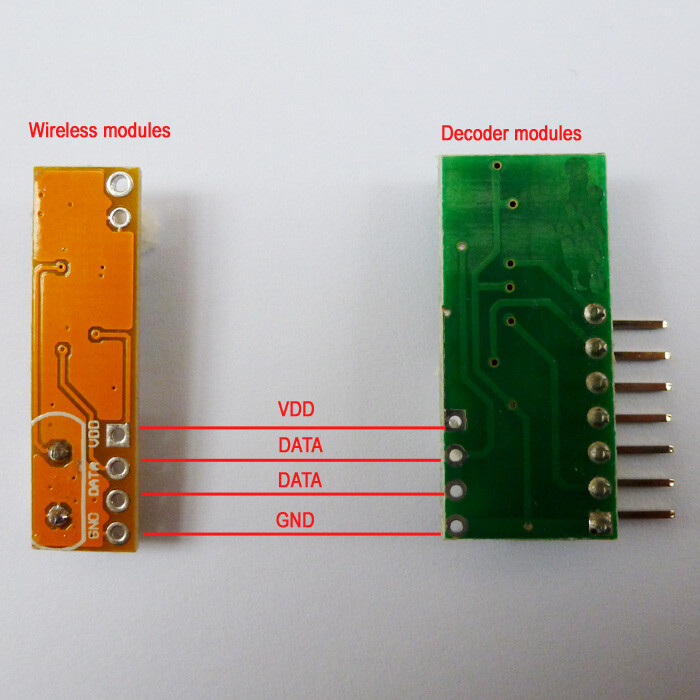

2: This module have 2 DATA IN ,  you can either connect 1 DATA IN only or both 2 DATA IN ;
User guide :
1: Learing ID : Press learning button , LED is on and beginning to learn ;after learning , LED will flash for a while .Then LED will keep being on to learn the next remote. If perss the learned remoter controller , auto-quit learning within 10 seconds;
2: Delete ID : Keep pressing learning button for 5 seconds , LED will be on and enter deleting . LED off means finishing deleting;
3: Antenna with a soft wire or other hard metals (such as whip antenna), try to straighten. Do not go near metal objects;
4: Power supply voltage requires stable and low ripple factor, multi-level filtering (such as adding beads, inductors, capacitors, etc.);
