40W DC DC Converter 5V to 12V Boost Step-Up Power for IP PTZ Camera CCTV Router
40W DC DC Converter 5V to 12V Boost Step-Up Power for IP PTZ Camera CCTV Router
Regular price
$17.98 USD
Regular price
$17.98 USD
Sale price
$17.98 USD
Unit price
/
per
Couldn't load pickup availability
Applications:
IP PTZ Camera
Solar charger
Smart Home / Home Automation
Monitor Power
CCTV Power
PLC Power
LED Driver Power
Motor Driver Power
Fan Power
Solar cells
Bicycle Battery Charger
Motorcycle battery charger
Product Name: 40W DC DC Converter 5V to 12V Boost Step-Up Power for IP PTZ Camera CCTV Router
Module No.: CE015_C

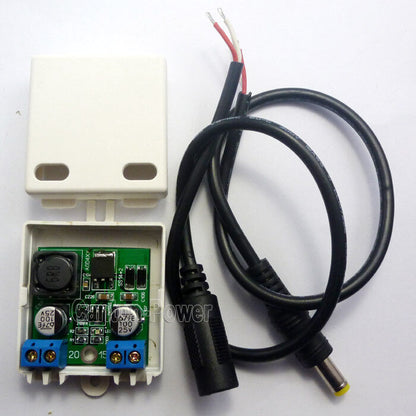

Packing list:
1 pcs 40W DC-DC Converter Boost Step-up 1.5V-12V to 12V Module;
1 pcs PC Plastic shell

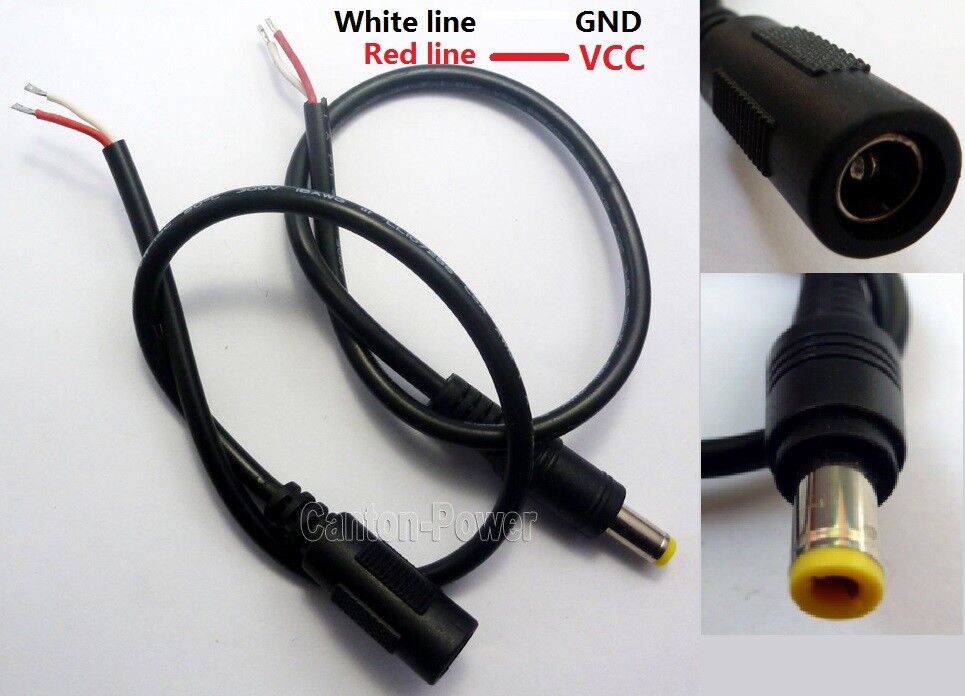

1 pcs DC 5.5MM Female Cable;
1 pcs DC 5.5MM Male Cable;
Description:

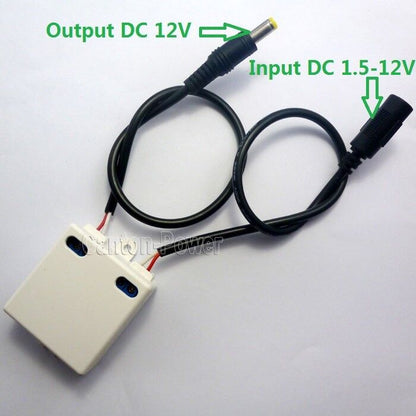

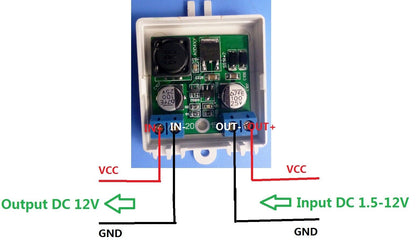

DC 5.5MM Female 1.5V-12V input,DC 5.5MM Male 12V Output
DC-DC Boost module working frequency 300KHZ.efficiency 57%-92% .
Operating ambient temperature : -20~+85 Degrees Celsius
Voltage ModuleSize 33mm x 33mm x 14mm
Shell Size : 41mm x 40mm x 20mm
Maximum withstand voltage : 16V(When >12V,Output >12V)
Maximum input current : 5A(Instantaneous maximum value)
Input voltage DC 1.5 ~ 12V, output DC 12V(+-5%)
Maximum output current: 3.4A
Under different conditions, the measurement result will be some deviation
|
Input voltage |
Input Current |
Output Voltage |
Output Current |
Efficiency |
|
1.5V |
0.28A |
12V |
0.02A |
57% |
|
1.8V |
0.33A |
12V |
0.03A |
60% |
|
2V |
0.36A |
12V |
0.04A |
67% |
|
2.5V |
0.4A |
12V |
0.06A |
80% |
|
3V |
1.5A |
12V |
0.3A |
80% |
|
3.3V |
1.8A |
12V |
0.49A |
80% |
|
3.7V |
2.2A |
12V |
0.54A |
80% |
|
4V |
3A |
12V |
0.8A |
80% |
|
5V |
3.2A |
12V |
1.1A |
82% |
|
6V |
3.2A |
12V |
1.3A |
86% |
|
7V |
3.3A |
12V |
1.66A |
86% |
|
8V |
3.4A |
12V |
1.97A |
87% |
|
9V |
3.5A |
12V |
2.31A |
88% |
|
10V |
3.7A |
12V |
2.8A |
92% |
|
11V |
4A |
12V |
3.32A |
91% |
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter, a t this time of the input voltage is very low
