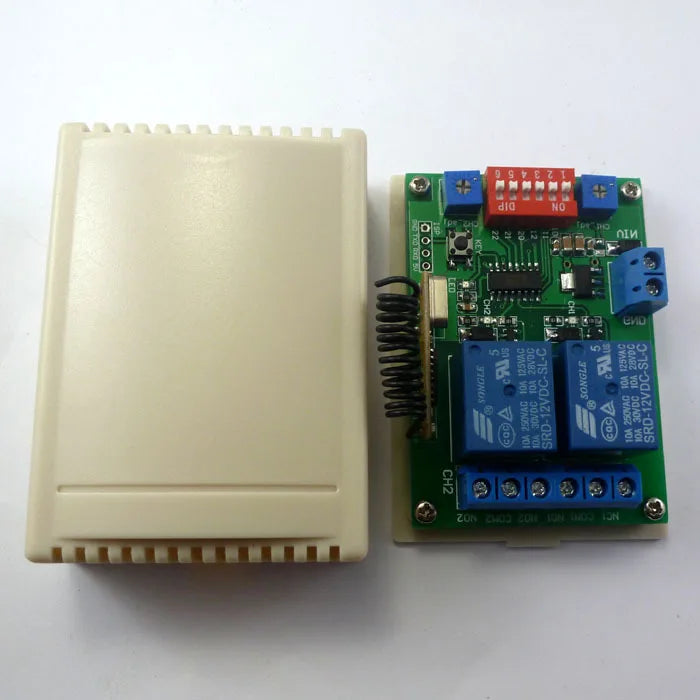

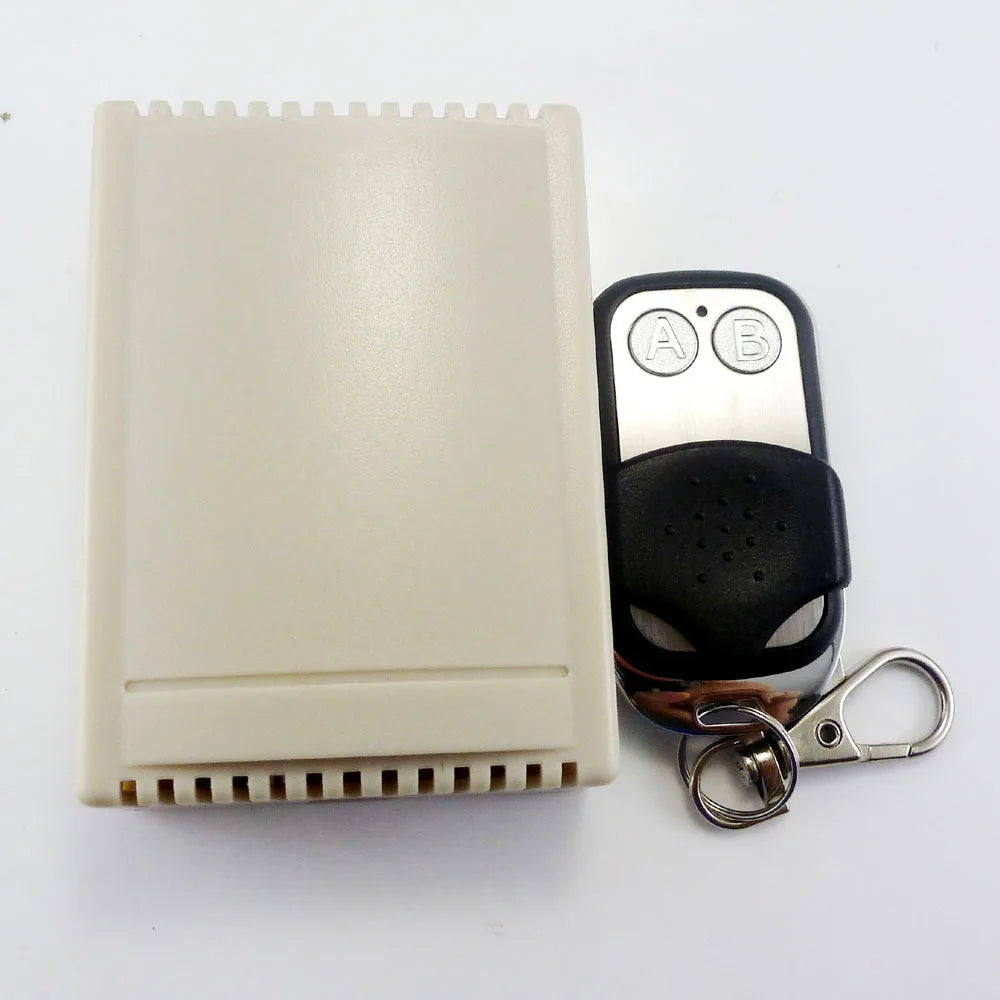

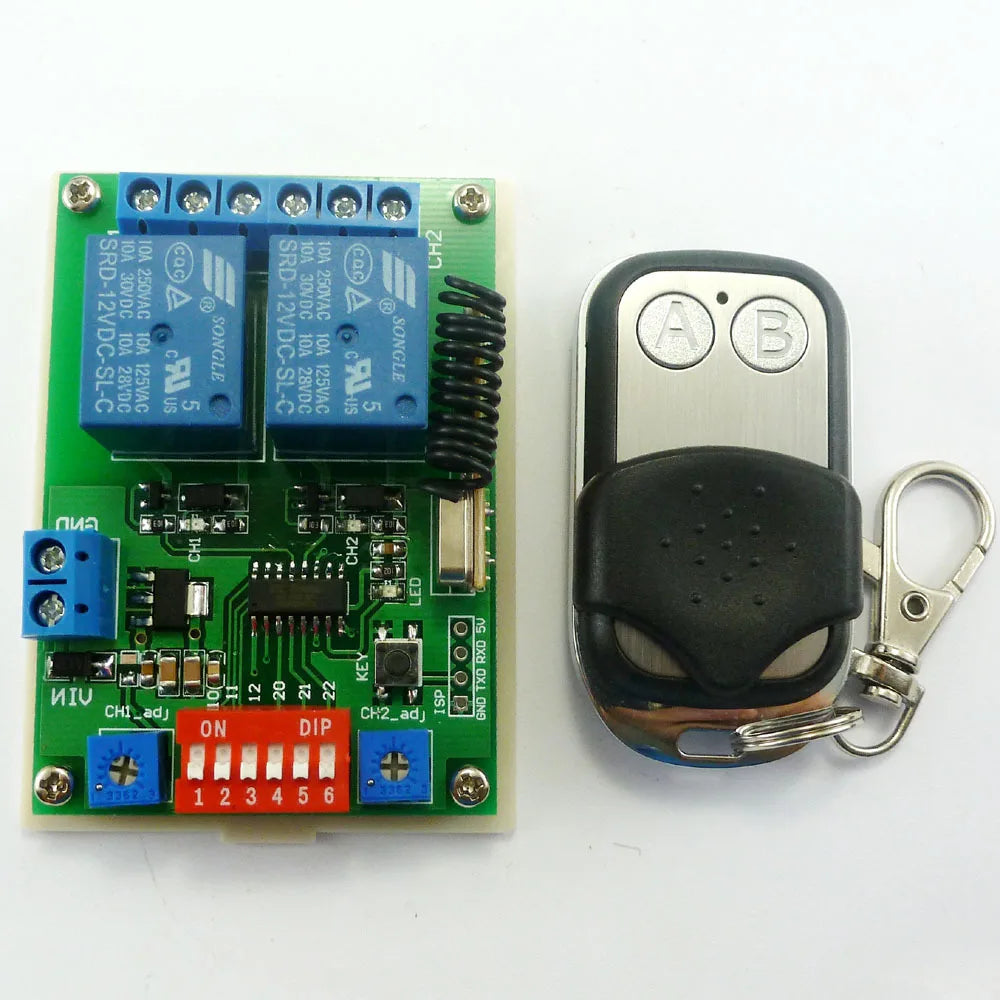

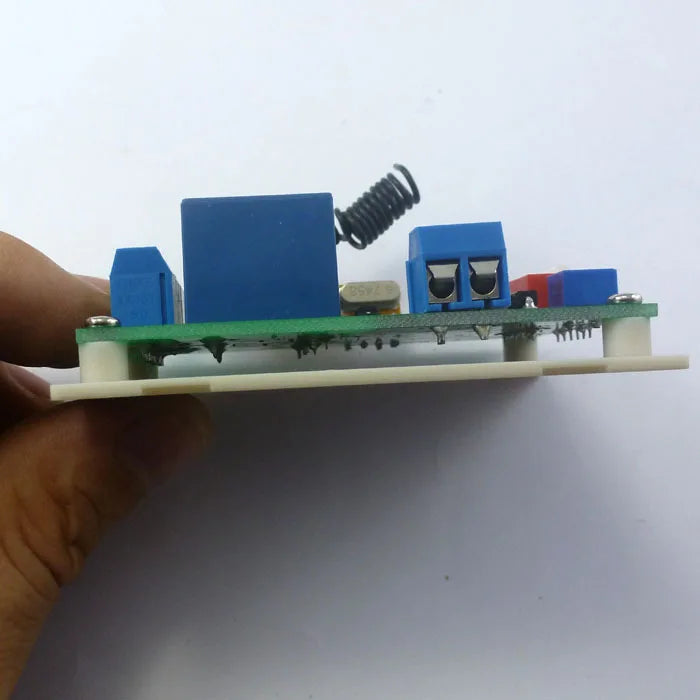

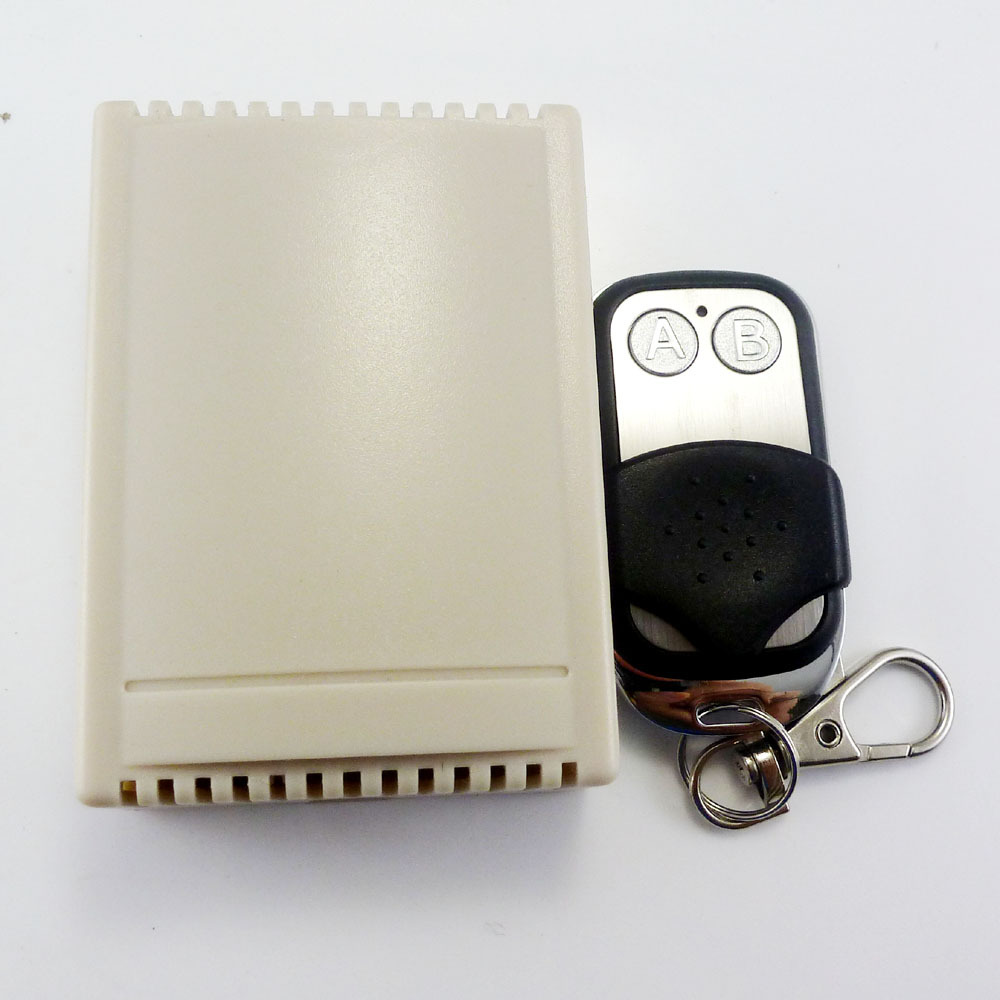

CE029A 433.92M DC 12V 2Ch Multifunction Wireless Controller Timer Delay Relay RF Switch & EV1527 ASK OOK Remote control
CE029A 433.92M DC 12V 2Ch Multifunction Wireless Controller Timer Delay Relay RF Switch & EV1527 ASK OOK Remote control
SKU:CE029A*1+CJ002*1
1000 in stock
Couldn't load pickup availability
Work mode
Wiring Diagram 2:

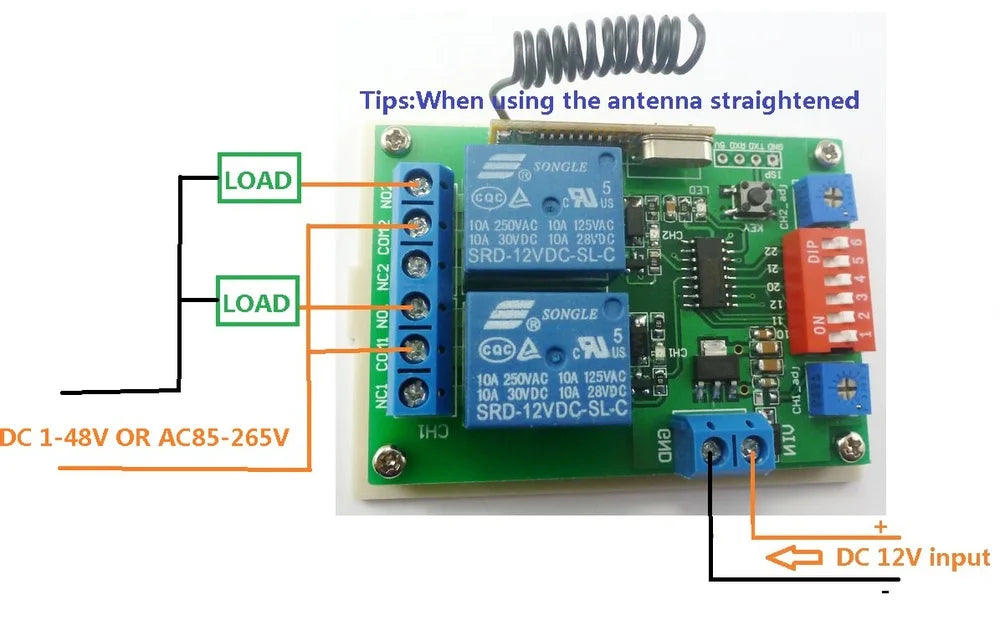

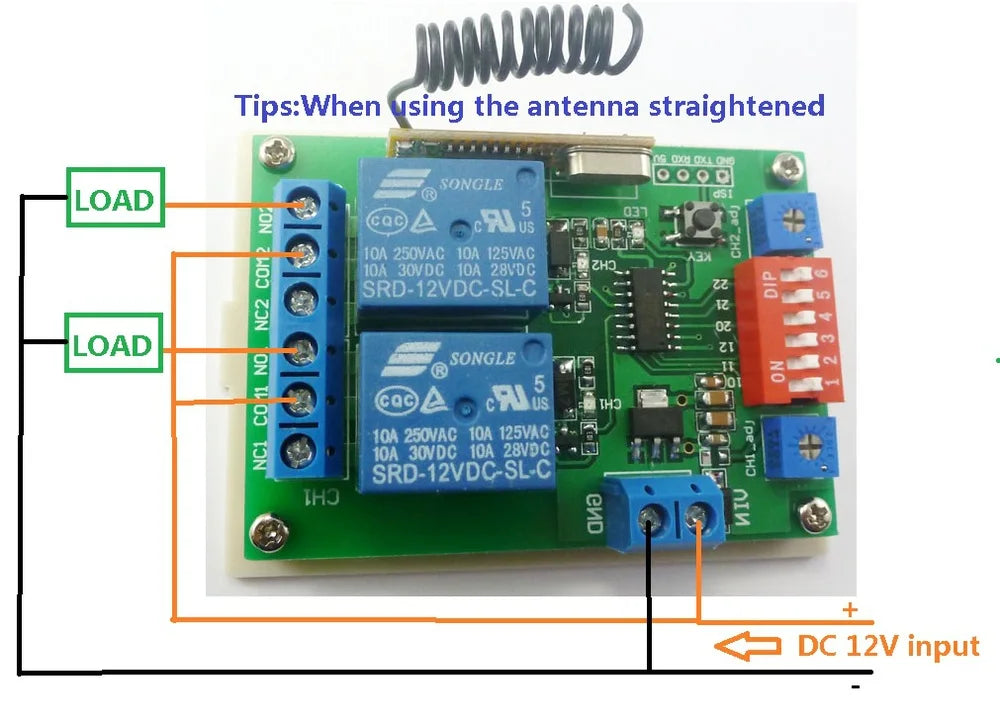

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
Product Name :433.92M DC 12V 2Ch Multifunction Wireless Controller Timer Delay Relay RF Switch & EV1527 ASK OOK Remote control
Packing list:
Technical indicators:
Operating voltage: DC 9-13V (recommended DC 12V);5V version can be customized
Operating Current: All relays close,about 14MA; one relay open,about 43MA;two relay open,about 71MA

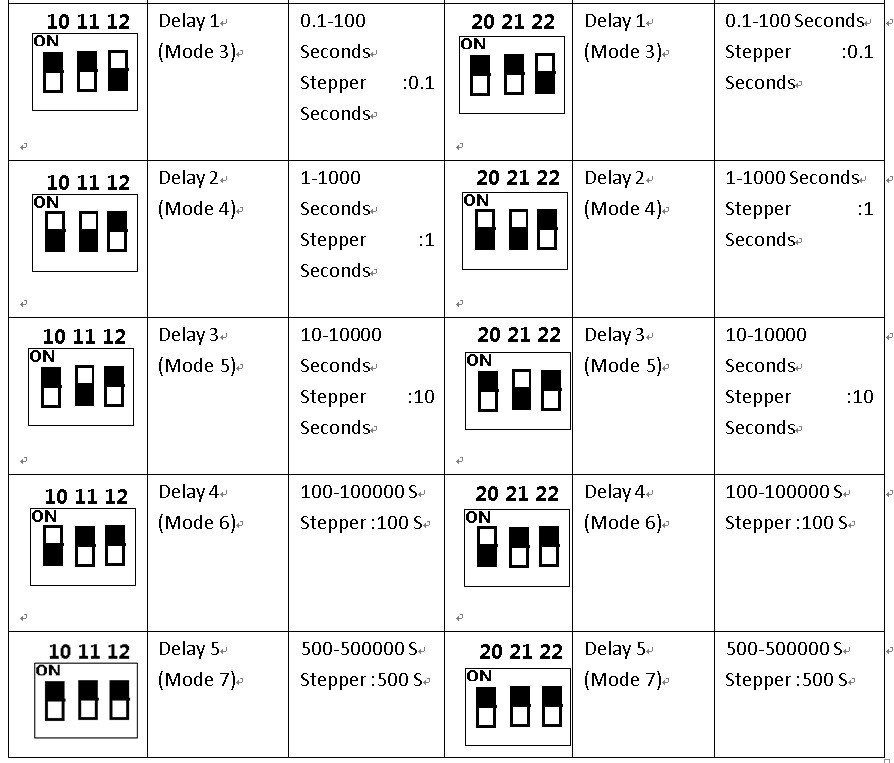

Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay
Size(Including housing)75*54*28mm
Learning function (can works with EV1527 and PT2262 remote, can store 16 pcs different code remote );
Max load : 500W;
Learning method and steps:
Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes
Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)
Step 1 (into the learning mode): Press the button (about 1 second), LED off;
Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value
Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values
