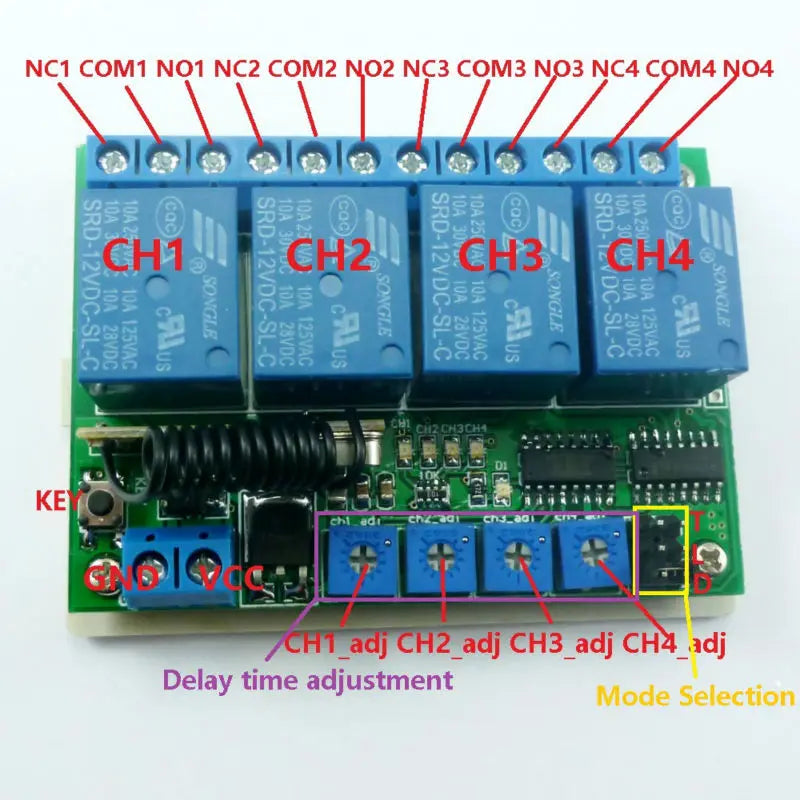

RF22A04 433.92M DC 12V 4Ch Multifunction Wireless Controller Timer Delay Relay RF Switch & EV1527 ASK OOK Remote control

RF22A04 433.92M DC 12V 4Ch Multifunction Wireless Controller Timer Delay Relay RF Switch & EV1527 ASK OOK Remote control

RF22A04*1+CJ003*1

9982 in stock

$13.99
$13.99 $13.99
Sale Sold out

Typical applications:
DC 12V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360


Wiring Diagram 1:

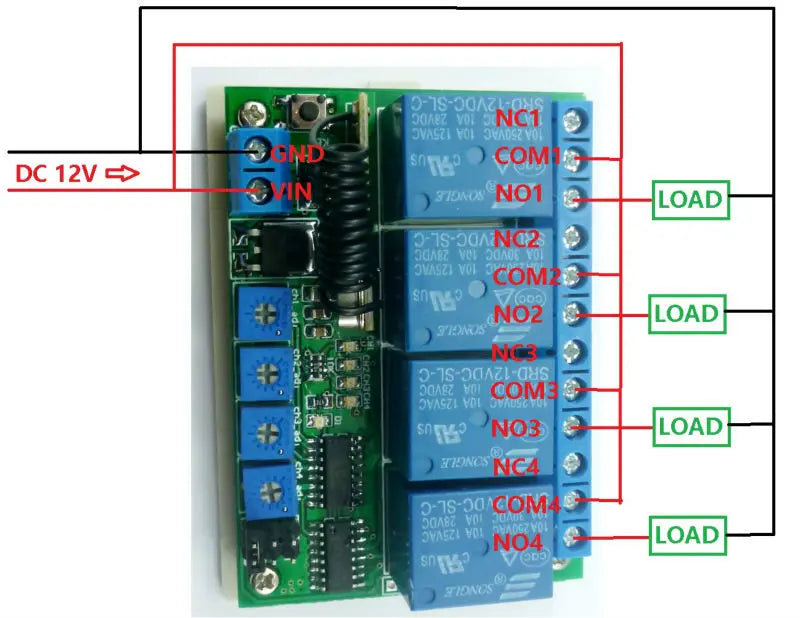

DC 12V control circuit,Wiring diagram below. ;LOAD; may be LED lights, fans, motors and other DC 12V




Wiring Diagram 2:

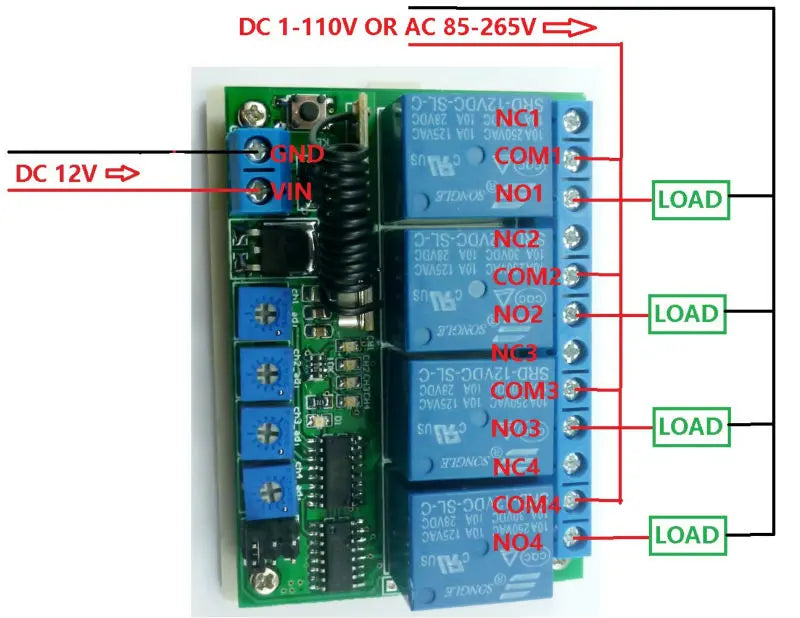

DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). ;LOAD; may be LED lights, fans, motors and other DC AC equipment



Wiring Diagram 3:

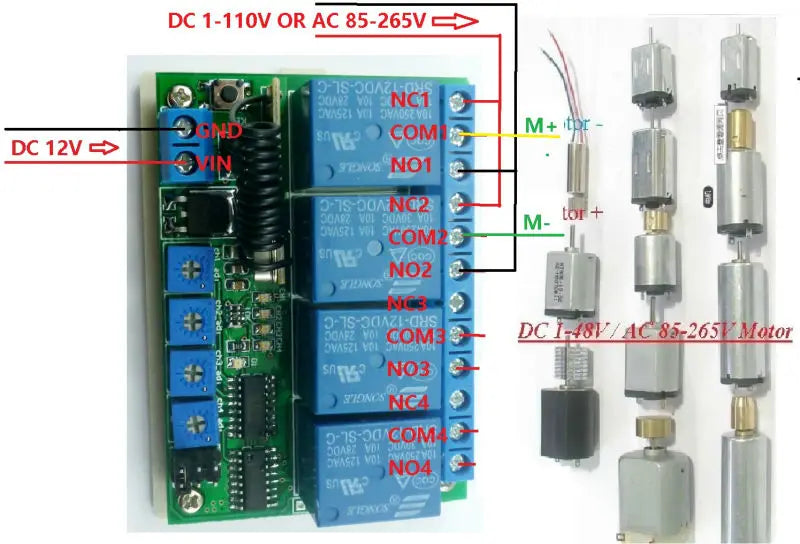

All kinds of motor reversing control: DC 1-110V or AC 85-265V DC/AC Motor


Product Name :433.92M DC 12V 4Ch Multifunction Wireless Controller Timer Delay Relay RF Switch & EV1527 ASK OOK Remote control



Packing list:

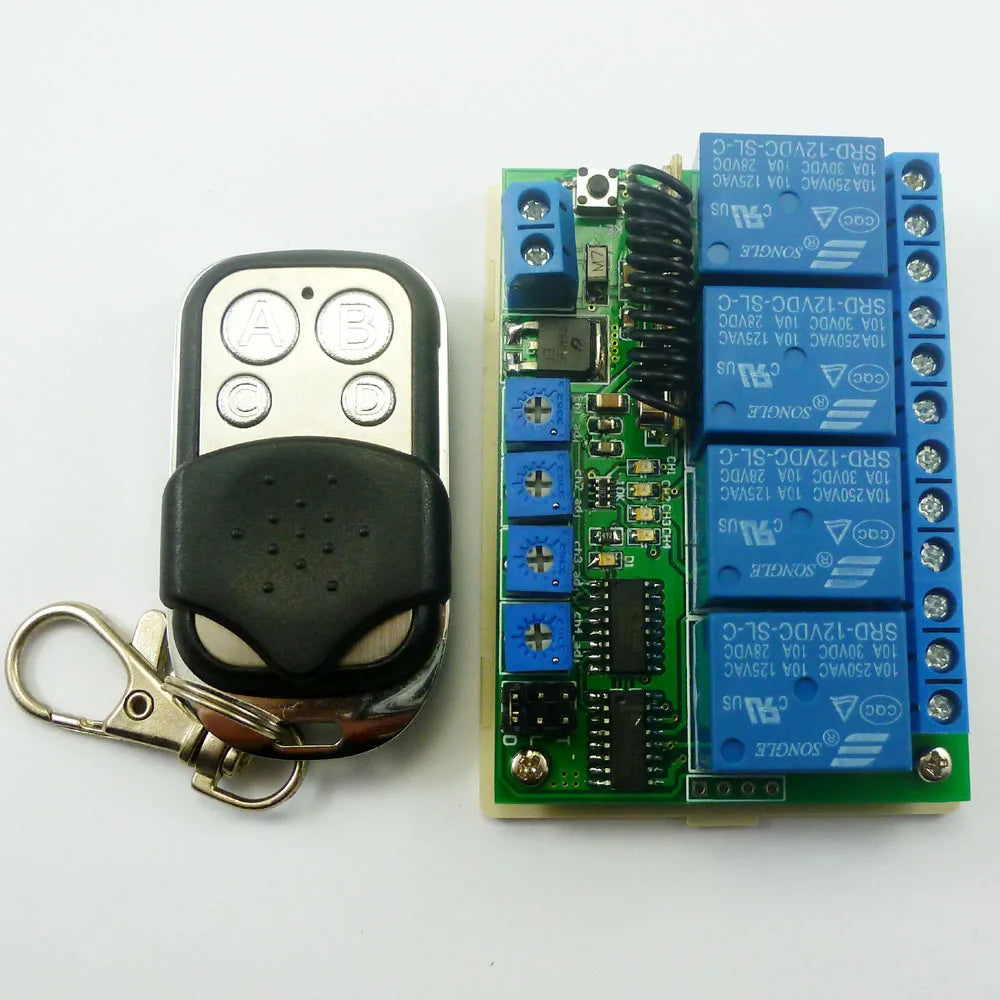

1 PCS433M DC 12V 4 Channel Multifunction Wireless Controller

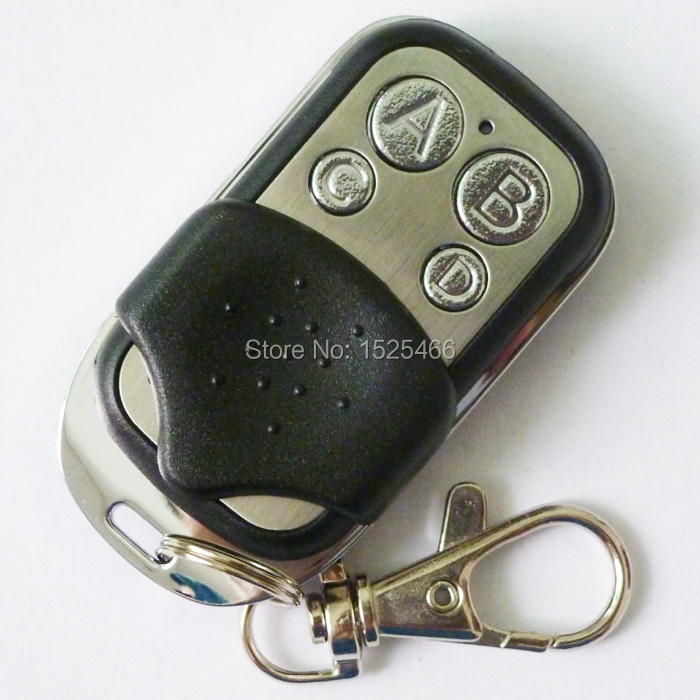

1 PCS 433M Large Power 4 Button EV1527 Remote Control (USE 12V 27A battery,Batteries not included)





Technical indicators:

1 Operating voltage : DC 12V

2 Operating Current: Standby current (all relays closed) 15MA, 1 relay open 42MA, 2 relays open 62MA, 3 relays open 94MA, 4 relays open 121MA

3 Operating frequency: 433.92M;

4 Receiver sensitivity : -108dBm

5 Decode : learning code, can be adapted EV1527 / PT2262(Click here)and compatible remote control, you can store up to 8 remote control

6 Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay; Delay adjustable from 0.1 to 100 seconds, 0.1 seconds Resolution.

7 Size(Including housing)75*54*28mm

8 Weight: 77g

9 Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC ,10A/12VDC


Normally, we would adapter remote control and receiver.
If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below

Learning method and steps:

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes



Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)



Step 1 (into the learning mode): Press the button (about 1 second), LED off;

Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value

Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values

Step 4 (Adaptation Channel 3): Then press the third button on the remote control, LED flashes four times brighter, then learned two key values

Step 5 (Adaptation Channel 4): Then press the fourth button on the remote control, LED flashes four times brighter, then learned two key values



Use more details, please click here!






433M 4 Button EV1527 Remote Control:

Power supply : 12V 27A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA ;
Oscillation mode: SAW resonator ;
Oscillation resistor : 330K
Modulation mode: ASK OOK ;
Operating frequency: 433.92MHz ;
Frequency dev iation: ±0.2MHz ;
Encoding format: Million Group Code ( EV1527 ) ;
Transmit power: 10 mW.
Data Rate : 50~60KHZ;
