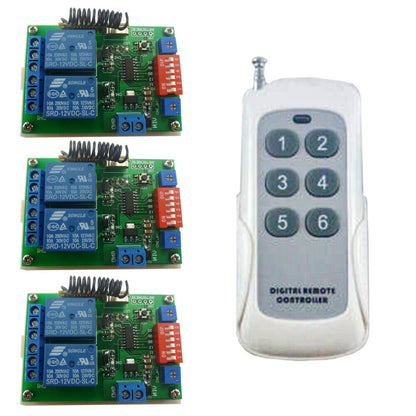

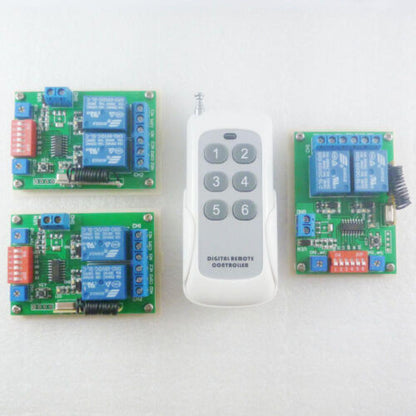

433Hz 5V Wireless Remote Control RF Adjustable Delay timer Relay Switch Module
433Hz 5V Wireless Remote Control RF Adjustable Delay timer Relay Switch Module
Couldn't load pickup availability
Brand:Eletechsup
Wiring Diagram 2:

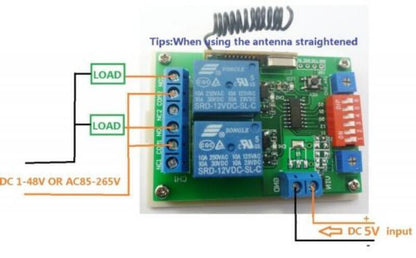

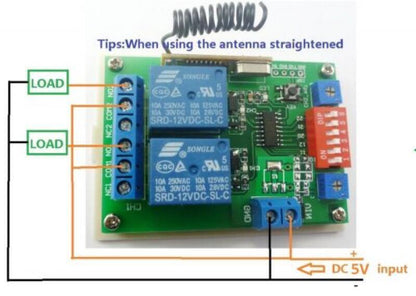

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
Technical indicators:
Operating voltage : DC 5V
Operating Current : All relays close,about 15MA; one relay open,about 86MA;two relay open,about 157MA
Operating frequency : 433.92M;

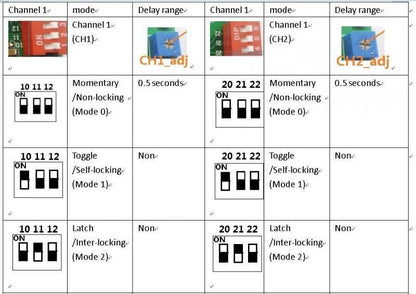

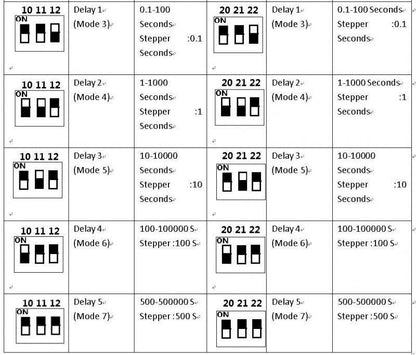

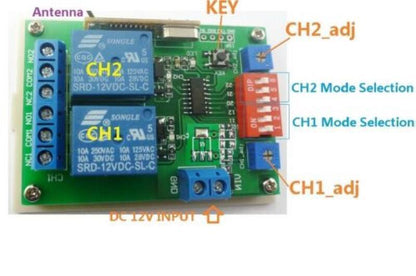

Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay
Size(Including housing) : 75*54*28mm
Learning function (can works with EV1527 and PT2262 remote, can store 16 pcs different code remote );
Max load : 500W;
Non Lock:
Relay: press one button is ON, loosen your finger on the same button is OFF.
Self-locking:
Relay: press one button for one time is ON, press the same button again is OFF.
Interlock:
Relay: press one button is ON, press another button is OFF.
Learning method and steps:
Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes
Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)
Step 1 (into the learning mode): Press the button (about 1 second), LED off;
Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value
Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values
Use more details, please click here!
Features / Specifications :
Technical Data :
