RF22A04 433M 1TX+ 2 RX ASK RF Wireless Adjustable Delay Time LED Bulb Motor Controller

RF22A04 433M 1TX+ 2 RX ASK RF Wireless Adjustable Delay Time LED Bulb Motor Controller

RF22A04*2+TB422*1

1000 in stock

$50.98
$50.98 $50.98
Sale Sold out

Compatiable transmitter : https://stores.ebay.com/RF-Wireless-Electronics-Technology/433MHz-transmitter-/_i.html?_fsub=9821956015&_sid=1103009655&_trksid=p4634.c0.m322  .

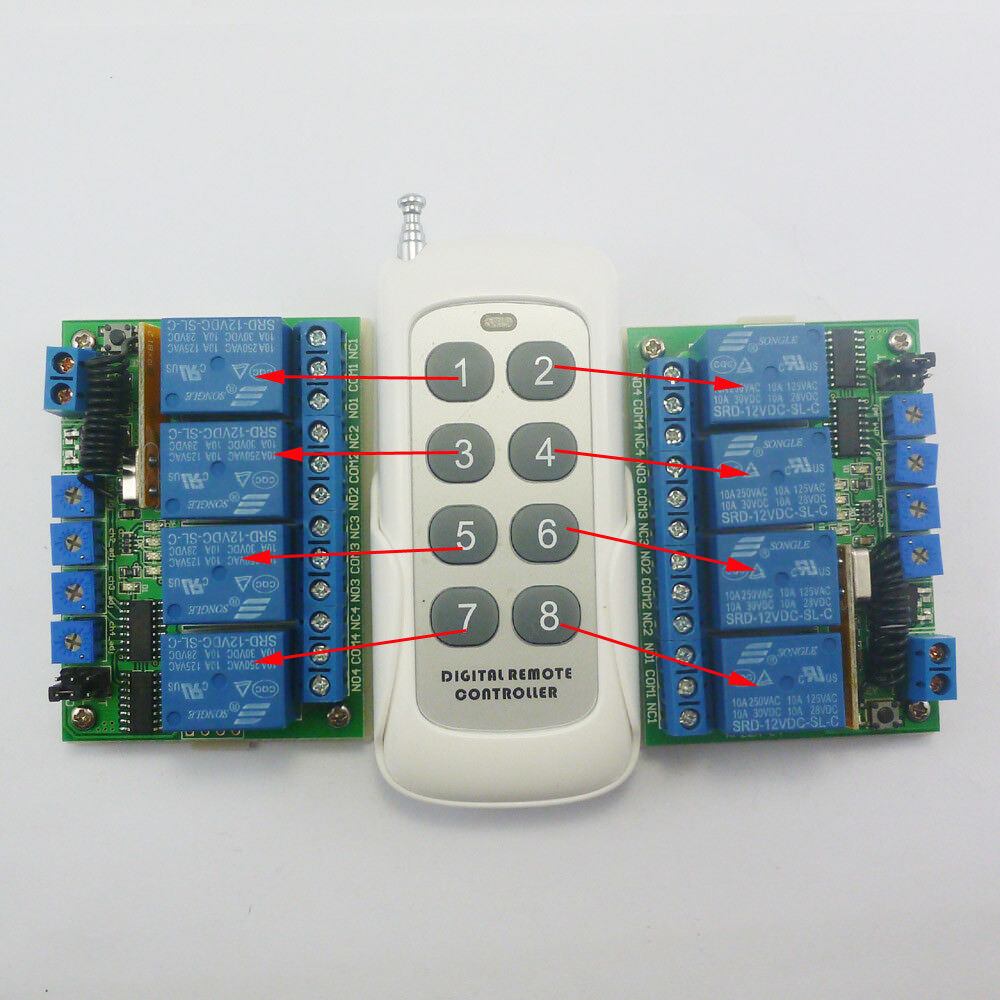

Qty : 1 pcs EV1527 transmitter module and 2 pcs 4 channels relay switch ;

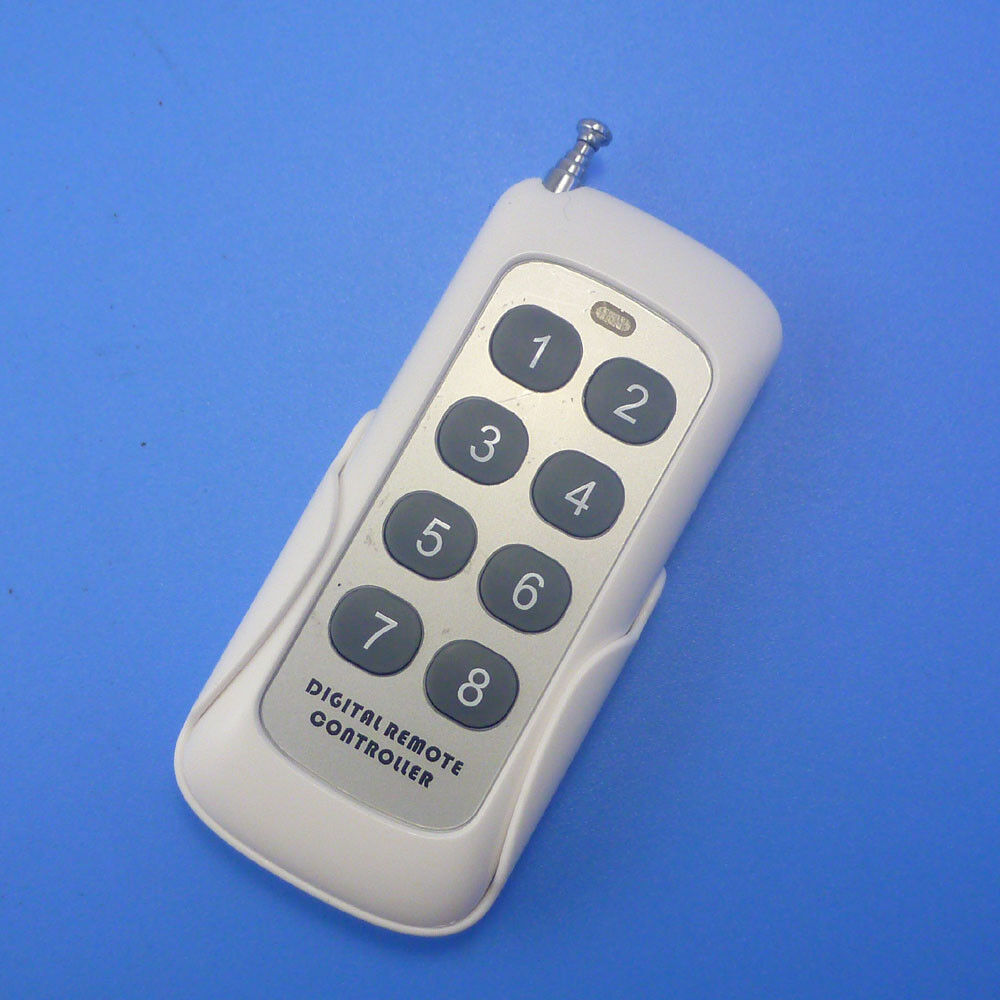

Transmitter :




Features / Specifications :

1. 8 buttons;
2. High stability, SMT chip, frequency stabilization SAW, ultra-high-frequency transistor;
3: Large power;



Technical Data :
Transmitter Module No.: TB423;
Power supply : 12V 23A battery (not included ) , please buy battery from here : https://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l1313.TR3.TRC2.A0.H0.X12V+23A+battery.TRS0&_nkw=12V+23A+battery&_sacat=0 .

Operating current: 28-33mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK/OOK;
Operating frequency:433.92MHZ ;
Encoding format: EV1527 fixed code;
Transmit power : 200mW ;


Relay receiver :


Typical applications:
DC 12V Home lighting system
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360

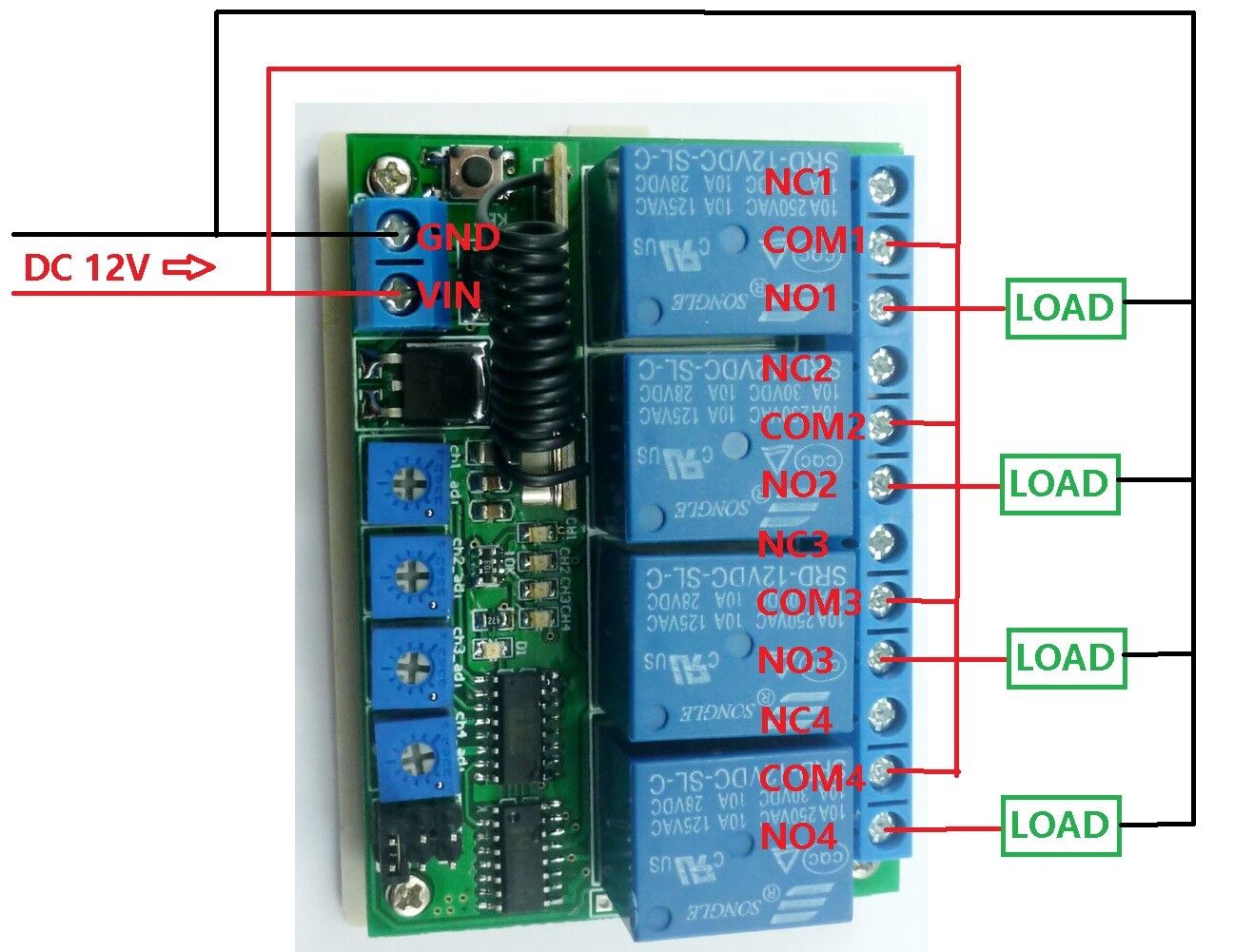

Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V

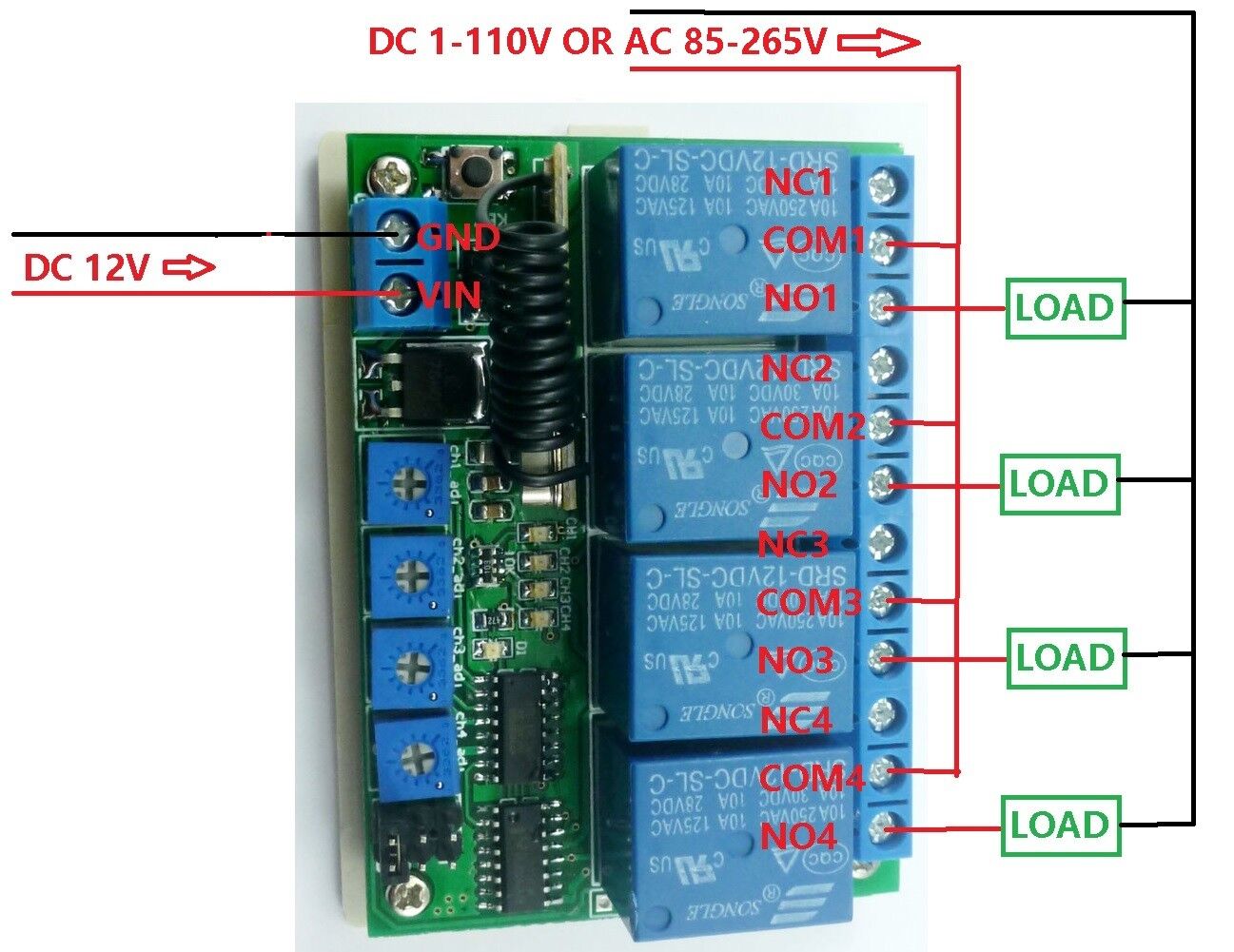

Wiring Diagram 2:

DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED

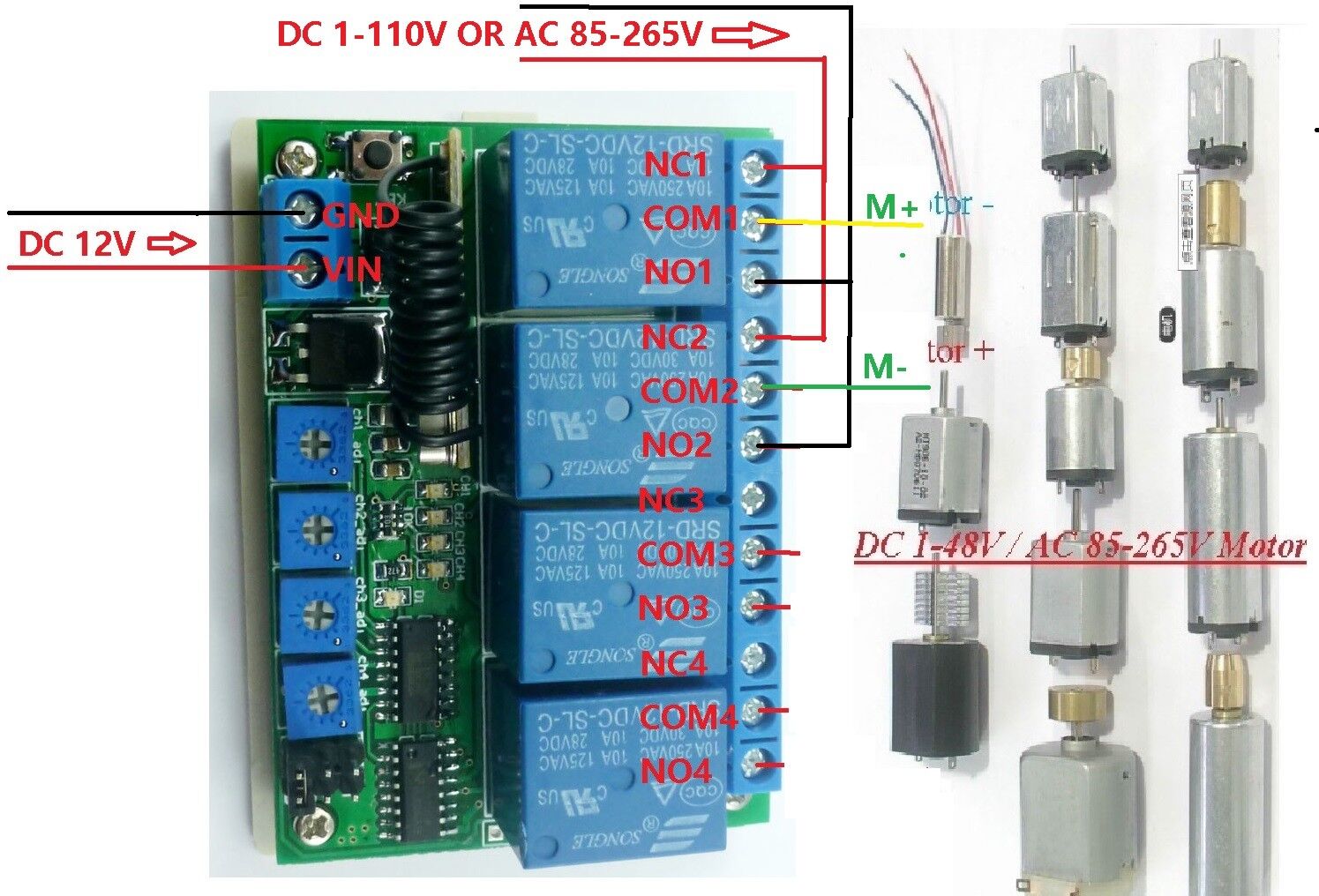

Wiring Diagram 3:
All kinds of motor reversing control: DC 1-110V or AC 85-265V DC/AC Motor



Product Name : DC 12V 4CH 433MHz Delay RF Wireless Relay Controller For PT2262 EV1527 Encoder

Module No.: CE-RF22A04

Packing list:

1 PCS 433M DC 12V 4 Channel Multifunction Wireless Controller
Features:
1 Operating voltage : DC 12V
2 Operating Current: Standby current (all relays closed) 15MA, 1 relay open 42MA, 2 relays open 62MA, 3 relays open 94MA, 4 relays open 121MA
3 Operating frequency: 433.92M;

4 Receiver sensitivity : -108dBm

5 Decode : learning code, can be adapted EV1527 / PT2262(Click here)and compatible remote control, you can store up to 8 remote control

6 Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay; Delay adjustable from 0.1 to 100 seconds, 0.1 seconds Resolution.
7 Size(Including housing)75*54*28mm
8 Weight: 77g
9 Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC ,10A/12VDC
Advantage :

1: Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 OR Pt2262 remotes to re-learn;

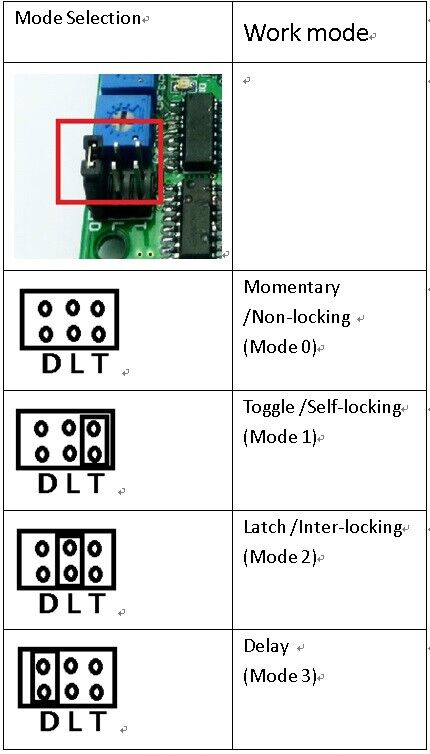

Work mode

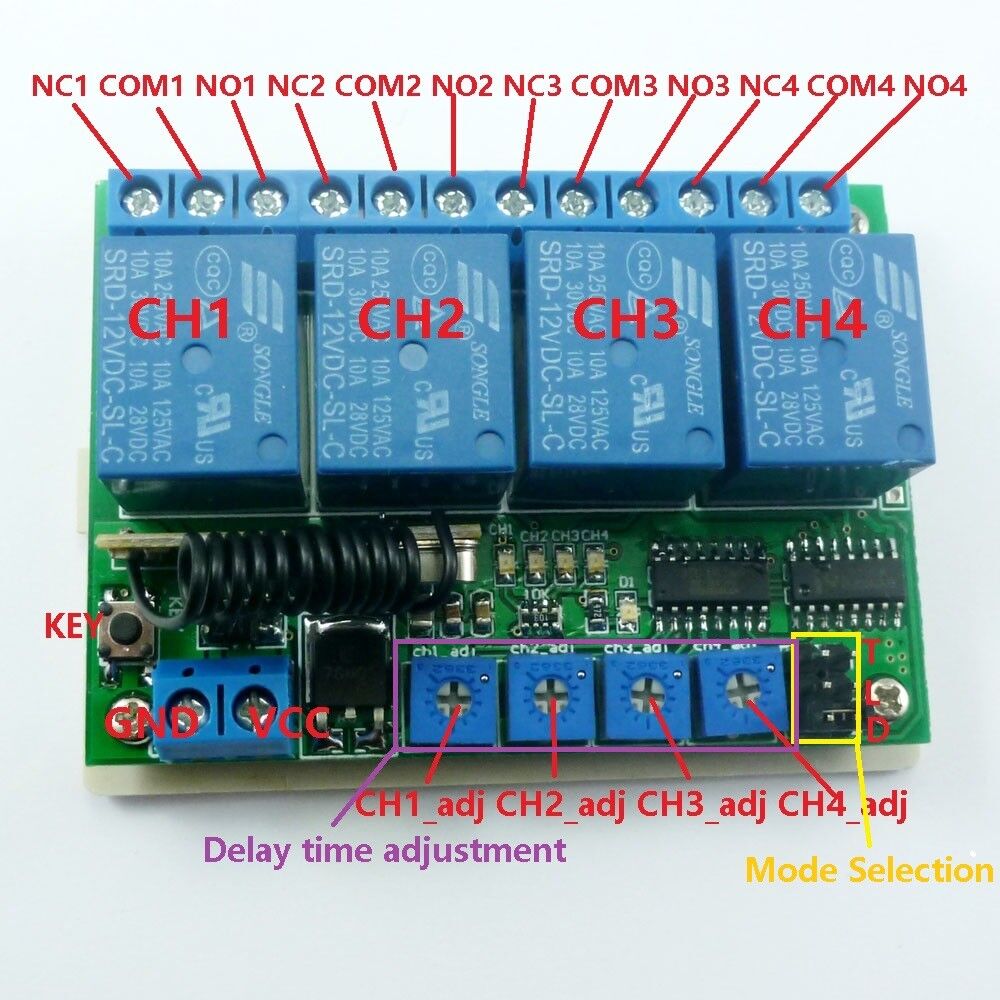

Delay mode user guide :

1 In delay mode(Mode 3),with a suitable screwdriver and gently rotating adjustable resistance;Clockwise, increasing delay,Counter-clockwise, the delay is reduced

2 Delay adjustable from 0.1 to 100 seconds, 0.1 seconds Resolution.
Glossary:

NO : Relay normally open contact

COM : Relay common contact

NC : Relay normally closed contact

Open : NO connection COM, NC disconnect COM

Close : NO disconnect COM, NC connection COM

Momentary : Press the Transmitter button A, the receiver Channel 1 is Open, release button A; the receiver Channel 1 is Close, the same as B ,Every Channel is Independent ;

Toggle : Press transmitter button A for 1 time , the receiver Channel 1 is Open, press button A again, the receiver Channel 1 is Close, the same as B. Every Channel is Independent ;

Latched : Press transmitter button A, the receiver Channel 1 is Open, the Channel 2 is Close.

Press transmitter button B, the receiver Channel 2 is Open, the Channel 1 is Close.

Delay : Press the Transmitter button A, the receiver Channel 1 is Open,After a set time delay, the receiver Channel 1 is Close, the same as B ,Every Channel is Independent;

If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close



Adapter remote control (learning remote control):

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes





Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)





Step 1 (into the learning mode): Press the button (about 1 second), LED off;



Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value



Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values



Step 4 (Adaptation Channel 3): Then press the third button on the remote control, LED flashes four times brighter, then learned two key values



Step 5 (Adaptation Channel 4): Then press the fourth button on the remote control, LED flashes four times brighter, then learned two key values
