RF22A04 433M 1TX+ 4 RX ASK RF Wireless Adjustable Delay Time LED Bulb Motor Controller

RF22A04 433M 1TX+ 4 RX ASK RF Wireless Adjustable Delay Time LED Bulb Motor Controller

RF22A04*4+AK030*1

1000 in stock

$95.98
$95.98 $95.98
Sale Sold out

Compatiable transmitter : https://stores.ebay.com/RF-Wireless-Electronics-Technology/433MHz-transmitter-/_i.html?_fsub=9821956015&_sid=1103009655&_trksid=p4634.c0.m322  .

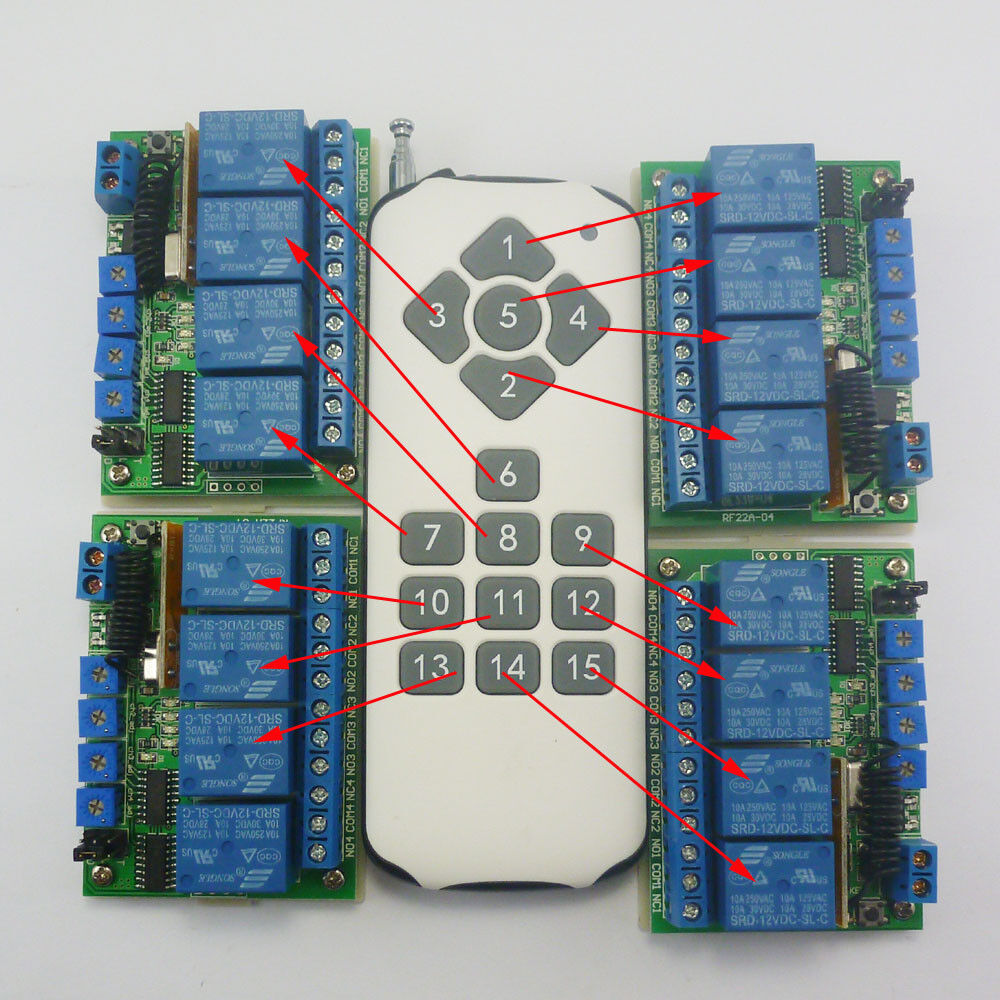

Qty : 1 pcs PT2262 transmitter module and 4 pcs 4 channels relay switch ;


Transmitter :

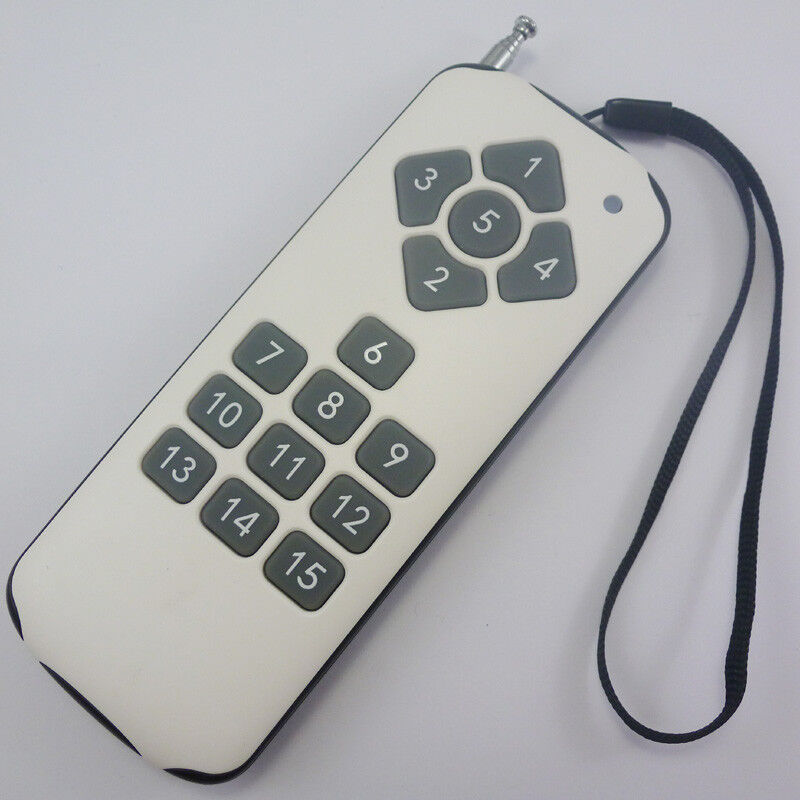

Qty : 1 pcs 15 Button Fixed code remote ;



The super thin large power button 15 remote thin volume, silica gel button design, handle sensitive and numerous keys is very suitable for the kind of need to control many occasions, such as LED light control, sand control, data wireless input, intelligent home comprehensive control and so on, side with switching power supply more energy saving and environmental protection.

Technical parameter:

Working voltage: 12V 23A . ( please buy battery from this link : https://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l1313.TR12.TRC2.A0.H0.X12V+23A+.TRS0&_nkw=12V+23A+&_sacat=0 .)


Working current: less than 25mA

Quiescent current: 0mA

Operating frequency: 433MHz .

Chip type: SCT2260 encode IC .

Shock resistance: 4.7M

Launch distance: 50-100m (open environment)

Modulation: ASK am

Size: 131.7*53*15.3mm

Weight: 0.065KG



Relay receiver :
Typical applications:
DC 12V Home lighting system
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360

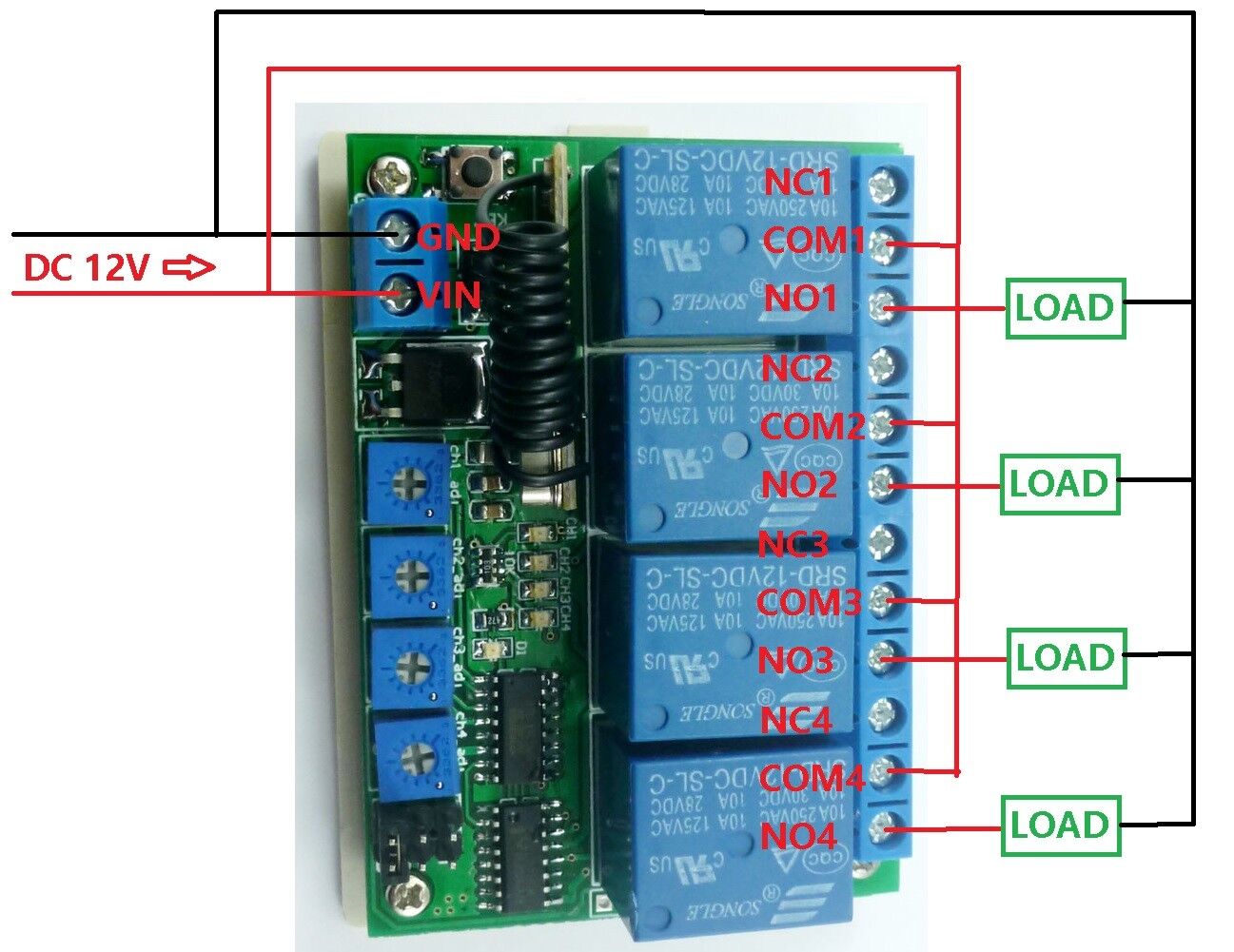

Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V

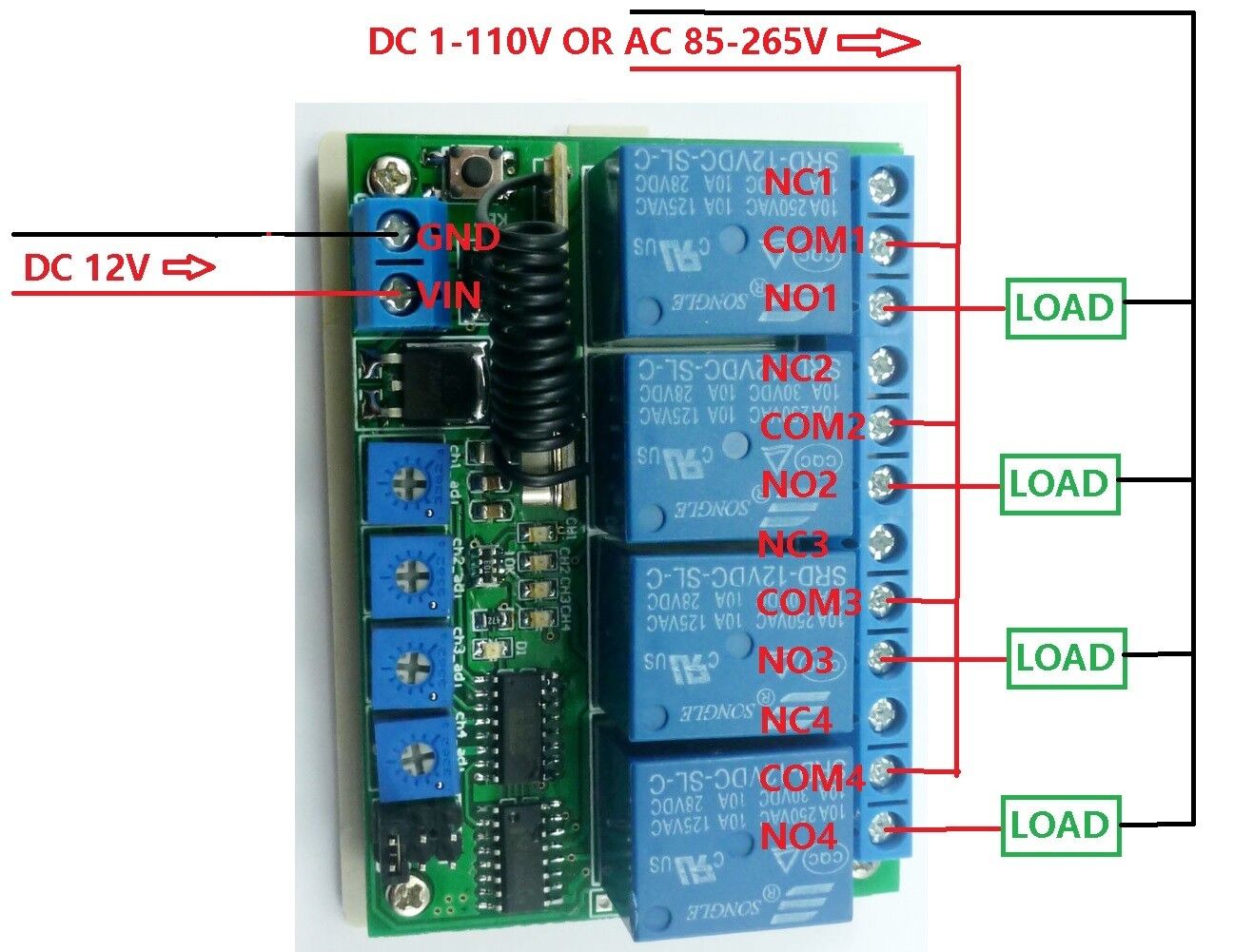

Wiring Diagram 2:

DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment

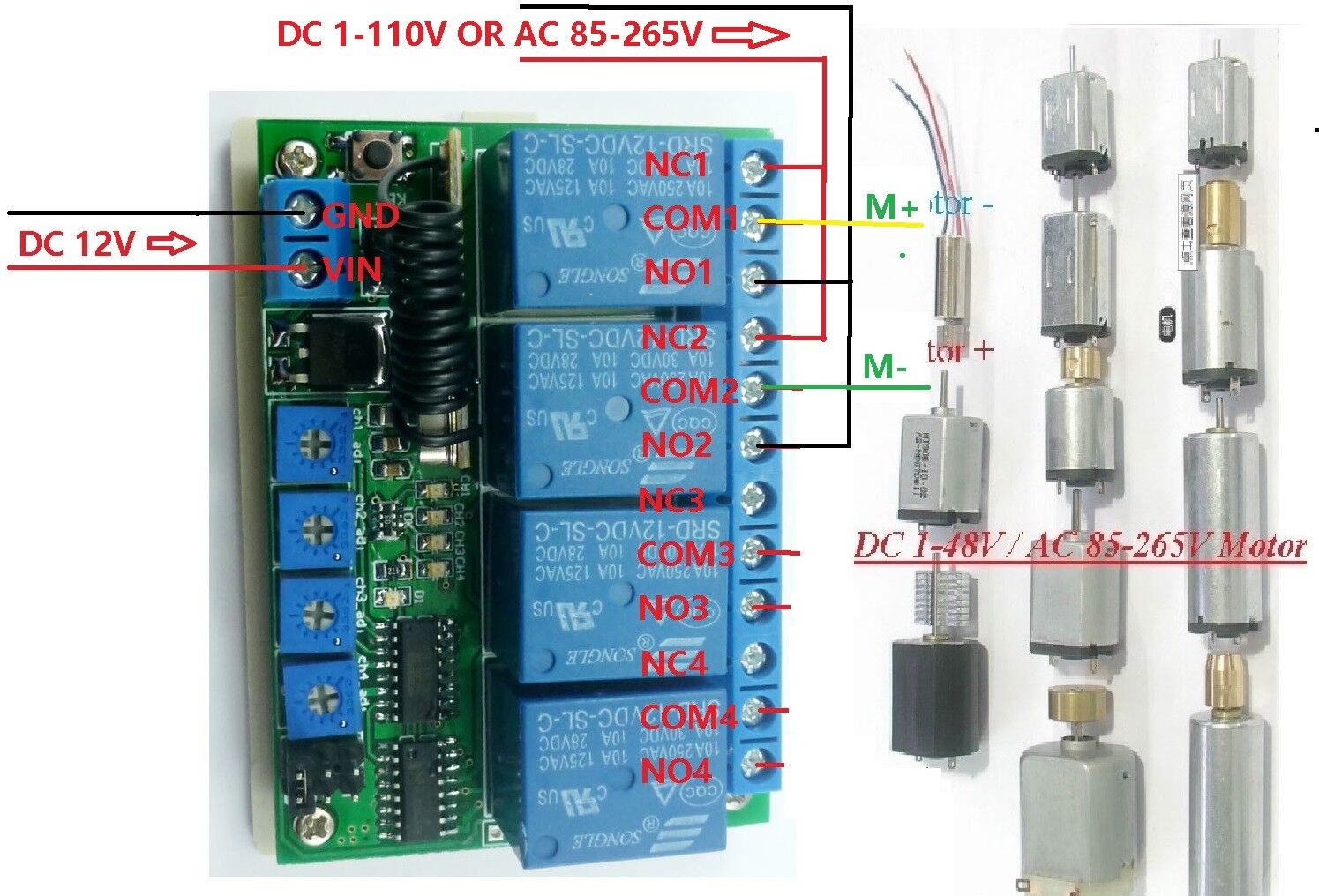

Wiring Diagram 3:
All kinds of motor reversing control: DC 1-110V or AC 85-265V DC/AC Motor




Product Name : DC 12V 4CH 433MHz Delay RF Wireless Relay Controller For PT2262 EV1527 Encoder

Module No.: CE-RF22A04

Packing list:

1 PCS 433M DC 12V 4 Channel Multifunction Wireless Controller
Features:
1 Operating voltage : DC 12V
2 Operating Current: Standby current (all relays closed) 15MA, 1 relay open 42MA, 2 relays open 62MA, 3 relays open 94MA, 4 relays open 121MA
3 Operating frequency: 433.92M;

4 Receiver sensitivity : -108dBm

5 Decode : learning code, can be adapted EV1527 / PT2262(Click here)and compatible remote control, you can store up to 8 remote control

6 Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay; Delay adjustable from 0.1 to 100 seconds, 0.1 seconds Resolution.
7 Size(Including housing)75*54*28mm
8 Weight: 77g
9 Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC ,10A/12VDC
Advantage :

1: Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 OR Pt2262 remotes to re-learn;

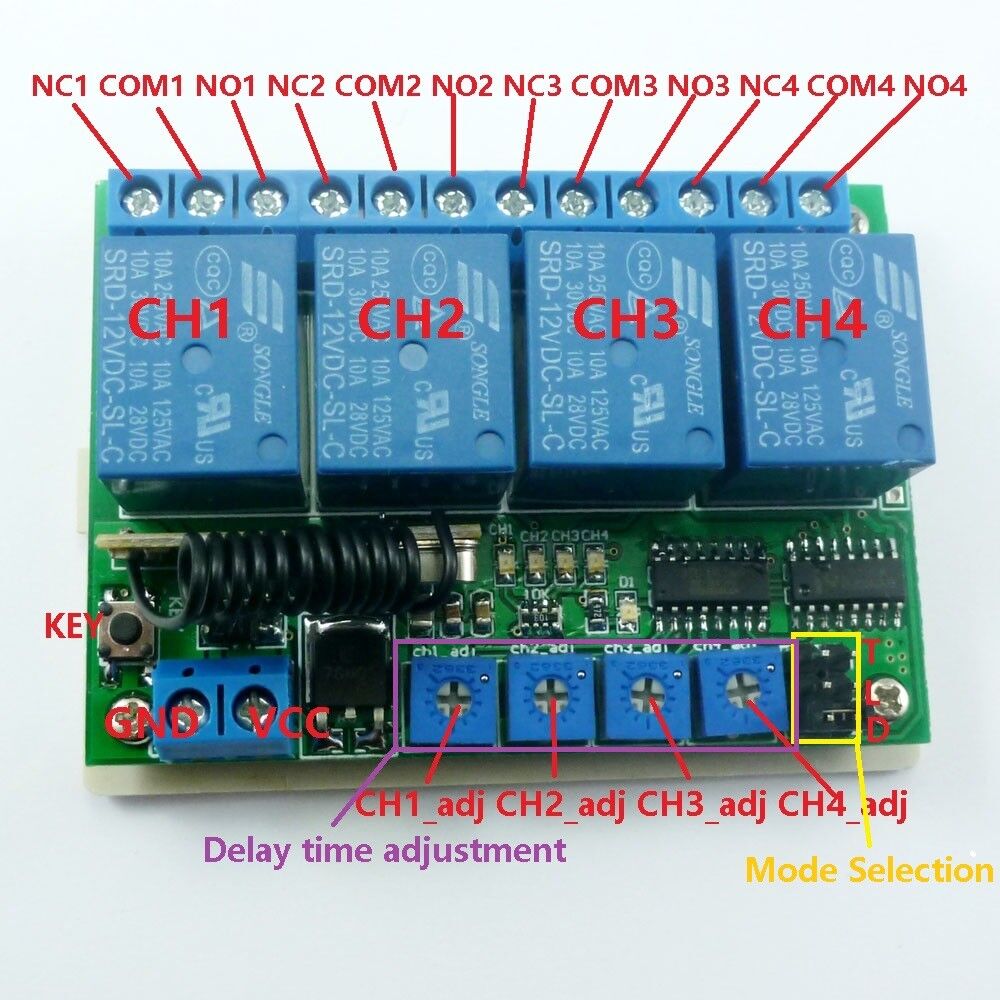

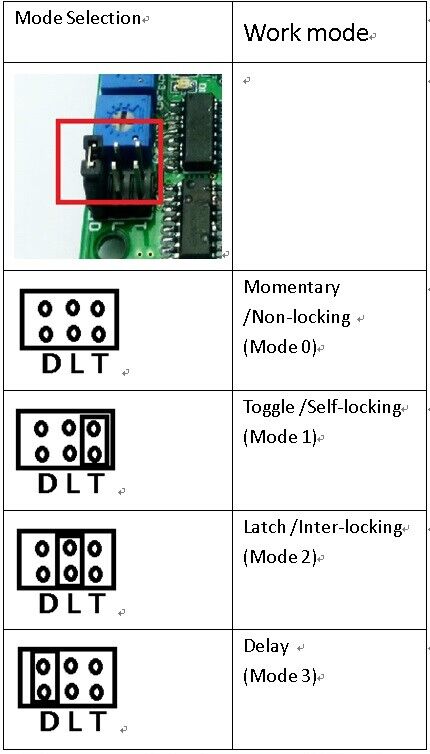

Work mode

Delay mode user guide :

1 In delay mode(Mode 3),with a suitable screwdriver and gently rotating adjustable resistance;Clockwise, increasing delay,Counter-clockwise, the delay is reduced

2 Delay adjustable from 0.1 to 100 seconds, 0.1 seconds Resolution.
Glossary:

NO : Relay normally open contact

COM : Relay common contact

NC : Relay normally closed contact

Open : NO connection COM, NC disconnect COM

Close : NO disconnect COM, NC connection COM

Momentary : Press the Transmitter button A, the receiver Channel 1 is Open, release button A; the receiver Channel 1 is Close, the same as B ,Every Channel is Independent ;

Toggle : Press transmitter button A for 1 time , the receiver Channel 1 is Open, press button A again, the receiver Channel 1 is Close, the same as B. Every Channel is Independent ;

Latched : Press transmitter button A, the receiver Channel 1 is Open, the Channel 2 is Close.

Press transmitter button B, the receiver Channel 2 is Open, the Channel 1 is Close.

Delay : Press the Transmitter button A, the receiver Channel 1 is Open,After a set time delay, the receiver Channel 1 is Close, the same as B ,Every Channel is Independent;

If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close



Adapter remote control (learning remote control):

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes





Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)





Step 1 (into the learning mode): Press the button (about 1 second), LED off;



Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value



Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values



Step 4 (Adaptation Channel 3): Then press the third button on the remote control, LED flashes four times brighter, then learned two key values



Step 5 (Adaptation Channel 4): Then press the fourth button on the remote control, LED flashes four times brighter, then learned two key values
