CE001 433M 2CH RF GSM PSTN Wireless Home Security Alarm Burglar System for Arduno

CE001 433M 2CH RF GSM PSTN Wireless Home Security Alarm Burglar System for Arduno

CE001*1+CJ002*1

1000 in stock

$20.98
$20.98 $20.98
Sale Sold out

You may also like


433M 2CH RF Module GSM PSTN Wireless Home Security Alarm Burglar System Arduino

Product Description




433M 2CH RF Module GSM PSTN Wireless Home Security Alarm Burglar System Arduino

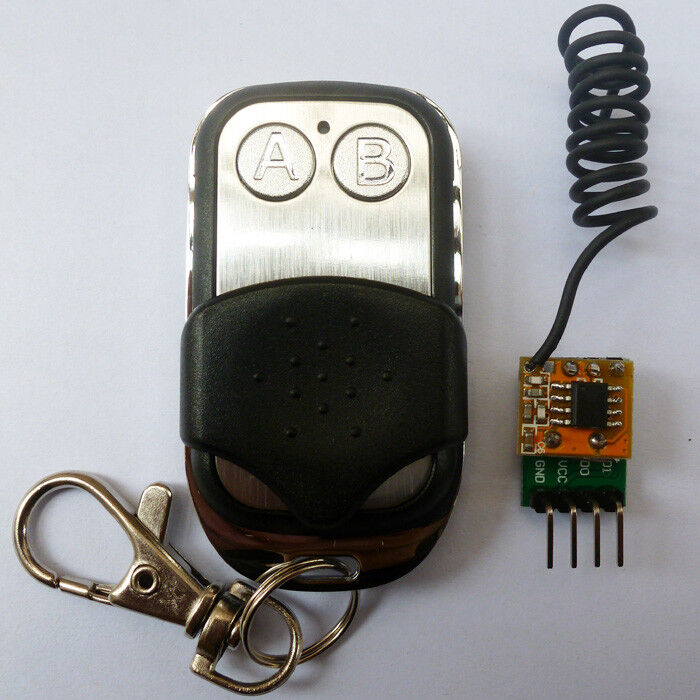

Qty: 1 PCS 2channel receiver module and 1 pcs transmitter remote . (This remote doesnot have a battery inside )



Typical Applications :
Model airplane;
Car Security System;
Garage Door Controller;
Remote Control Fan;
Home Security/Automation System;
Remote Control Toys;
GSM/PSTN Alarm ;

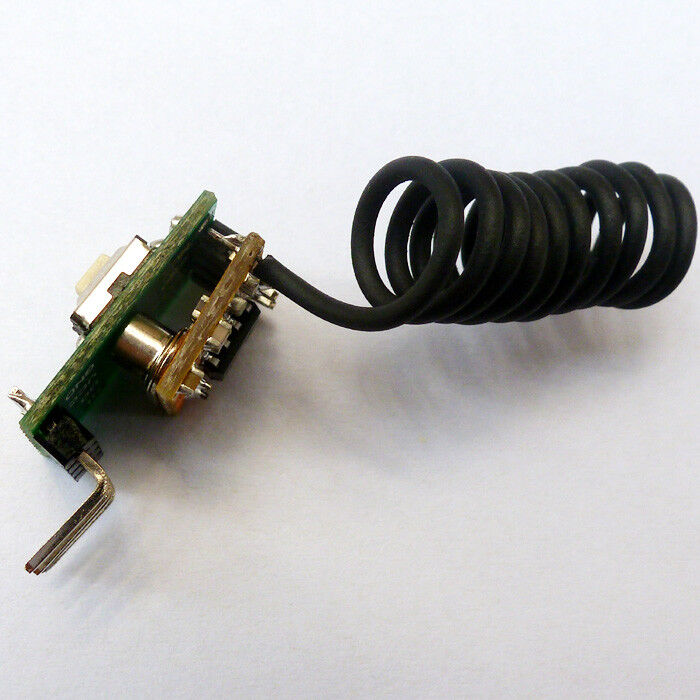

Receiver Modules No: CE001;


Dimension:
Size (LxWxT): 17 * 12 * 9mm;
Weight: 2g (not including antenna) , 3g (including the antenna);
Very small and light Receiver Module(Use Model airplane Model car is Perfect!)

Specifications:

Operating voltage
5.0VDC ±0.5V

 Working priceple

 can work with transmitter signal from PT2262 SC2262 EV1527 PT2264 PT2260

Operating frequency
433MHz
 Receiver Sensivity  -107dBm

modulation Mode
ASK/OOK

Operating temp.
-10 °C ~ +60 °C
Antenns length
20 cm (315 MHz), 18 cm (433.92 MHz)

Output signal

2 Channels output , TTL level ,

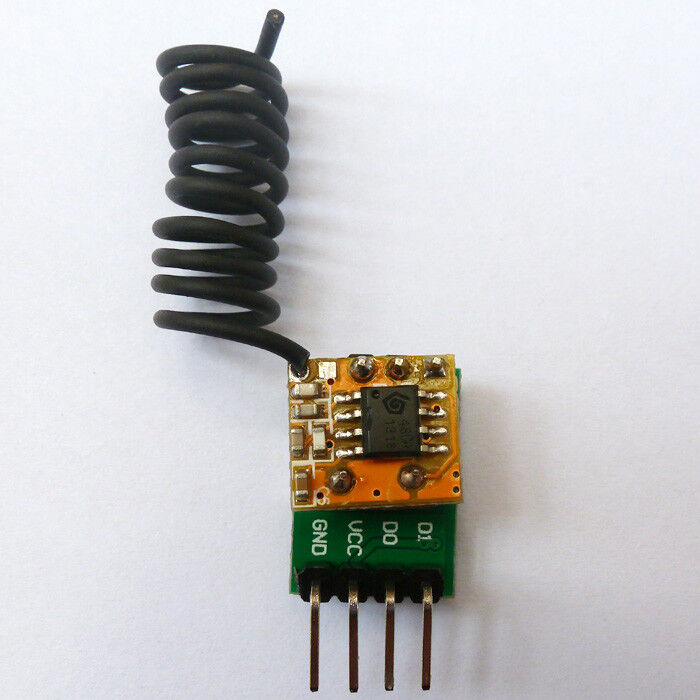

Pin assignment :
GND: Connect to Ground ;
VCC: Positive Power Supply DC 5V (range 4.5 ~ 5.5V);
D0 channel :  0 output. Sink current up to 20MA, pull current 270UA ;
D1 channel :  1 output. Sink current up to 20MA, pull current 270UA ;


Output pin connection :

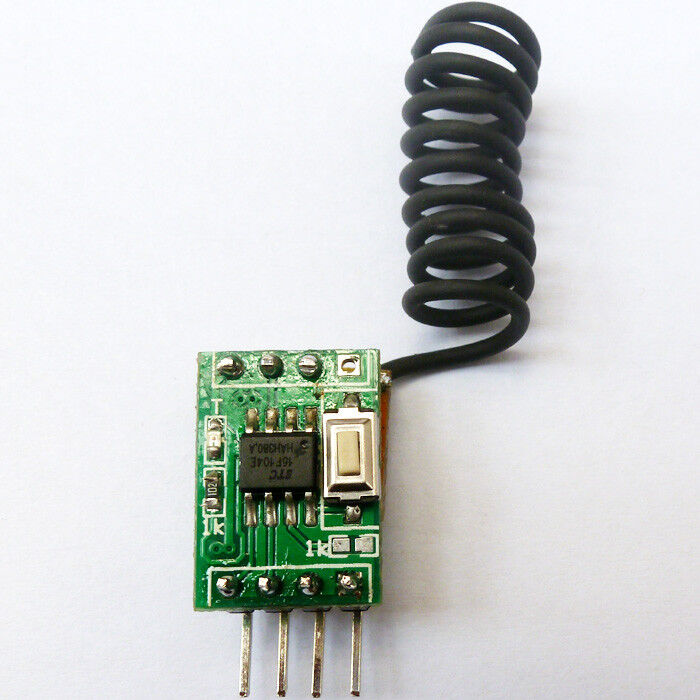

User guide :

Delete Memory :
Keep press S1 button ， LED is on and off after 8 second , then it mean Deleting successfully ;

Learing to Memory :
(1): Press S1 button until LED is on , release S1 button ,  this receiver enter program status ;
(2): press " button 1 " on the remote, LED blink quickly , it mean "button 1" was memoried by channel "D0" ;
(3): press " button 2 " on the remote, LED blink quickly , it mean "button 2" was memoried by channel "D1" ;
Note :
The learning process must be completed within the 10 second, or it will automatically quit program status ;
How to quit program status while in program status :
(1) Keep pressing S1 button , it will quit program status when LED is off ;
(2) Don't press any thing and it will auto quit program status ;

Output mode :

A.singnal Non-locking (Momentary)----Disconnect J1 (defult is Momentary) ;

B.singnal Self-locking (Toggle) ---- connect J1；

Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF, the same as B/C/D ,Every channel is Independent ;

Toggle-------------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, the same as B/C/D. Every channel is Independent ;

Transmitter remotes:
Transmitter Module No.: YK004 -4 4 Bottons







Technical Data :
Transmitter Module No.: YK004 -4 4 Chanels
 Power supply : 12V 27A battery  replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK;
Operating frequency:433.92MHz ,Special frequency can be customized;
Frequency deviation:±0.2MHz;
Encoding format: Learning Code ( EV1527 ) ;
Transmit power:10 mW.
Data Rate : 50~60KHZ;
