TB377 433M FSK SmartRF Transmitter Module CC1150 replace CC1101 SPI UHF Wireless Board

TB377 433M FSK SmartRF Transmitter Module CC1150 replace CC1101 SPI UHF Wireless Board

TB377

1000 in stock

$13.48
$13.48 $13.48
Sale Sold out

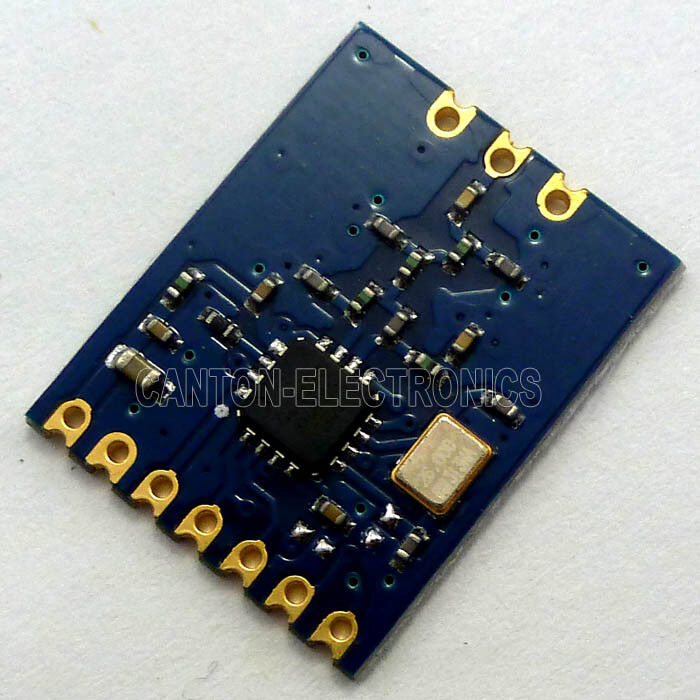

Product Name: 433M FSK Smart RF Transmitter Module CC1150 replace CC1101 SPI UHF Wireless Board

Module No.: TB377



Packing list:
1 pcs Smart RF Transmitter CC1150 Module;



Description:

Matching Receiver Module : CC113L Receiver Module  (Also can be CC1101 Transceiver Module)
Operating Volt :1.8-3.6V
Frequency : 433M(400-466M)
Carrier frequency error : +-1KHz
Modulation Techniques:2-FSK GFSK MSK OOK ASK
Transmitting power : -30dBm~+10dBm
Emission current: <30mA
Sleep Current : <200nA
Transfer rates : 1.2-500Kbps
Antenna Impedance : 50Oohm
Operating Temperature : -20~+75 °C
Storage Temperature : -50~+125°C

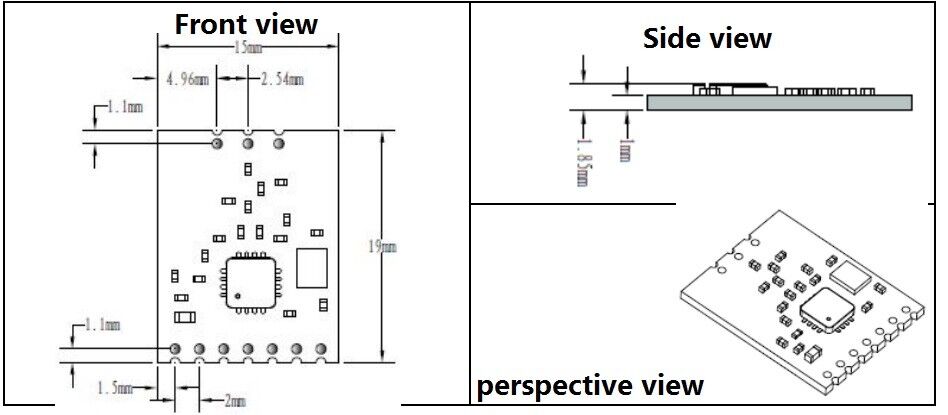

PCB Size : 19x15x1.85mm

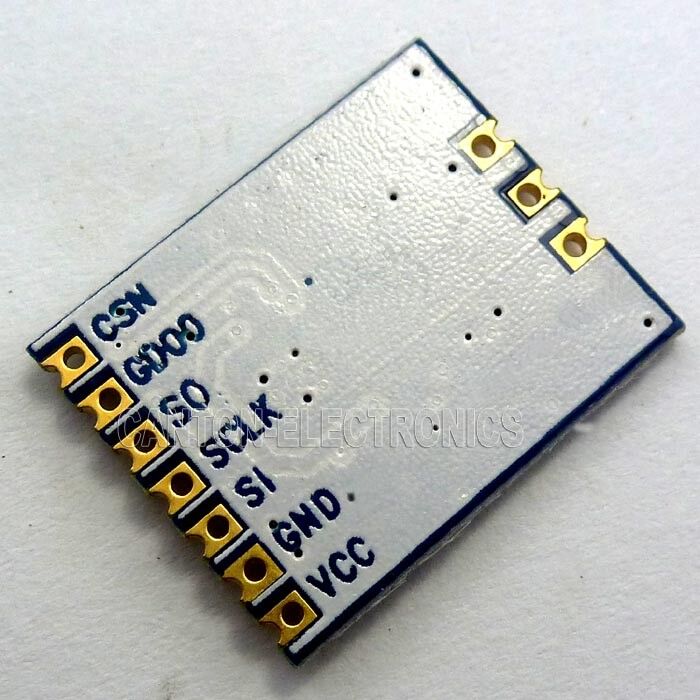

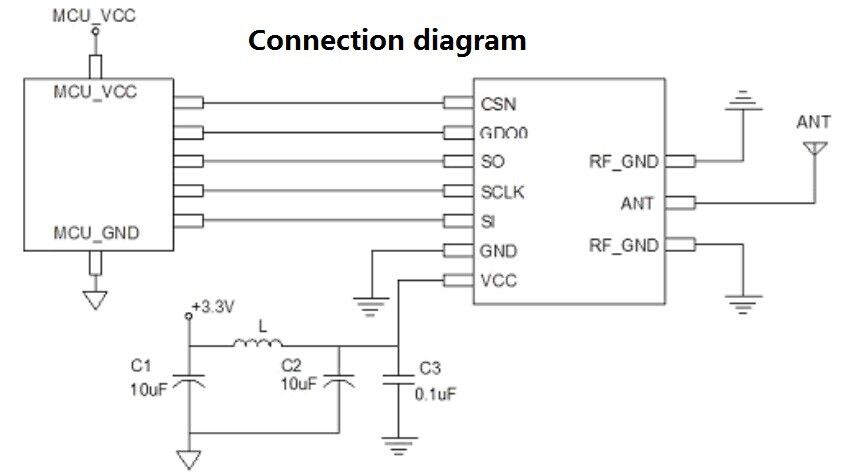

Pin Description：

VCC   : Power Supply,DC 1.8~3.6V,Generally used for 3V 3.3v system
GND   : Power Ground
SI        : SPI data input
SCLK : SPI clock input
SO      : SPI data output
GDO0 : Digital IO
CSN    : SPI Chip select signals,=0 Valid
ANT    : Antenna port,Using 50 ohm impedance of the antenna




APPLICATIONS:


Ultra low power UHF wireless transmitters
Operating in the 315/433/868/915 MHz ISM/SRD bands
AMR – Automatic Meter Reading
Consumer Electronics
RKE – Remote Keyless Entry
Low power telemetry
Home and building automation
Wireless alarm and security systems
Industrial monitoring and control
Wireless sensor networks
