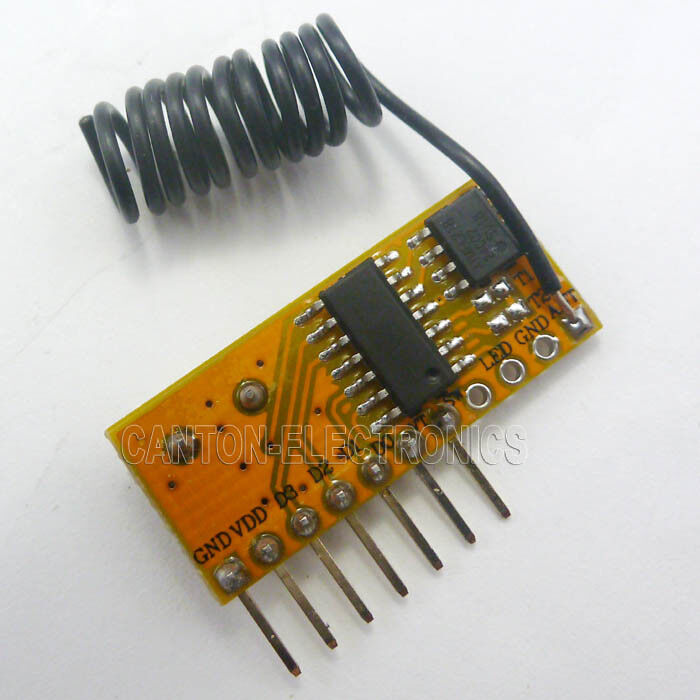

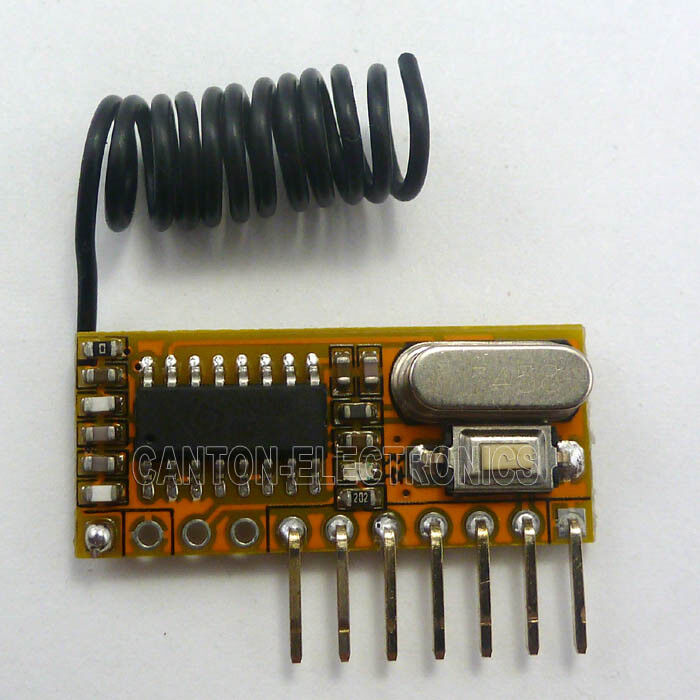

CE006 433MHz 4ch EV1527 PT2262 Decode Module RF Receiver for Arduno Plug-in DUE

CE006 433MHz 4ch EV1527 PT2262 Decode Module RF Receiver for Arduno Plug-in DUE

CE006

1000 in stock

$10.00
$13.48 $10.00
Sale Sold out


Product Name: 433MHz 4ch EV1527 PT2262 Decode module RF Receiver for Relay LED Arduino DUE UNO

Modules No: CE006

You may need to matching remote control，Purchased from here.

Qty:
1 pcs 433M 1527/2262 Superheterodyne
 Receiver decoder module；

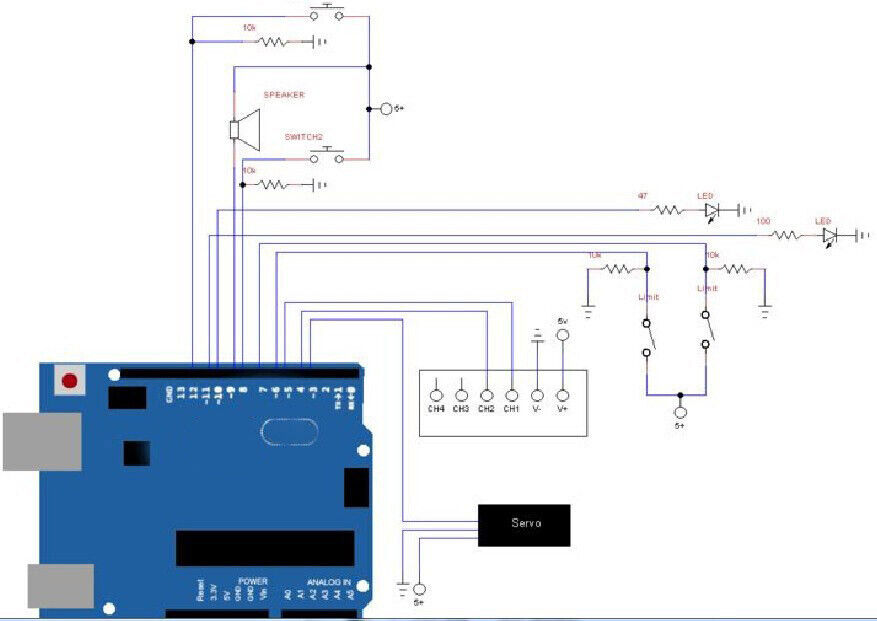

Demo :

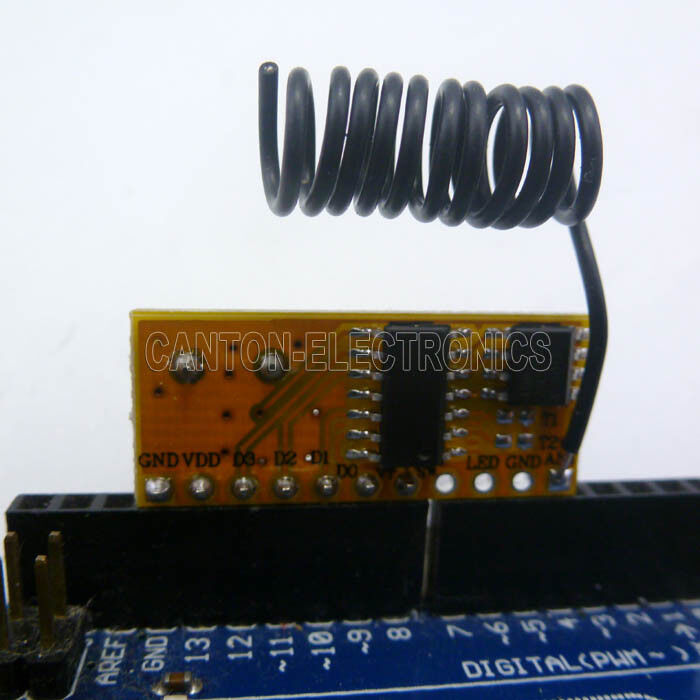

Can directly insert Arduino UNO/MEGA2560(also can use other MCU:ARM FPGA/CPLD PIC AVR Etc.)

Model No.
CE006

Operating voltage
3.3V-5.5V

 Working priceple

 Super Heterodyne receiver with decoder , learning type . decoding PT2262, PT2260, PT2240, EV1527 and other learning codeto chip or compatible chips, can learn and store 30 pcs different coded remote control. Intelligently distinguish shock resistance between fixed code and learning code , such as PT2262 and EV1527.

Static current
≤6 mA (DC 5V)

Operating frequency
433MHz

modulation Mode
ASK/OOK

Receiving sensitivity
 -110 dBm (50 Ω)

Speed
< 2.4 K bps

Operating temp.
-30 °C ~ +85 °C
Max rate 2.4 KHZ
Antenns length
18 cm (433.92 MHz)

Dimension
28*12.5*5mm

Output mode

TTL level , Momentary, Latch, Toggle ,user can set it  by welding, Momentary is defult.

IO Drive

 Sink Current (Low level drive) 15mA,source current(High level drive) 12mA

matching remote control，Purchased from here.

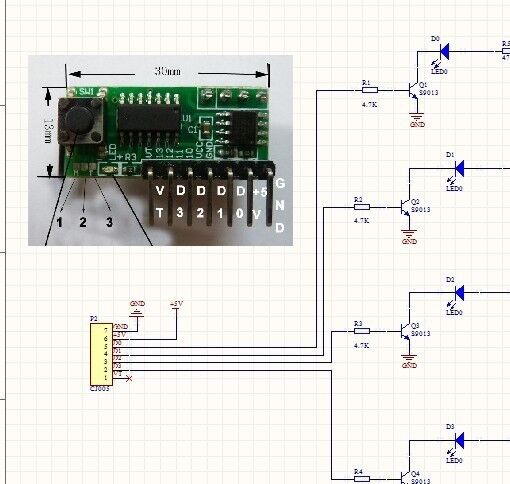

Output mode：

A.singnal Non-locking (Momentary)----disconnect T1 and T2 ;

B.singnal Self-locking (Toggle) ---- disconnect T1 and connect T2 ;

C.singnal Inter-locking (Latch) ---- connect T1 and disconnect T2 ;

Inter-locking (Latch): 4-way relay each other to switch, when relay A  is working and locked  ,  relay B C D corresponding to switch off; when B is working and locked , corresponding relay A C D swith off ; Only 1 relay is on among 4 relays A B C D;

Non-locking  type (Momentary): Press A and hold it , then A is on.Same as Relay B C D ;

Self-lock type (Toggle): 4 chanels opens and closes independently, 4 chanels can work together ,they don’t affect each other . press A button, A relay of work and locked, press again then  disconnected; Same as B C D .


User guide :
1: Learing ID : Press learning button(Key button) 2 seconds, LED is flashes once and beginning to learn ;after learning success , LED will flash for a while .
2: Delete ID : Keep pressing learning button for 8 seconds , LED will be on and enter deleting . LED off means finishing deleting;
3: Antenna with a soft wire or other hard metals (such as whip antenna), try to straighten. Do not go near metal objects;
4: Power supply voltage requires stable and low ripple factor, multi-level filtering (such as adding beads, inductors, capacitors, etc.);
