Product Name:433MHz Arduino Remote Control UART PC USB RF Wireless Relay Controller PT2262


We provide ARDUINO sample code , please contact after your order at Ebay message .


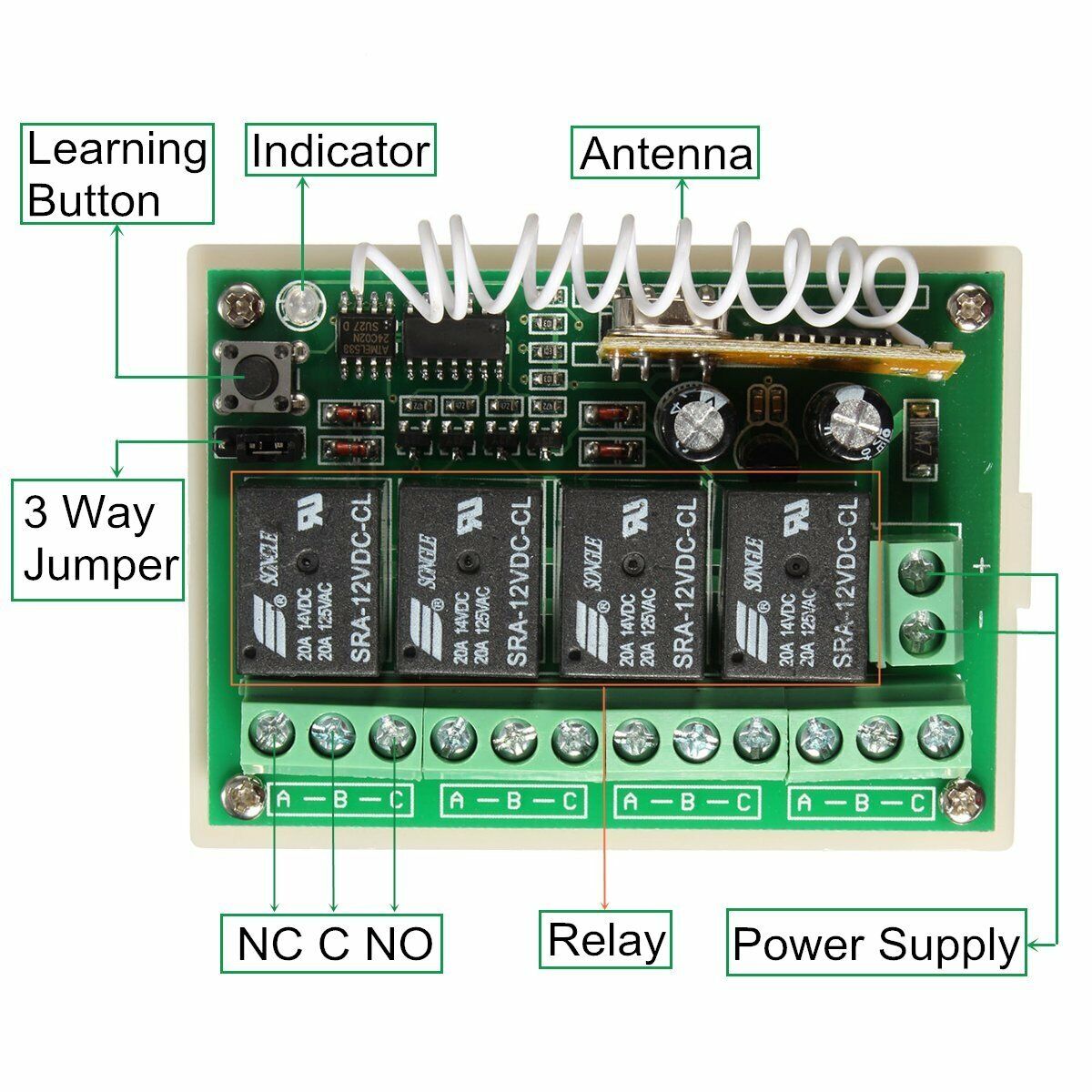

Output:

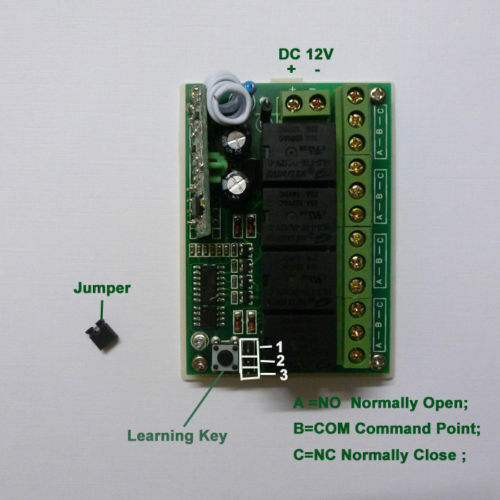

A.singnal Inter-locking (Latch)----connect 1  and 2 ;

B.singnal Self-locking (Toggle) ---- connect 2 and 3 ;

C.singnal Non-locking (Momentary ) ---- disconnect the jumper ;


Inter-locking (Latch): 4-way relay each other to switch, when relay A  is working and locked  ,  relay B C D corresponding to switch off; when B is working and locked , corresponding relay A C D swith off ; Only 1 relay is on among 4 relays A B C D;

Non-locking  type (Momentary): Press A and hold it , then A is on.Same as Relay B C D ;


Self-lock type (Toggle): 4 chanels opens and closes independently, 4 chanels can work together ,they don’t affect each other . press A button, A relay of work and locked, press again then  disconnected; Same as B C D .



Learning method and steps

1.       Press any key on remote control within 5 seconds , LED flash 3 times and then turn on , then it have success in learning .

Clear the deposit information

Keep Pressing Learning Key , LED turns off , Wait 10 Seconds , LED turn on , that deposited information has been successfully cleared ;




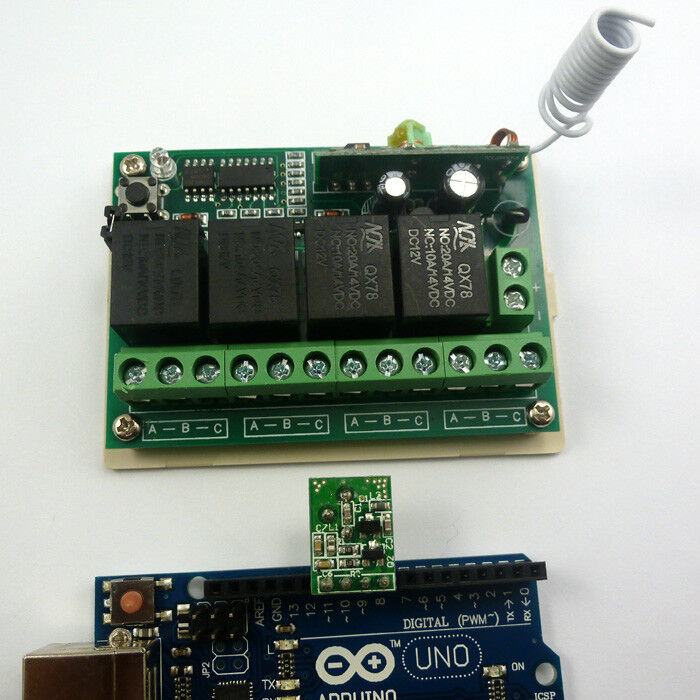

Software control:
How to use:send "a" trigger A channel relay,send "b" trigger A channel relay,Etc.


arduino core fragment(complete code through ebay message  Request):

//Author: cantone-electonics
//Arduino 1.0
//Arduino uno R3
//Making a wireless remote control with arduino

const int data_out = 2;//encoder DOUT

 //LED pin,When receiving the key from the serial port, LED flash
const int ledPin =  13;    //LED pin
// OSC Resistance is 3.3M
const int Osc_4xCycle = 359; //4 oscillating time periods
const int Osc_12xCycle = 1078;//12 oscillating time periods

unsigned long Temporary[3];//Temporary storage unit

...

//send:8 Address Bits, 4 Data Bits, Sync bit
void send_data()


void setup() {
  // initialize the LED pin as an output:
  pinMode(ledPin, OUTPUT);
   // initialize the encoder DOUT pin as an output
  pinMode(data_out, OUTPUT);

  Serial.begin(9600);

}

void loop()
{
  ...

  while(1)
  {
    //get key from pc serial port
    while (Serial.available() > 0)
    {
        keydata = Serial.read();
        receive_flag = 1;
        delay(2);
    }

    if(receive_flag == 1)//if get key,send key
    {

    receive_flag = 0;

    if((keydata == 'a') || (keydata == 'A'))//trigger A channel relay.
    {
      Temporary[2] = 0xC0;// 0xC0 is A button key
      digitalWrite(ledPin, HIGH);//Turn on led
      send_data();//send code word
       Serial.println(".....trigger A channel relay.....");
    }
    else if((keydata == 'b') || (keydata == 'B'))//trigger B channel relay.
    {
      Temporary[2] = 0x30;// 0x30 is B button key
      digitalWrite(ledPin, HIGH);//Turn on led
      send_data();//send code word
      Serial.println(".....trigger B channel relay.....");
    }
     else if((keydata == 'c') || (keydata == 'C'))//trigger C channel relay.
     {
      Temporary[2] = 0x0C;// 0x0C is C button key
      digitalWrite(ledPin, HIGH);//Turn on led
      send_data();//send code word
      Serial.println(".....trigger C channel relay.....");

     }
     else if((keydata == 'd') || (keydata == 'D'))//trigger D channel relay.
     {
      Temporary[2] = 0x03;// 0x03 is D button key
      digitalWrite(ledPin, HIGH);//Turn on led
      send_data();//send code word
      Serial.println(".....trigger D channel relay.....");
     }

    ...

  }
}




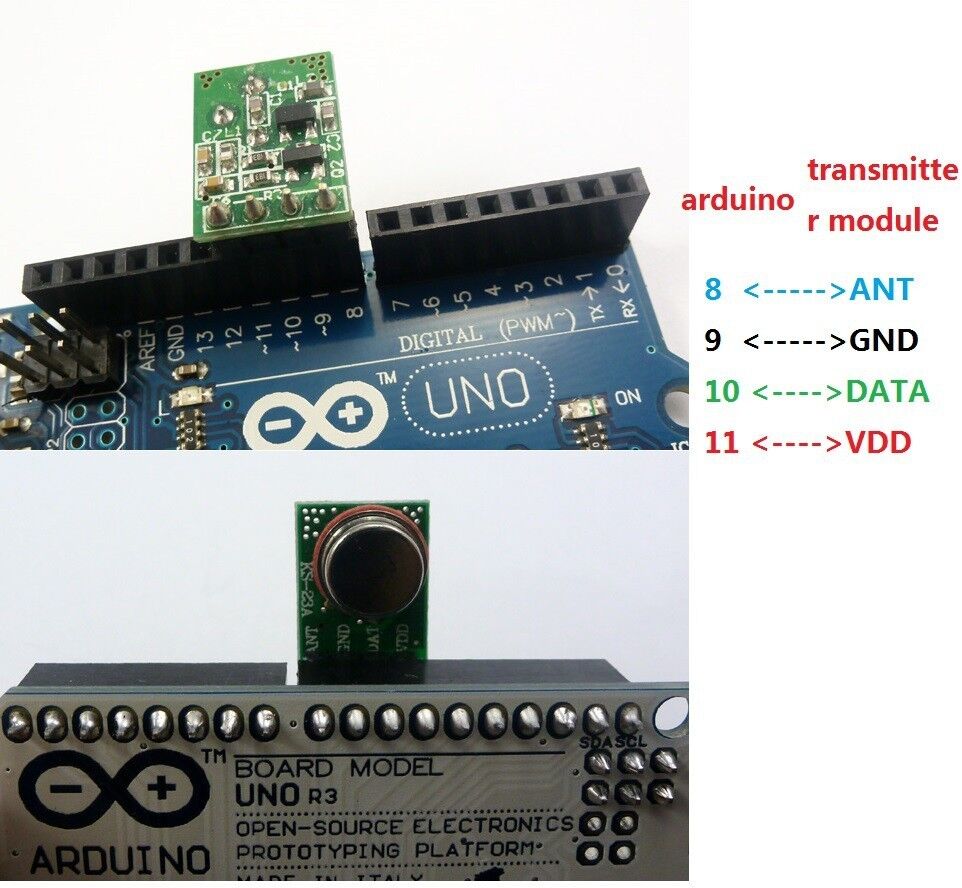

Similar connection :

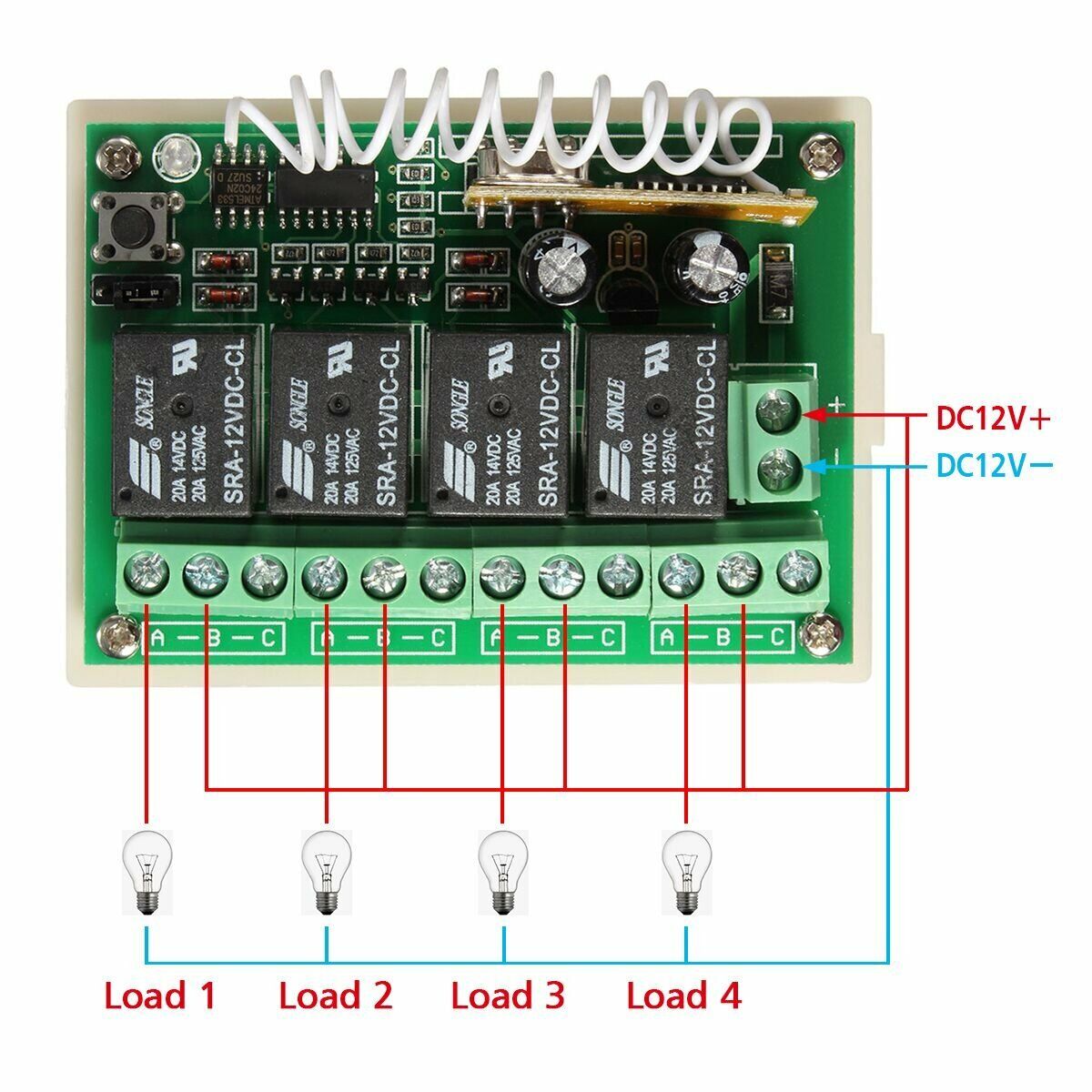

Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V





Wiring Diagram 2:

DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment

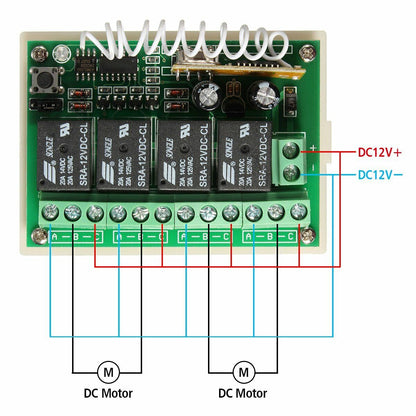

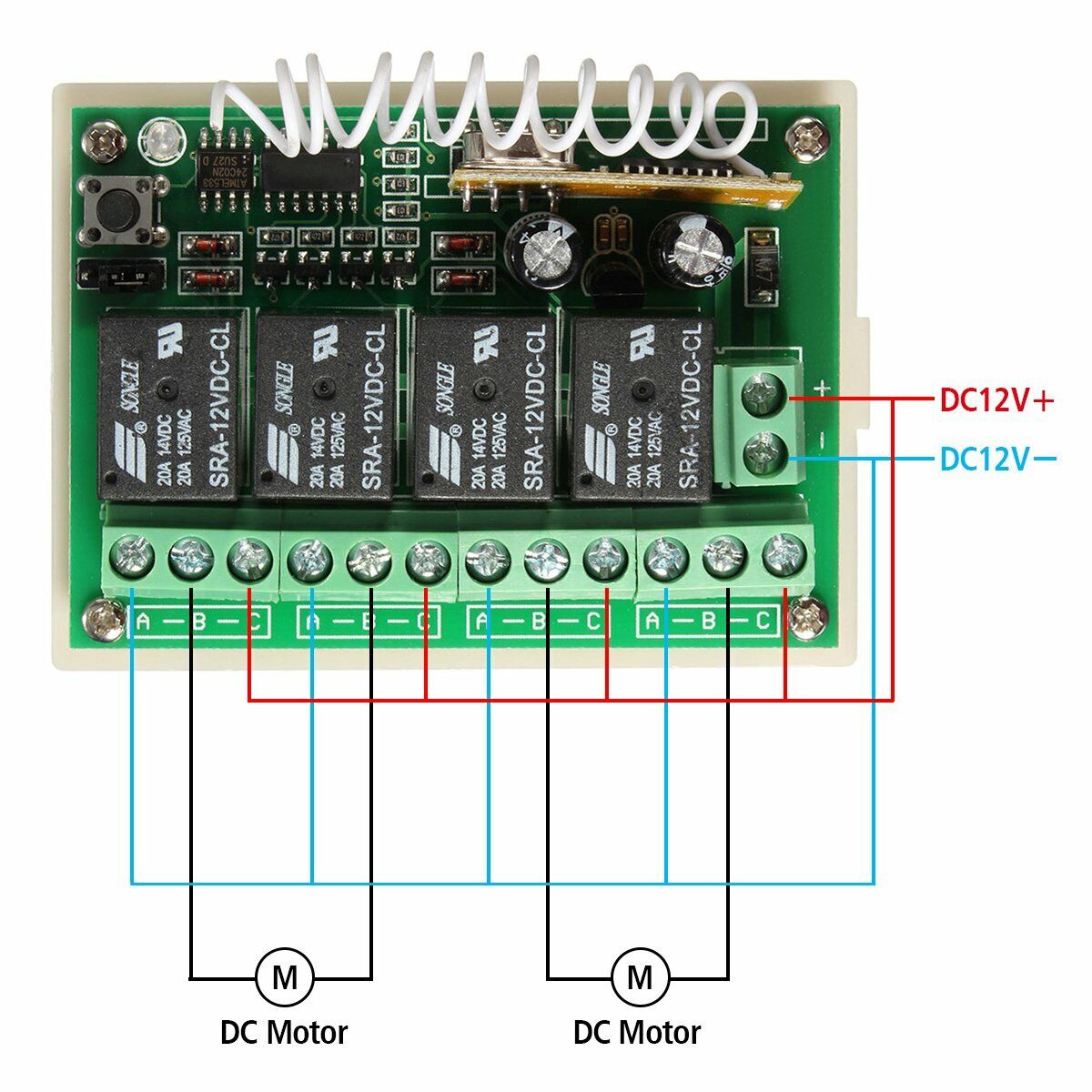

Wiring Diagram 3:
All kinds of motor reversing control: DC 1-110V or AC 85-265V DC/AC Motor
