CRTC42QA 4ch TYPE-C USB 3.7V 4.2V LiPo Polymer Li-Ion Lithium Battery Charger Module for Arduiuo power bank esp32 esp8266

Product Name: 4ch TYPE-C USB 3.7V 4.2V LiPo Polymer Li-Ion Lithium Battery Charger Module for Arduino power bank esp32 esp8266





Packing list:



1 PCS 4 channels CRTC42QA 1-cell 3.7V Lithium Ion Battery Charger Module



Description:

Power supply: DC 5V/>=2A
Charging voltage: 4.24V(±1%)
Protection of battery cell reverse connection

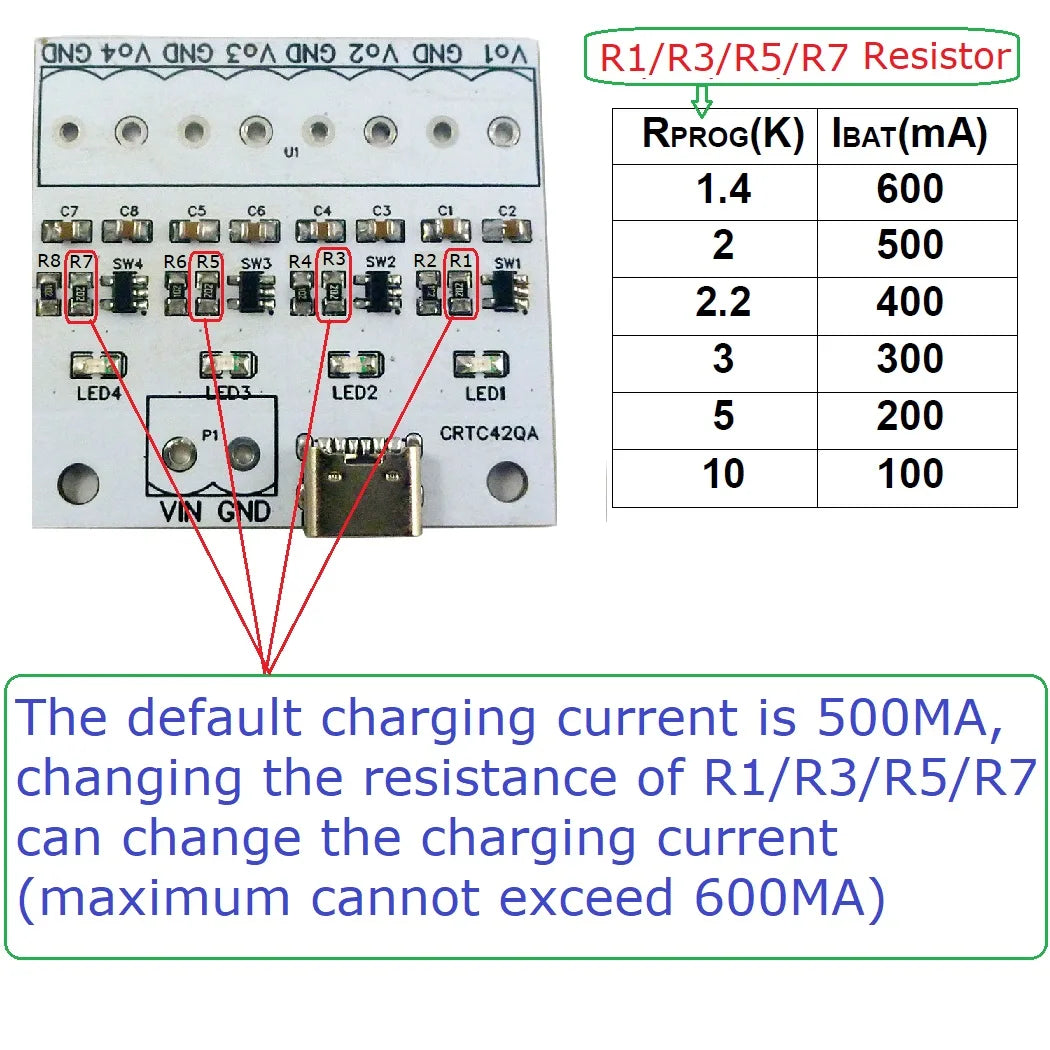

Charging current :500MA/Channel
Constant-Current/Constant-Voltage operation with thermal regulation to maximize Rate Without risk of overheating
Preset 4.24Vcharge voltage with ±1% accuracy
Automatic Recharge
C/10 charge termination
25μA supply current in shutdown
2.9V trickle current charge threshold
Soft-Start limits inrush current

Operating Ambient Temperature－40℃ to ＋85℃

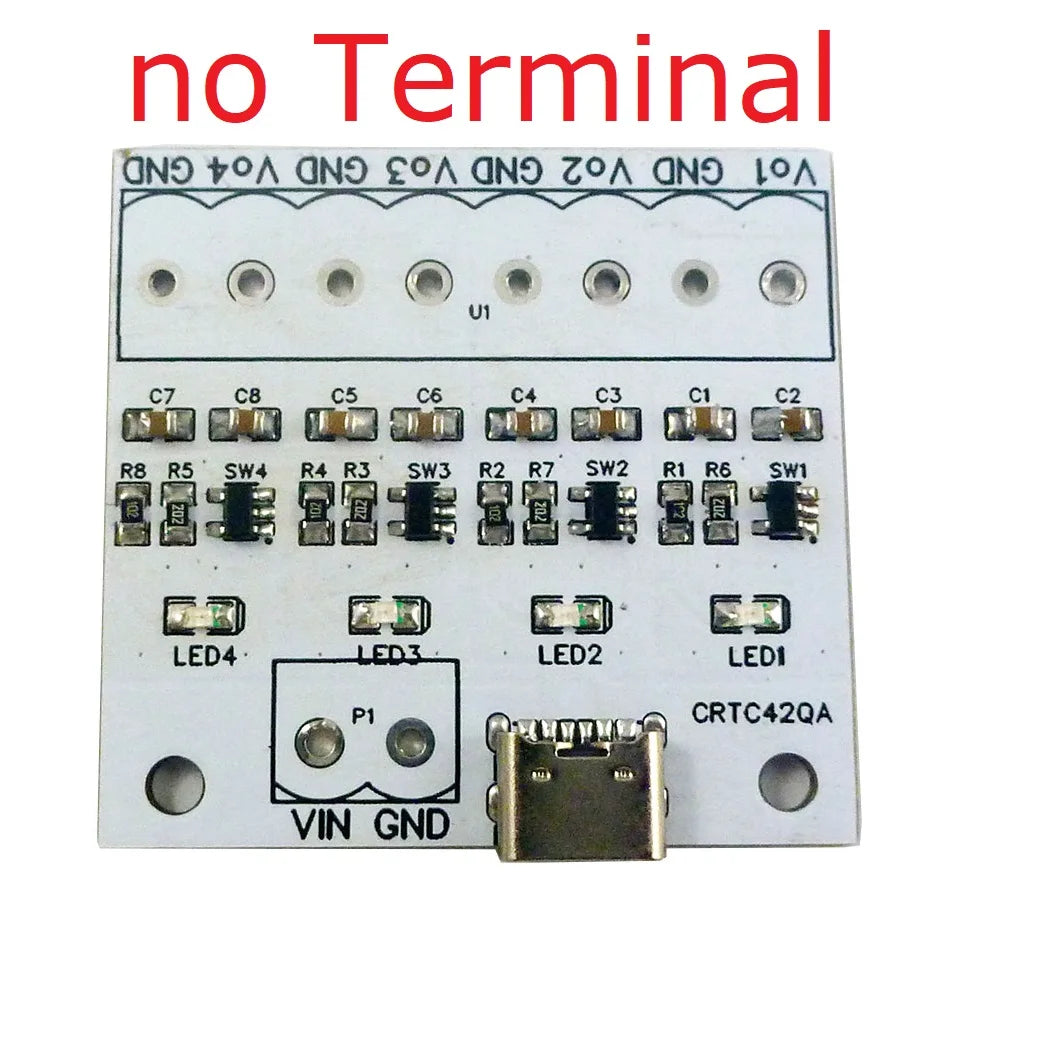

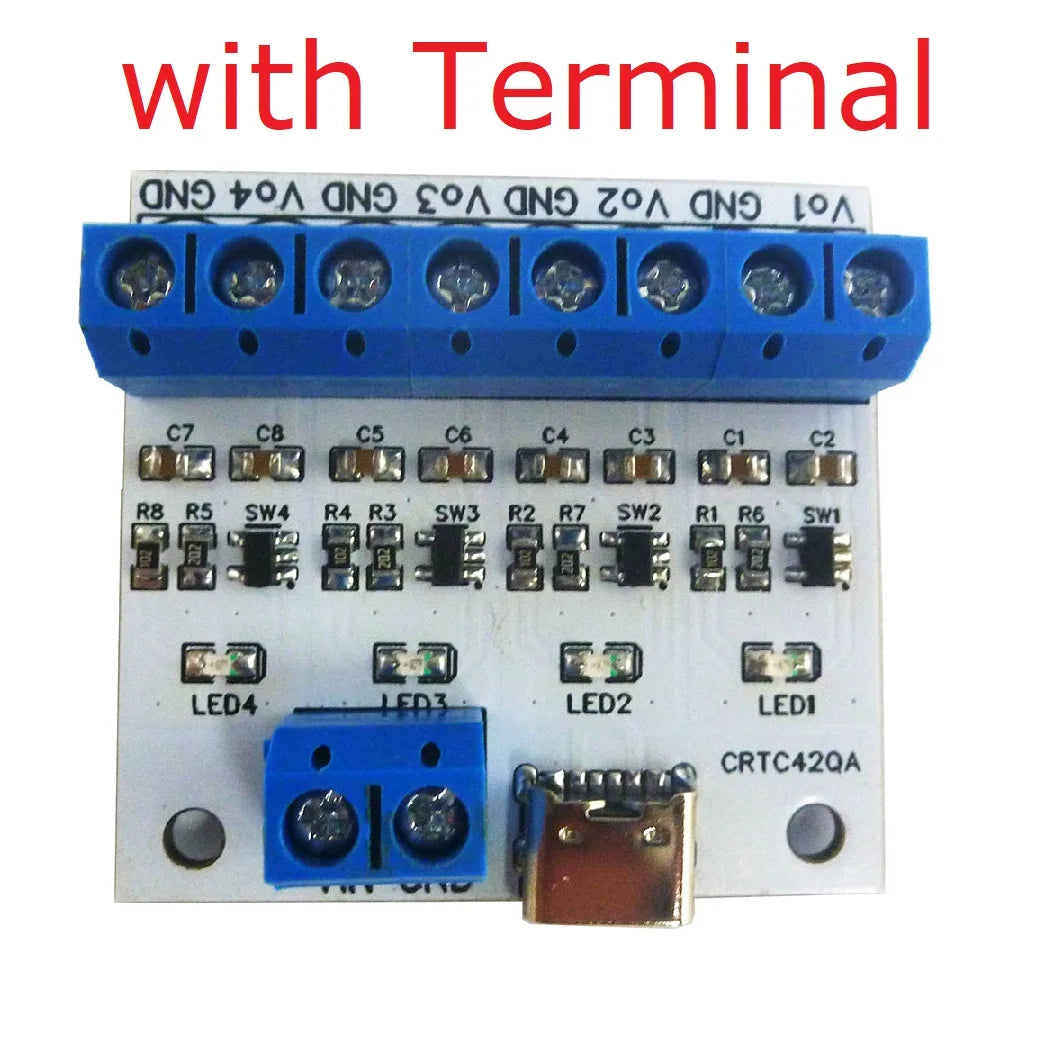

Size : 42mm x 40mm x 4.5mm(no Terminal), 42mm x 40mm x 13mm(with Terminal)
Weight : 6g(no Terminal),13g(with Terminal)


Note:

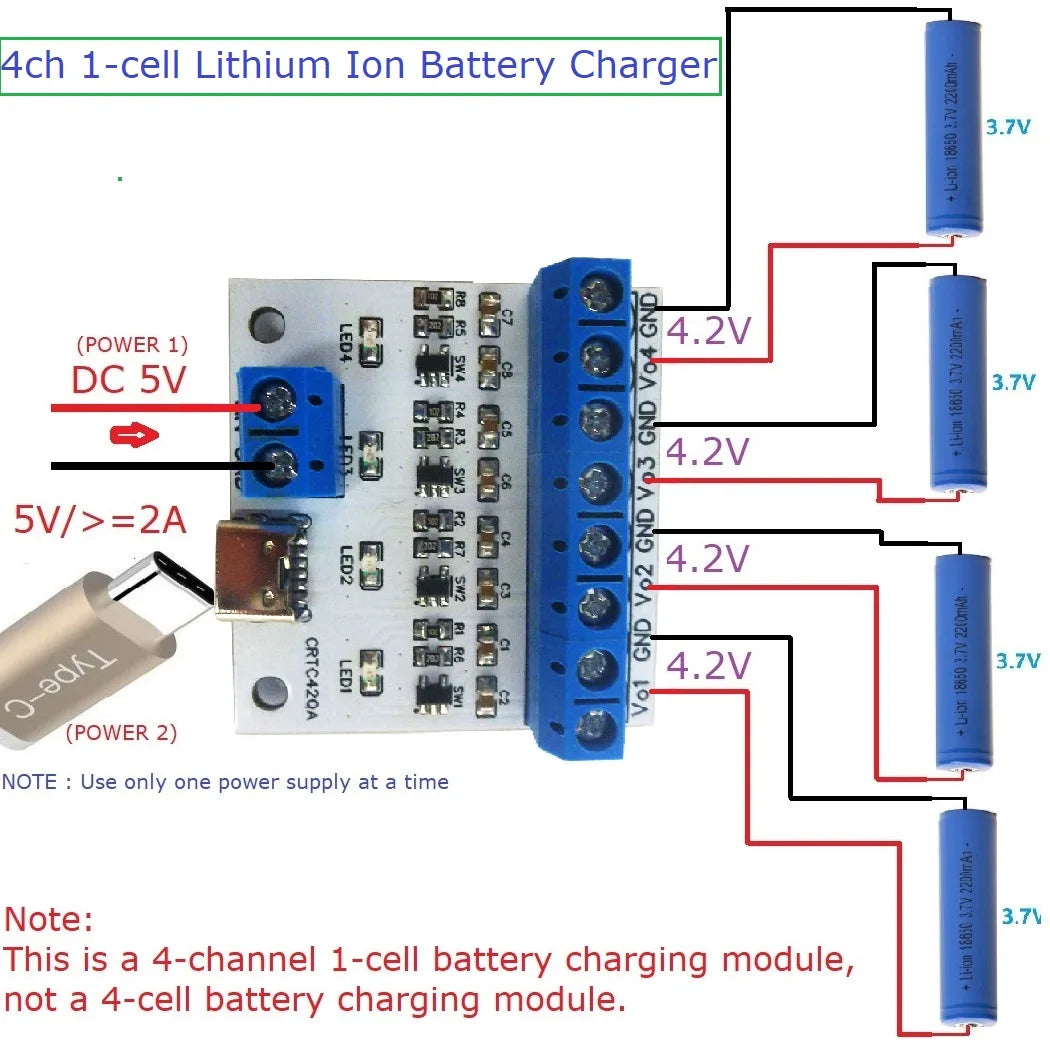

This is a 4-channel 1-cell battery charging module, not a 4-cell battery charging module.
4-cellbattery charging module search ''DDTCCRUB'' in our store
