CE006 TB195 5~12V TX + 5V RX 433MHz PT2262 for Arduino Decoder RF Wireless Link Kit

CE006 TB195 5~12V TX + 5V RX 433MHz PT2262 for Arduino Decoder RF Wireless Link Kit

CE006*1+TB195*1

1008 in stock

$9.99
$20.98 $9.99
Sale Sold out
5~12V TX + 5V RX 433MHz Arduino PT2262 Arduino Decoder RF Wireless Link Kit

Extra remote : https://www.ebay.com/itm/SC2262-PT2262-PT2264-433MHZ-ASK-OOK-Encoders-RF-Wireless-Transmitter-Modules-/281040355304?pt=LH_DefaultDomain_0&hash=item416f4f7fe8 .

EXtra receiver : https://www.ebay.com/itm/433MHz-4ch-EV1527-PT2262-Decode-Module-RF-Receiver-Arduino-Plug-in-DUE-UNO-/281407880577?pt=LH_DefaultDomain_0&hash=item4185377d81 .

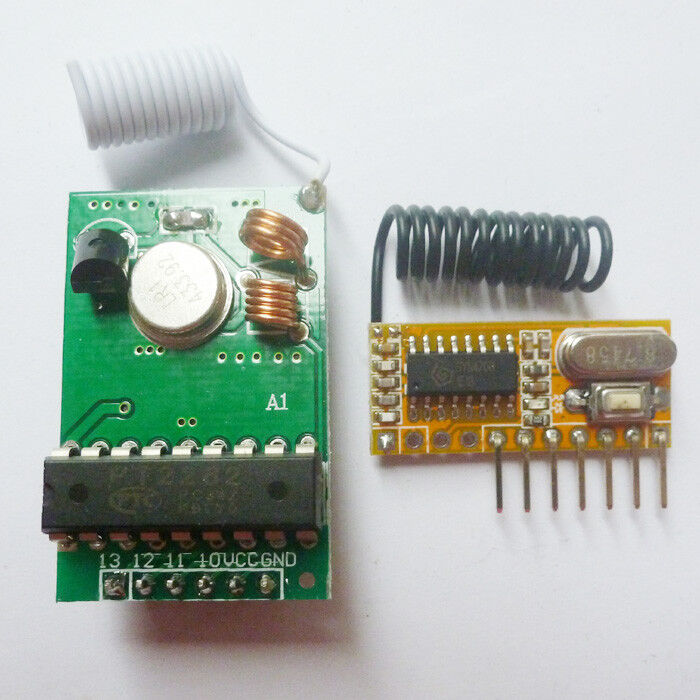

1PCS Super Heterodyne decoder receiver and 1 pcs PT-2262 encoder transmitter ;

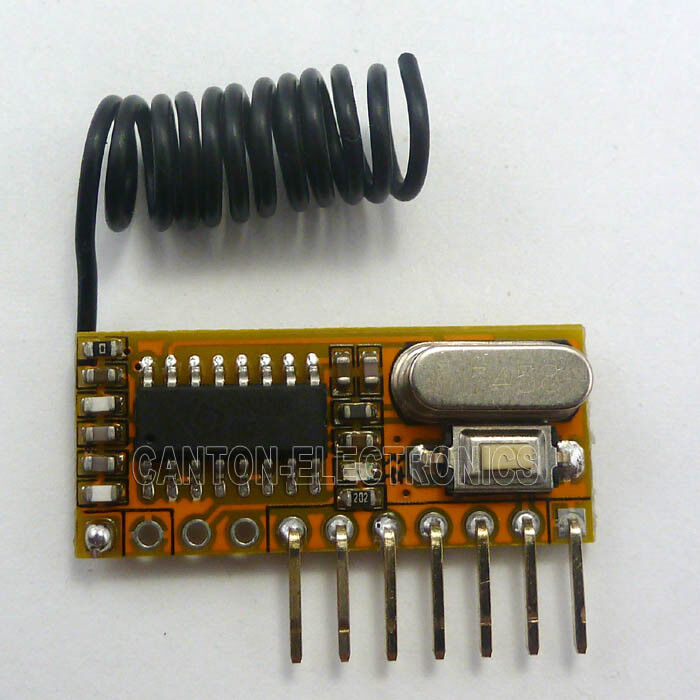

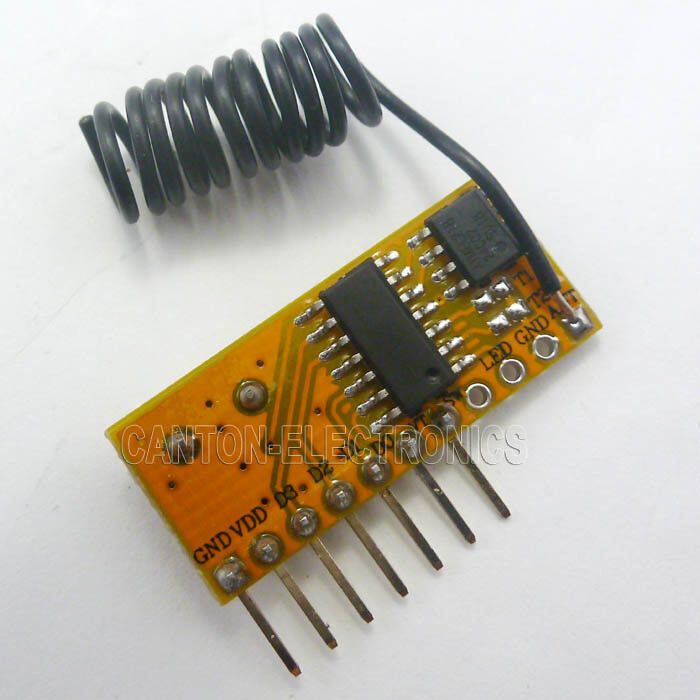

Receiver Modules :


Modules No: CE006

Qty:
1 pcs 433M 1527/2262 Superheterodyne
Receiver decoder module；

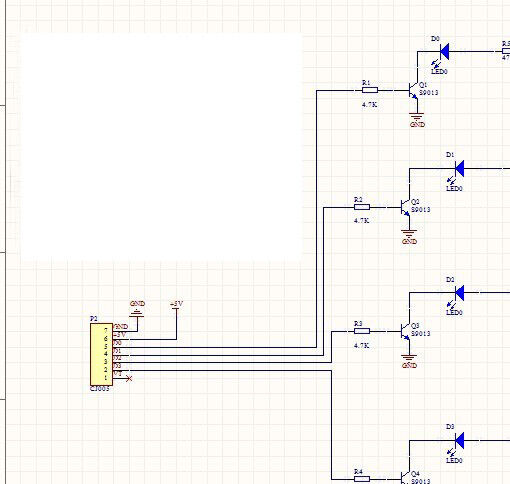

Demo :

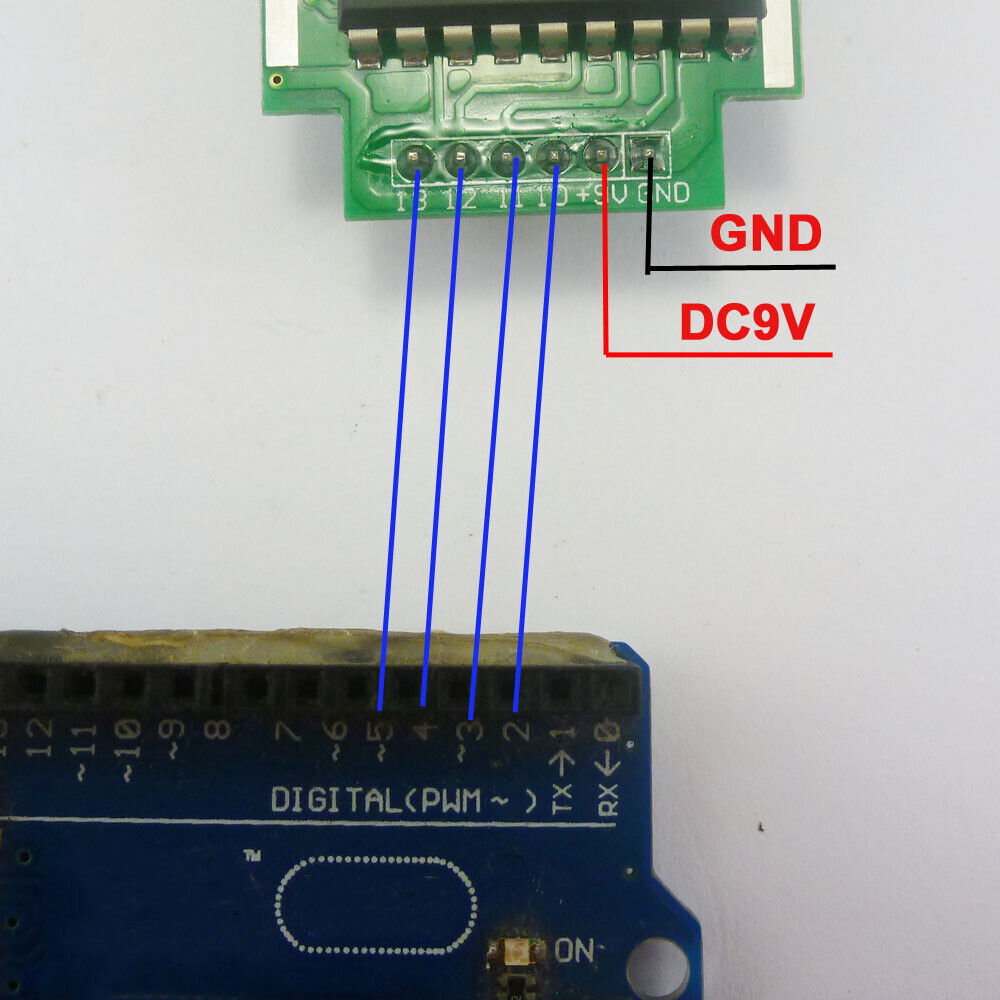

Can directly insert Arduino UNO/MEGA2560(also can use other MCU:ARM FPGA/CPLD PIC AVR Etc.)

Model No.

 CE006

Operating voltage

 3.3V-5.5V

Working priceple

Super Heterodyne receiver with decoder , learning type . decoding PT2262, PT2260, PT2240, EV1527 and other learning codeto chip or compatible chips, can learn and store 30 pcs different coded remote control. Intelligently distinguish shock resistance between fixed code and learning code , such as PT2262 and EV1527.

Static current

 ≤6 mA (DC 5V)

Operating frequency

 433MHz

modulation Mode

 ASK/OOK

Receiving sensitivity

 -110 dBm (50 Ω)

Speed

 < 2.4 K bps

Operating temp.

 -30 °C ~ +85 °C
Max rate 2.4 KHZ
Antenns length 18 cm (433.92 MHz)

Dimension

 28*12.5*5mm

Output mode

TTL level , Momentary, Latch, Toggle ,user can set it by welding, Momentary is defult.

IO Drive

 Sink Current (Low level drive) 15mA,source current(High level drive) 12mA

matching remote control，Purchased from here.


Output mode：

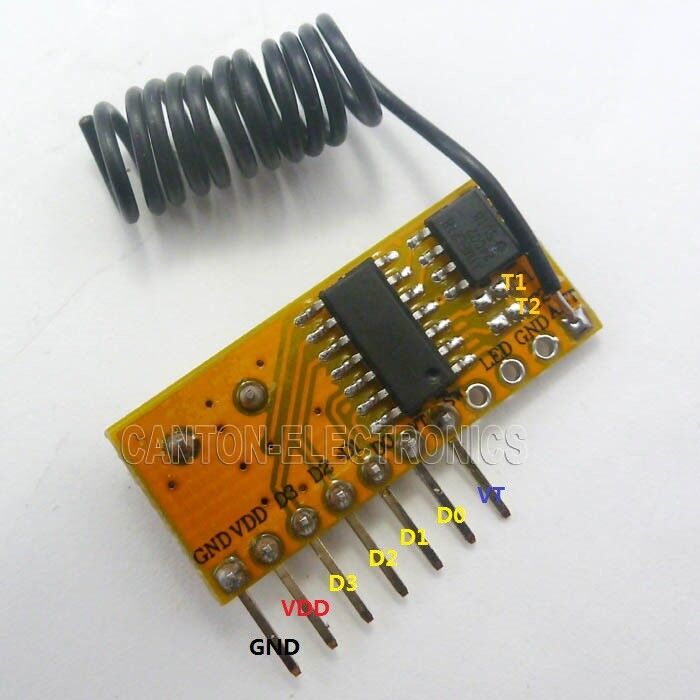

A.singnal Non-locking (Momentary)----disconnect T1 and T2 ;

B.singnal Self-locking (Toggle) ---- disconnect T1 and connect T2 ;

C.singnal Inter-locking (Latch) ---- connect T1 and disconnect T2 ;

Inter-locking (Latch): 4-way relay each other to switch, when relay A is working and locked , relay B C D corresponding to switch off; when B is working and locked , corresponding relay A C D swith off ; Only 1 relay is on among 4 relays A B C D;

Non-locking type (Momentary): Press A and hold it , then A is on.Same as Relay B C D ;

Self-lock type (Toggle): 4 chanels opens and closes independently, 4 chanels can work together ,they don’t affect each other . press A button, A relay of work and locked, press again then disconnected; Same as B C D .


User guide :
1: Learing ID : Press learning button(Key button) 2 seconds, LED is flashes once and beginning to learn ;after learning success , LED will flash for a while .
2: Delete ID : Keep pressing learning button for 8 seconds , LED will be on and enter deleting . LED off means finishing deleting;
3: Antenna with a soft wire or other hard metals (such as whip antenna), try to straighten. Do not go near metal objects;
4: Power supply voltage requires stable and low ripple factor, multi-level filtering (such as adding beads, inductors, capacitors, etc.);


Transmitter Module:

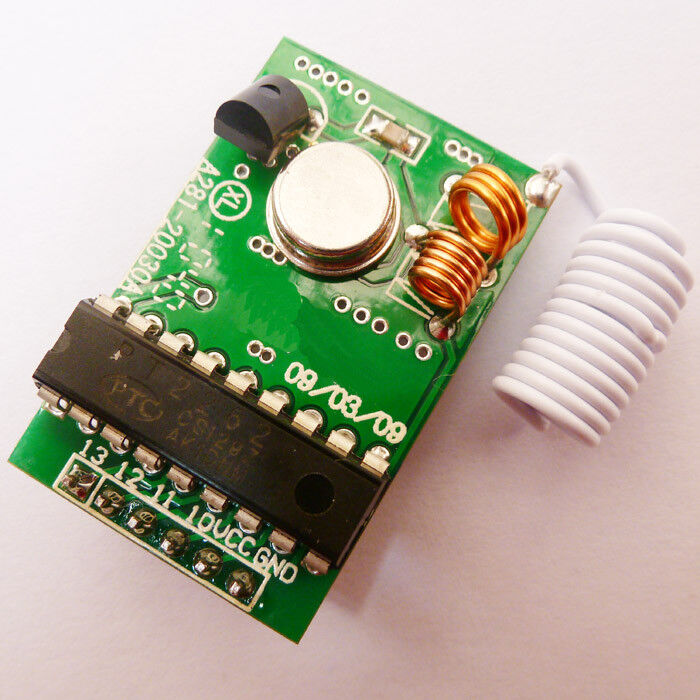

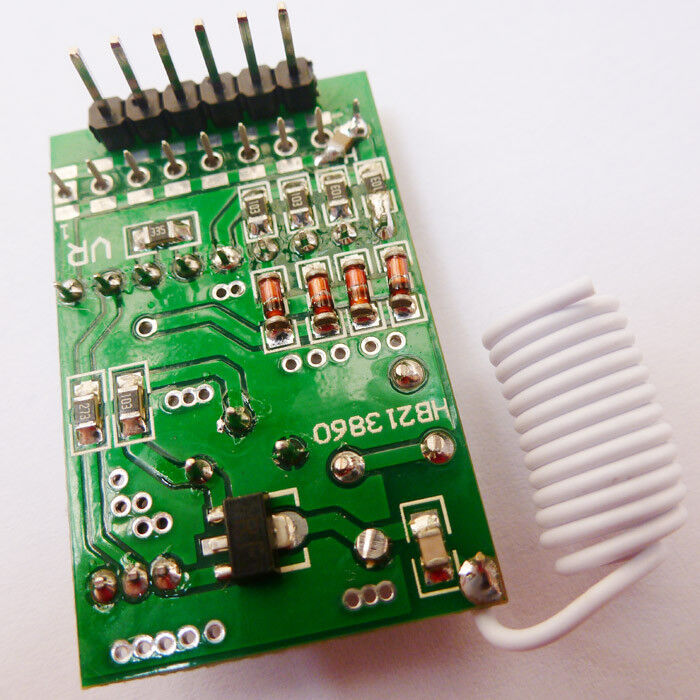

Model No. TB195 Encoder Transmitter
Function discription Encoder Transmitter modules
Operating voltage
3V ~ 12V DC
Static current
max≤8mA(12V)， min≤2mA(3V)
Operating frequency 433MHz
modulation Mode ASK/OOK
SAW Frequency stability ±150kHz(max)
Transmitter Power 50mW (315MHz, 12V)
Data rate ≤10Kbps
Antenns length 24 cm (315 MHz), 18 cm (433.92 MHz)
Dimension 36 * 27mm
Encodeing format PT2264 fixing code (same as PT2262 SC2262 ) ，Work with PT2272 decoder IC
Transmitter distance 300-500M (open area)
