ZD3605PA 5 PCS +-2.5V 3.3V 5V 7.5V 10V 12V Precision Voltage Reference source Board Modul

ZD3605PA 5 PCS +-2.5V 3.3V 5V 7.5V 10V 12V Precision Voltage Reference source Board Modul

Regular price $22.48 USD
Regular price $22.48 USD Sale price $22.48 USD
Sale Sold out
Version
Product Name:

5 PCS +-2.5V 3.3V 5V 7.5V 10V 12V TL341 Voltage Reference Replace AD584 LM399 LM329 MC1403


Packing list:

 5 PCS TL431 voltage reference Module



Description:

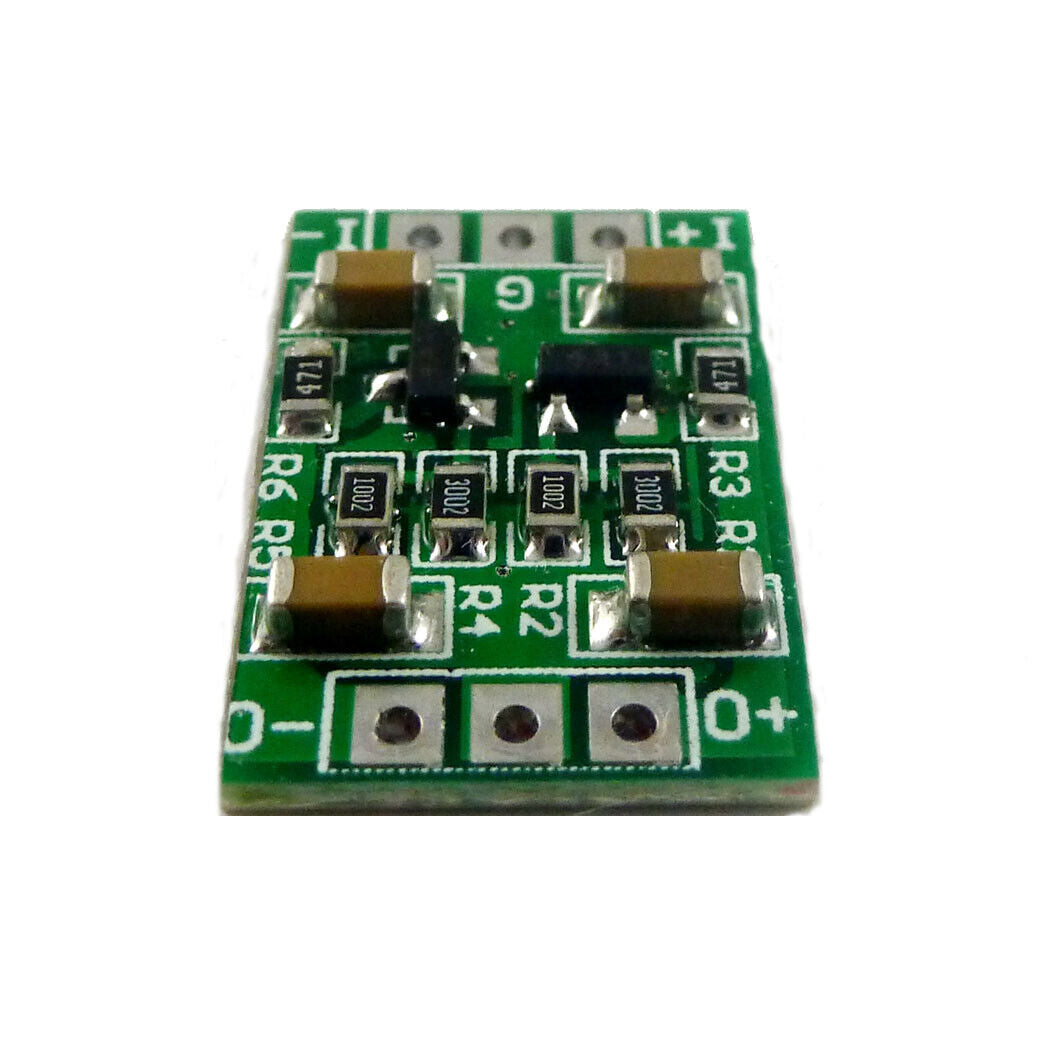

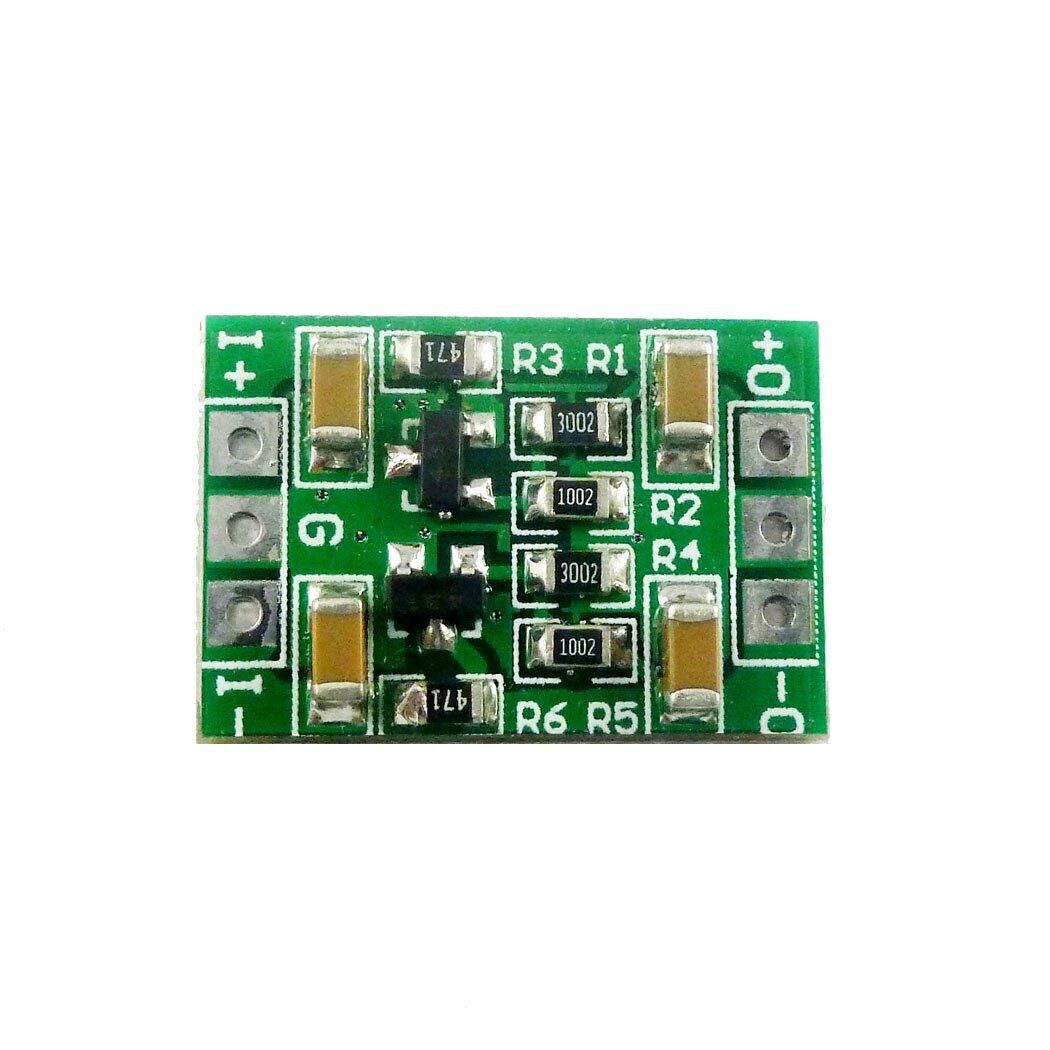

TL431 Positive & Negative Dual Output  ±1% Precision voltage reference Module

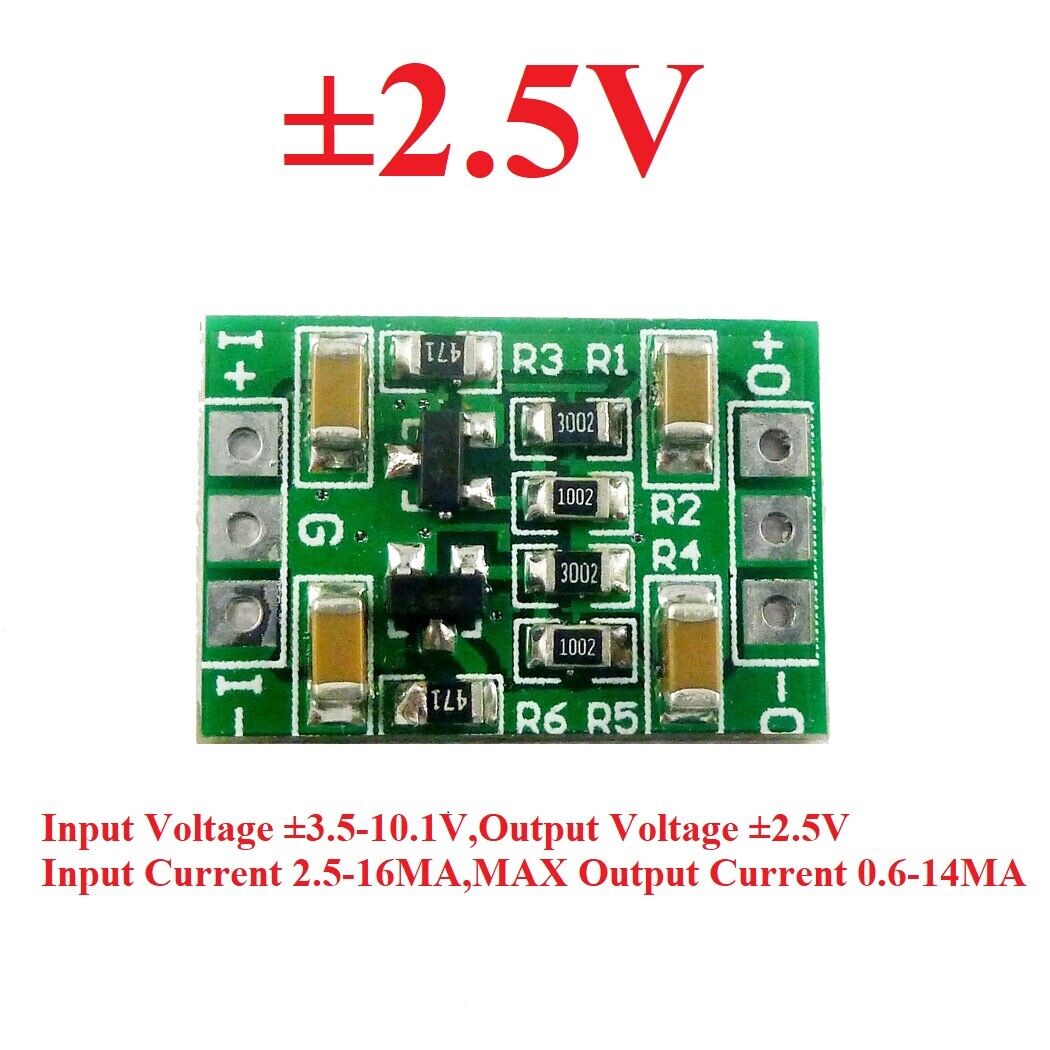

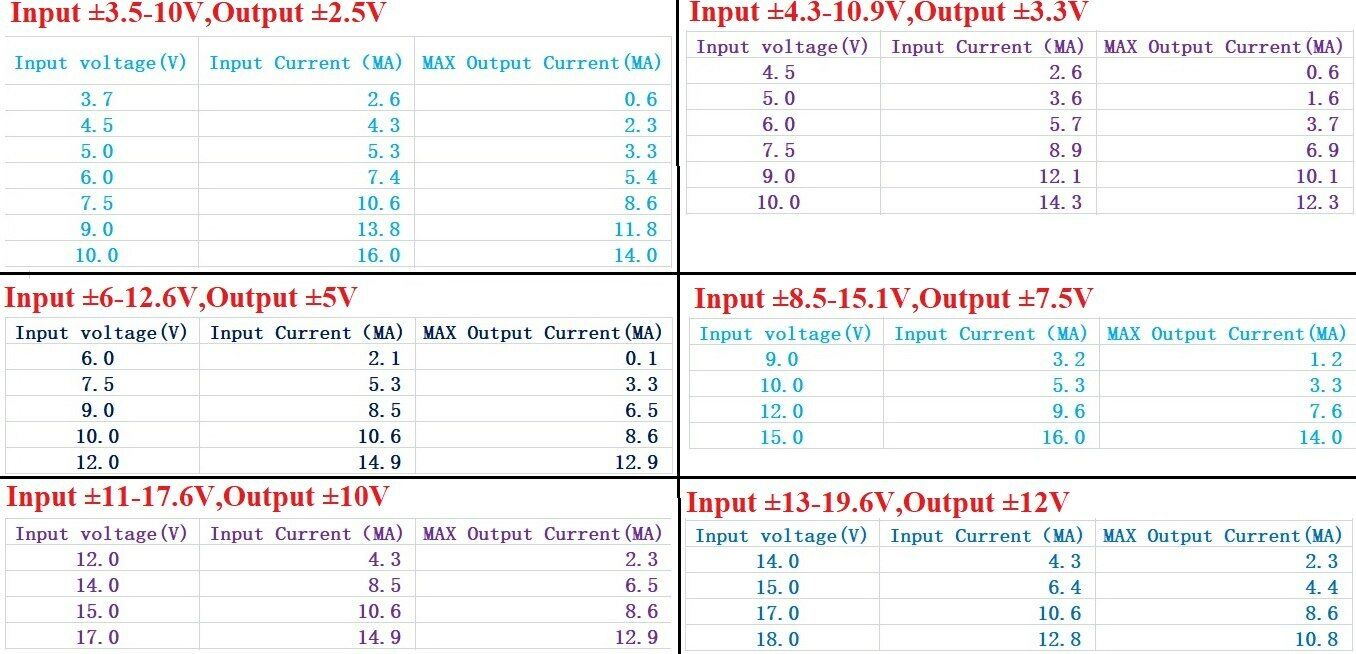

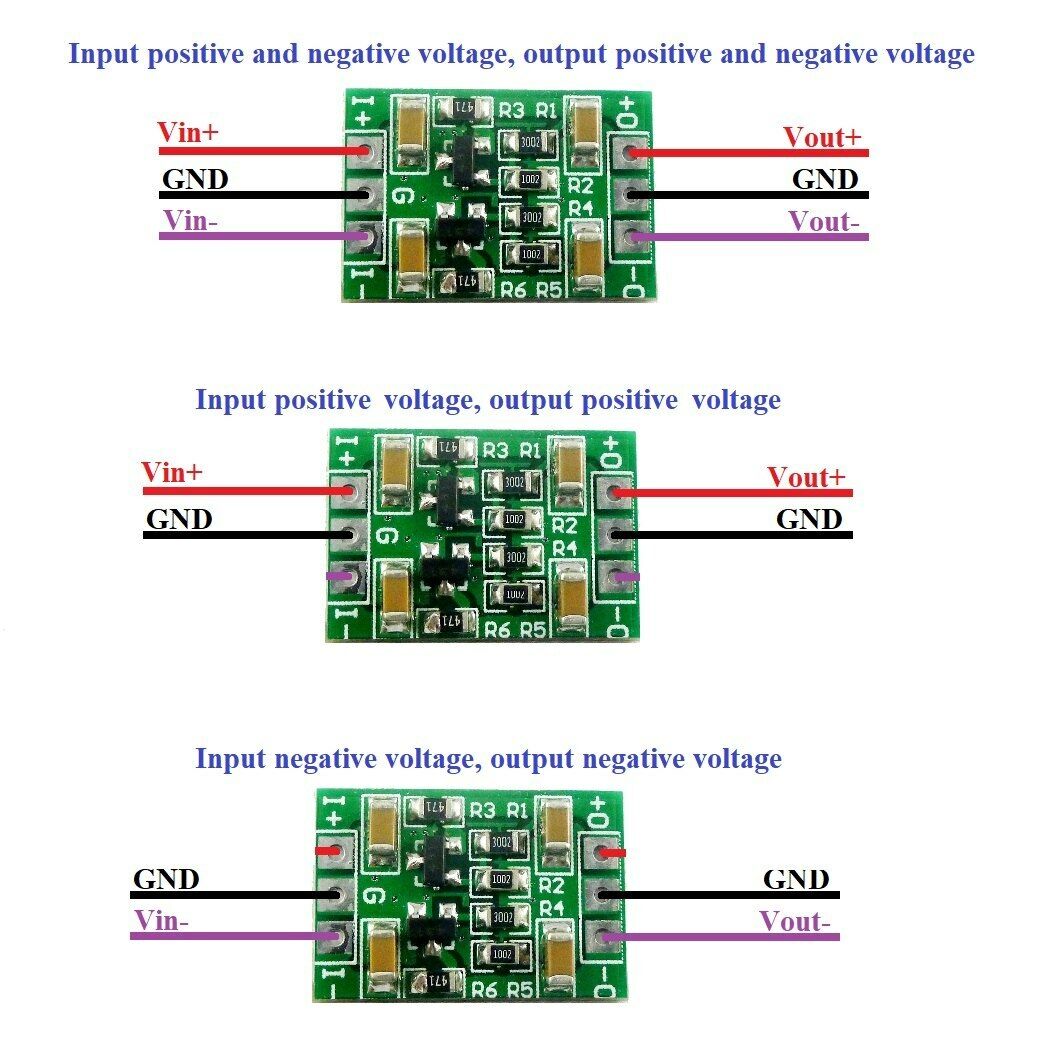

±2.5V :

Input Voltage ±3.5-10.1V,Output Voltage ±2.5V

Input Current 2.5-16MA,MAX Output Current 0.6-14MA



±3.3V :

Input Voltage ±4.3-10.9V,Output Voltage ±3.3V

Input Current 2.5-15MA,MAX Output Current 0.6-13MA

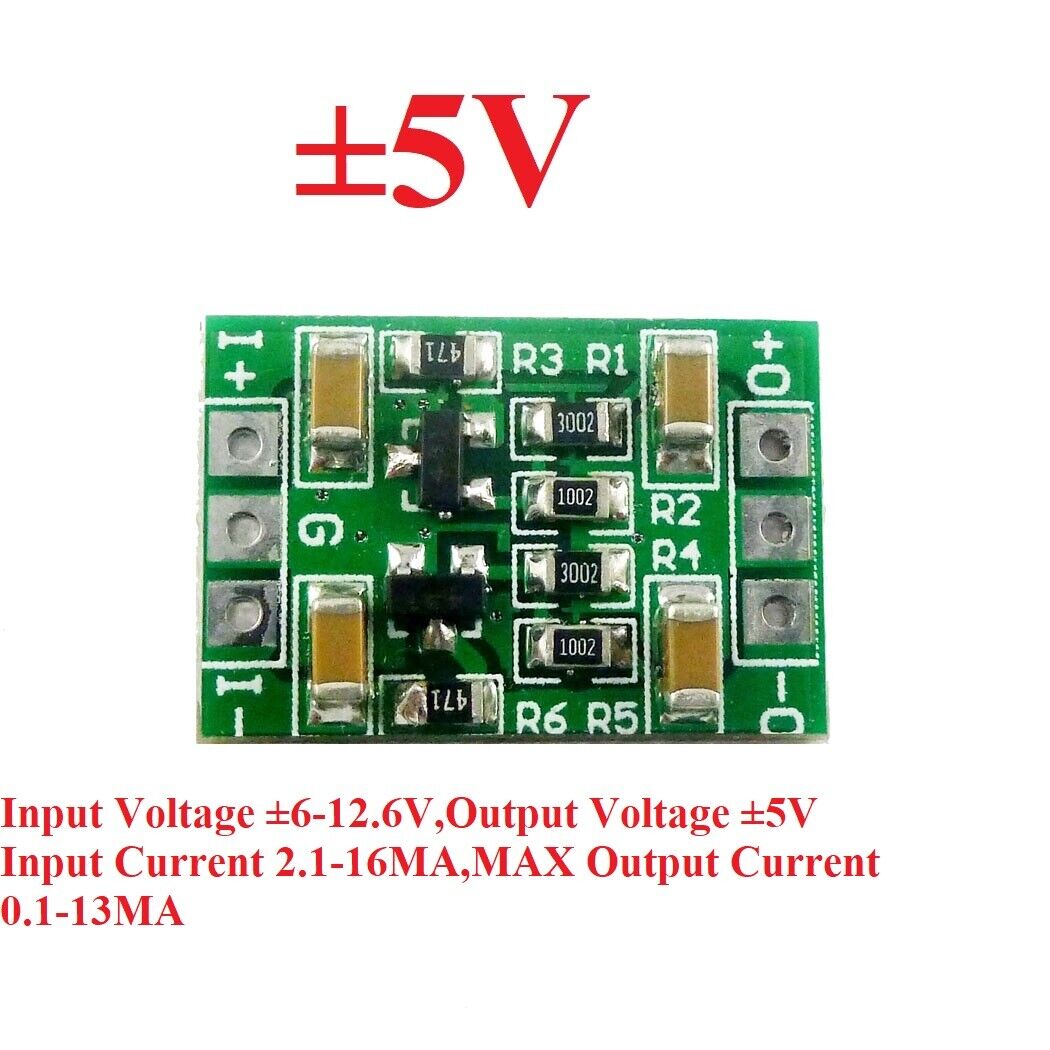

± 5V :

 Input Voltage ±6-12.6V,Output Voltage ±5V


Input Current 2.1-16MA,MAX Output Current 0.1-13MA

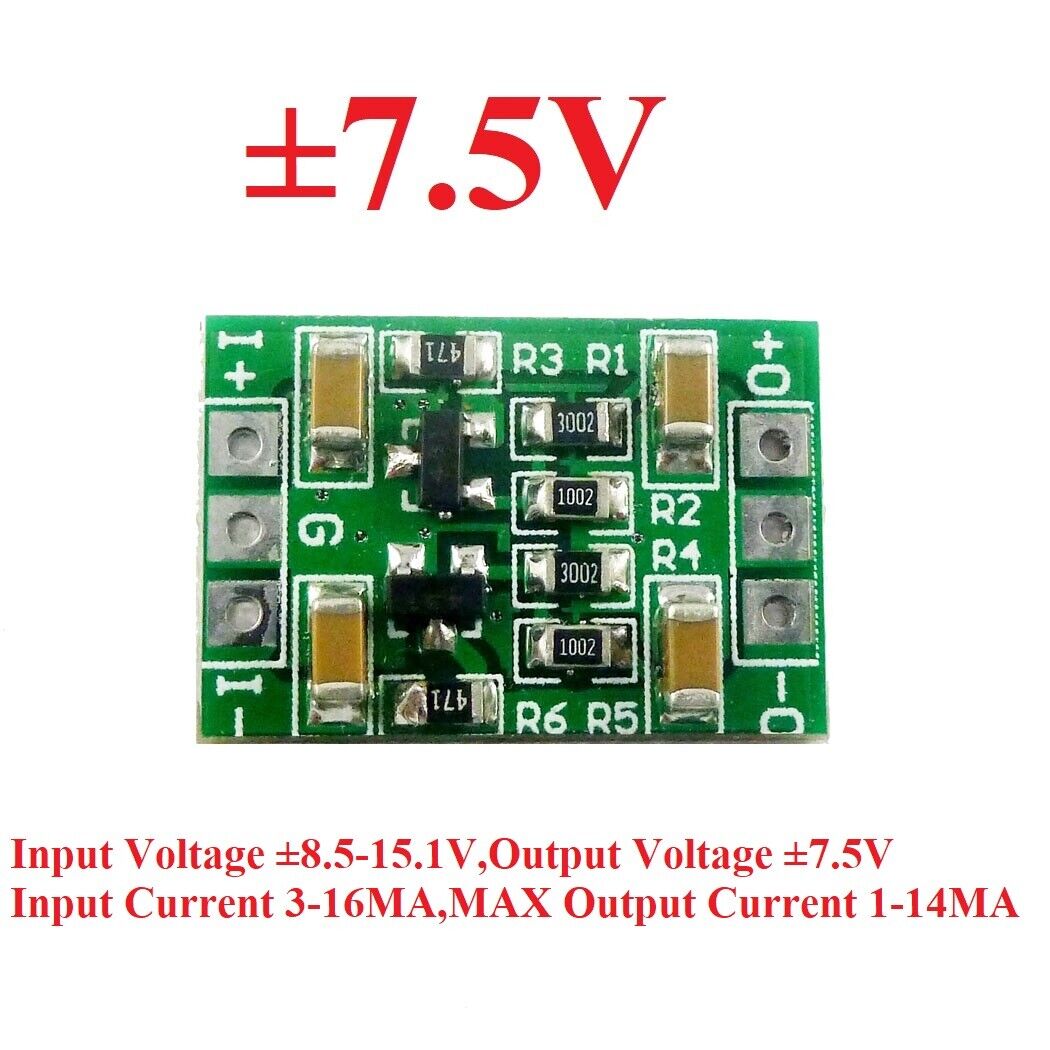

±7.5 V :

Input Voltage ±8.5-15.1V,Output Voltage ±7.5V

Input Current 3-16MA,MAX Output Current 1-14MA

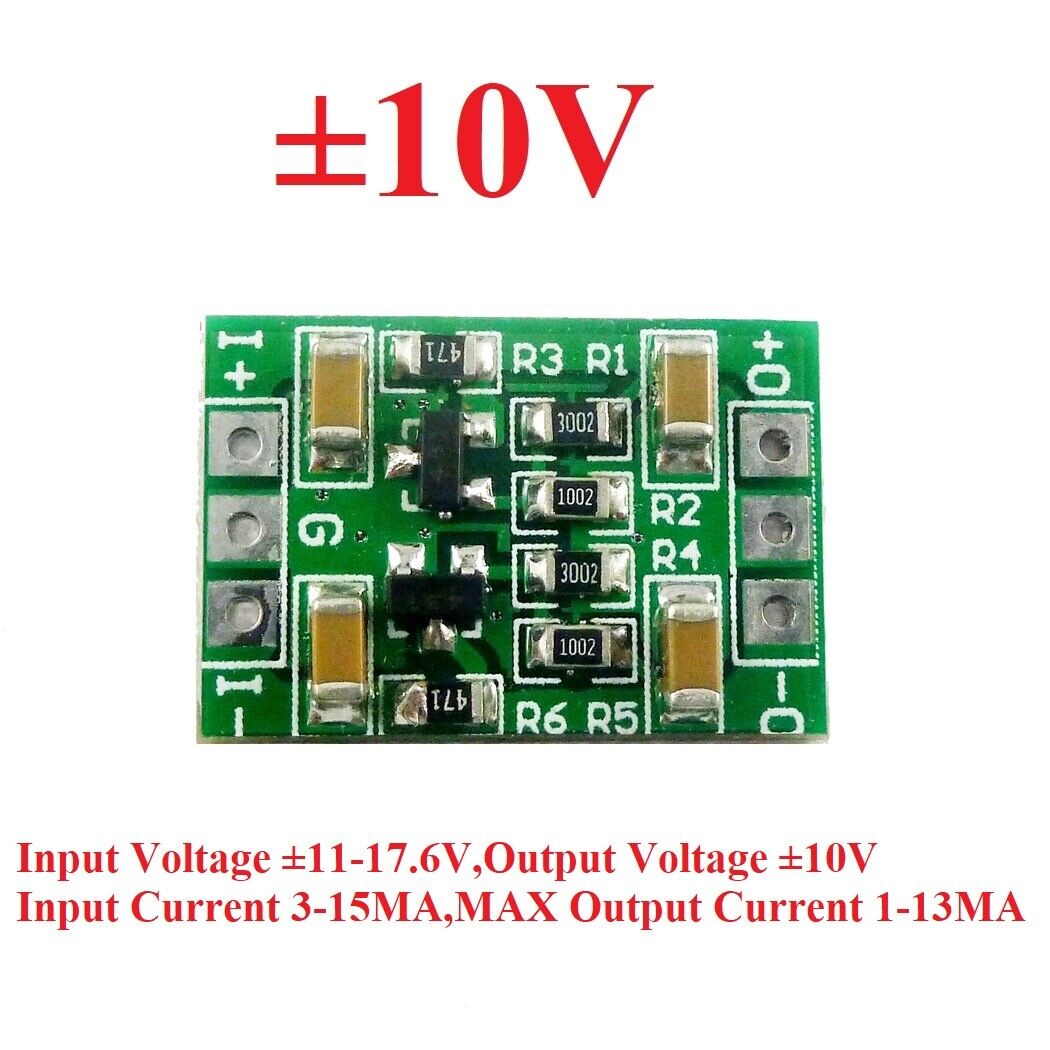

±10 V :

Input Voltage ±11-17.6V,Output Voltage ±10V

Input Current 3-15MA,MAX Output Current 1-13MA

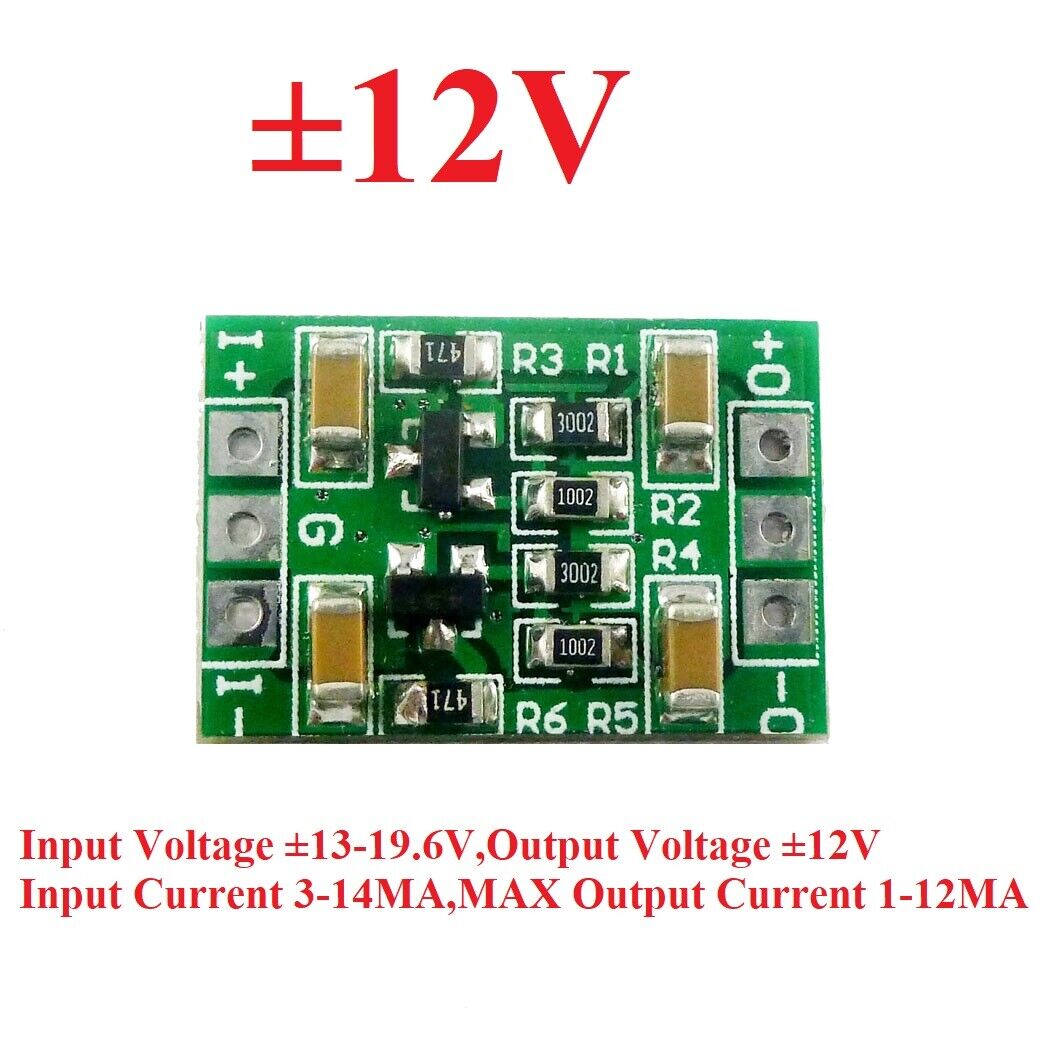

±12 V :

Input Voltage ±13-19.6V,Output Voltage ±12V

Input Current 3-14MA,MAX Output Current 1-12MA



Accuracy : ±1%

Operating temperature range : -40~+125 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

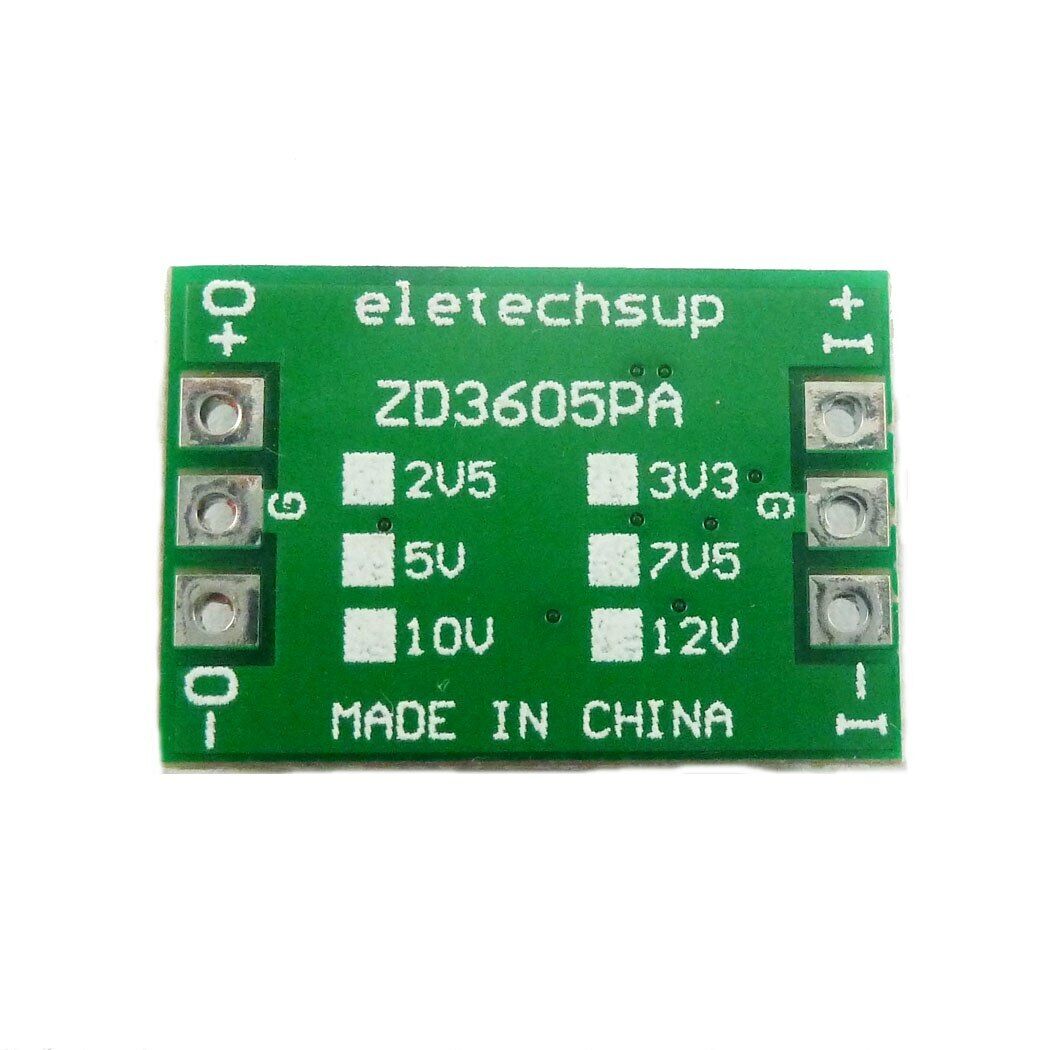

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

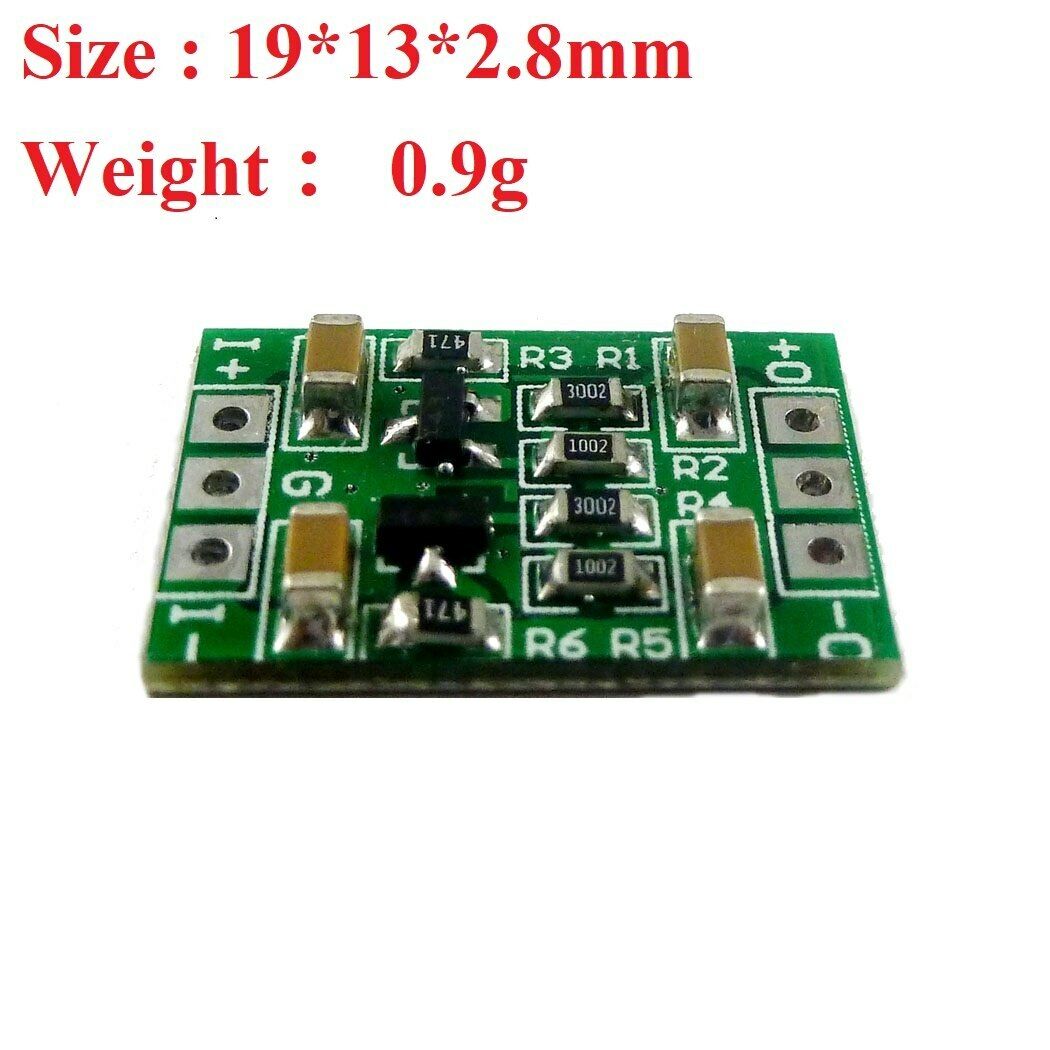

Size : 19*13*2.8mm

Weight : 0.9g


Note:

1 This is a voltage reference source, and its output current is small and cannot be used as a power supply.

2 If the input voltage is too small or the output current is too large, the output will be distorted

3 If the input voltage is too large, the module will heat up


Applications

Operational Amplifier : LM324 LM358 AD101 AD201 Etc.

ADC : ADC0809 MAX160 AD7705 Etc.

DAC :DAC0832 PCF8591 TL5615 MPC4822 TL5610

Replace AD584 LM399  LM4040  MC1403 LM326 AD637 AD584

Audio equipment

RS232 RS485 RS422 Bus

LCD power supply

Instrumentation equipment

Wifi/Router/Ethernet devices
