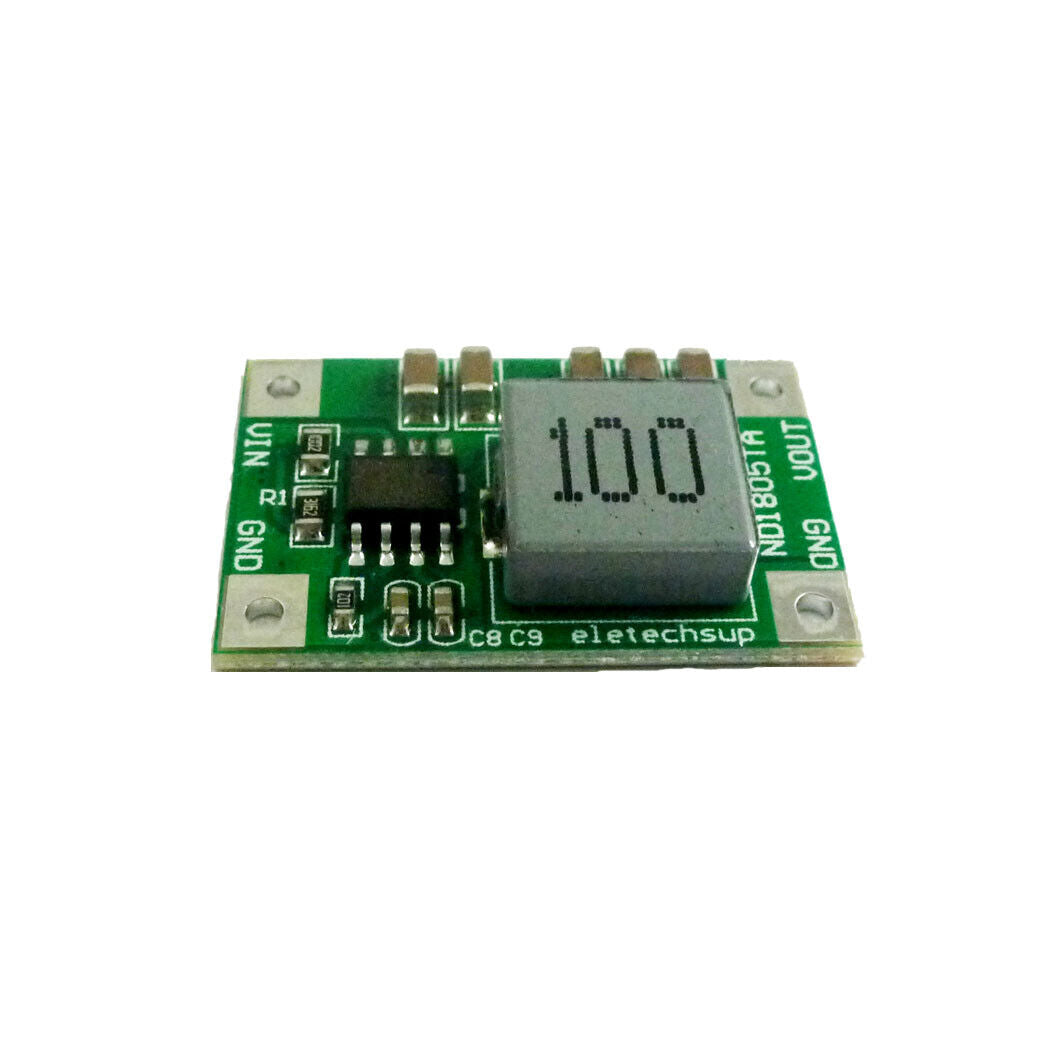

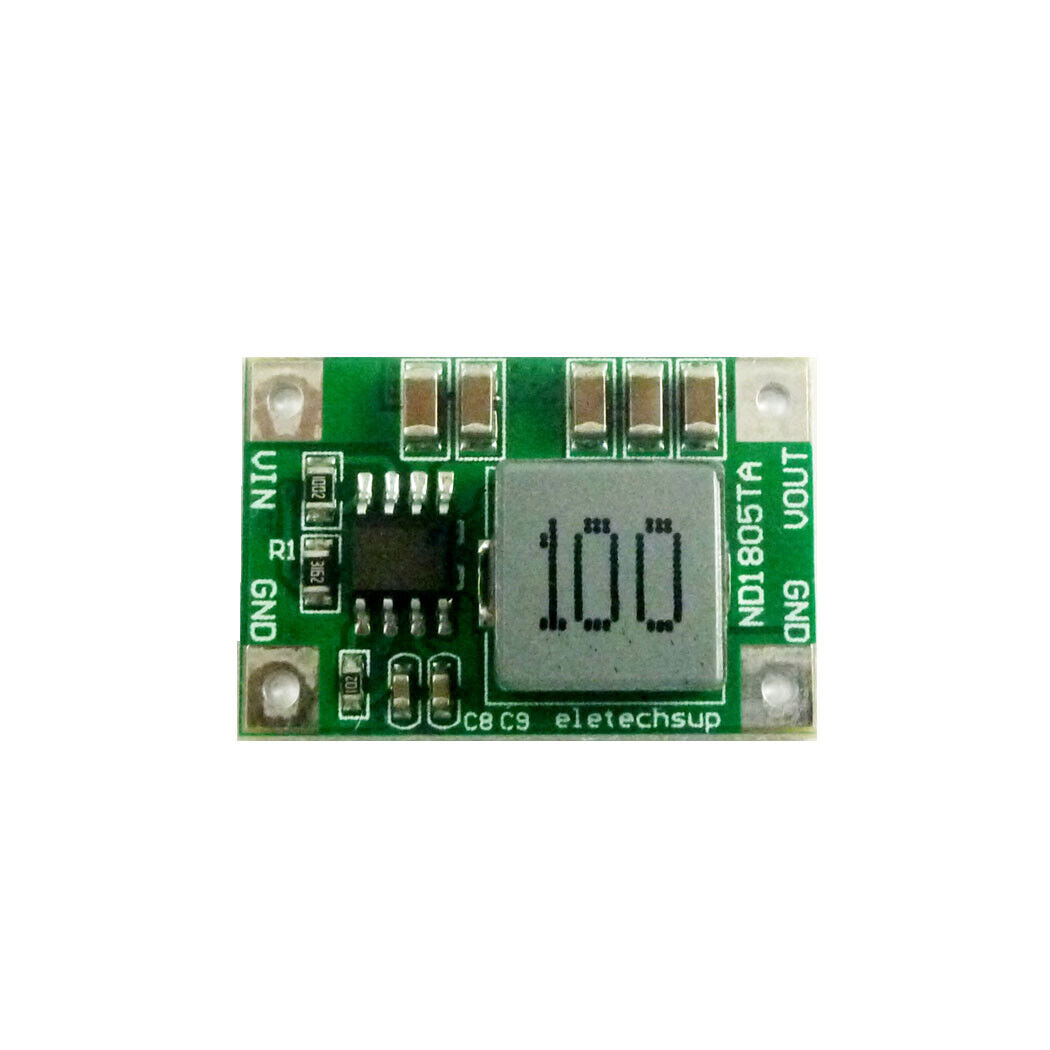

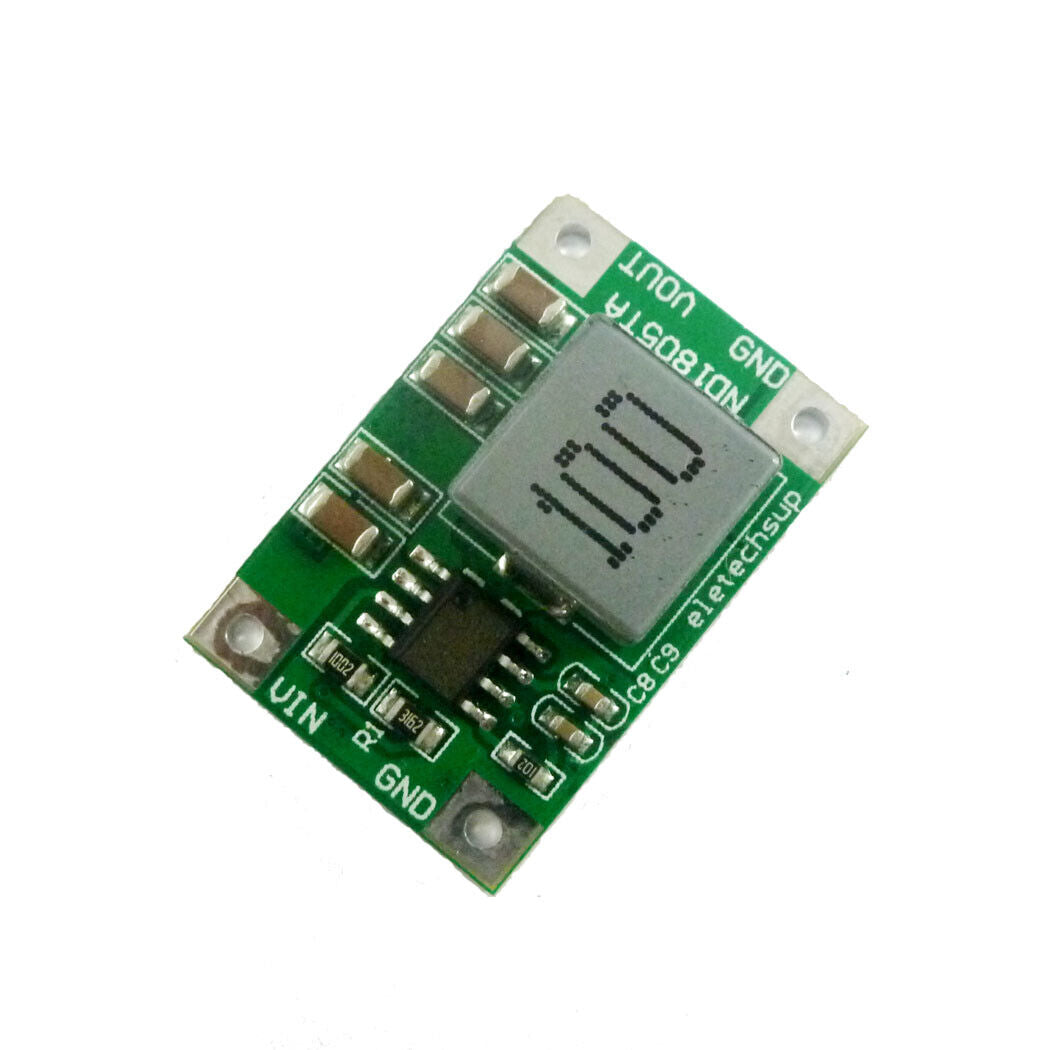

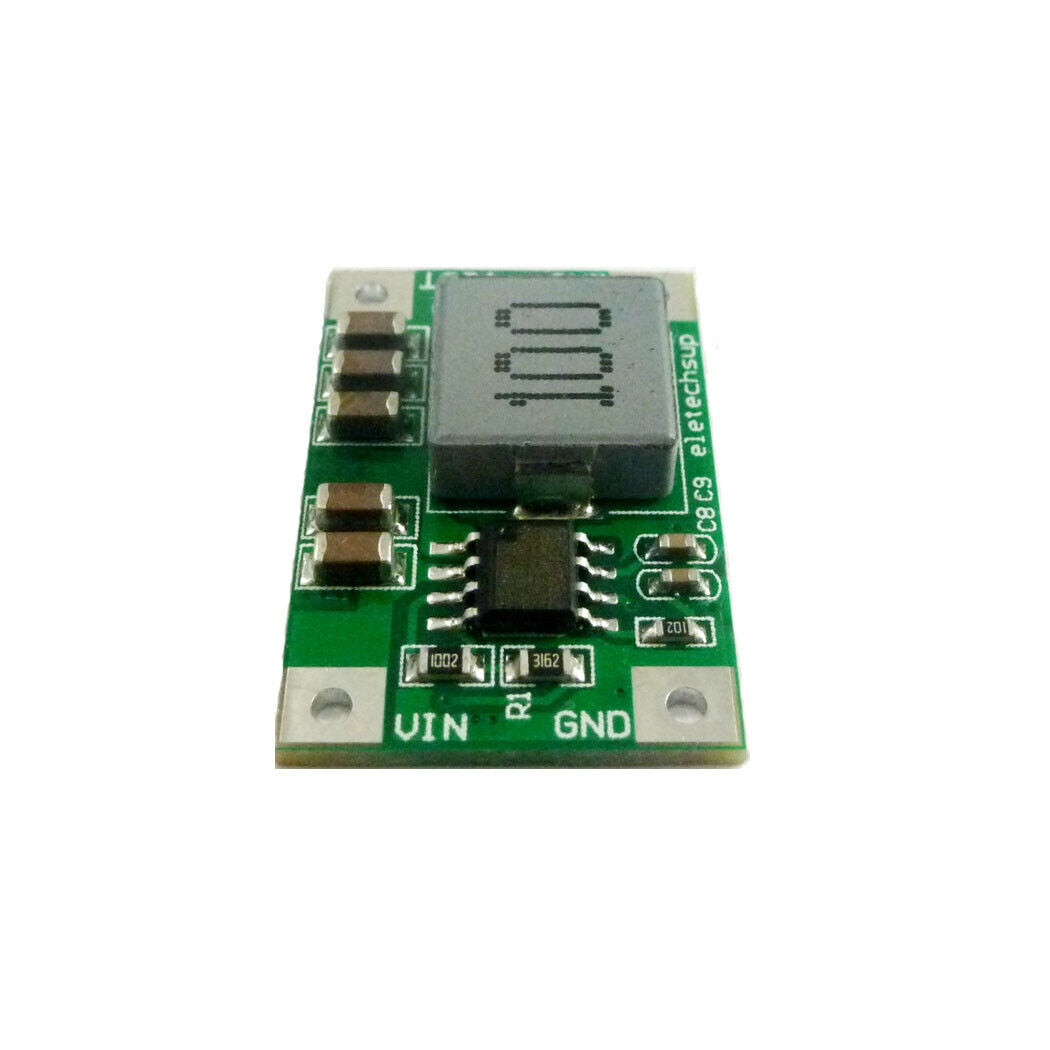

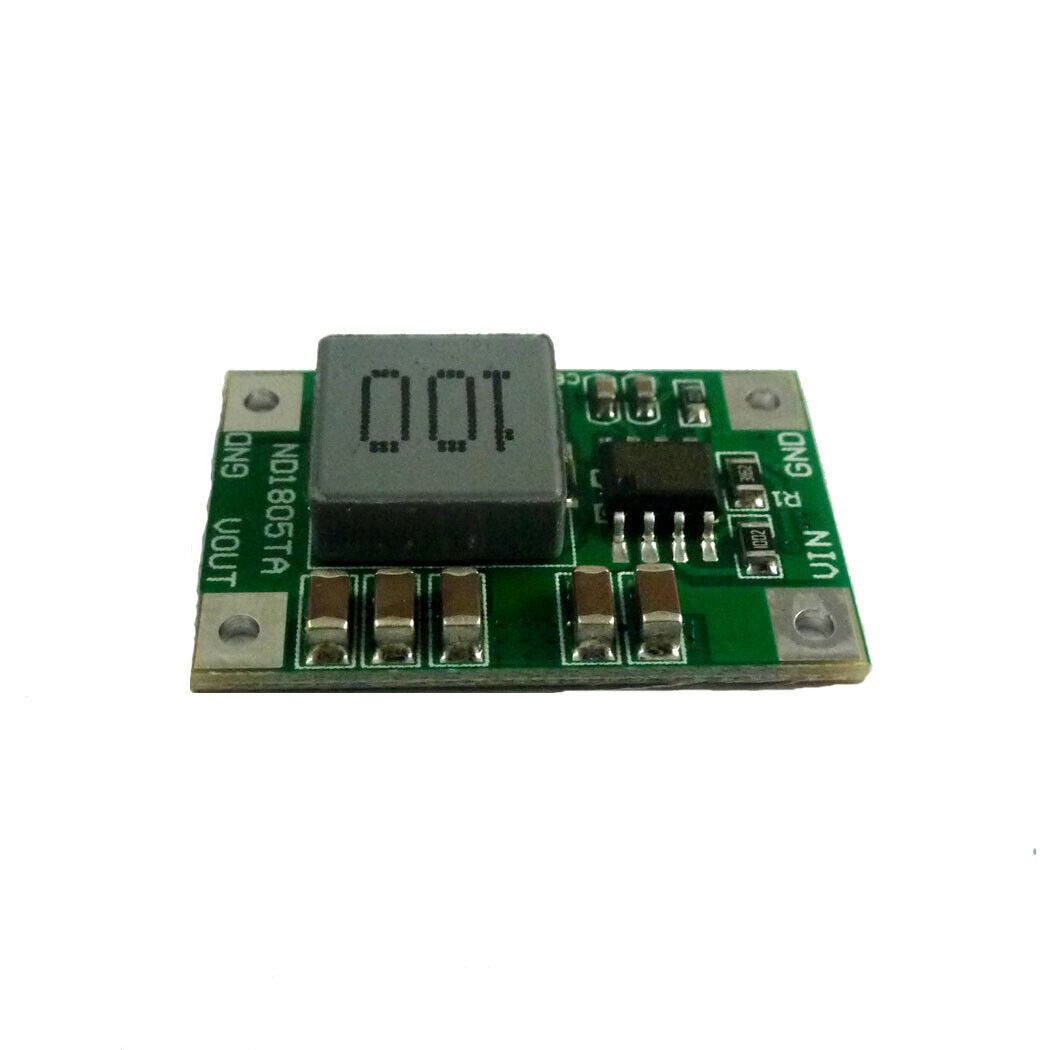

ND1805TA 5A DCDC Converter Step-Down Buck Module 4.5-18V to 3V 3.3V 3.7V 4.2V 5V 6V

ND1805TA 5A DCDC Converter Step-Down Buck Module 4.5-18V to 3V 3.3V 3.7V 4.2V 5V 6V

$6.48 USD
$6.48 USD $6.48 USD
Sale Sold out
Output voltage

Product Name:  5A DC-DC Converter Step-Down Buck Module 4.5V-18V to 3V 3.3V 3.7V 4.2V 5V 6V


Packing list:

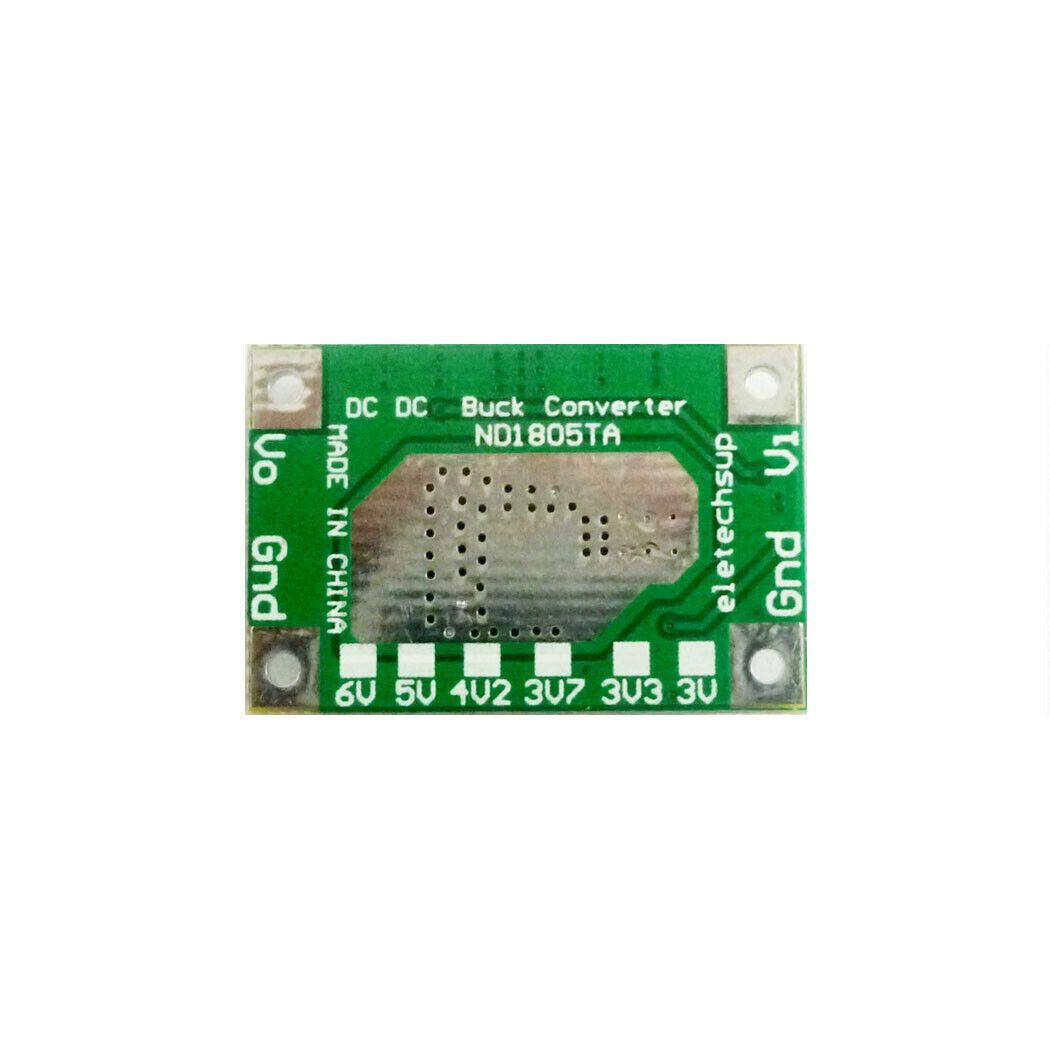

1 PCS ND1805TA 5A DC DC Step-Down Buck Converter Module 4.5V-18V to 3V/3.3V/3.7V/4.2V/5V/6V


Description:

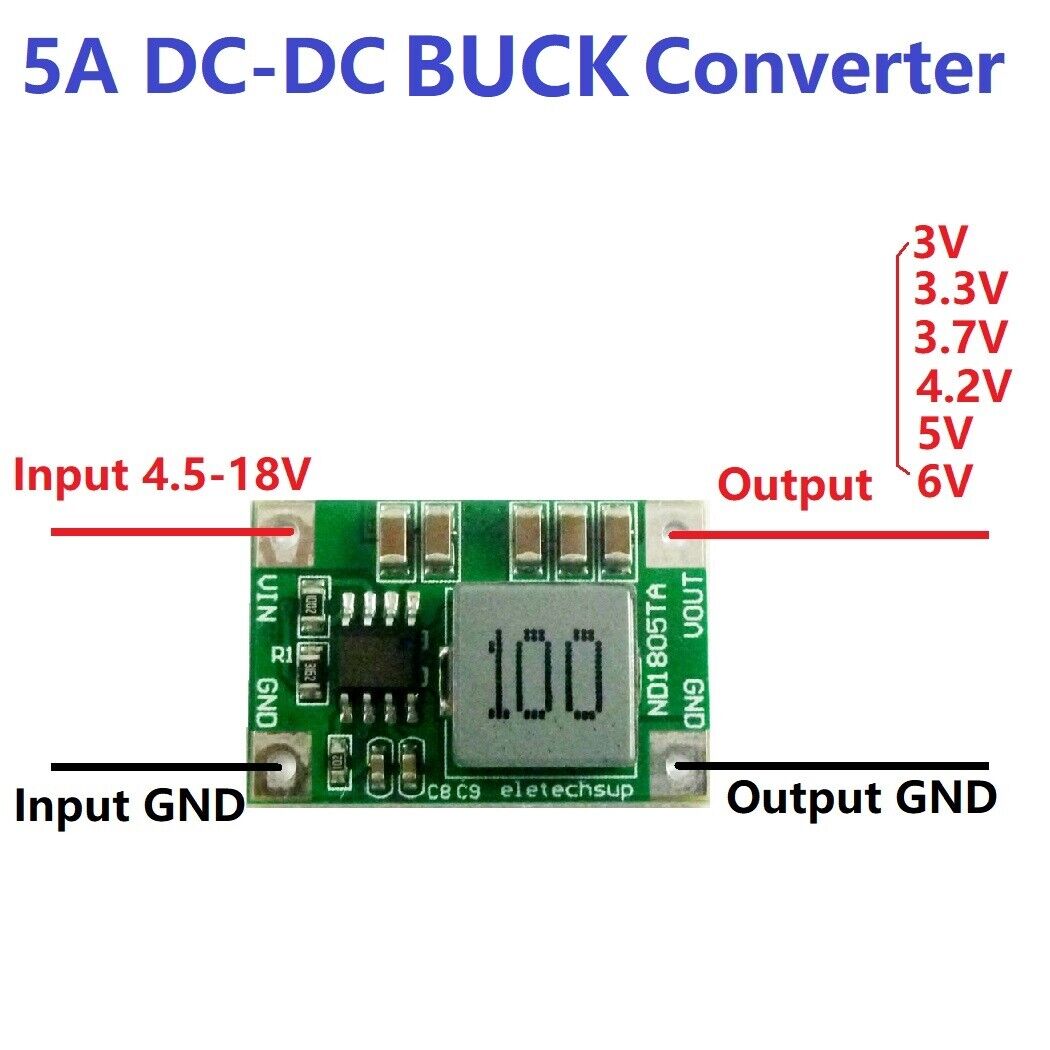

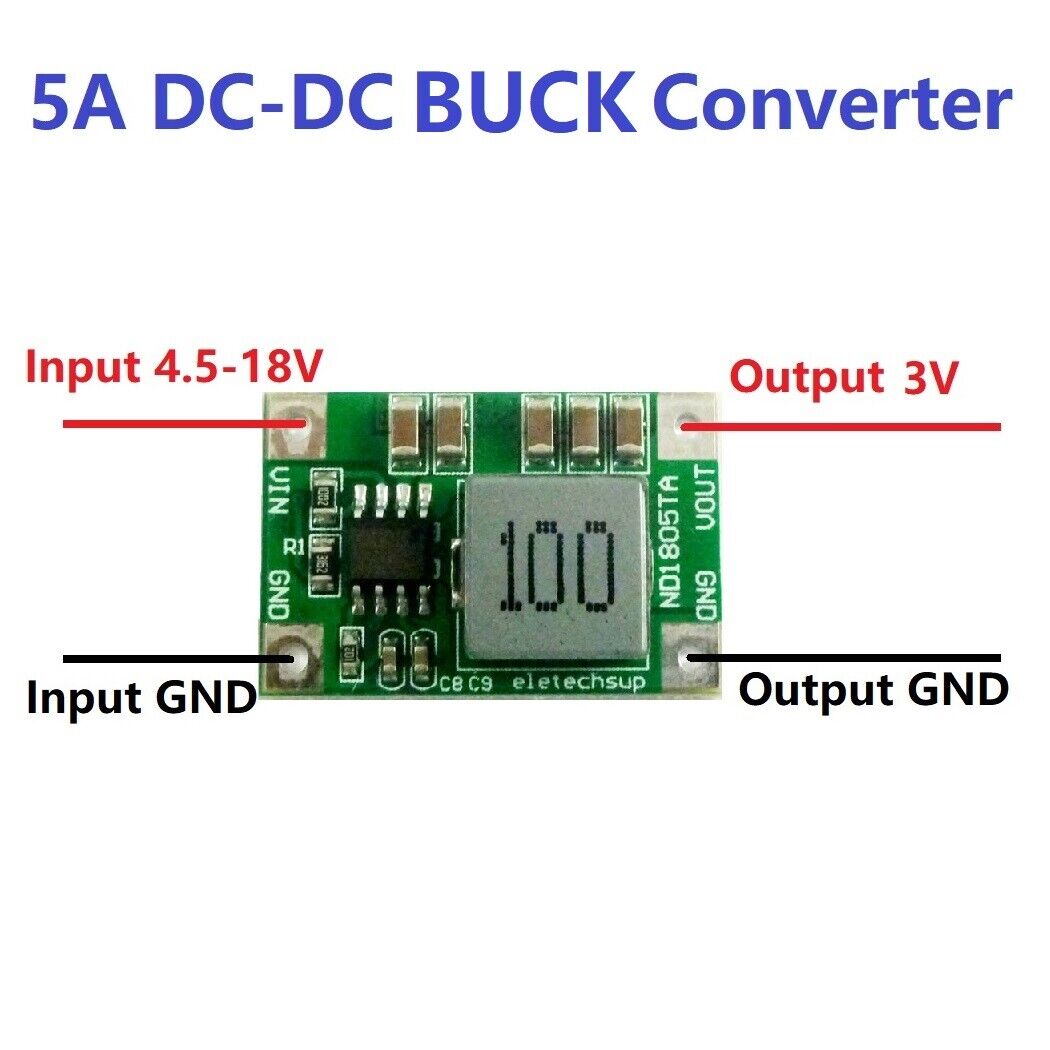

3V : Input voltage 4.5~18V,output 3V

3.3V :  Input voltage 4.5~18V,output 3.3V

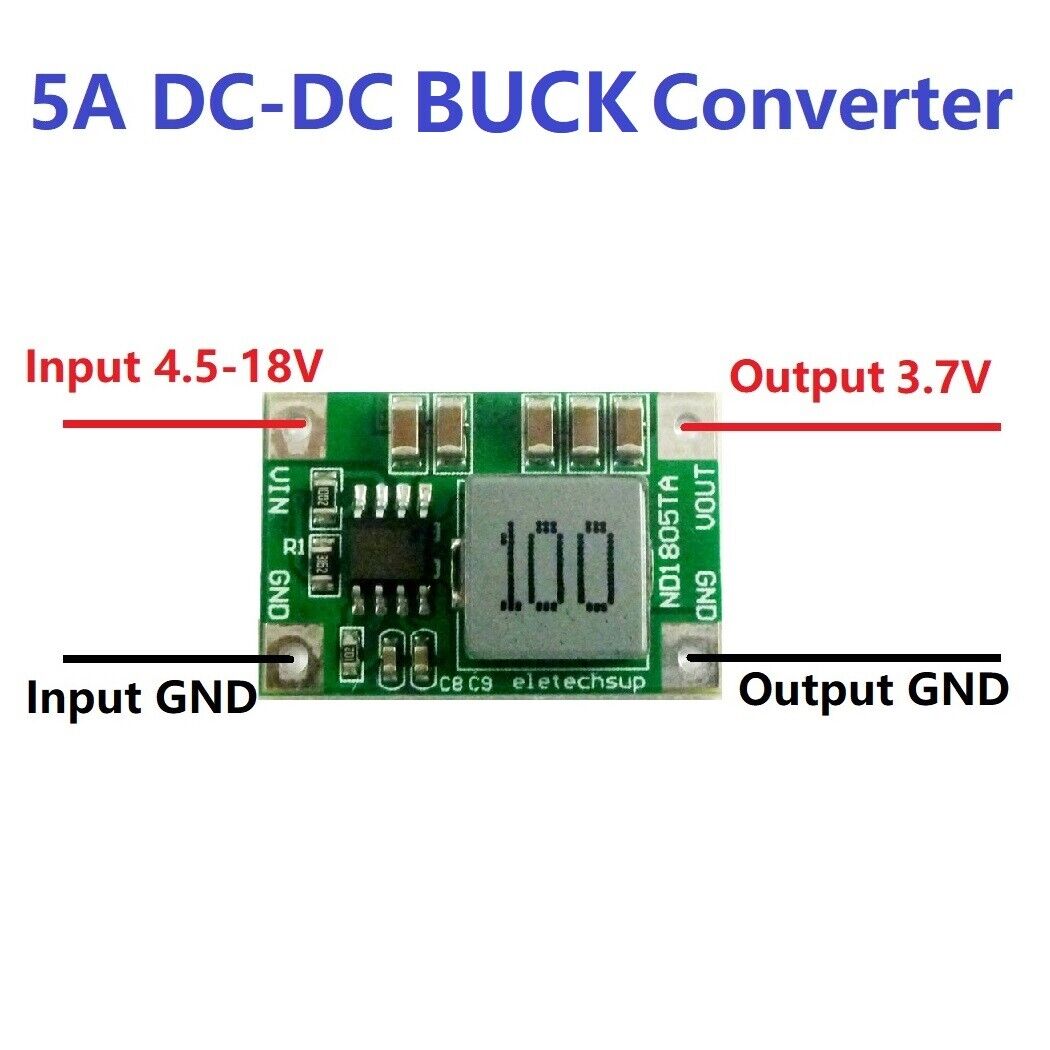

3.7V : Input voltage 4.5~18V,output 3.7V

4.2V :  Input voltage 4.5~18V,output 4.2V

5V : Input voltage 6~18V,output 5V

6V : Input voltage 7~18V,output 6V

Maximum output current 4A,Short time maximum output current 5A

DC-DC Step-Down Converter module working frequency 500KHz. efficiency is 77-93% .

Quiescent current: 16-18mA

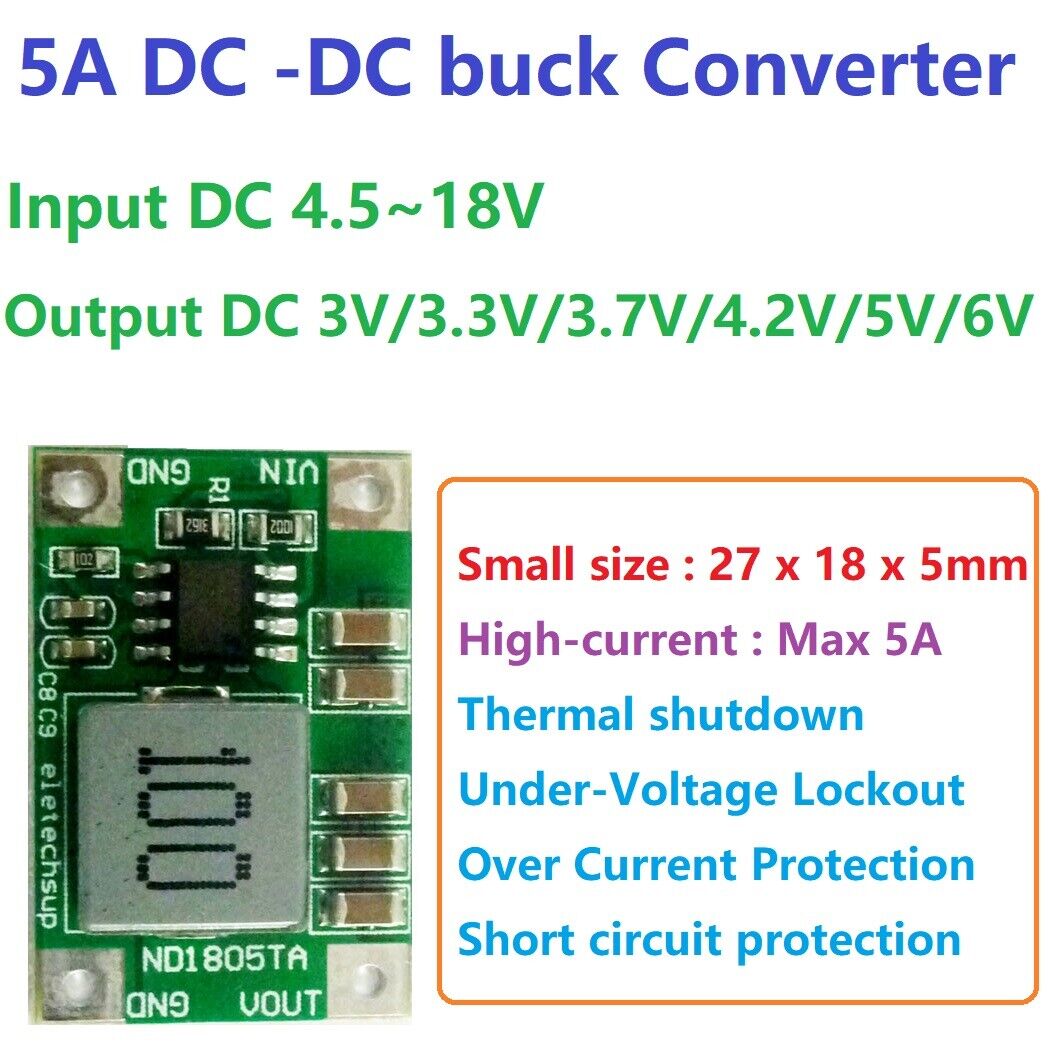

External soft start, Thermal shutdown, Under-Voltage Lockout (UVLO), Cycle-by-Cycle Over Current Protection, and short circuit protection.

Operating Temperature :–40°C to +85°C

Size : 27 x 18 x 5mm

Weight : 4g




Attention :


This is a DC-DC voltage converter module,Must be noted when using:



1 Input voltage can not be greater than the maximum input range


2 Output power can not be greater than the maximum load for a long time


3 Input power must be greater than the output power, because the power consumption of the module itself





Applications:

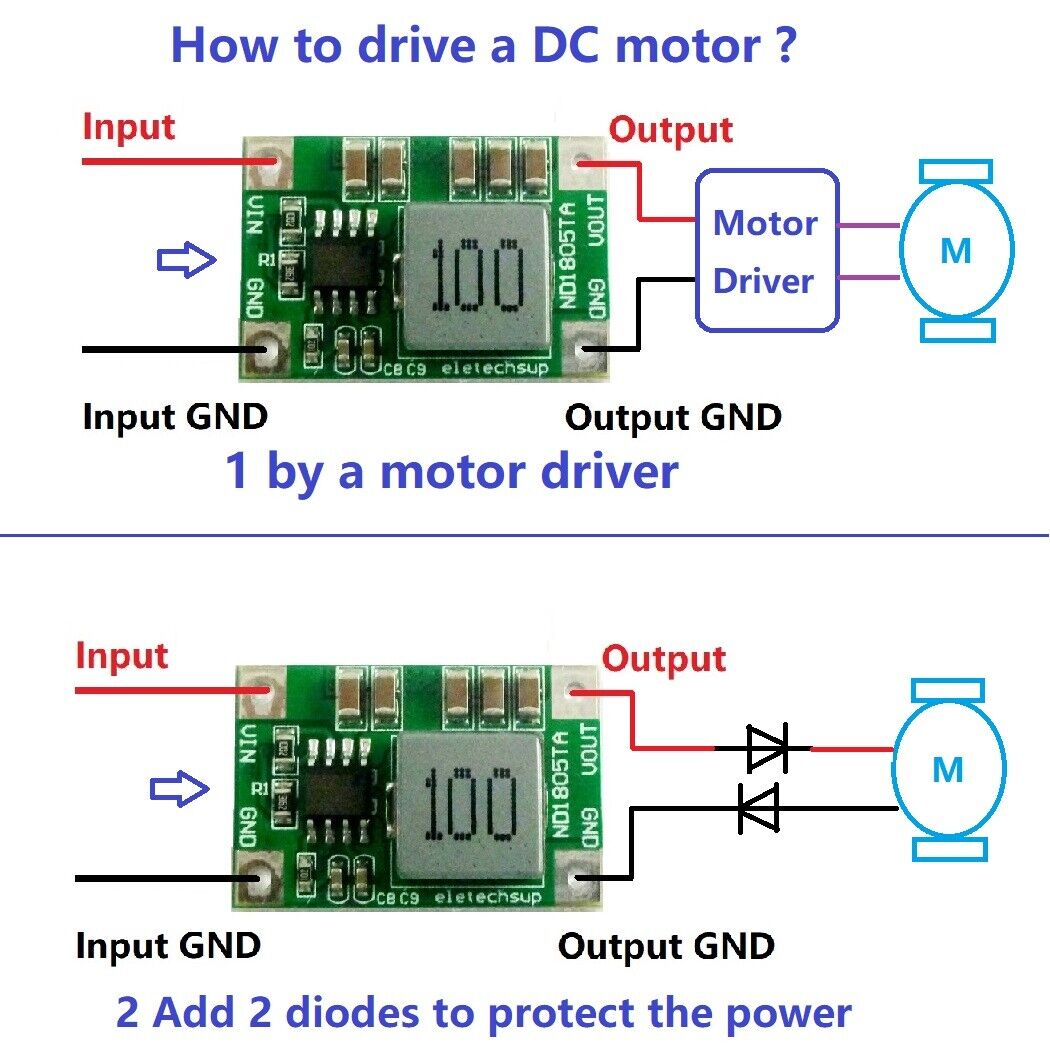

DC motor power supply
WIFI Router Switch
Network equipment
Multimeter instrumentation
CCTV camera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
Battery powered equipment
Audio amplifier
replace lm2596 lm317
for nodemcu raspberry pi 4
for led matrix
for robot power supply
