5Bit 7 segment LED starter kit SPI Digital tube LCD Display Dot matrix for AVR MEGA2560 DUE Pro mini Nano

5Bit 7 segment LED starter kit SPI Digital tube LCD Display Dot matrix for AVR MEGA2560 DUE Pro mini Nano

$7.99 USD
$7.99 USD $7.99 USD
Sale Sold out
Product Name: 5Bit 7 segment LED starter kit SPI Digital tube LCD Display Dot matrix for AVR MEGA2560 DUE Pro mini Nano



Packing list:

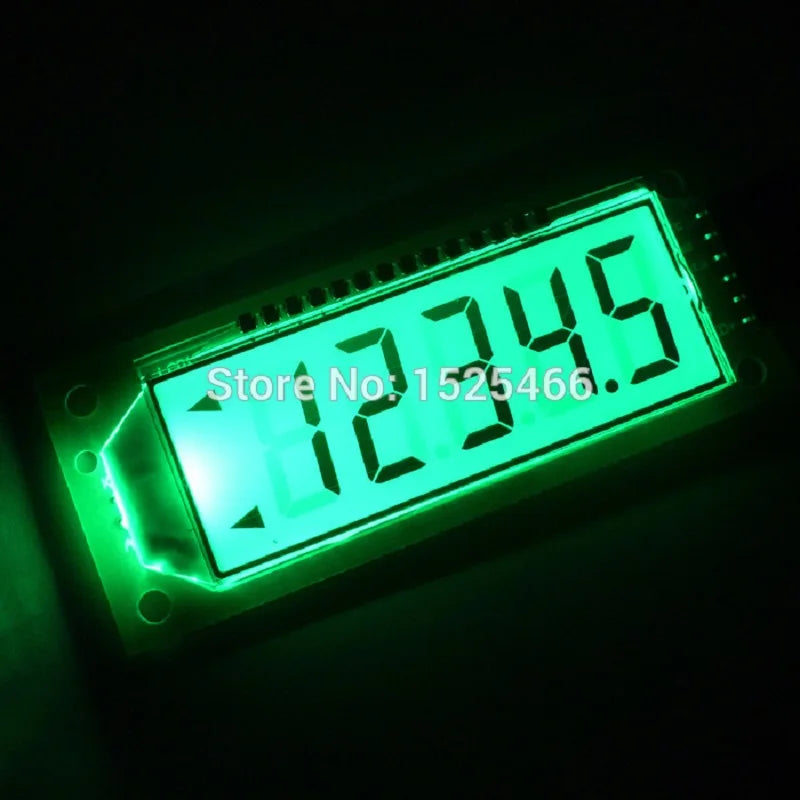

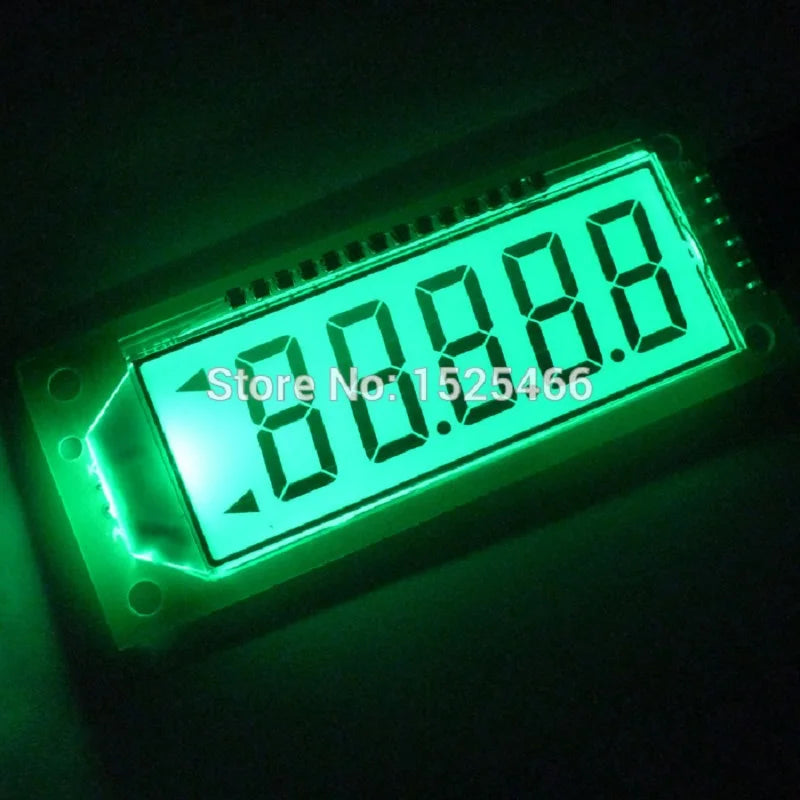

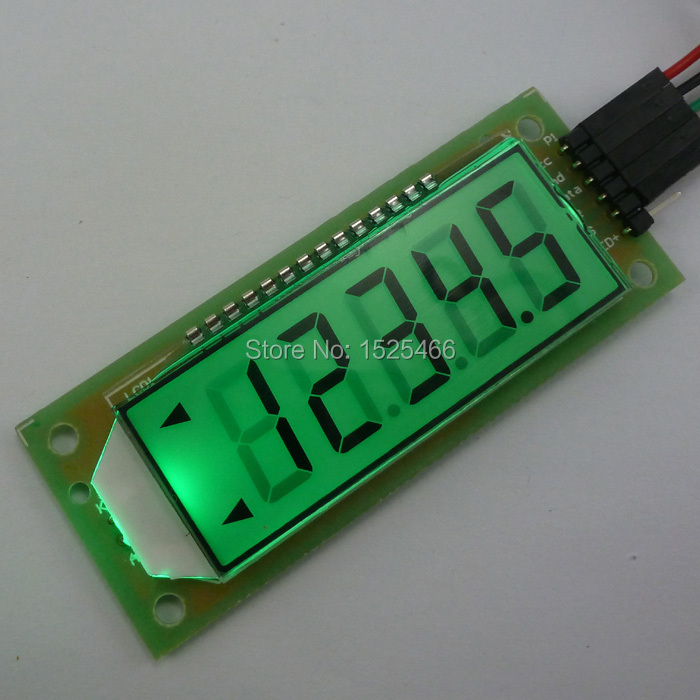

  1 pcs 5 Digit 7 Seg SPI LCD Display Module(Does not include UNO R3 ) ;





Description:
6 Digit 7 segment Display,provide Arduin'o MEGA2560/UNO Code;
Backlight : Green
Supply voltage : DC 5V
Driver IC : HT1621
Interface : SPI(Onlythree control signal,CS WR Data)
Support display characters : 0,1,2,3,4,5,6,7,8,9,A,b,C,c,d,E,F,H,h,L,n,N,o,P,r,t,U,-
Size : 77mm * 31mm

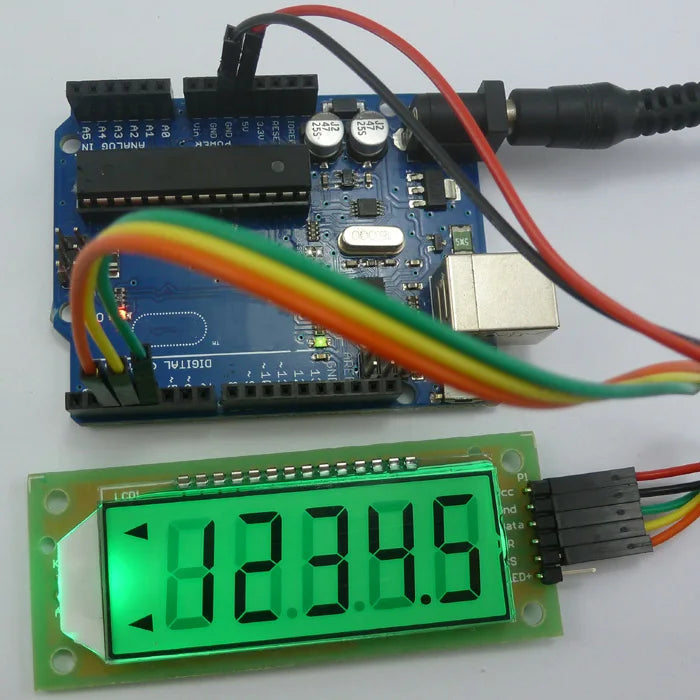

Connectwith arduin-Compatible mega2560(Does not include UNO R3)
Arduin_uno/mega2560 Code fragment:

After purchase, please contact me for complete code!





//*******************************************//

.......




void setup()

{

pinMode(CS, OUTPUT); //Pin 2

pinMode(WR, OUTPUT); //Pin 3

pinMode(DATA, OUTPUT); //Pin 4

}




void loop()

{

...




Init_1621() ;

...




while(1)

{



//display 0 to 99999

for(t=0;t<99999;t++)


{

displaydata(t,1,1,1);

delay(100) ;

}

...




//****************************************************************************//
