5V USB Input to 6-15V Adjustable Output DC DC Converter Step-up Boost Module
5V USB Input to 6-15V Adjustable Output DC DC Converter Step-up Boost Module
Regular price
$7.98 USD
Regular price
$7.98 USD
Sale price
$7.98 USD
Unit price
/
per
Couldn't load pickup availability
Description:
Input voltage 3~6V, output 6-15.5V
Maximum input current : 1.4A
Long-term work Current : 1A
Conversion efficiency : 79-90%

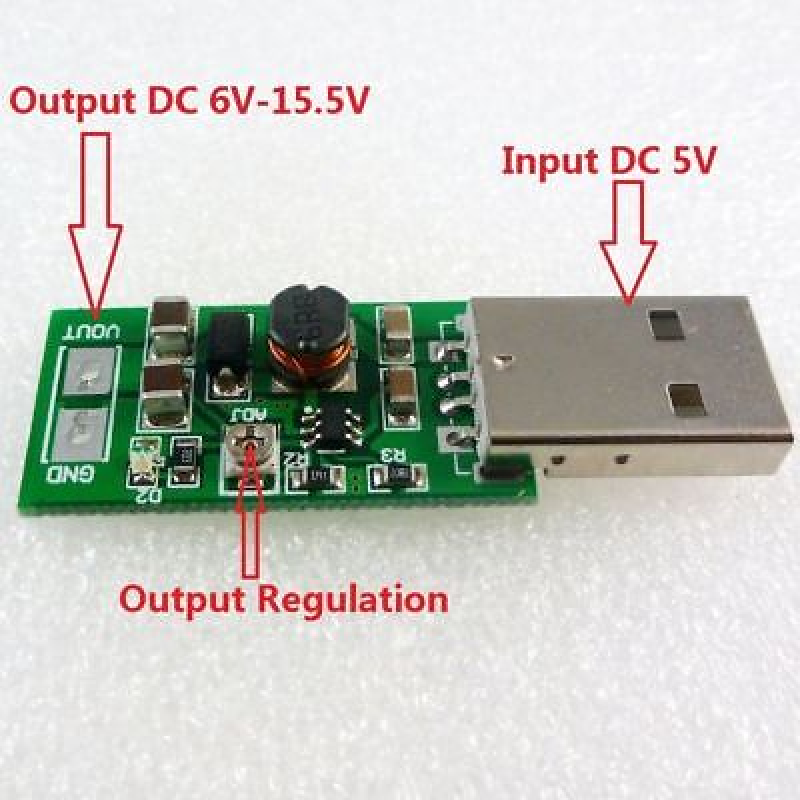

Input : USB Male Interface, DC 3-6V;
Ouput : 2 PIN XH2.54, DC 6-15.5V;

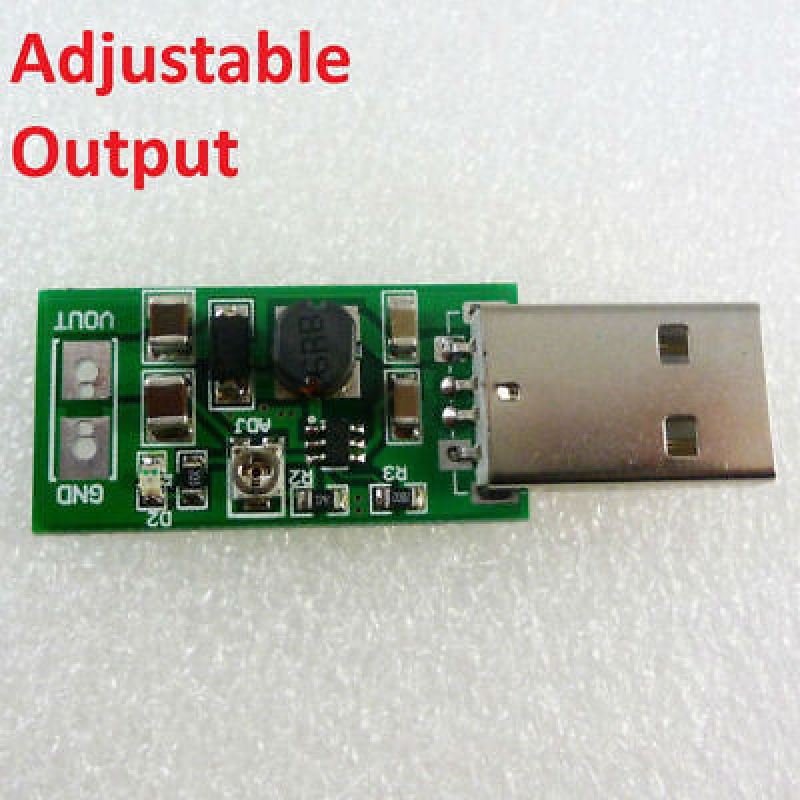

If input dc 5v,output 6-15.5V Adjustable
Power : Maximum 7W;
DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius .

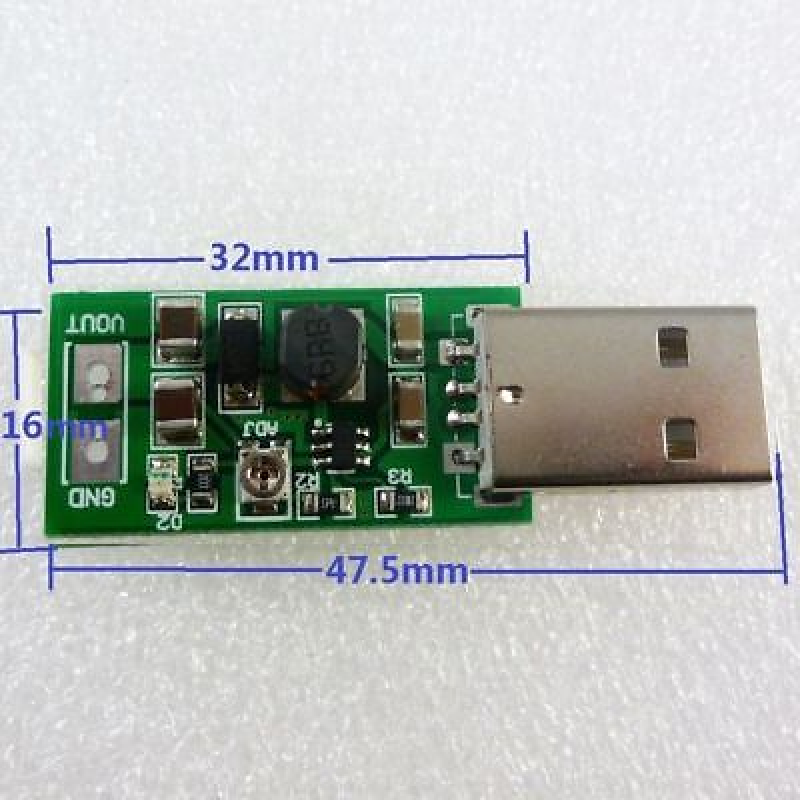

Size 47.5mm x 16mm
Weight : about 4.5g(light)
Applications:
6-15V Low Power Motor
6-15V LED Lighting
Hard drive power supply
9V 12V 15V Routers and network equipment
Wireless communication equipment
315M 433M Wireless remote controller
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
