6 Buttons or 8 Buttons Large Power DC9V EV1527 Fixed code Remote 433.92MHz
6 Buttons or 8 Buttons Large Power DC9V EV1527 Fixed code Remote 433.92MHz
SKU:TB427
2000 in stock
Regular price
$9.99
Regular price
$9.99
Sale price
$9.99
Unit price
per
Couldn't load pickup availability
Below item is powered by Canton-electronics Ltd .
Qty : 1 pcs 8Button / 6Button Fixed code remote ;
Features / Specifications :

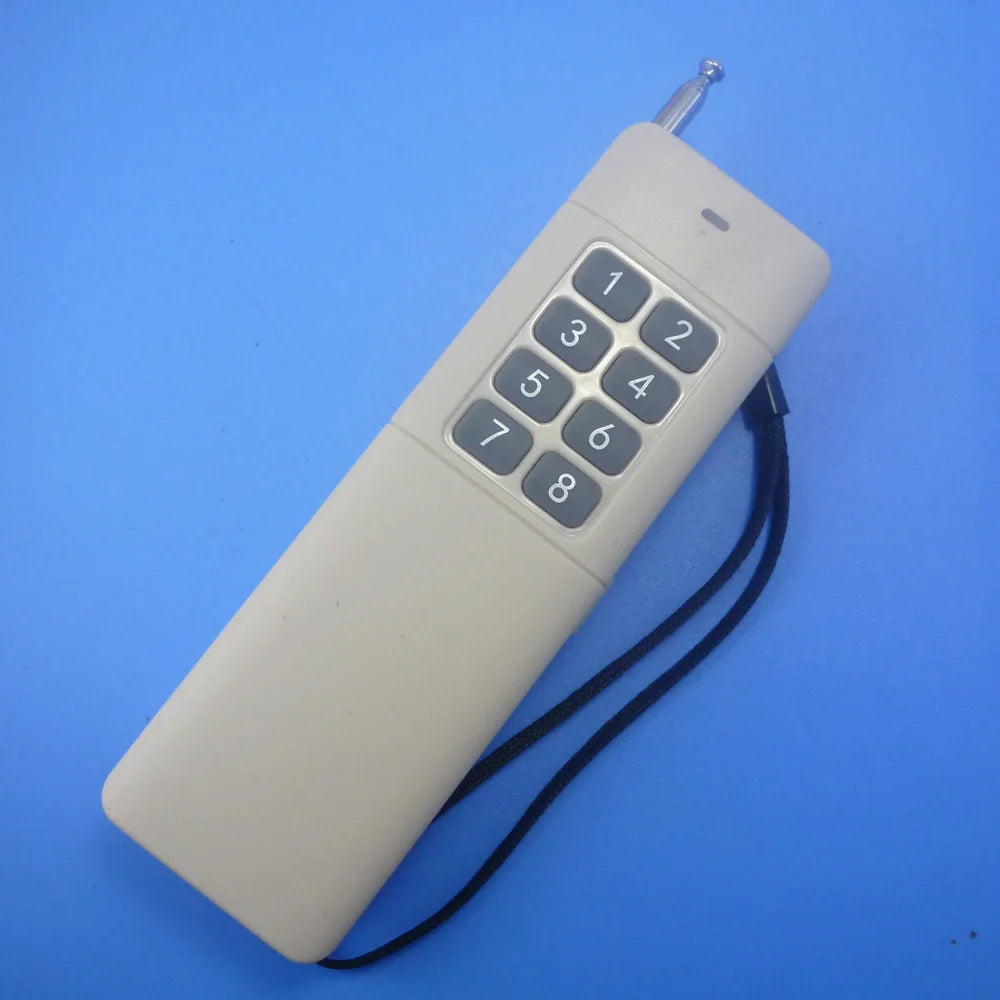

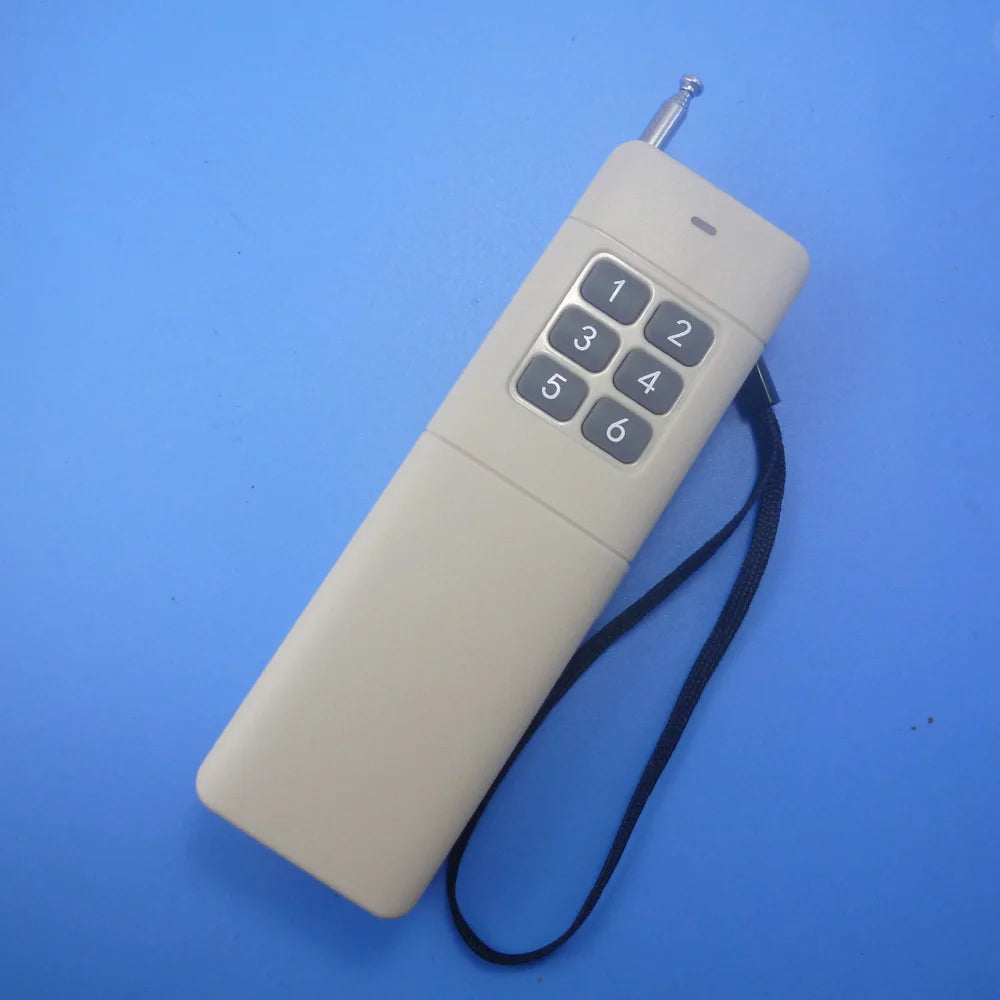

1. 8 buttons;or 6 buttons
2. High stability, SMT chip, frequency stabilization SAW, ultra-high-frequency transistor;
3: Large power;
Technical Data :
Transmitter Module No.: TB428;

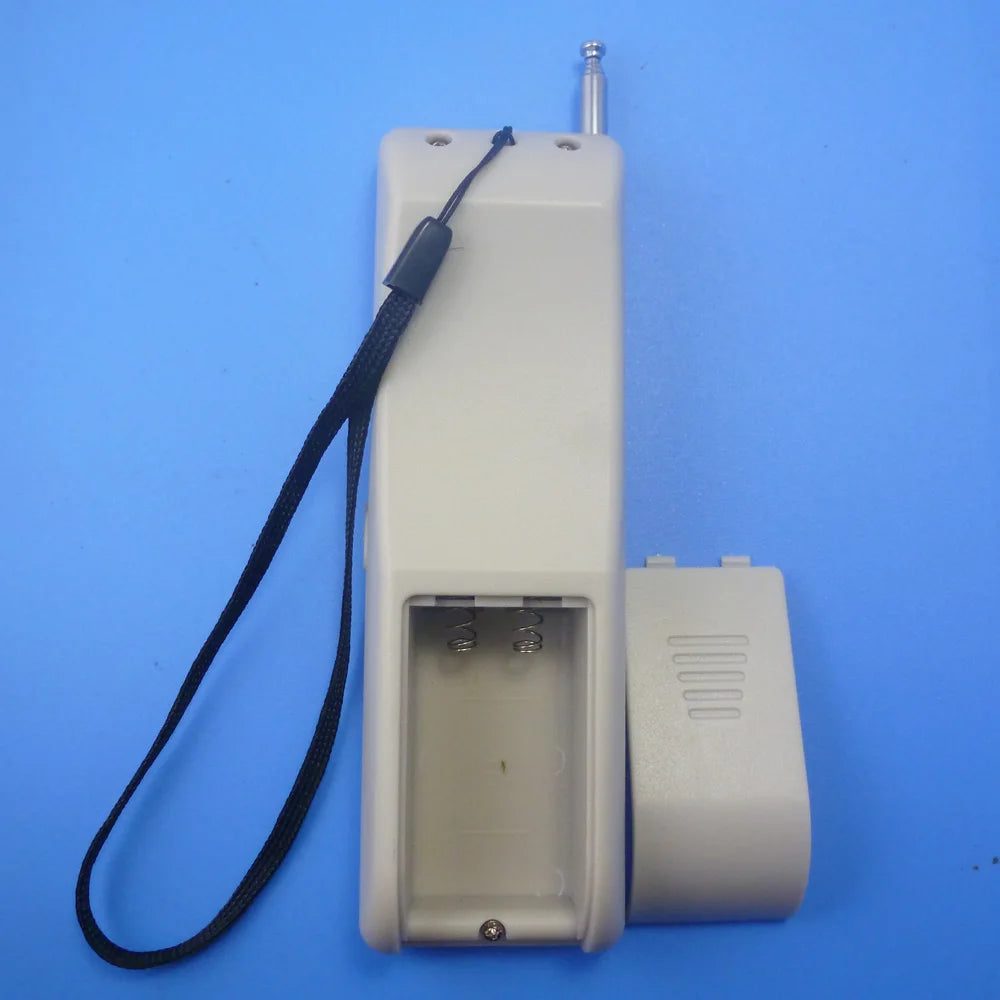

Power supply : DC9V 6F22 battery
(not included )
,
Oscillation mode: SAW resonator;
Modulation mode:ASK/OOK AM ;
Operating frequency:433.92MHZ ;
Encoding format: EV1527 ;
RC Resistance : 330K;
Standby current: 0mA
Working current:> 80mA
Transfer rate: <10Kbps
Operating temperature: -10 ~ + 70
Size: 136 * 42.2 * 25mm

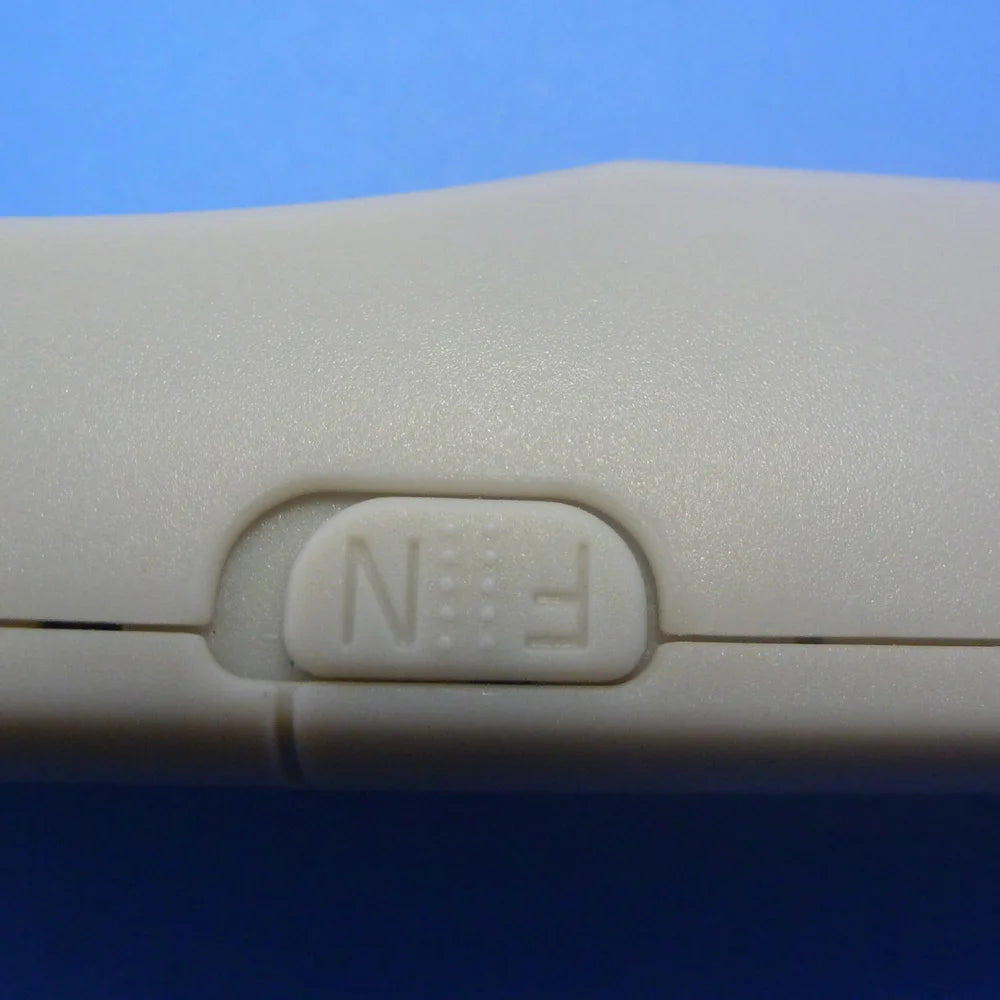

power switch: the remote control can be turned off when not in use for power saving.
Remote distance
We are talking about remote control distance transmitter / receiver module to work alone, and are connected with one quarter of the wavelength of the metal antenna, and in a vertical state operation at rated conditions in open ground straight line measured maximum distance decoding, general , a high-power transmitter module straight road in the city a distance of 1 kilometer. Since the work within the UHF band electromagnetic wave propagation along a straight line, an obstacle will be a drastic attenuation, remote control distance shortened significantly, it should be used to avoid obstacles, or try to stand tall antenna.
